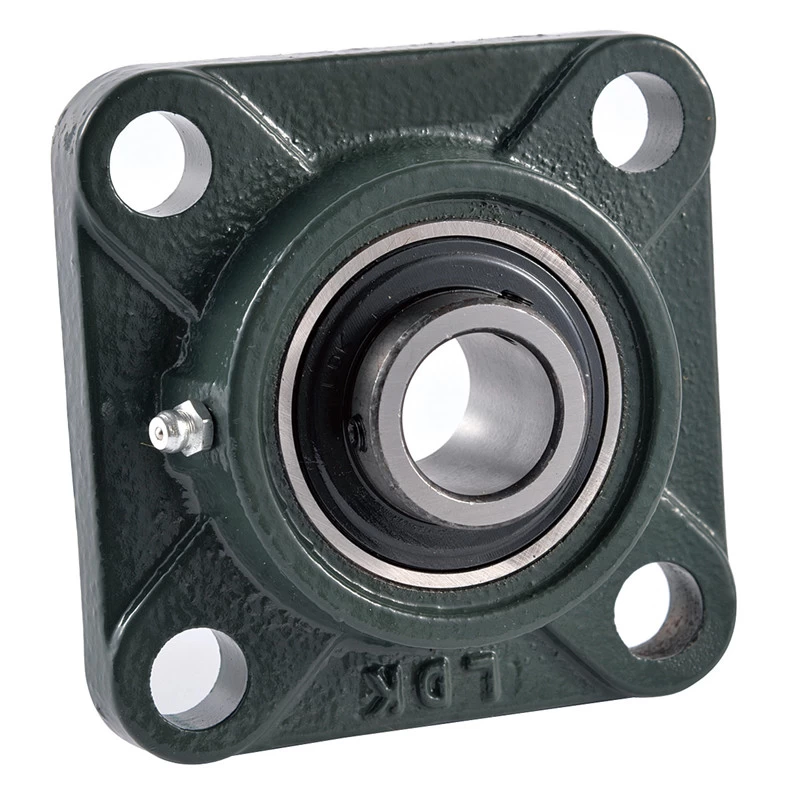

Unit No.
|
Shaft Dia
|
Dimensions (mm)
|
Bolt Size (mm)
|
Weight (kg)
|
|

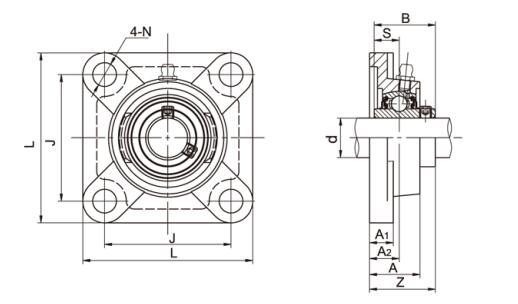

d
|
L
|
J
|
A2
|
A1
|
A
|
N
|
B
|
s
|
z
|
|
(in)
|
(mm)
|
|
UCFX05
|
|
25
|
108
|
83
|
18
|
13
|
30
|
12
|
38.1
|
15.9
|
40.2
|
M10
|
1.0
|
|
UCFX05-13
|
13/16
|
|
108
|
83
|
18
|
13
|
30
|
12
|
38.1
|
15.9
|
40.2
|
M10
|
1.0
|
|
UCFX05-14
|
7/8
|
|
108
|
83
|
18
|
13
|
30
|
12
|
38.1
|
15.9
|
40.2
|
M10
|
1.0
|
|
UCFX05-15
|
15/16
|
|
108
|
83
|
18
|
13
|
30
|
12
|
38.1
|
15.9
|
40.2
|
M10
|
1.0
|
|
UCFX05-16
|
1
|
|
108
|
83
|
18
|
13
|
30
|
12
|
38.1
|
15.9
|
40.2
|
M10
|
1.0
|
|
UCFX06
|
|
30
|
117
|
92
|
19
|
14
|
34
|
16
|
42.9
|
17.5
|
44.4
|
M14
|
1.7
|
|
UCFX06-17
|
1-1/16
|
|
117
|
92
|
19
|
14
|
34
|
16
|
42.9
|
17.5
|
44.4
|
M14
|
1.7
|
|
UCFX06-18
|
1-1/8
|
|
117
|
92
|
19
|
14
|
34
|
16
|
42.9
|
17.5
|
44.4
|
M14
|
1.7
|
|
UCFX06-19
|
1-3/16
|
|
117
|
92
|
19
|
14
|
34
|
16
|
42.9
|
17.5
|
44.4
|
M14
|
1.7
|
|
UCFX06-20
|
1-1/4
|
|
117
|
92
|
19
|
14
|
34
|
16
|
42.9
|
17.5
|
44.4
|
M14
|
1.7
|
|
UCFX07
|
|
35
|
130
|
101.5
|
21
|
14
|
38
|
16
|
49.2
|
19
|
51.2
|
M14
|
2.1
|
|
UCFX07-21
|
1-5/16
|
|
130
|
101.5
|
21
|
14
|
38
|
16
|
49.2
|
19
|
51.2
|
M14
|
2.1
|
|
UCFX07-22
|
1-3/8
|
|
130
|
101.5
|
21
|
14
|
38
|
16
|
49.2
|
19
|
51.2
|
M14
|
2.1
|
|
UCFX07-23
|
1-7/16
|
|
130
|
101.5
|
21
|
14
|
38
|
16
|
49.2
|
19
|
51.2
|
M14
|
2.1
|
|
UCFX08
|
|
40
|
137
|
105
|
22
|
14
|
40
|
19
|
49.2
|
19
|
52.2
|
M16
|
2.4
|
|
UCFX08-24
|
1-1/2
|
|
137
|
105
|
22
|
14
|
40
|
19
|
49.2
|
19
|
52.2
|
M16
|
2.4
|
|
UCFX08-25
|
1-9/16
|
|
137
|
105
|
22
|
14
|
40
|
19
|
49.2
|
19
|
52.2
|
M16
|
2.4
|
|
UCFX09
|
|
45
|
143
|
111
|
23
|
14
|
40
|
19
|
51.6
|
19
|
55.6
|
M16
|
2.5
|
|
UCFX09-26
|
1-5/8
|
|
143
|
111
|
23
|
14
|
40
|
19
|
51.6
|
19
|
55.6
|
M16
|
2.5
|
|
UCFX09-27
|
1-11/16
|
|
143
|
111
|
23
|
14
|
40
|
19
|
51.6
|
19
|
55.6
|
M16
|
2.5
|
|
UCFX09-28
|
1-3/4
|
|
143
|
111
|
23
|
14
|
40
|
19
|
51.6
|
19
|
55.6
|
M16
|
2.5
|
|
UCFX09-29
|
1-13/16
|
|
143
|
111
|
23
|
14
|
40
|
19
|
51.6
|
19
|
55.6
|
M16
|
2.5
|
|
UCFX10
|
|
50
|
162
|
130
|
26
|
20
|
44
|
19
|
55.6
|
22.2
|
59.4
|
M16
|
3.9
|
|
UCFX10-30
|
1-7/8
|
|
162
|
130
|
26
|
20
|
44
|
19
|
55.6
|
22.2
|
59.4
|
M16
|
3.9
|
|
UCFX10-31
|
1-15/16
|
|
162
|
130
|
26
|
20
|
44
|
19
|
55.6
|
22.2
|
59.4
|
M16
|
3.9
|
|
UCFX10-32
|
2
|
|
162
|
130
|
26
|
20
|
44
|
19
|
55.6
|
22.2
|
59.4
|
M16
|
3.9
|
|
UCFX11
|
|
55
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX11-33
|
2-1/16
|
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX11-34
|
2-1/8
|
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX11-35
|
2-3/16
|
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX11-36
|
2-1/4
|
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX11-37
|
2-5/16
|
|
175
|
143
|
29
|
20
|
49
|
19
|
65.1
|
25.4
|
68.7
|
M16
|
4.9
|
|
UCFX12
|
|
60
|
187
|
149
|
34
|
21
|
59
|
19
|
65.1
|
25.4
|
73.7
|
M16
|
5.2
|
|
UCFX12-38
|
2-3/8
|
|
187
|
149
|
34
|
21
|
59
|
19
|
65.1
|
25.4
|
73.7
|
M16
|
5.2
|
|
UCFX12-39
|
2-7/16
|
|
187
|
149
|
34
|
21
|
59
|
19
|
65.1
|
25.4
|
73.7
|
M16
|
5.2
|
|
UCFX13
|
|
65
|
187
|
149
|
34
|
21
|
59
|
19
|
74.6
|
30.2
|
78.4
|
M16
|
5.3
|
|
UCFX13-40
|
2-1/2
|
|
187
|
149
|
34
|
21
|
59
|
19
|
74.6
|
30.2
|
78.4
|
M16
|
5.3
|
|
UCFX13-41
|
2-9/16
|
|
187
|
149
|
34
|
21
|
59
|
19
|
74.6
|
30.2
|
78.4
|
M16
|
5.3
|
|
UCFX14
|
|
70
|
197
|
152
|
37
|
24
|
60
|
23
|
77.8
|
33.3
|
81.5
|
M20
|
7.3
|
|
UCFX14-42
|
2-5/8
|
|
197
|
152
|
37
|
24
|
60
|
23
|
77.8
|
33.3
|
81.5
|
M20
|
7.3
|
|
UCFX14-43
|
2-11/16
|
|
197
|
152
|
37
|
24
|
60
|
23
|
77.8
|
33.3
|
81.5
|
M20
|
7.3
|
|
UCFX14-44
|
2-3/4
|
|
197
|
152
|
37
|
24
|
60
|
23
|
77.8
|
33.3
|
81.5
|
M20
|
7.3
|
|
UCFX15
|
|
75
|
197
|
152
|
40
|
24
|
68
|
23
|
82.6
|
33.3
|
89,3
|
M20
|
8,1
|
|
UCFX15-45
|
2-13/16
|
|
197
|
152
|
40
|
24
|
68
|
23
|
82.6
|
33.3
|
89,3
|
M20
|
8,1
|
|
UCFX15-46
|
2-7/8
|
|
197
|
152
|
40
|
24
|
68
|
23
|
82.6
|
33.3
|
89,3
|
M20
|
8,1
|
|
UCFX15-47
|
2-15/16
|
|
197
|
152
|
40
|
24
|
68
|
23
|
82.6
|
33.3
|
89,3
|
M20
|
8,1
|
|
UCFX15-48
|
3
|
|
197
|
152
|
40
|
24
|
68
|
23
|
82.6
|
33.3
|
89,3
|
M20
|
8,1
|
|
UCFX16
|
|
80
|
214
|
171
|
40
|
24
|
70
|
23
|
85.7
|
34.1
|
91.6
|
M20
|
9.9
|
|
UCFX16-49
|
3-1/16
|
|
214
|
171
|
40
|
24
|
70
|
23
|
85.7
|
34.1
|
91.6
|
M20
|
9.9
|
|
UCFX16-50
|
3-1/8
|
|
214
|
171
|
40
|
24
|
70
|
23
|
85.7
|
34.1
|
91.6
|
M20
|
9.9
|
|
UCFX16-51
|
3-3/16
|
|
214
|
171
|
40
|
24
|
70
|
23
|
85.7
|
34.1
|
91.6
|
M20
|
9.9
|
|
UCFX16-52
|
3-1/4
|
|
214
|
171
|
40
|
24
|
70
|
23
|
85.7
|
34.1
|
91.6
|
M20
|
9.9
|
|
UCFX17
|
|
85
|
214
|
171
|
40
|
24
|
70
|
23
|
96
|
39.7
|
96.3
|
M20
|
11
|
|
UCFX17-53
|
3-5/16
|
|
214
|
171
|
40
|
24
|
70
|
23
|
96
|
39.7
|
96.3
|
M20
|
11
|
|
UCFX17-55
|
3-7/16
|
|
214
|
171
|
40
|
24
|
70
|
23
|
96
|
39.7
|
96.3
|
M20
|
11
|
Notes:Bearing housing solid base optional,add suffix SB as designation.
