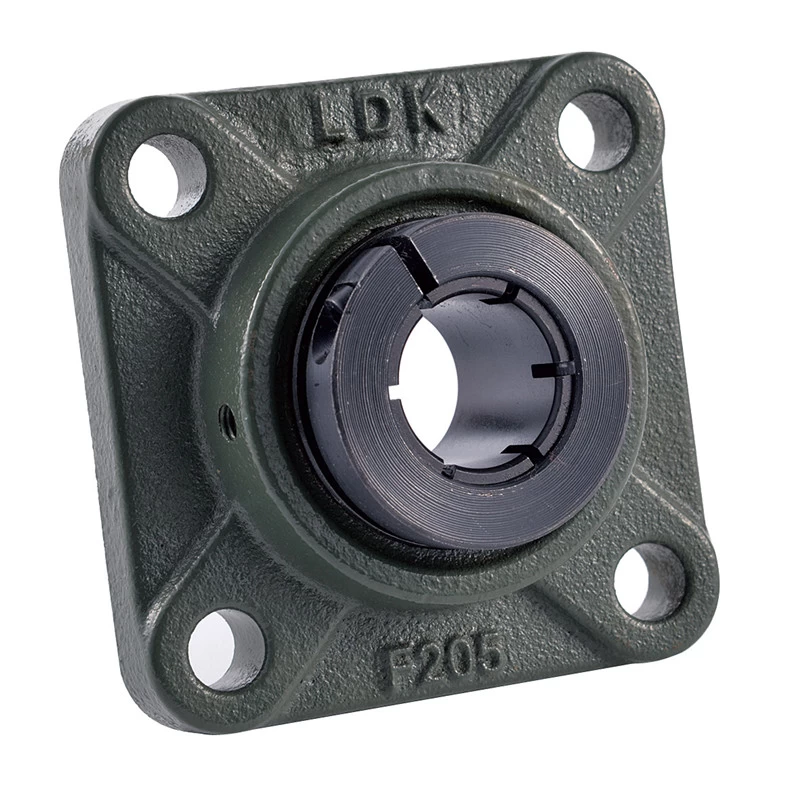

4-Bolt Flange Bearing Units UEF2

UEF Standard duty,Wider inner ring bearing, Concentric locking

,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.

Description

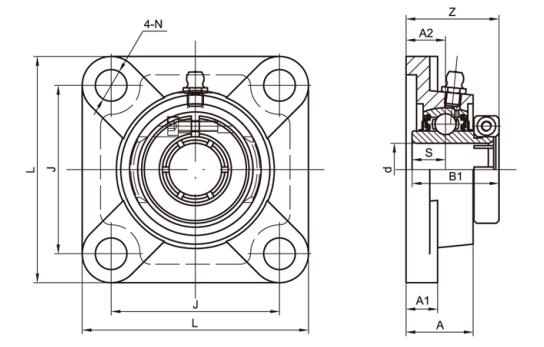

Unit No.	Shaft Dia		Dimensions(mm)									Bolt Size (mm)	Weight (kg)
	d		L	J	A2	A1	A	N	B1	S	Z
	(in)	(mm)	L	J	A2	A1	A	N	B1	S	Z
UEF204		20	86	64	15	12	25.5	12	33	12.7	35.3	M10	0.63
UEF204-12	3/4		86	64	15	12	25.5	12	33	12.7	35.3	M10	0.63
UEF205		25	95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-14	7/8		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-15	15/16		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF205-16	1		95	70	16	14	27	12	35.4	14.3	37.1	M10	0.83
UEF206		30	108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-17	1-1/16		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-18	1-1/8		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-19	1-3/16		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF206-20	1-1/4		108	83	18	14	31	12	39.8	15.9	41.9	M10	1.18
UEF207		35	117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-20	1-1/4		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-21	1-5/16		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-22	1-3/8		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF207-23	1-7/16		117	92	19	16	34	14	43.9	17.5	45.4	M12	1.52
UEF208		40	130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF208-24	1-1/2		130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF208-25	1-9/16		130	102	21	16	36	16	50.2	19	52.2	M14	1.94
UEF209		45	137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-26	1-5/8		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-27	1-11/16		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF209-28	1-3/4		137	105	22	18	38	16	50.2	19	53.2	M14	2.41
UEF210		50	143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-30	1-7/8		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-31	1-15/16		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF210-32	2		143	111	22	18	40	16	52.6	19	55.6	M14	2.66
UEF211		55	162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-32	2		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-34	2-1/8		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF211-35	2-3/16		162	130	25	20	43	19	56.6	22.2	59.4	M16	3.73
UEF212		60	175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-36	2-1/4		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-38	2-3/8		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69
UEF212-39	2-7/16		175	143	29	20	48	19	66.6	25.4	70.2	M16	4.69

Notes:Bearing housing solid base optional,add suffix SB as designation.
