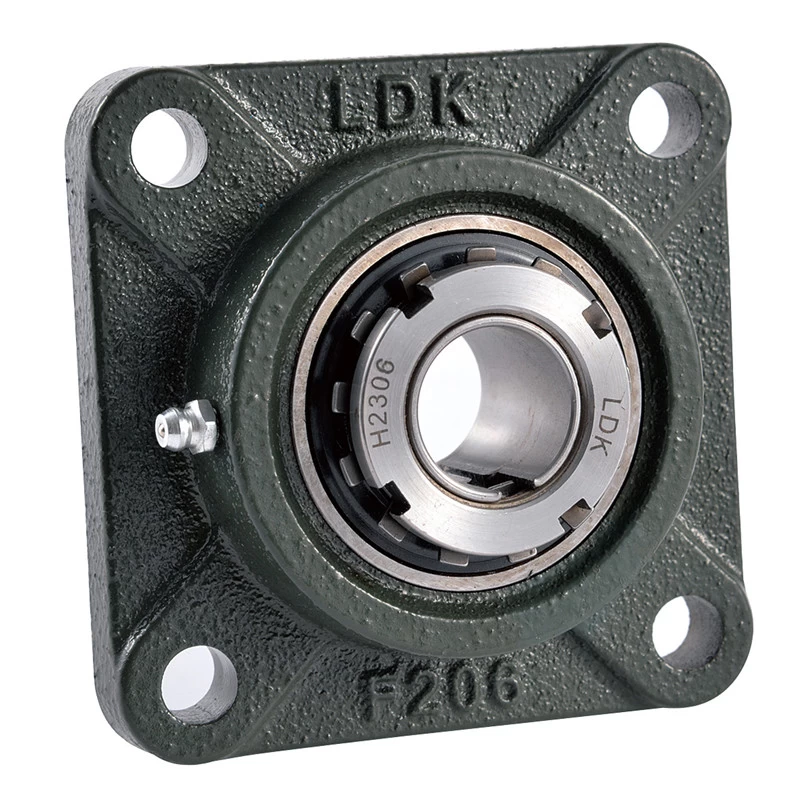

4-Bolt Flange Bearing Units UKF2

UKF+H Standard duty,Tapered bore,Adapter sleeve locking

,Cast gray iron housing .

Cast DUCTILE iron housing available upon request.


Facebook Twitter Pinterest LinkedIn 分享

4-Bolt Flange Units UKF208

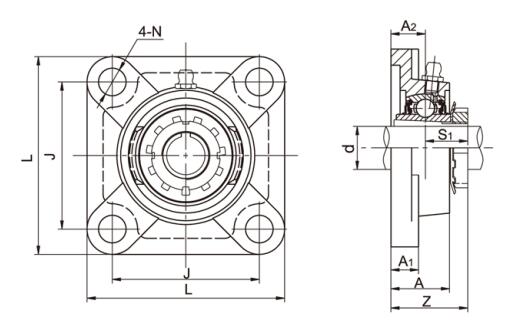

Unit No. Shaft Dia Dimensions (mm) Bolt Size (mm) Weight
d L J A2 A1 A N S1 z (kg)
  (in) (mm)
UKF205+H2305  20 95 70 16 14 27 12 18.5 34.5 M10 0.84
UKF205+HE2305 3/4   95 70 16 14 27 12 18.5 34.5 M10 0.84
UKF206+H2306   25 108 83 18 14 31 12 20.5 38.5 M10 1.1
UKF206+HS2306  7/8    108 83 18 14 31 12 20.5 38.5 M10 1.1
UKF206+HA2306 15/16   108 83 18 14 31 12 20.5 38.5 M10 1.1
UKF206+HE2306 1   108 83 18 14 31 12 20.5 38.5 M10 1.1
UKF207+H2307   30 117 92 19 16 34 14 22.5 41.5 M12 1.6
UKF207+HS2307 1-1/8   117 92 19 16 34 14 22.5 41.5 M12 1.6
UKF207+HA2307 1-3/16   117 92 19 16 34 14 22.5 41.5 M12 1.6
UKF208+H2308   35 130 102 21 16 36 16 24.5 45.5 M14 1.9
UKF208+HE2308 1-1/4   130 102 21 16 36 16 24.5 45.5 M14 1.9
UKF208+HS2308 1-3/8   130 102 21 16 36 16 24.5 45.5 M14 1.9
UKF209+H2309   40 137 105 22 18 38 16 26 48 M14 2.3
UKF209+HA2309 1-7/16   137 105 22 18 38 16 26 48 M14 2.3
UKF209+HE2309 1-1/2   137 105 22 18 38 16 26 48 M14 2.3
UKF210+H2310   45 143 111 22 18 40 16 27.5 49.5 M14 2.6
UKF210+HS2310  1-5/8    143 111 22 18 40 16 27.5 49.5 M14 2.6
UKF210+HA2310 1-11/16   143 111 22 18 40 16 27.5 49.5 M14 2.6
UKF210+HE2310 1-3/4   143 111 22 18 40 16 27.5 49.5 M14 2.6
UKF211+H2311   50 162 130 25 20 43 19 28.5 53.5 M16 3.4
UKF211+HS2311  1-7/8    162 130 25 20 43 19 28.5 53.5 M16 3.4
UKF211+HA2311 1-15/16   162 130 25 20 43 19 28.5 53.5 M16 3.4
UKF211+HE2311 2   162 130 25 20 43 19 28.5 53.5 M16 3.4
UKF212+H2312  55 175 143 29 20 48 19 31 60 M16 4.1
UKF212+HS2312 2-1/8   175 143 29 20 48 19 31 60 M16 4.1
UKF213+H2313   60 187 149 30 22 50 19 32 62 M16 5.5
UKF213+HA2313  2-3/16    187 149 30 22 50 19 32 62 M16 5.5
UKF213+HE2313 2-1/4   187 149 30 22 50 19 32 62 M16 5.5
UKF213+HS2313 2-3/8   187 149 30 22 50 19 32 62 M16 5.5
UKF215+H2315   65 200 159 34 22 56 19 35.5 69.5 M16 6.7
UKF215+HA2315 2-7/16   200 159 34 22 56 19 35.5 69.5 M16 6.7
UKF215+HE2315 2-1/2   200 159 34 22 56 19 35.5 69.5 M16 6.7
UKF216+H2316   70 208 165 34 22 58 23 39 73 M20 7.5
UKF216+HA2316 2-11/16   208 165 34 22 58 23 39 73 M20 7.5
UKF216+HE2316 2-3/4   208 165 34 22 58 23 39 73 M20 7.5
UKF217+H2317   75 220 175 36 24 63 23 40 76 M20 9.1
UKF217+HA2317 2-15/16   220 175 36 24 63 23 40 76 M20 9.1
UKF217+HE2317 3   220 175 36 24 63 23 40 76 M20 9.1
UKF218+H2318   80 235 187 40 25 68 23 42 82 M20 11.8


Notes:Bearing housing solid base optional,add suffix SB as designation.
