Shielded Cables suitables for power installation, fixed wiring or flexible connection for electrical appliance with rated volateg ups to 300/300V 300/500V 457/750V.

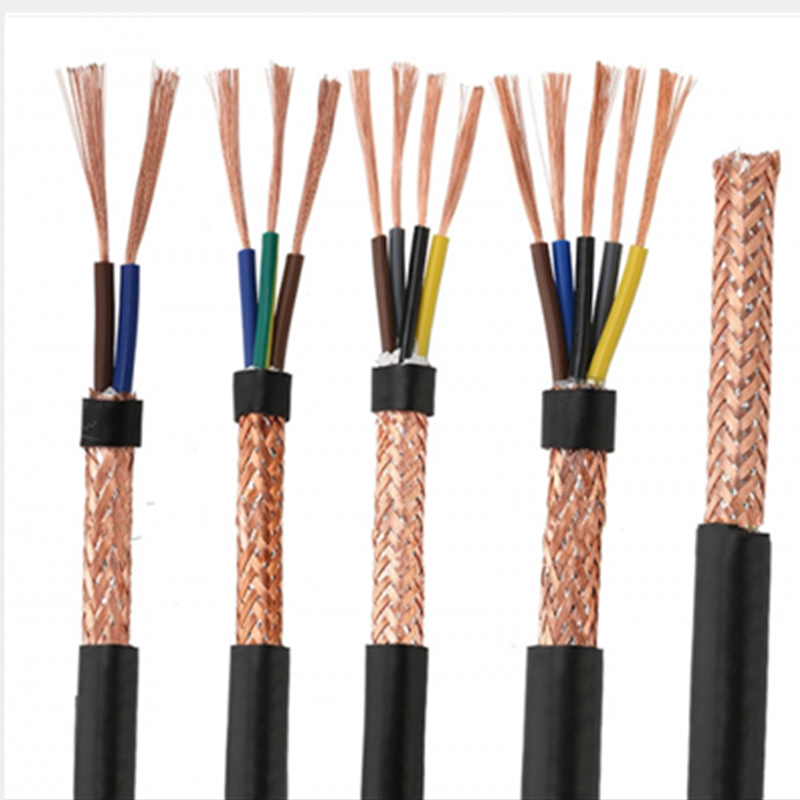

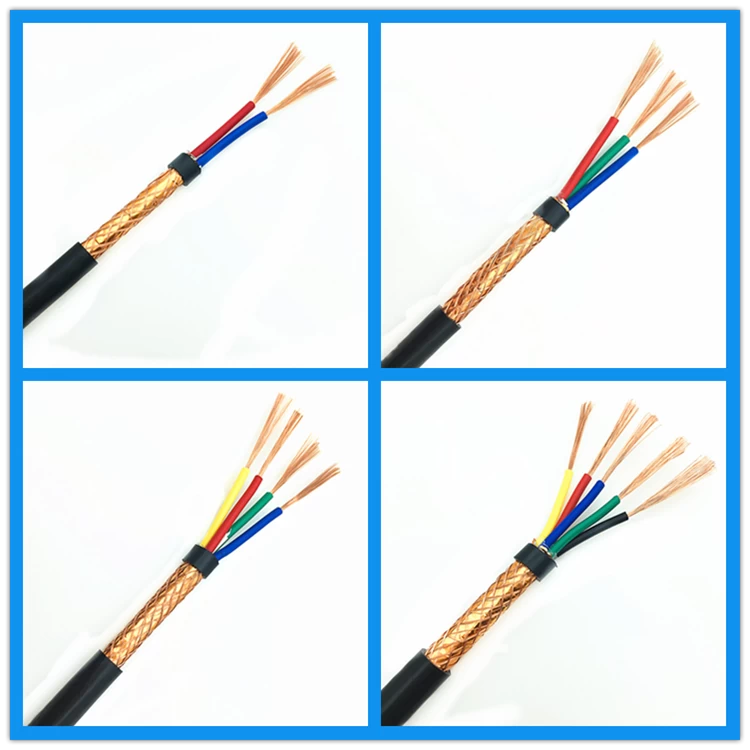

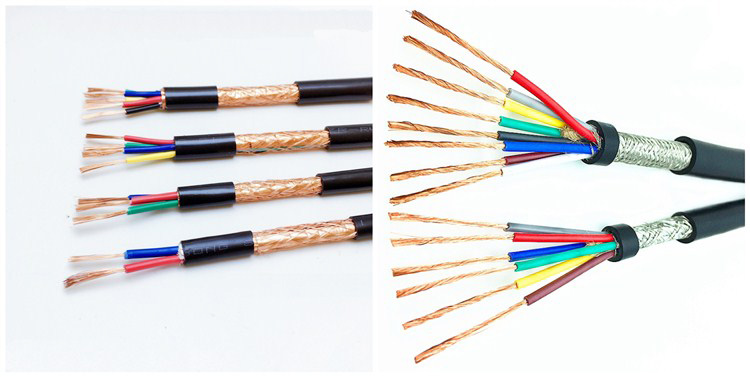

4 Cores Electric Equipment Screened Shielded Cables
Standard
The Cables are manufactured according to the standards of VDE Europe, GB 5023-1997 and JB 8734-1998 or IEC, BS, DIN and ICEA upon request.
Construction of PVC Sheathed Flexible Control Cable :
Rated Voltage: U0/U: 450/750V 300/500V and 300/300V
Max.Permission continuous operating temperature of the conductor: 90C
The ambient temperature under installation shall bot below 0C
The radius of cable: O.D >25mm, Bedius> 6D; O.D<25mm, Radius>4D.
Conductor: bare copper strands/Solid with reference to DIN VDE 0812
Insulation: PVC, YI2 acc. to DIN VDE 0207 part two or more Color code: with reference to DIN 47100 Stranding: in layers
Jacket material: PVC, YM1 acc. to DIN VDE 0207 part 5
