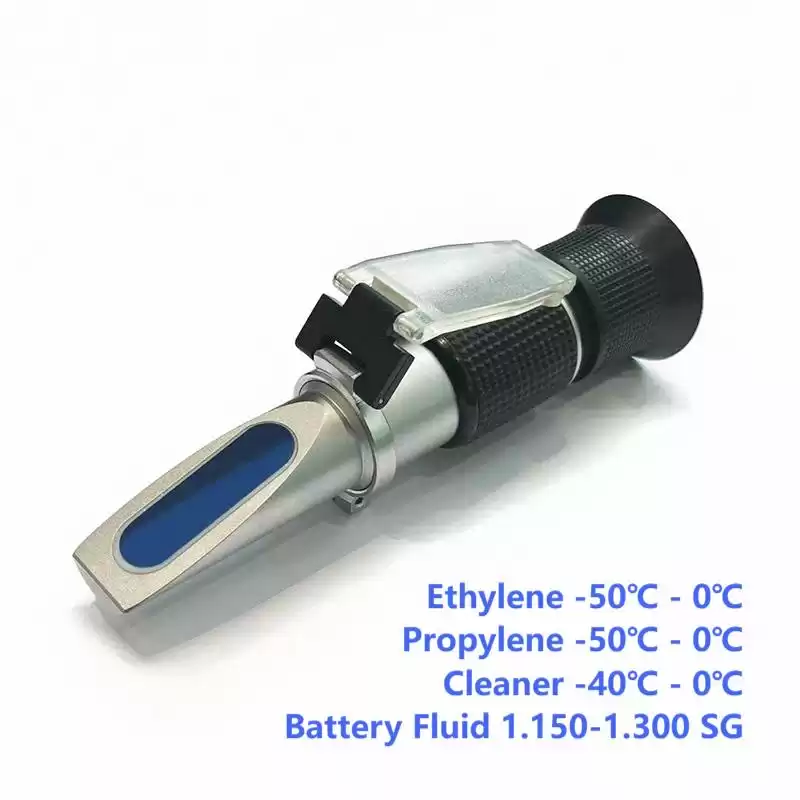

4-in-1 Coolant Refractometer ATC, Automotive Antifreeze Tester for Windshield Cleaner Battery Fluid

Product Description

The handheld coolant and battery fluid refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

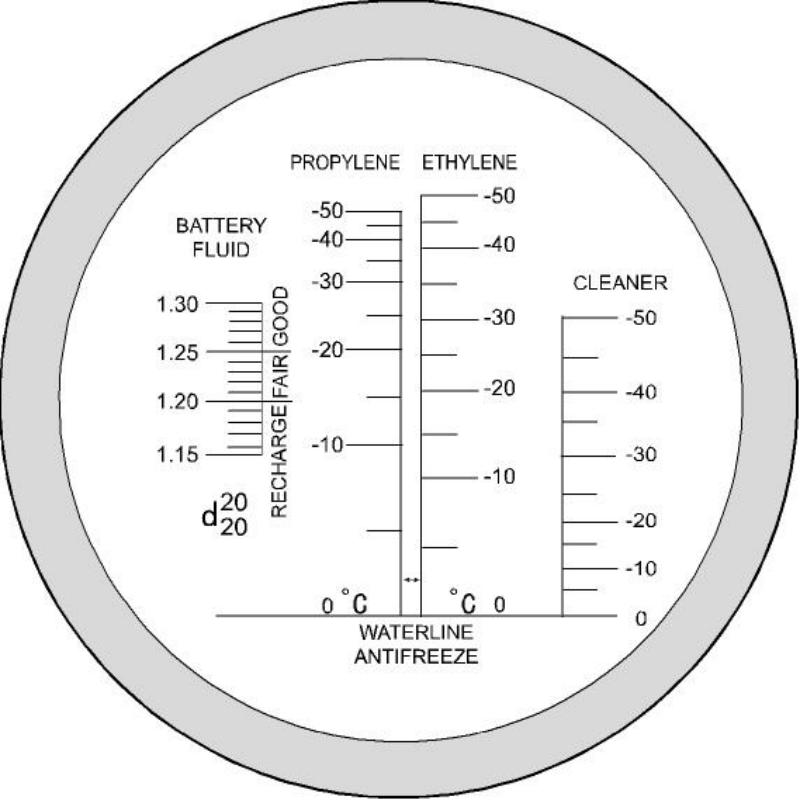

The RHA-403A handheld antifreeze and Battery acid refractometer has three functions:

1. It measures the freezing point temperature (in ℃) of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the tested solution starts to freeze.
2. It measures the freezing point temperature of automotive windshield cleaning fluid.
3. It measures the specific gravity (SG) of battery fluid. Specific gravity is the density ratio of battery fluid to water, used to indicate the charging state of lead - acid batteries. The higher the specific gravity value, the more fully charged the battery is.

Product Features

3-in-1 Fluid Testing Tool

 Designed to measure coolant freezing point, washer fluid performance, and battery fluid SG—offering complete vehicle fluid diagnostics in one compact device.



Automatic Temperature Compensation

 Delivers reliable readings without manual adjustments across varying temperatures.

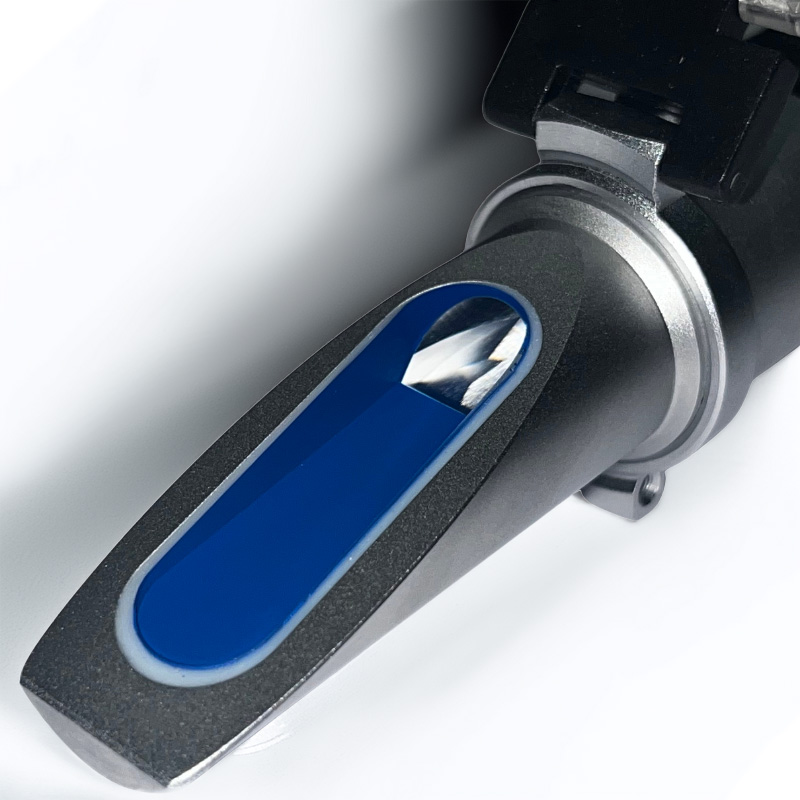

Crown Glass Prism

 Enhances optical precision by reducing refractive distortion, ensuring sharp and accurate scale readings.



Copper Alloy Construction

 Strong and thermally stable for consistent accuracy in workshop and field conditions.







Typical Applications

- Automotive Repair & Maintenance

 Used in routine inspections by technicians to verify the condition of key automotive fluids.

- Fleet and Equipment Servicing

 Monitor fluid performance across commercial vehicles, buses, agricultural equipment, and construction machinery.

- Battery Maintenance

 Evaluate the specific gravity of battery electrolyte to assess charge level and overall battery condition.







Product Parameters

Model	RHA-403A
Net Weight	0.24kg
Length	157mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
