4 in 1 Portable Coolant Refractometer ATC, Automotive Antifreeze Tester for Coolant, Windshield Cleaner, Battery Fluid

Product Description

The handheld coolant, battery fluid, and windshield cleaner refractometer is widely used in car maintenance, repair workshops, and battery servicing. This tool helps ensure proper coolant protection in cold climates and accurate assessment of lead-acid battery charge levels.

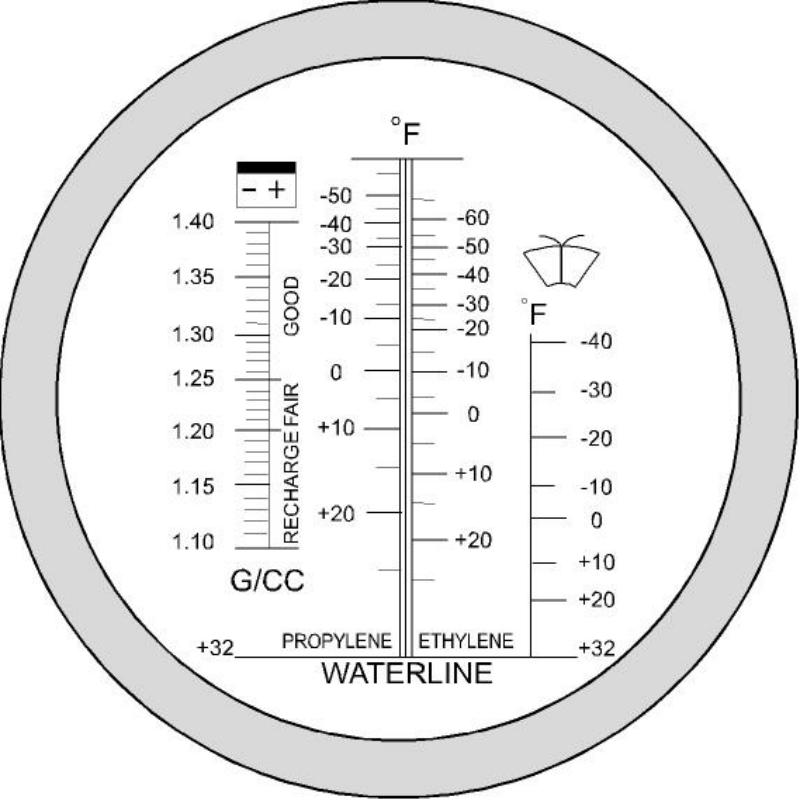

The RHA-503FA handheld antifreeze and Battery acid refractometer has three functions:

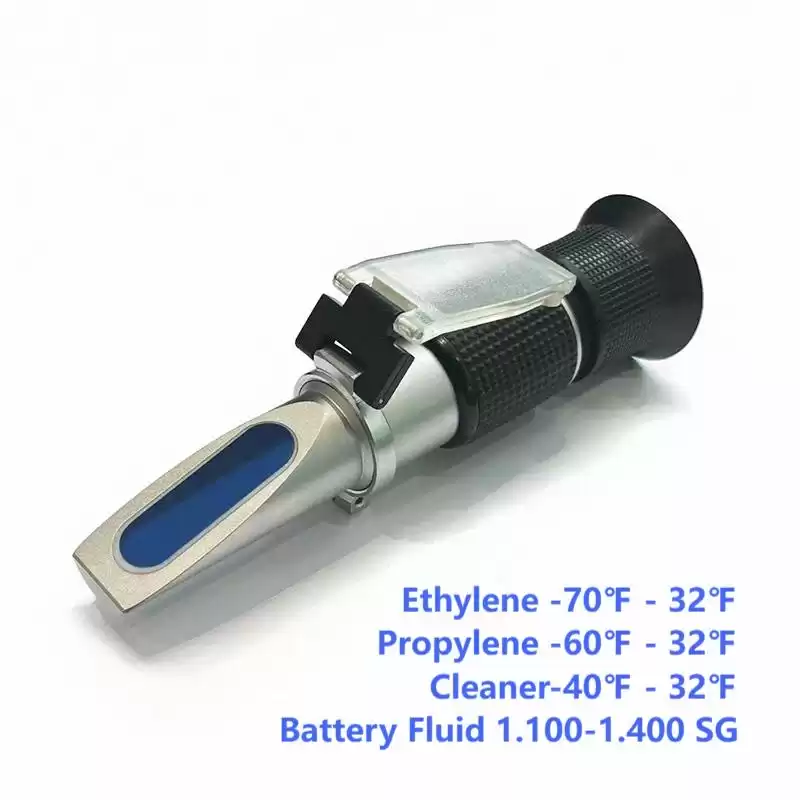

1. It measures the freezing point temperature (in ℉) of ethylene glycol or propylene glycol - based automotive antifreeze. The reading indicates the temperature at which the tested solution starts to freeze.
2. It measures the freezing point temperature of windshield cleaning fluid. The reading indicates the temperature at which the tested solution starts to freeze.
3. It measures the specific gravity (SG) of battery fluid. Specific gravity is the density ratio of battery fluid to water, used to indicate the charging state of lead - acid batteries. The higher the specific gravity value, the more fully charged the battery is.

Product Features

Multi-Fluid Testing in °F

 Measures freezing point of ethylene glycol, propylene glycol, and windshield washer fluid, plus battery fluid SG—all in one tool.



Durable Copper Construction

 Copper alloy body ensures long-term accuracy and thermal stability in tough environments.



Automatic Temperature Compensation (ATC)

 Delivers accurate results without manual adjustment under changing ambient temperatures.



Crown Glass Prism

 Provides high optical clarity for precise, easy-to-read measurements.



Typical Applications

- Coolant System Maintenance

 Check the freezing point of ethylene or propylene glycol coolants to ensure proper protection in extreme temperatures.

- Windshield Washer Fluid Testing

 Verify the freezing point of windshield cleaner to prevent system damage in cold climates.

- Battery Health Diagnostics

 Measure the specific gravity of battery fluid to assess charge level and overall condition.





Product Parameters

Model	RHA-503FA
Net Weight	0.24kg
Length	153mm
Diameter	29mm
Temperature Range	10℃ to 30℃ with ATC 20℃ without ATC
