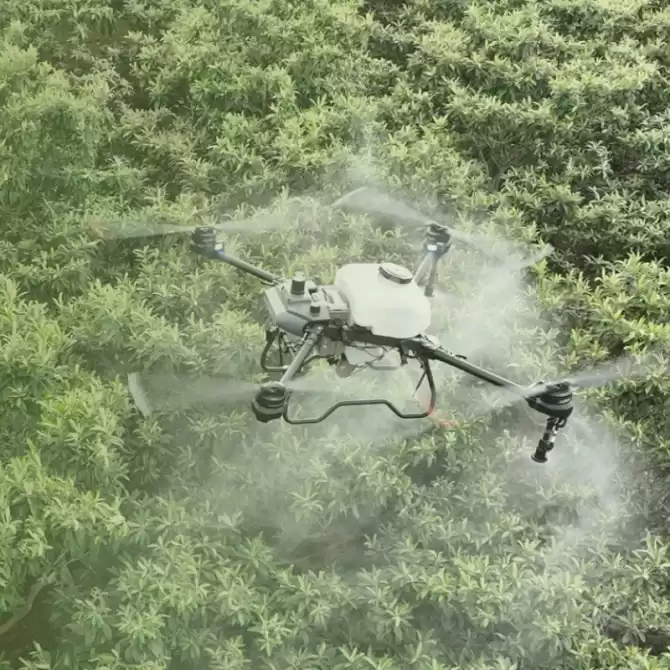

Agricultural drones use multiple safety strategies and higher protection levels to ensure stable operation and operator safety in various operating environments. They use a mobile integrated take-off and landing platform to adapt to farmlands of various sizes, making them an efficient, intelligent and safe choice in agricultural production.
Large load capacity and large flow design make operation more efficient
20L/min large flow rate, 65kg large load design
Meet the needs of high-frequency, high-intensity all-weather operations and improve operating efficiency
One machine for multiple uses

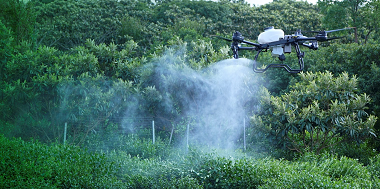

Suitable for spraying, spreading, transportation, aerial survey and other operations
High security, high reliability
The whole machine body is made of 7 series high-strength aluminum alloy, which is fatigue-resistant and more solid.
The new generation of flight control avionics technology, equipped with powerful computing power, accurately measures the aircraft's position and attitude

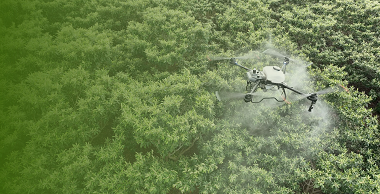

Precise operation, support for terrain-following flight
Equipped with 5-way millimeter-wave radar obstacle avoidance system and dual-channel visual obstacle avoidance system, with an obstacle avoidance distance of up to 35 meters
Equipped with a large-angle ground-following radar, which supports up to 45-degree ground-following flight
Strong power, higher protection level
New upgraded power motor, 250A multi-directional heat dissipation ESC, 56-inch propeller and unique wave-shaped variable cross-section technology
IPX6 protection body, anti-corrosion, the whole machine can be washed under high pressure, maintenance is more convenient
Performance indicators:
Dimensions: 2930×3260×830 mm (unfolded)
1100×830×830 mm (folded)
Machine weight: 42kg 56kg
Maximum take-off weight (spraying)
111 kg (sea level, 2 nozzles + 50L operation box)
120 kg (sea level, fruit tree kit, 2 nozzles)
Maximum take-off weight (seeding): 126kg (sea level)
Rated load: 65kg
Maximum flight altitude: 30m
Maximum flight radius: 2km
Maximum flight speed: 13.8m/s
Working temperature: 0℃~55℃
Wind resistance: 6m/s
Protection level: IPX6
