40 FT 3 axles skeleton trailer with good quality

Use for transport container.

40 Tons Payload,very popular in Vietnam,Cambodia.



Item:Cheap 40 FT 3 Axles Skeleton Trailer For Sale With Good Quality


I.Application


Use for carry 20 FT container ,40 FT container and tank container.


II.Feature


1.Main frame of skeleton trailer is made of 16mm high-tensile steel,the structure is reasonable,have superior carrying capacity and no permanet deformation.

2.The axle,tire and other accessories are the well-known brand like Fuwa,Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.

3.The skeleton trailer has a steady performance,long life and excellent antiseptic performance on painting.

4.It’s optional to use foreign and domestic high-tensile steel and customized sectional materials, to reduce tare weight and promote transport efficiency.


III.Quality Guarantee

1.More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2.Two years free warranty terms for the  I beam,three to six month free warranty terms for the Axles,suspension etc.

3.Spare parts support services.

4.Able to custom-built design as your requirement,ensure to meet your local road regulation.


IV.Specification


Style 40 FT 3-axle skeletal semi-trailer
Dimension(L*W*H): 12480*2480*1570 (mm)

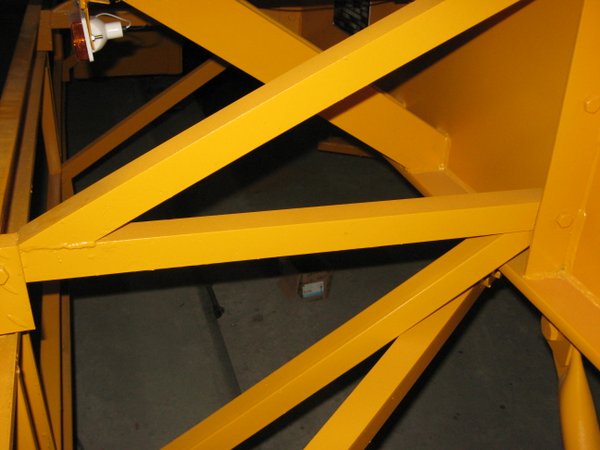

Main frame: Heavy duty and extra durability design; Opting for high tensile carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Payload(kgs): 40000
Tare weight(kgs): 6000
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19” C200T
Tire size 12R22.5 (13 sets)
Rim size 9.0*22.5 (13 sets)
Axle FUWA brand 13 ton
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Air Chamber MBA T30/30

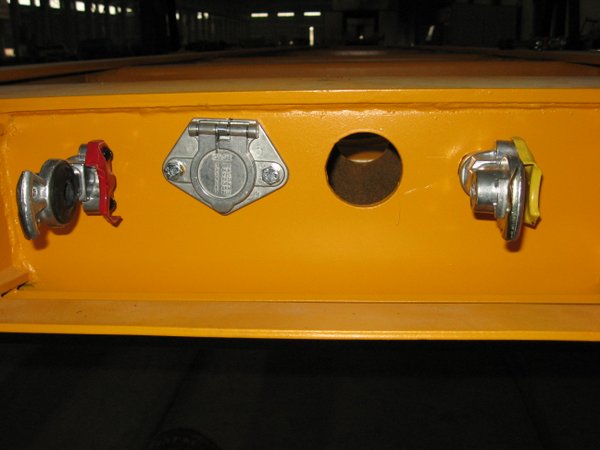

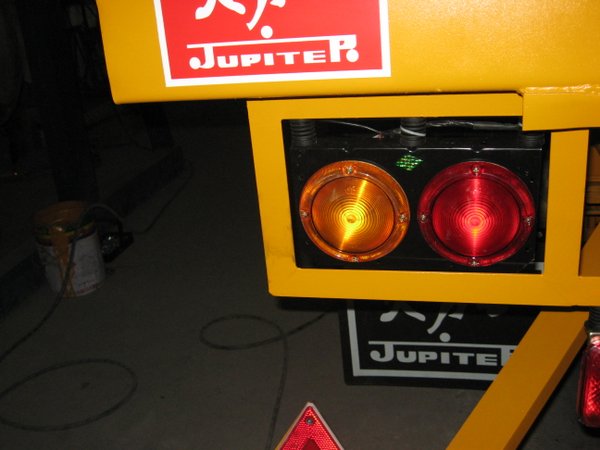

Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Suspension: Fuwa steel suspension with 9pcs of leafs spring
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting


V.Detailed Photo

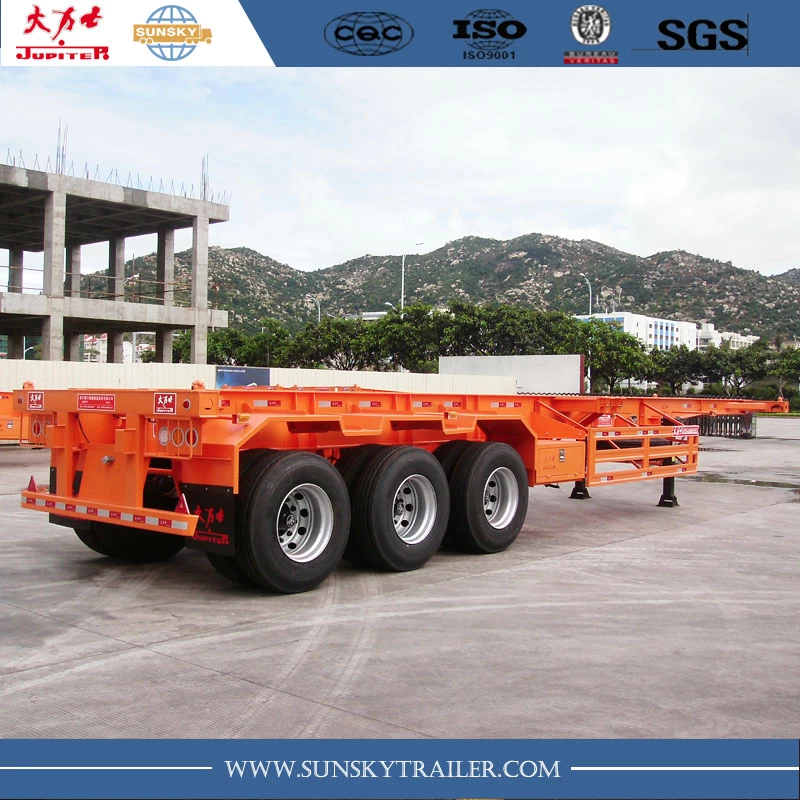

40 FT 3 Axles Skeleton Trailer

Skeleton trailer

Skeleton trailer price


VI.FAQ


1.Can you produce the skeleton trailers as clients' requirements?


A: Yes,The skeleton trailer is custom-built,we can produce them as your requirements to meet the local road regulation.



2.How do you shipping the skeleton trailers?


A:The skeleton trailers are normally transported by 40 ft container by remove a little rear part or transported by 45 ft container in whole units.If you are a foreign factory ,we can also deliver those skeleton trailers in CKD.
