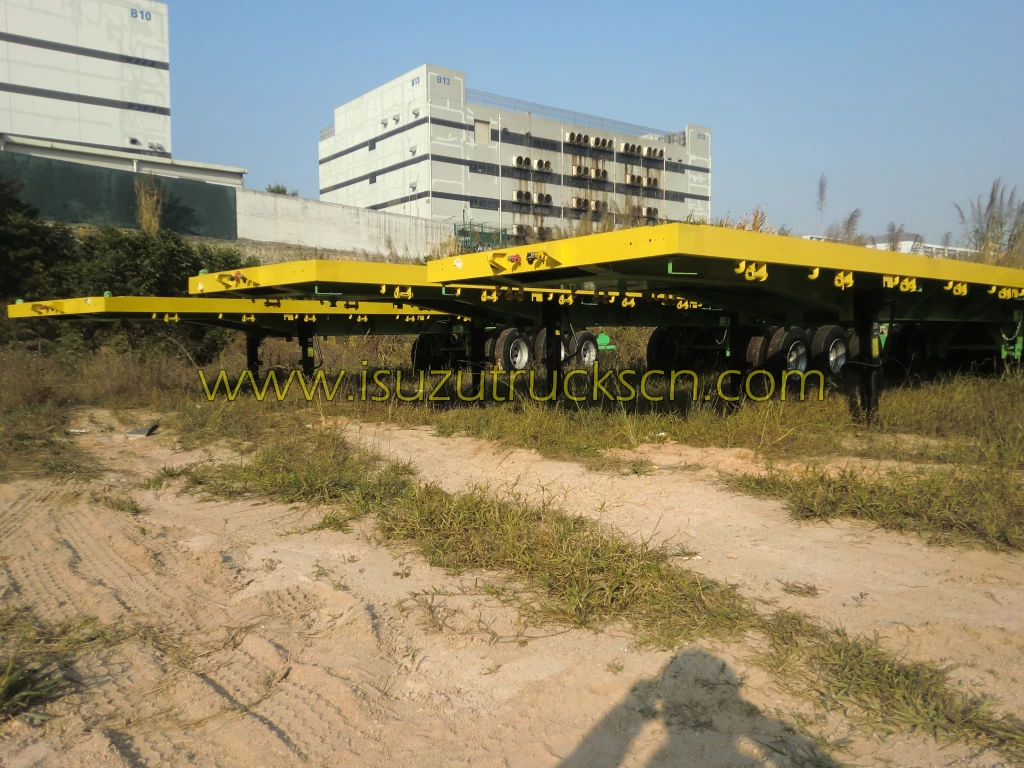

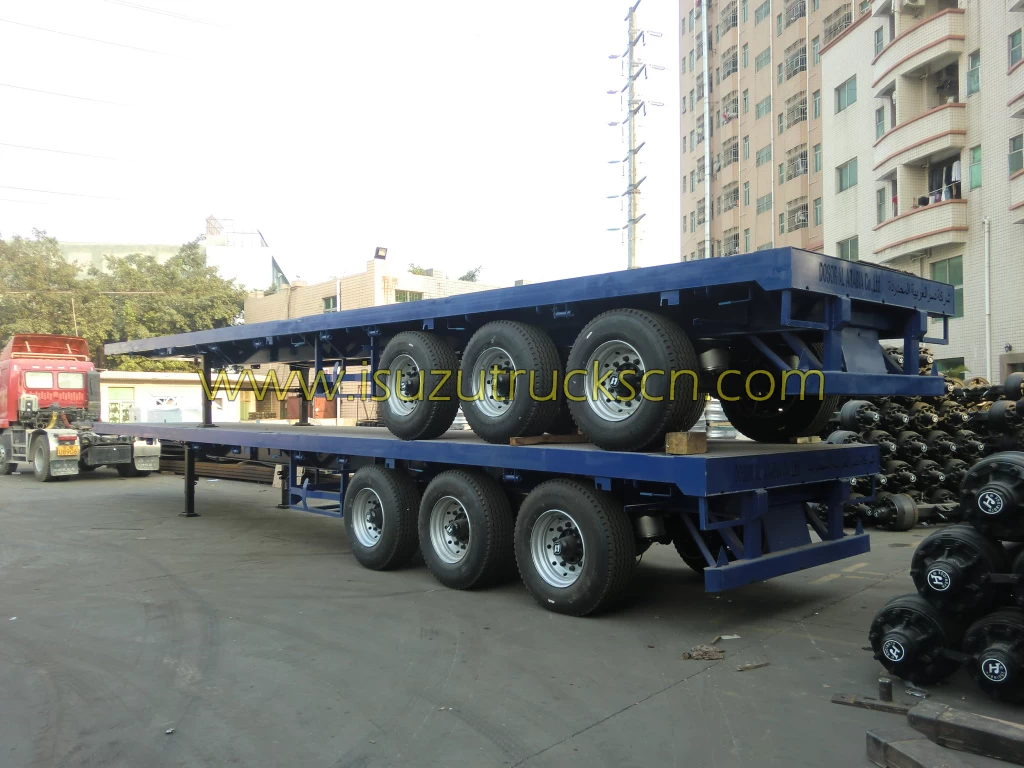

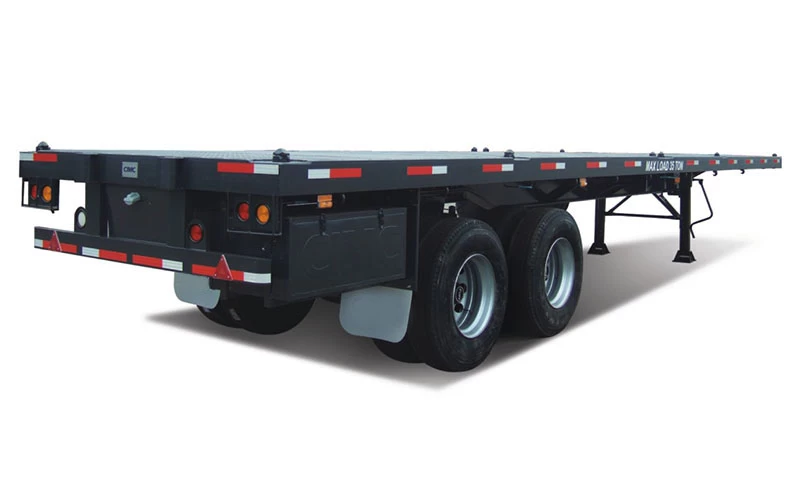

40 Foot 2-axle Bogie Flatbed Semi-trailer

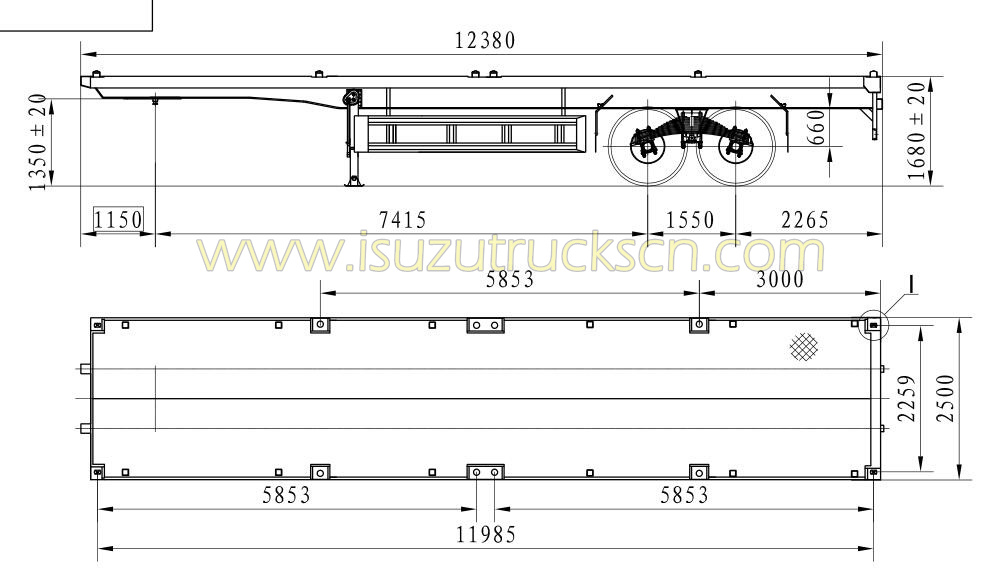

Tech drawing
| DIMENSIONS |
| Tare Weight |
7700kg |
| Payload |
40000kg |
| Total Weight |
47700kg |
| Overall Length |
12620mm |
| Overall Width |
2480mm |
| Overall Height |
1530mm |
| Wheel Track |
1850mm |
| Wheelbase |
8025mm+1550mm |

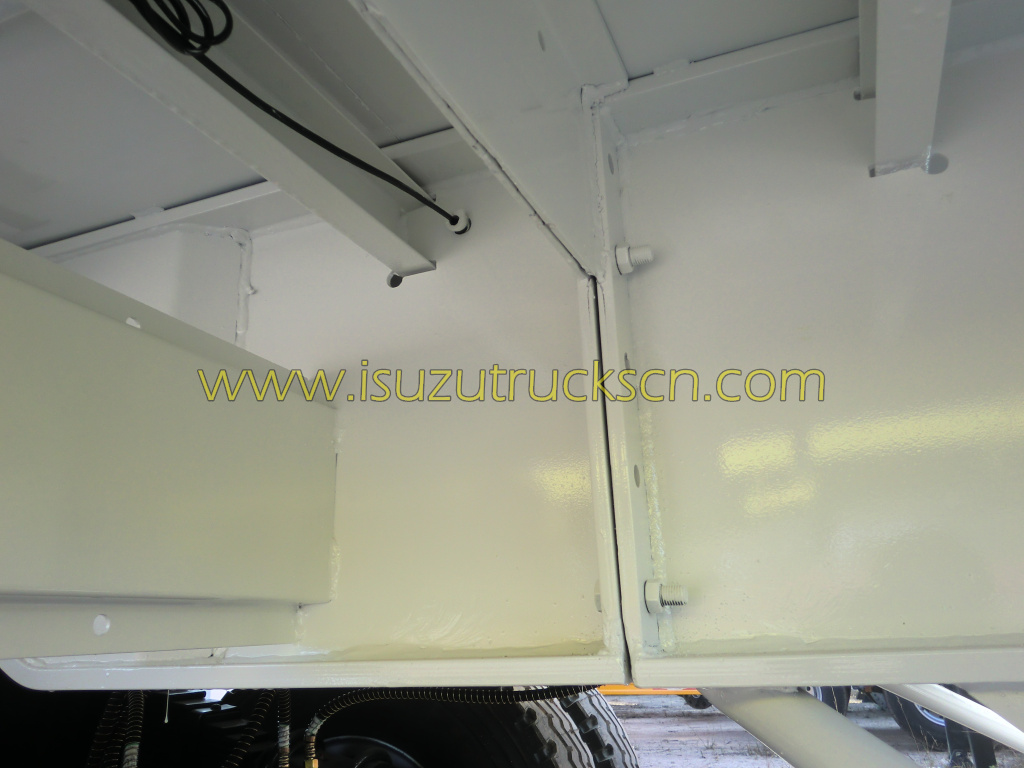

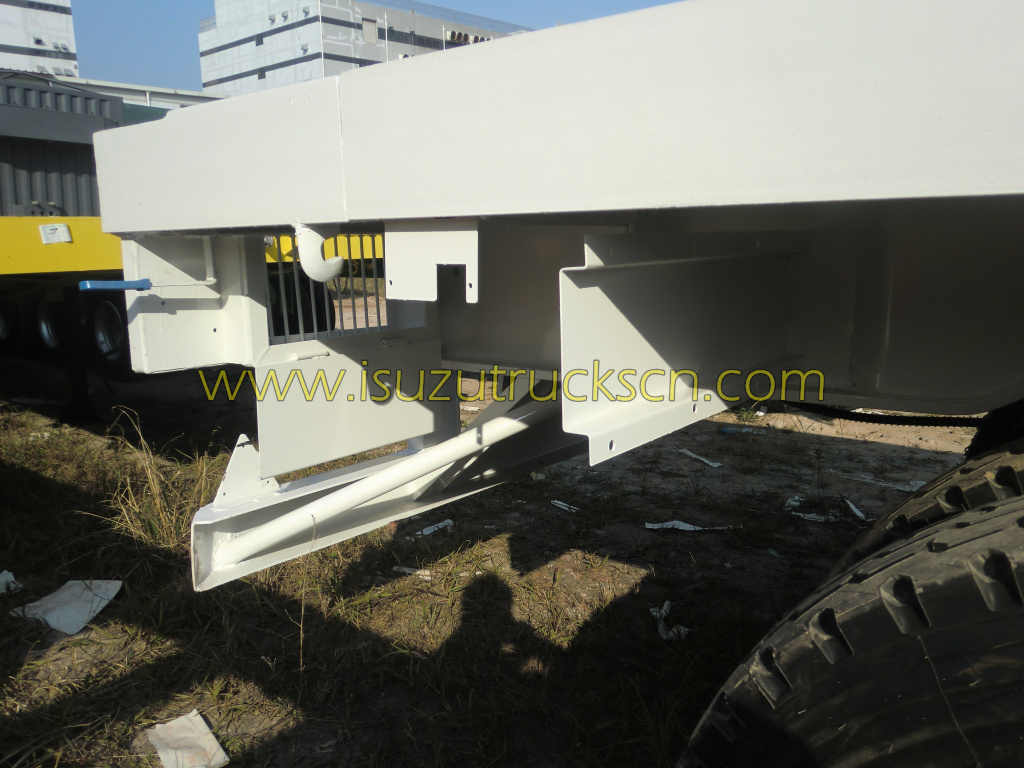

| STANDARD SPECIFICATION |
| Main Frame |

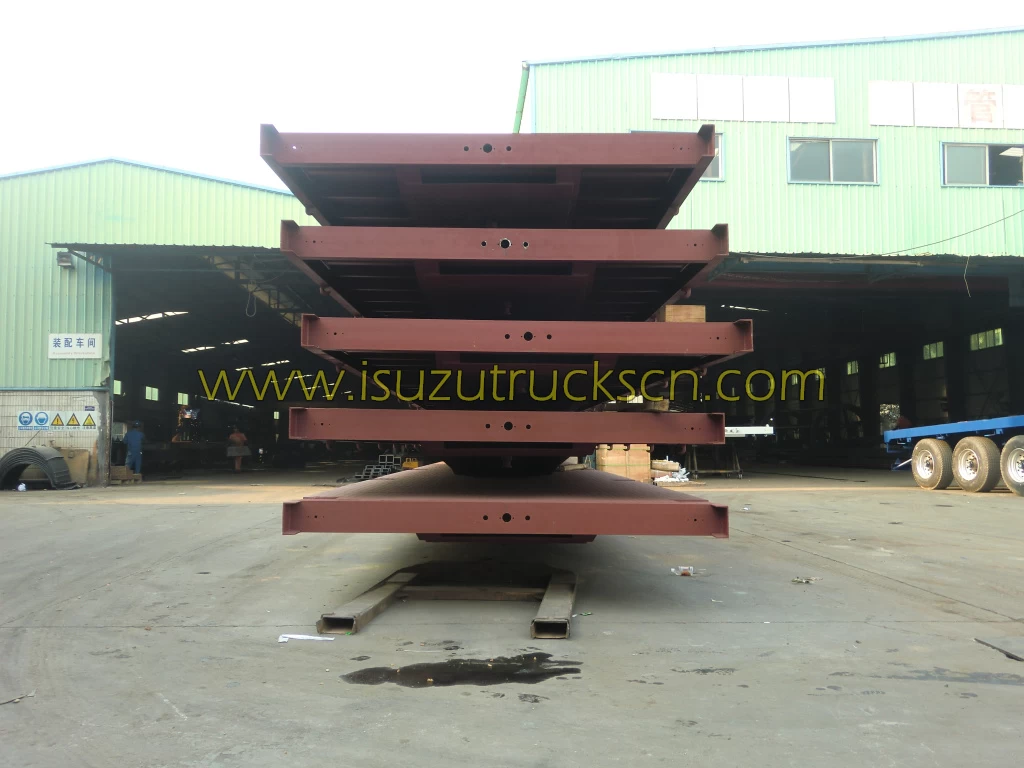

Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
500mmHeight I beam, Top Flange 14mm,width 140mm; Middle Flange 6mm ; Bottom Flange 16mm,width 140mm |
| Floor |
Steel Sheet 3mm thickness |

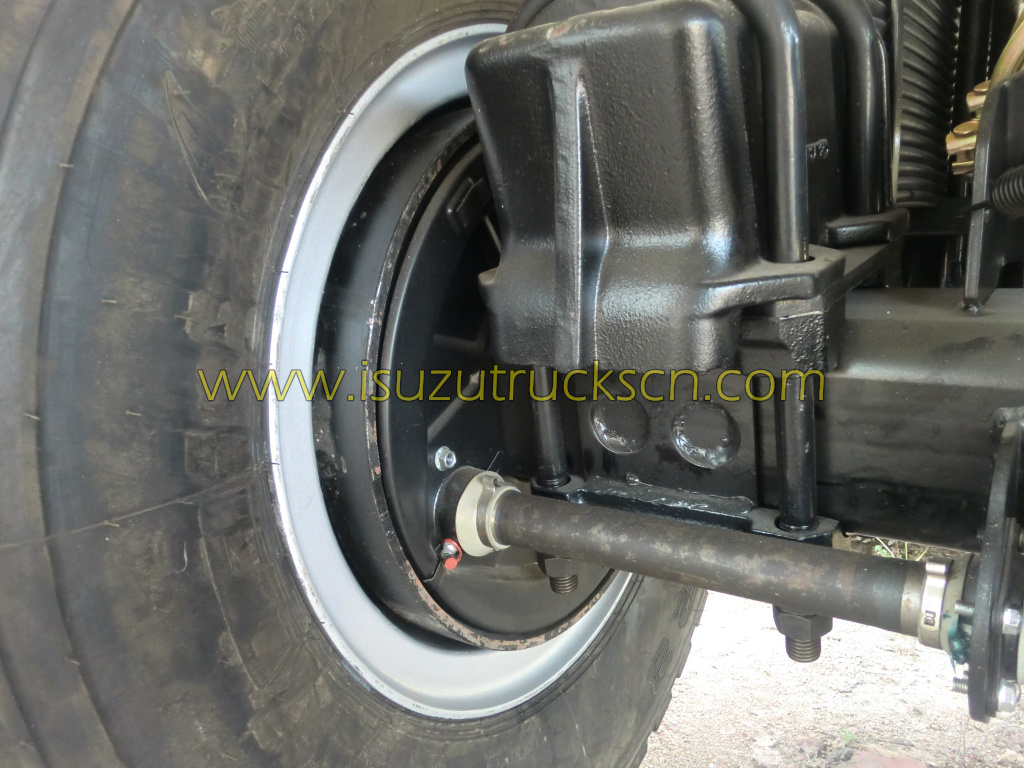

| Axle |
2 units of FUWA (brand) 13T axle |

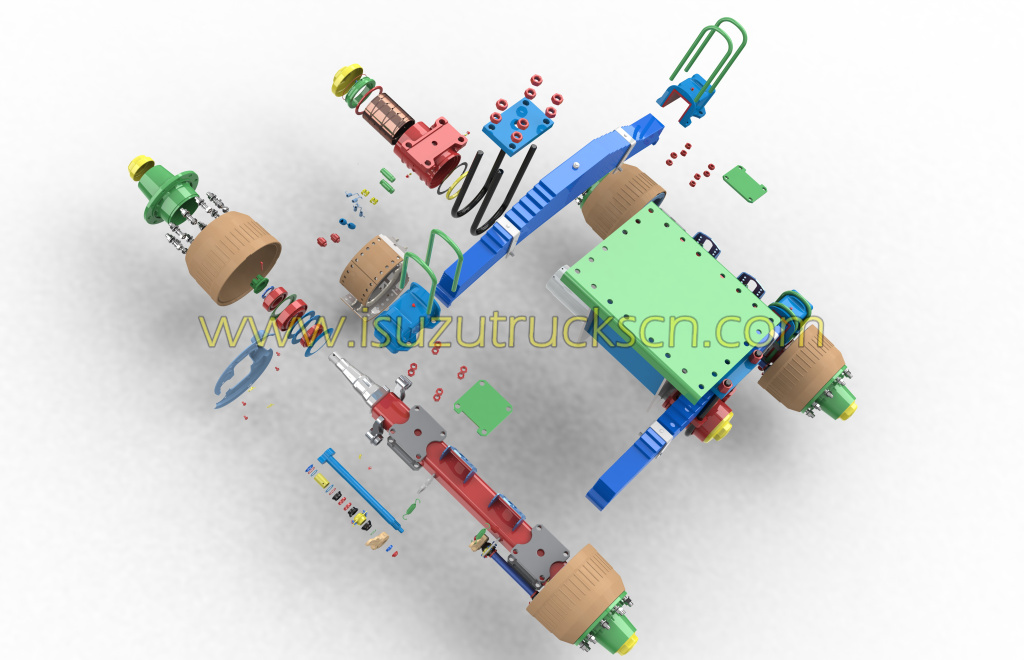

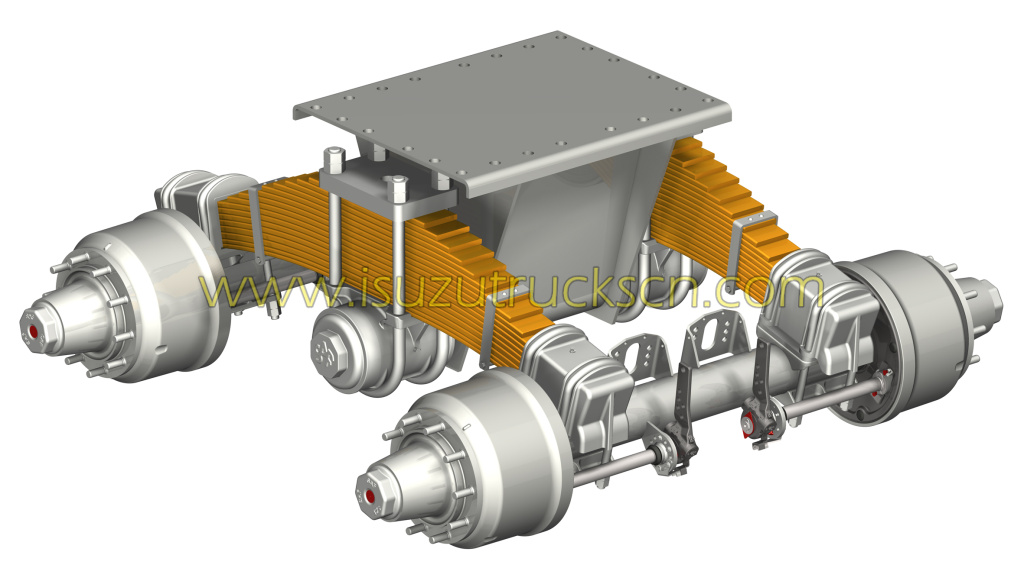

| Suspension |
A couple of Two-axle mechancial suspension. |

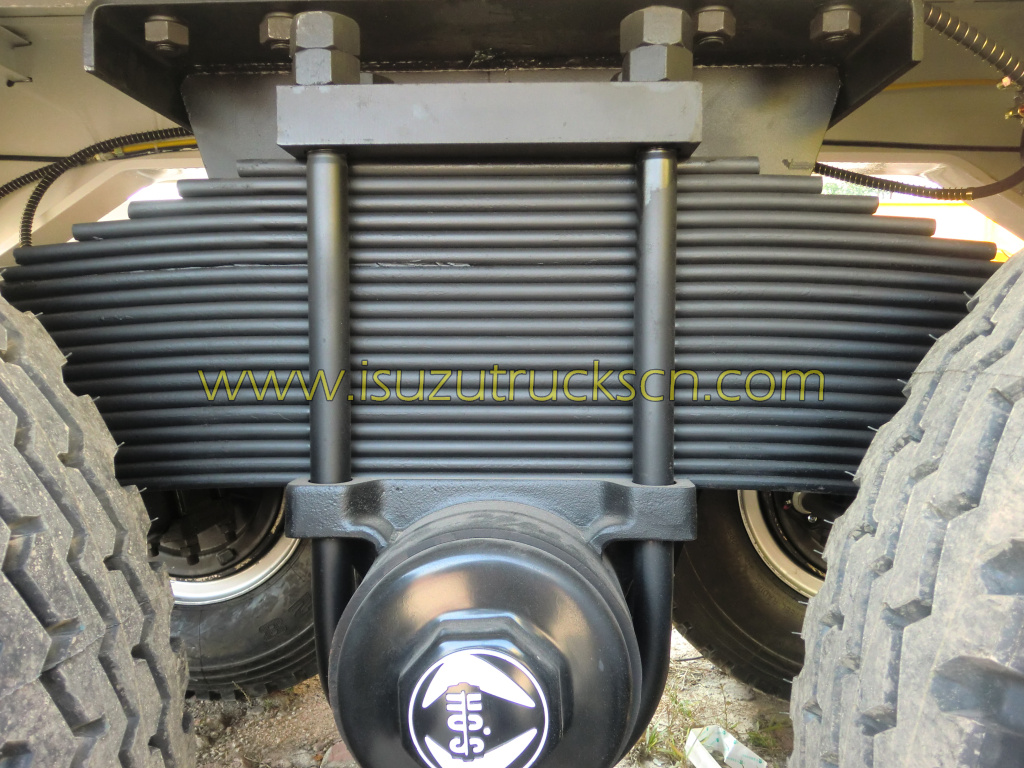

| Leaf Spring |
Four sets of reliable local brand, 8-piece leaf spring,16x90mm |
| King Pin |

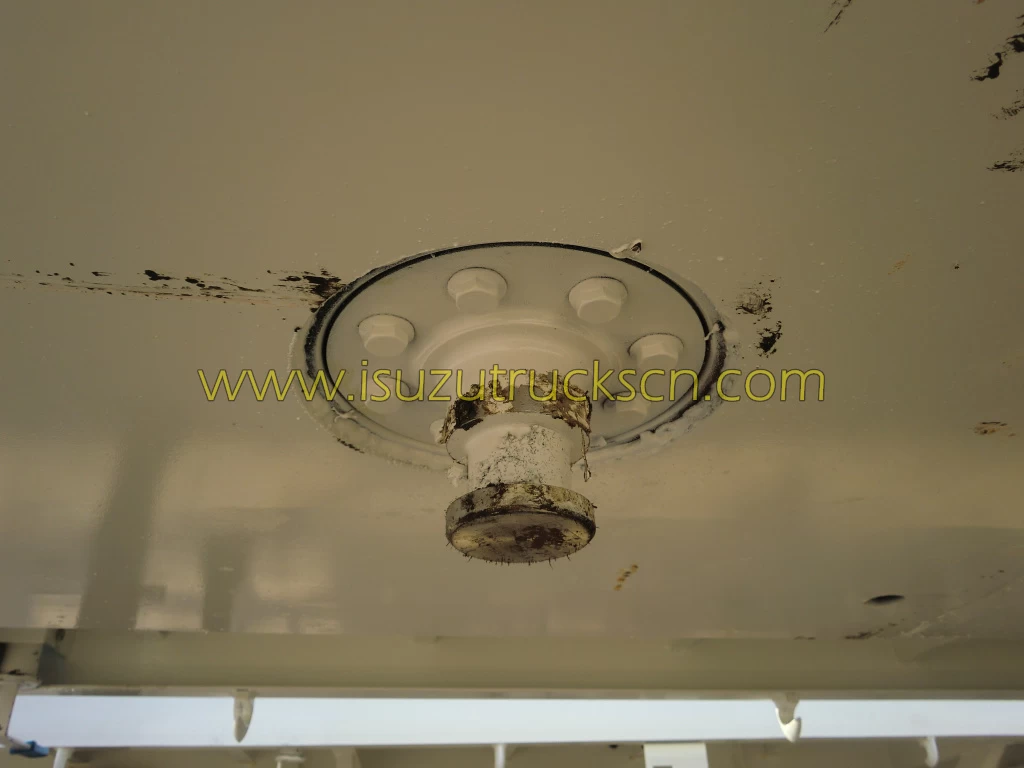

One unit of 2`` SAE bolted-in kingpin. |

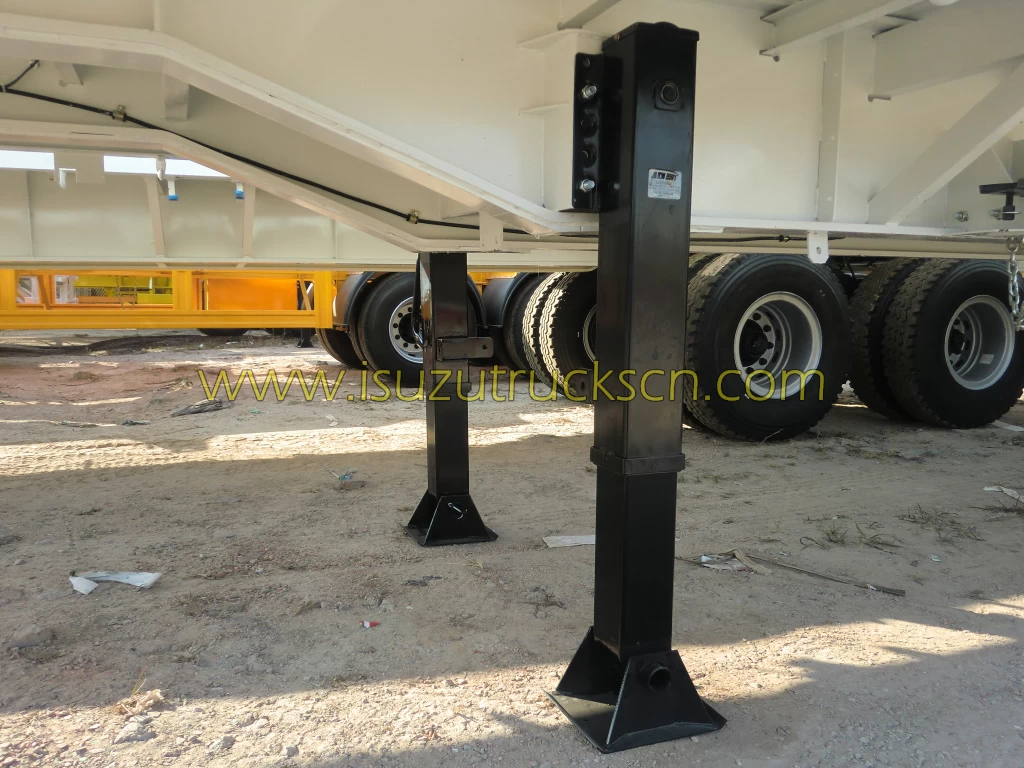

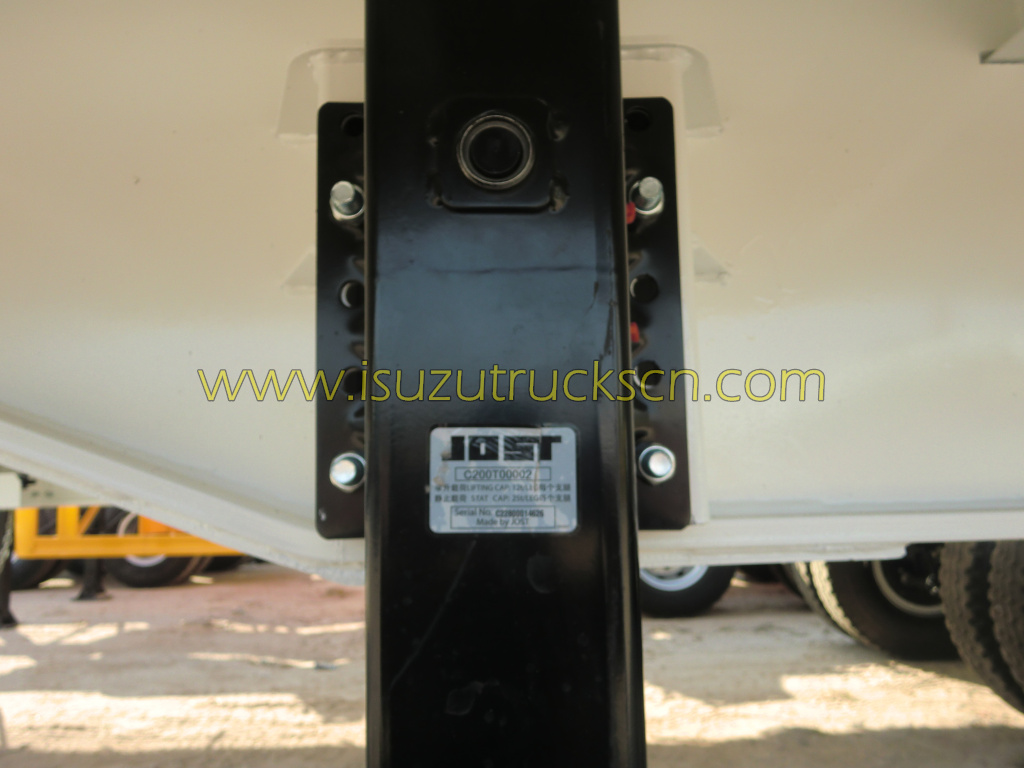

| Landing Gear |
JOST-C200,Two-speed , manual operating, heavy duty landing gear |
| Wheel Rim |
9 units of 8.25-22.5 rim. |
| Tyre |
9 units of 11R22.5 tubeless tyre. |
| Twist Lock |
Twelve nos. of ISO twist lock for 2x20ft;1x40ft container, all the locks can be laid down. |

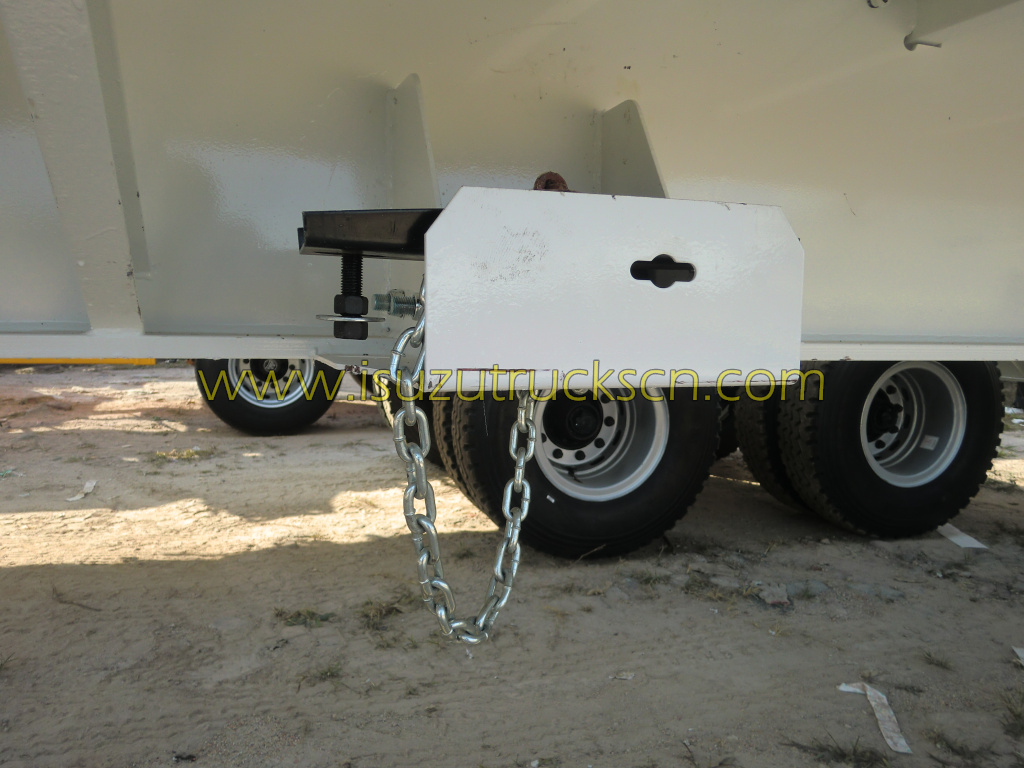

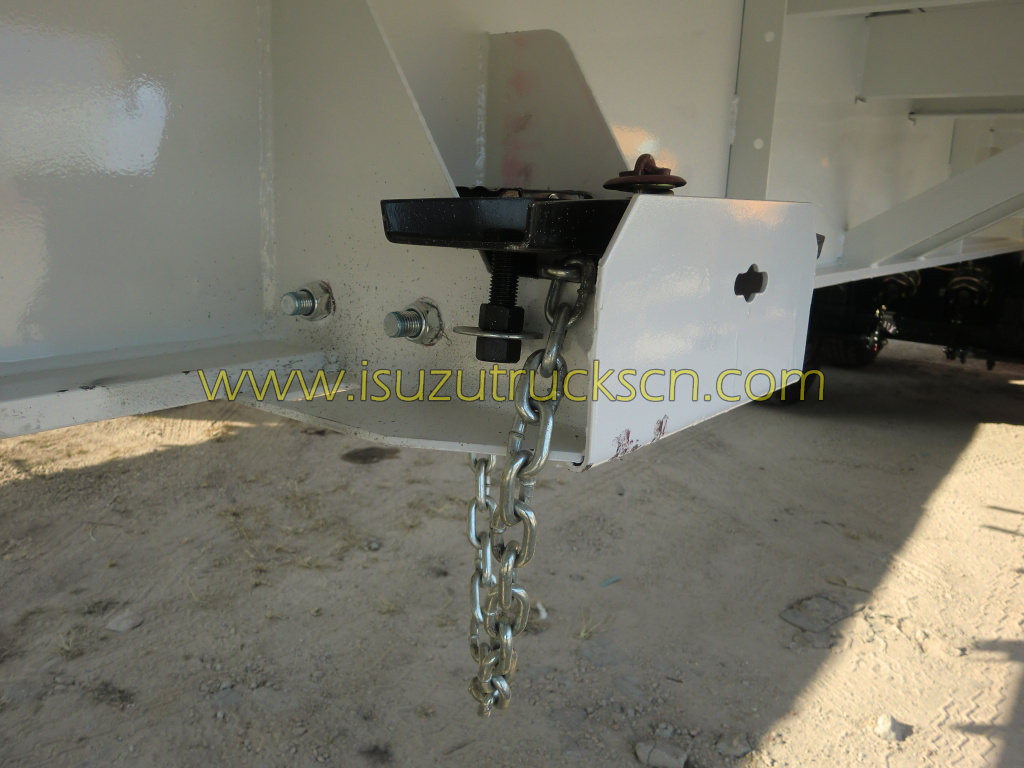

| Spare Wheel Carrier |
One set of spare wheel carrier including a riser. |

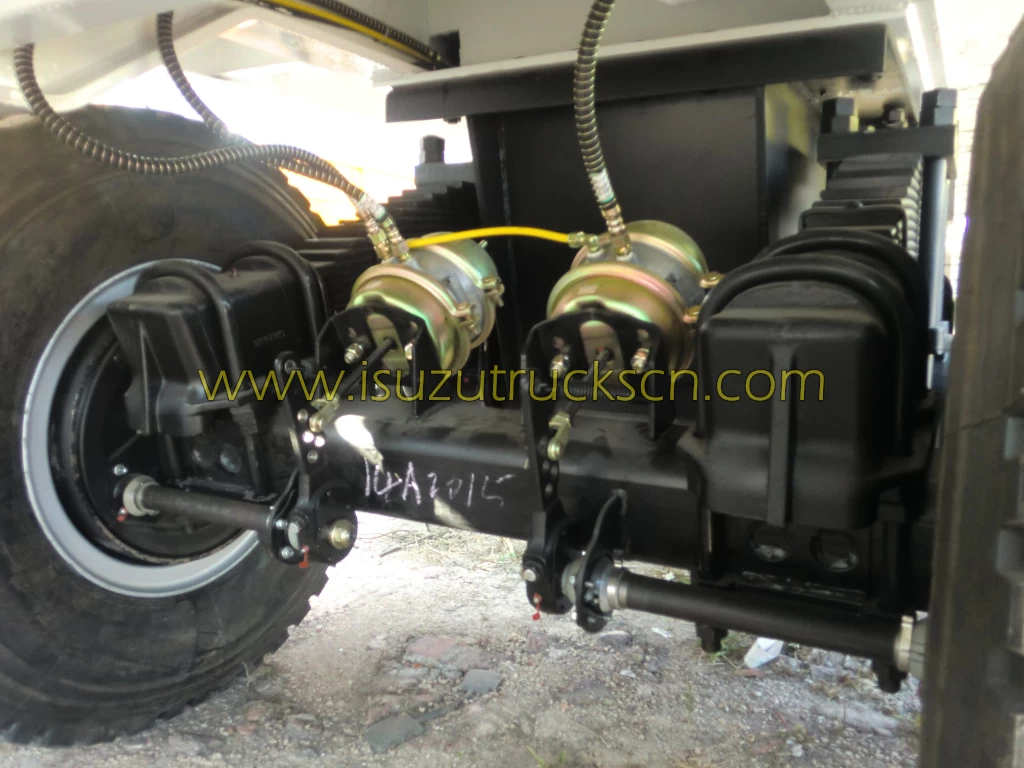

| Pneumatic Braking System |

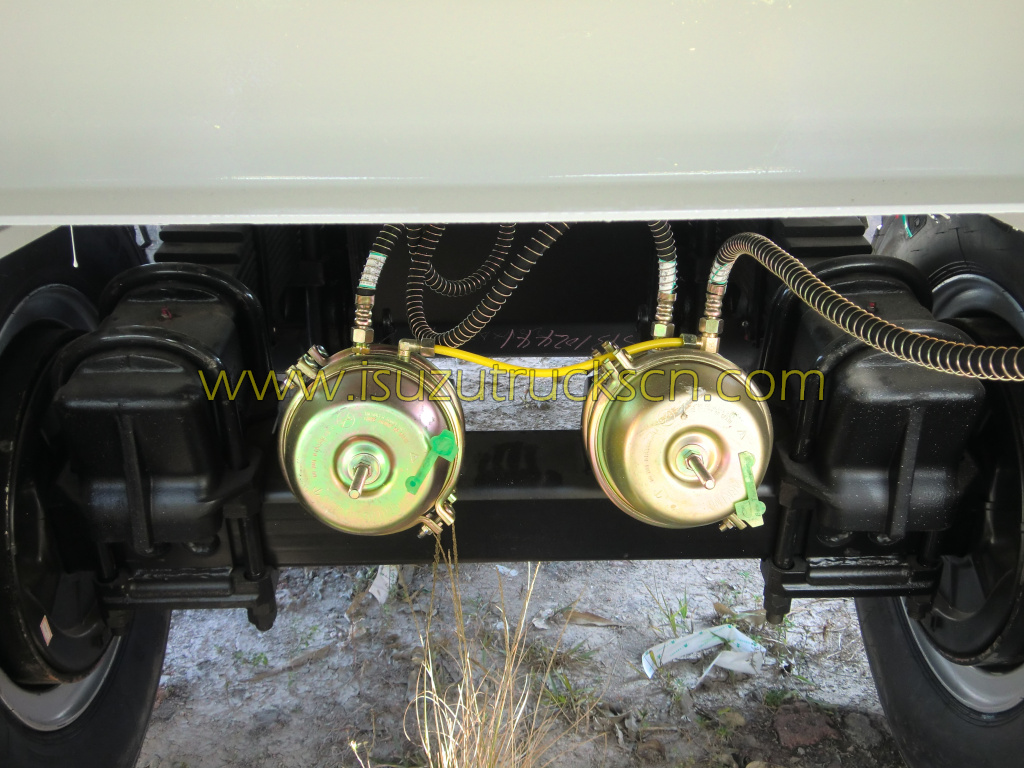

One units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; one units of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector. |

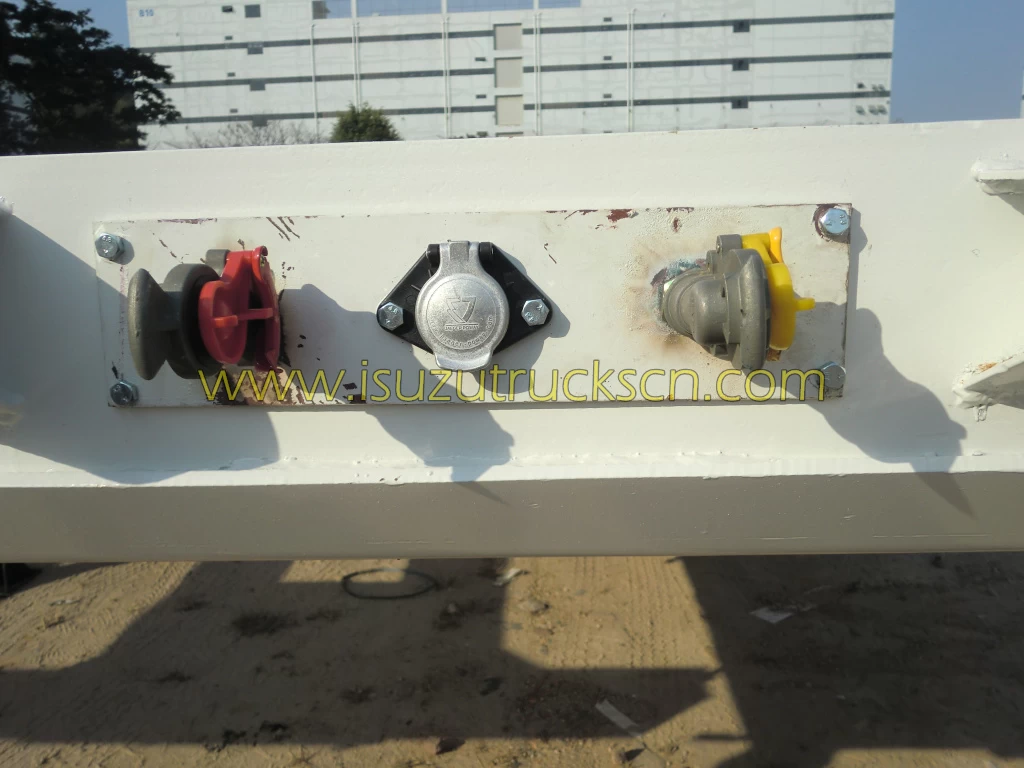

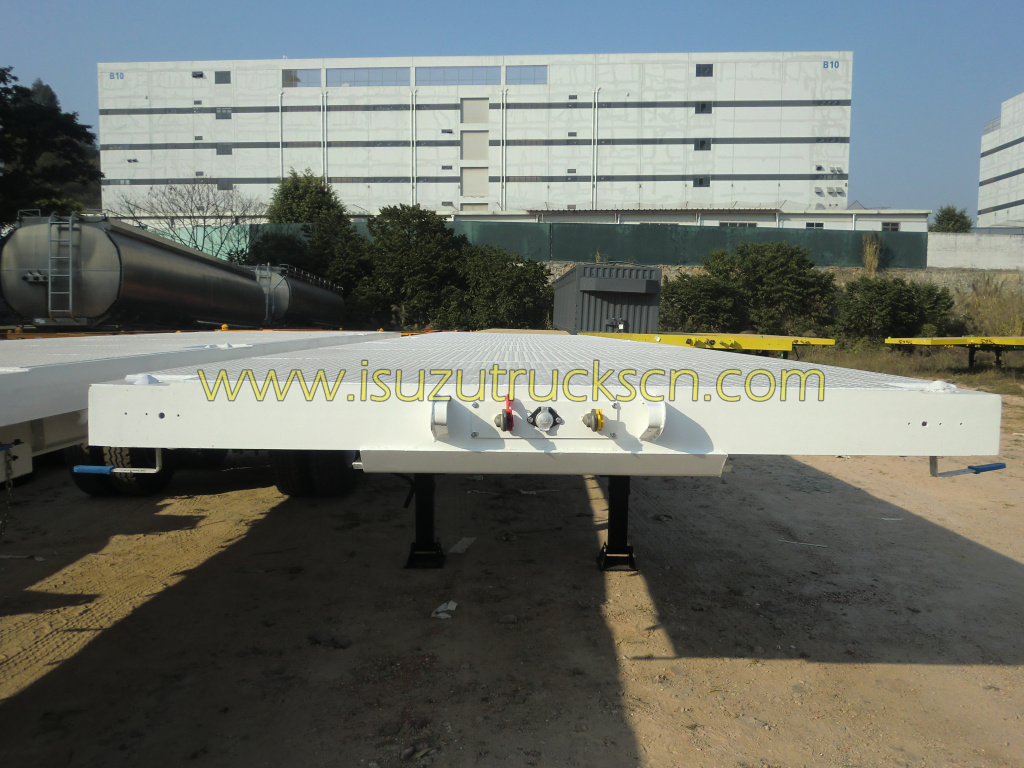

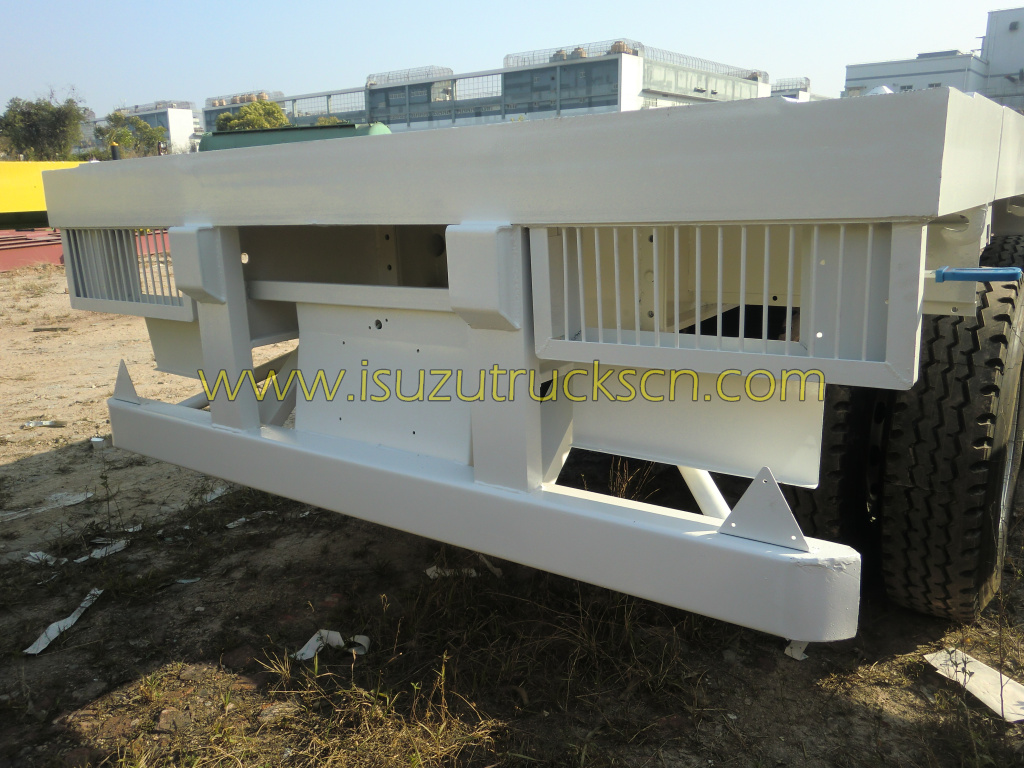

| Electrical System |
One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; Tail lamp with turn signal, brake light & reflector , Side lamp etc.
One set of 6-core standard Cable. |
| Painting |
Sand blasting processing clean rust
1 coat of anticorrosive primer
2 coats of finish urethane paint
Color as customer choice |
| Accessory |
One tooling box with a set of standard trailer tool |
