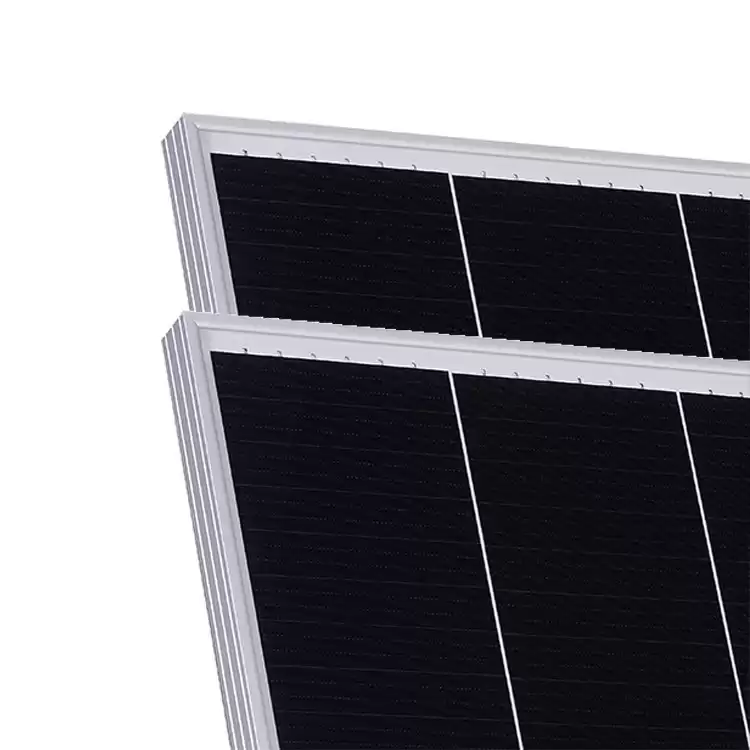

400W Shingled Monocrystalline Solar Panels

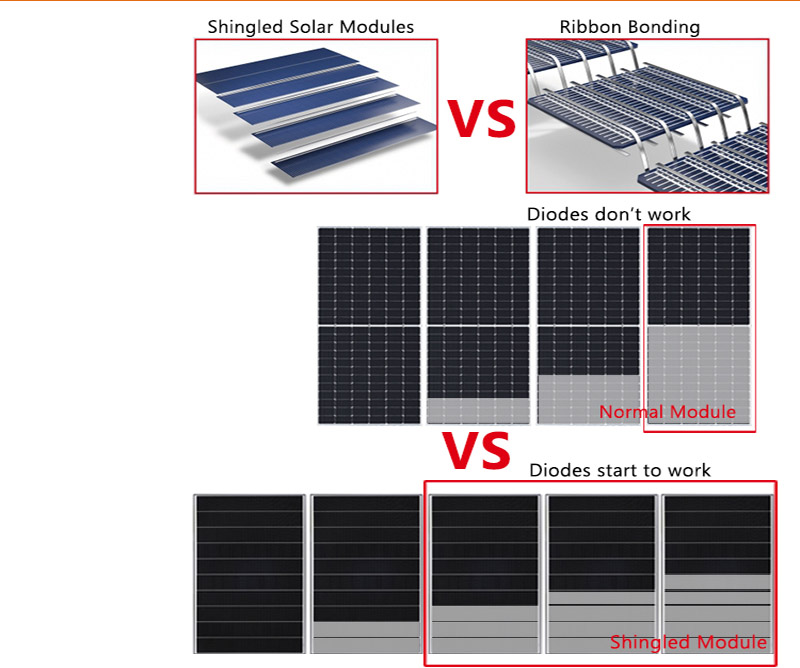

When shaded by shadow,shingled modules have the best output power if the shingled modules are installed vertically.


  • CertificateTUV, CE, IEC, Inmetro
  • Warranty25 years linear warranty

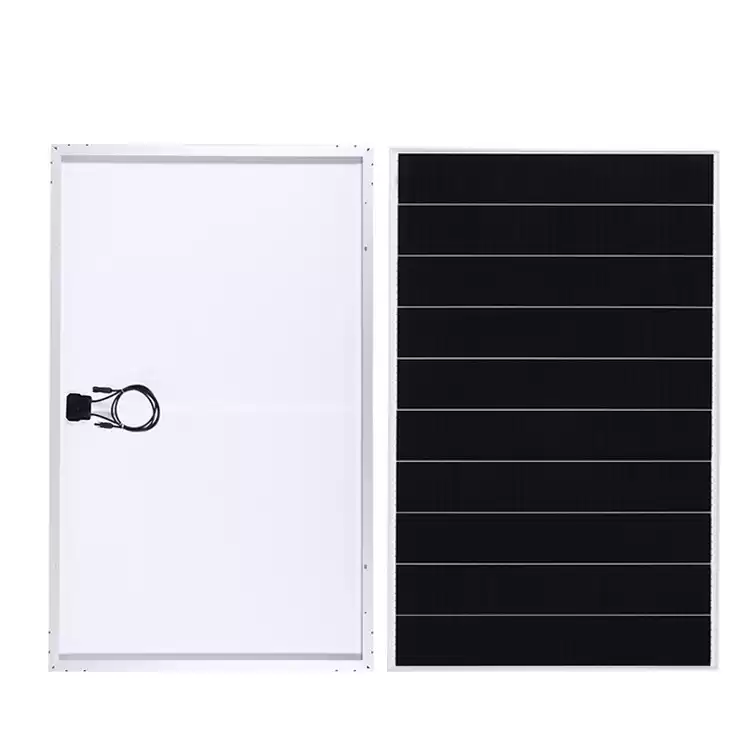

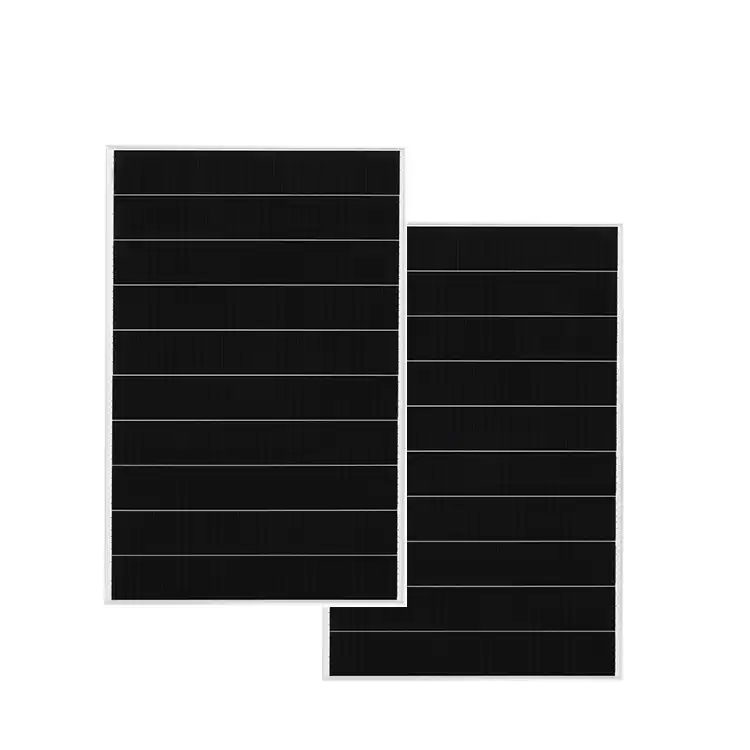

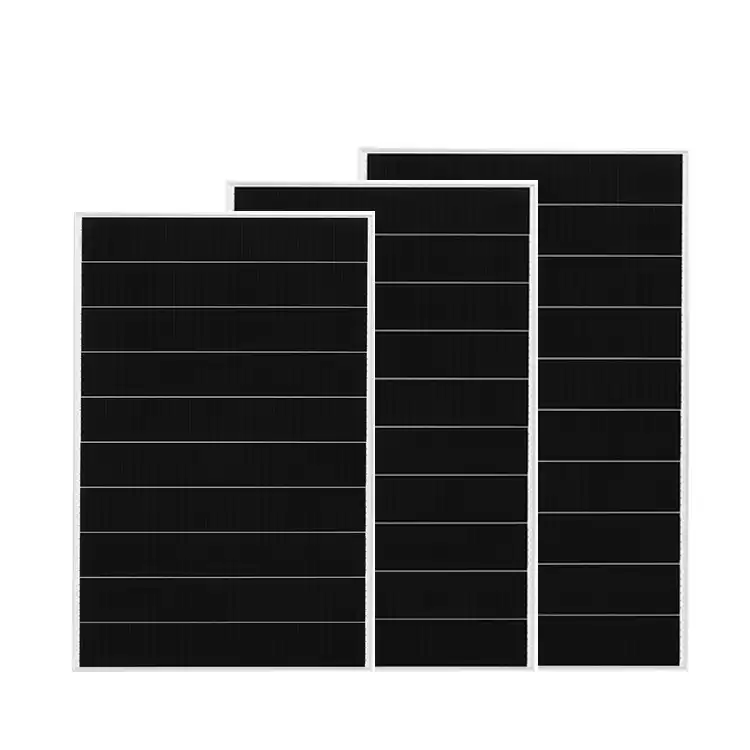

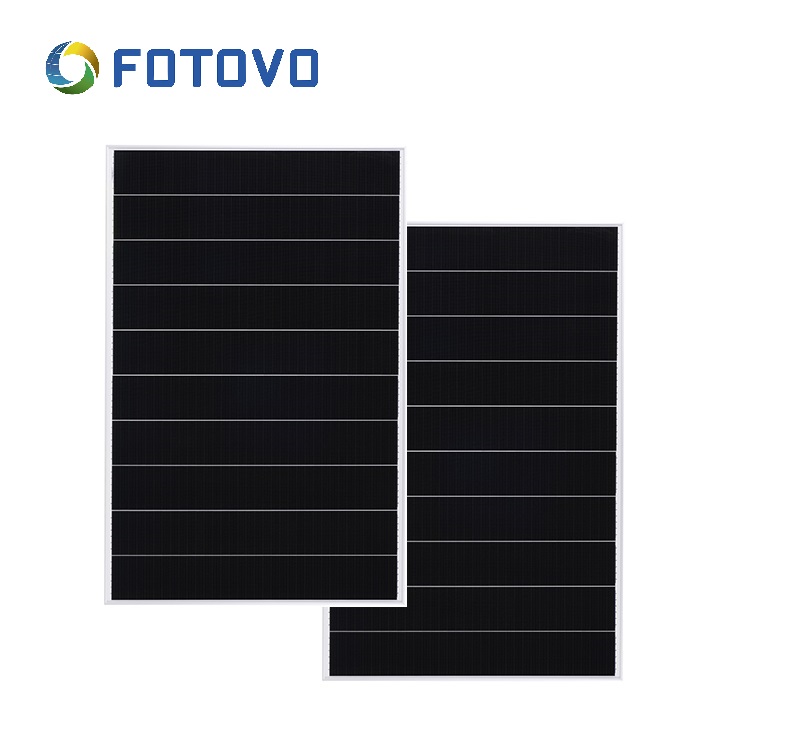

FOTOVO Shingled Solar Panels Monocrystalline Shingles 400W


Compared with the normal module technology, the interconnected material of shingled module is different from that of normal module,

whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering.

Product Specification

MECHANICAL CHARACTERISTICS
Solar Cells Monocrystalline silicon(158.75mm)
No. of Cells 432 (36x12)
Dimensions 1169±2mm x 1140±2mm x 35±1mm
Weight 24kg±3%
Junction Box IP68 Rated(2 diodes)
Front Glass 3.2mm AR coatING tempered glass
Frame Anodized aluminum alloy
Output Cables Photovoltaic technology cable 4.0mm²,800mm( can be customized )
Connectors Mc4 compatible
ELECTRICAL PARAMETERS GSP-400 GSP-405 GSP-410 GSP-415 GSP-420
STC NOCT STC NOCT STC NOCT STC NOCT STC NOCT
Rated Maximum Power (Pmax) [Wp] 400 339 405 343 410 346 415 340 420 354
Open Circuit Voltage (Voc) [V] 48.80  46.50  49.00  46.70  49.20  46.90  49.40  47.10  49.40  47.10
Short Circuit Current (Isc) [A] 11.90  9.59  11.95  9.63  11.99  9.66  12.03  9.69  12.07  9.72
Maximum Power Voltage (Vmp) [V] 40.30  38.40  40.50  38.60  40.70  38.80  40.90  39.00  40.90  39.00
Maximum Power Current (Imp) [A] 11.17  8.82  11.23  8.87  11.30  8.93  11.37  8.98  11.49  9.08
Module Efficiency [%] 20.05% 20.27% 20.49% 20.72% 20.94%
Working Temperature [°C] -40°C ~ +85°C
Maximum System Voltage DC 1500 /1000 (IEC)
Maximum Series Fuse Rating 20A
Application Class Class A
Maximum Surface Load Capacity[Pa] 5400 Pa


Product Details


Package

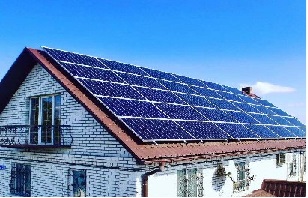

Projects

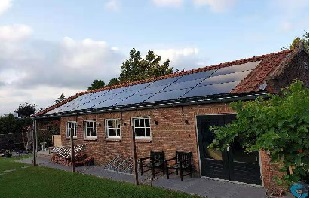

        15kw on-grid solar system in US       8kw off-grid solar system in Netherlands


FAQ

Q1: Can I get samples before order?

A1: Sure, we would like to offer samples for your evaluating the quality first.



Q2: What about the lead time?

A2: Sample needs 10 days, mass production needs 2-3weeks.



Q3: What’s the warranty?

A3: Our solar panels are assured with 12 years product warranty, and 25 years linear power warranty.



Q4: How can I pay the solar panels ?

A4: We could accept payment by T/T, Paypal, West union etc.



Q5: How can I contact you?

A5: Pls feel free to leave a message on our website, any question will be answered asap.
