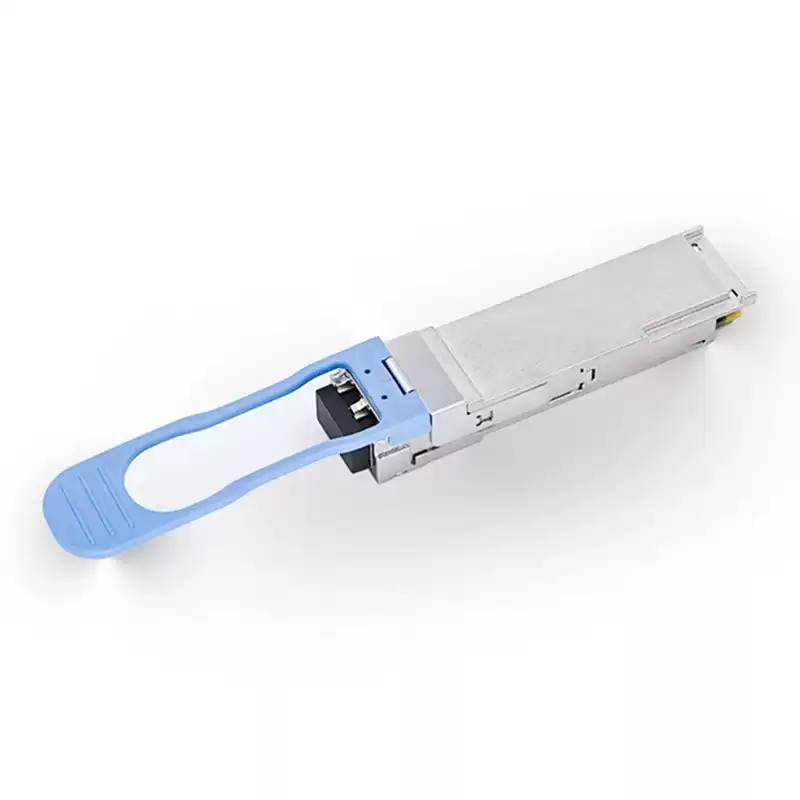

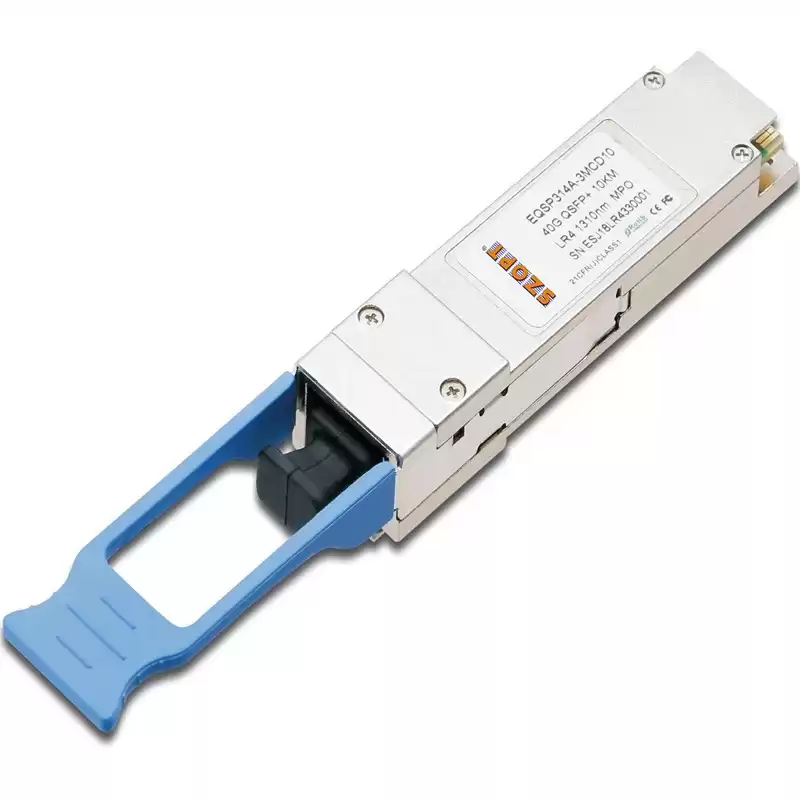

40G QSFP+ 100G QSFP28 LR4 LC Connector Fiber Optical Module
We have a complete strict quality control system,from
raw material,production process,inspection,packing,etc. to ensure the top quality
of the finished products reach 100% qualification before exporting . We
never let any defect out of factory.
Applications:
40 Gigabit
Ethernet interconnects
Datacom/Telecom
switch & router connections
Data aggregation and backplane applications
Proprietary
protocol and density applications
Features:
Up to 10.5Gb/s data rate per
channel
Distance up to 2km on SMF
4 ×10G CWDM DFB transmitter
Duplex LC receptacle optical
interface
Single +3.3V power supply
XLPPI electrical interface
Hot pluggable QSFP+ form factor
Maximum power
dissipation<3.5W
Operating temperature range: 0℃ ~ +70 ℃
Compliant with RoHS
Package:
Each 10pcs per blister box,finally in a carton box.
Maximum ratings:
|
Parameter
|
Symbol
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Storage Temperature
|
Ts
|
-40
|
|
85
|
ºC
|
|
Supply Voltage
|
Vcc1,VccTx,VccRx
|
-0.5
|
|
+4.0
|
V
|
|
Relative Humidity
|
RH
|
5
|
|
95
|
%
|
