EQA4X-343LCDxx
40G QSFP+ Active Optical Cable to 4x double LC connector

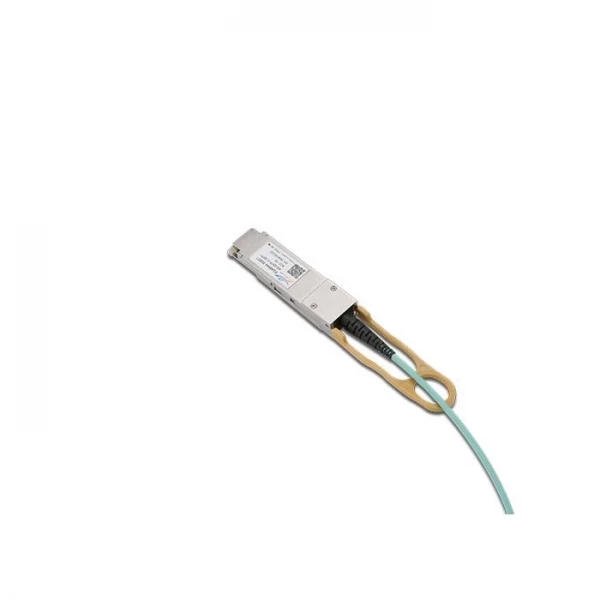

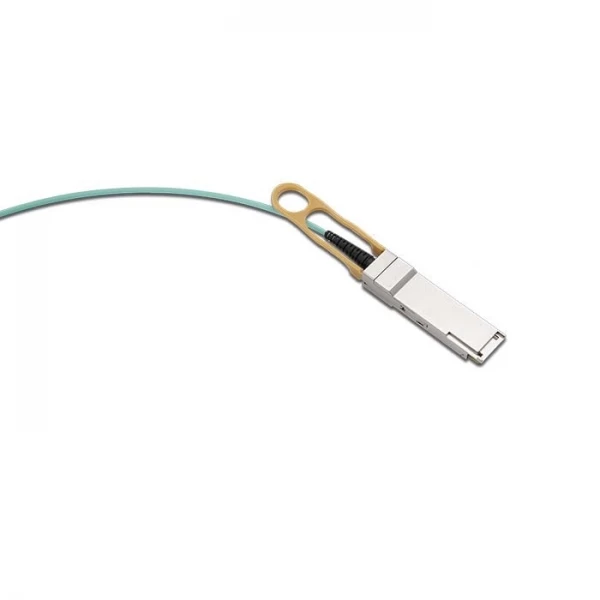

QSFP+ AOC end:
Ø Compliant to the 40GBASE-SR4 and XLPPI
Ø Specification per IEEE 802.3ba-2010 and supporting
Ø 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
Ø Compliant to the industry standard SFF-8436
Ø QSFP+ Specification
Ø Power Level 1: Max Power < 1.5 W
Ø Operate at 10.3125Gbps per channel with 64b/66b
Ø encoded data for 40GbE application and at 10Gbps
Ø with 8b/10b compatible encoded data for 40G-IB-QDR application

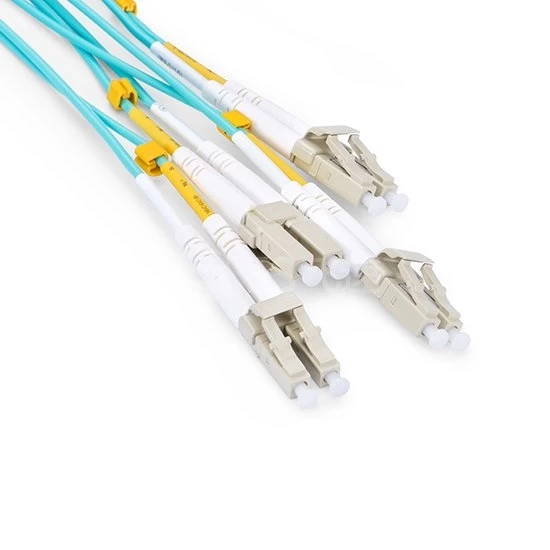

Each 4× Double LC Connect end:
Ø With double LC Single Mode connect, or double LC Muti-mode connect
Active Optical Cable Assembly:
Ø 0 to 70 C degree case temperature operating range
Ø Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
Ø Hot pluggable for ease of servicing and installation
Ø Two Wire Serial interface
Ø Utilizes optical fiber for high density and thin, lightweight cable management
Applications
Ø 40GbE and 10GbE break-out applications for Datacom switch and router connections
Ø 40G to 4×10G density applications for Datacom and Proprietary protocol applications
Ø Datacenter
Description

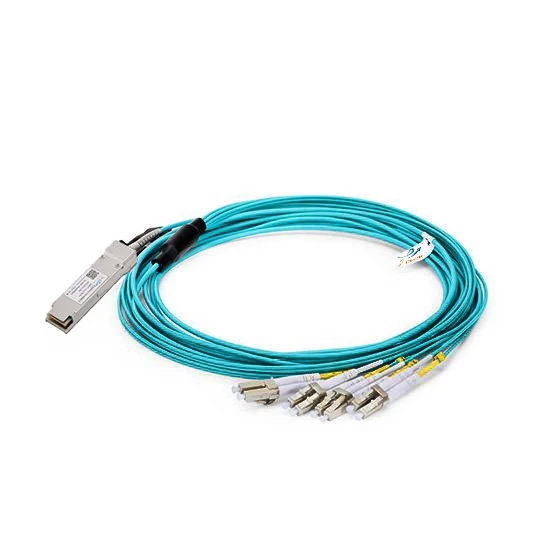

The ETU-link EQA4X-343LCDxx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Ca ble (AOC) to 4× double LC connect Cable break-out solu tion. This Breakout cable is intended for 40G to 4× 10G applications.
This AOC is a high performance cable for short-range multi-lane data communication and interconnect appli cations. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G Infini Band QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applica tions.
This product is leveraged from ETU-LINK QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets
This AOC incorporates ETU-LINK' proven inte grated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
