40T Laboratory Hydraulic Pressing Machine with High Precision Pressure Control



Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.


Advantages

1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.


Specification

Product Name

Lab Pressing Machine

Type

CHY-P40

Pressure range

0-40T(0-30MPa)

Piston diameter

Chrome plated cylinder 130 mm

Overall structure

Unsealed connection of equipment to reduce leakage

Pressure gauge

Pressure pressure double scale display

Maximum piston stroke

50mm(T)

Pressure stability

1MPA/10Min

Worktable diameter

140mm(D)

Number of columns

4 pillars

Column spacing

150*185mm

over dimension

355*215*505mm

weight

90kg

Pressure conversion

Actual pressure

System pressure

Double display pressure gauge

1[Tons]

0.75[MPa]



3[Tons]

2.2[MPa]

5[Tons]

3.7[MPa]

10[Tons]

7.5[MPa]

12[Tons]

9[MPa]

15Tons]

11.3[MPa]

20[Tons]

15[MPa]

30[Tons]

22.5[MPa]

40[Tons]

30[MPa]

It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment

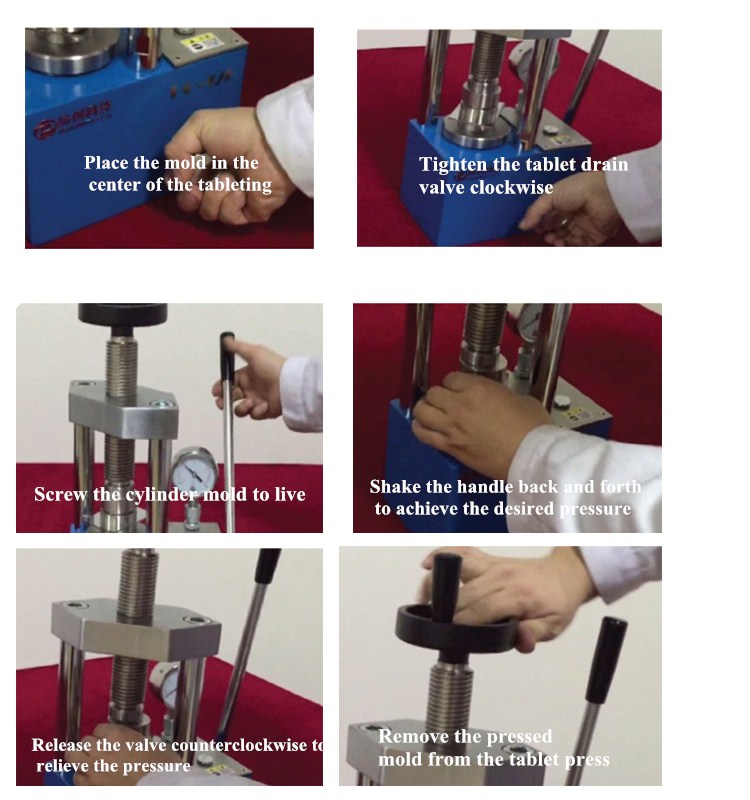

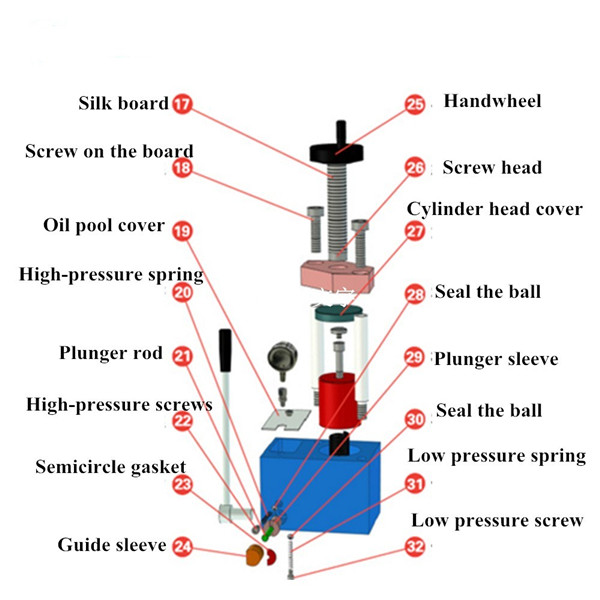

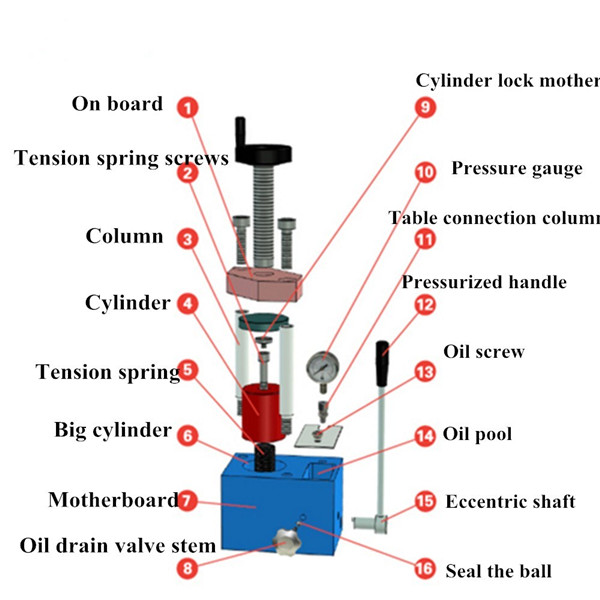

Product Images.

                            40T press

hydraulic press



 Tmax CE

 TMAX Partner

CVD furnace


tube furnace


muffle furnace



1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
