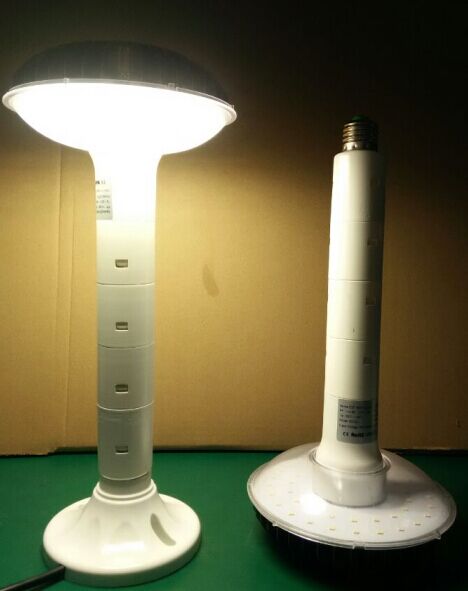

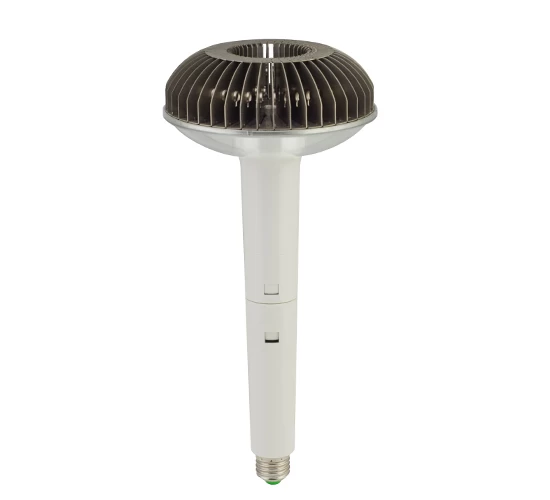

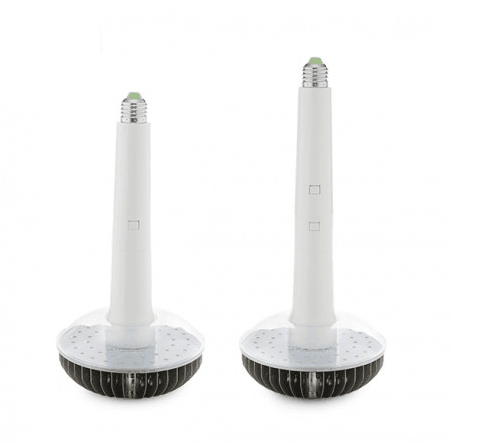

40w e27 High Power Led Corn Light Led Module
Features:
-
Soldering technology: To
make sure the LED heat to heat sink more faster, more uniformity and
less heat resistance to keep led Junction temperature lower than
warranty the led lamp long life time and lower light degradation
-
Heat sink: Magnalium (Mg/AL): More light & Transfer speed is more faster than common AL
-
Cree LEDs, flip chip technology, single units damage won't affect others' normal work
-
The most complete optical engine in the world;
-
Multiple lighting distributions available;
-
Wide power range: 30W, 45W, 50W, 60W, 40W;
-

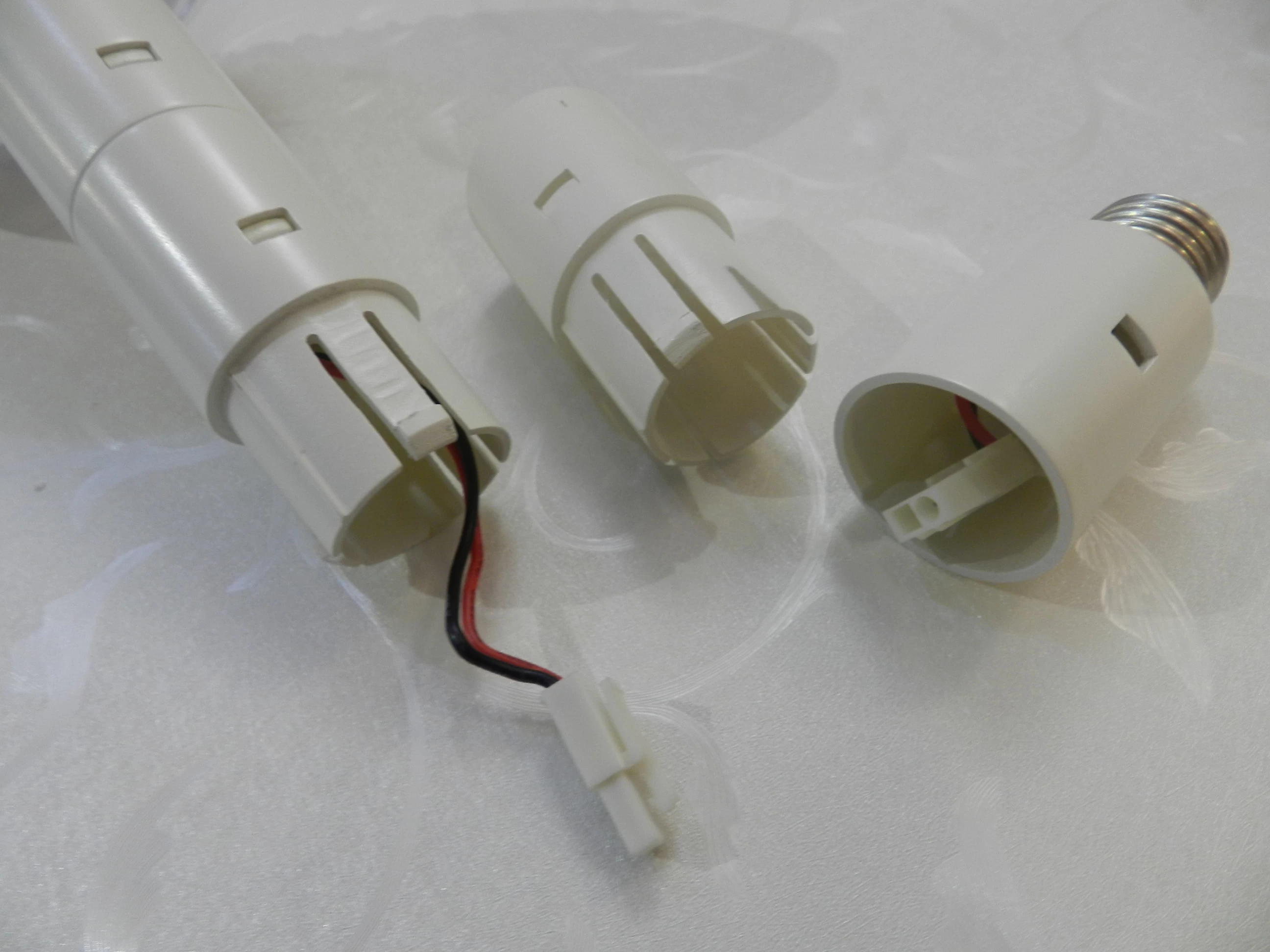

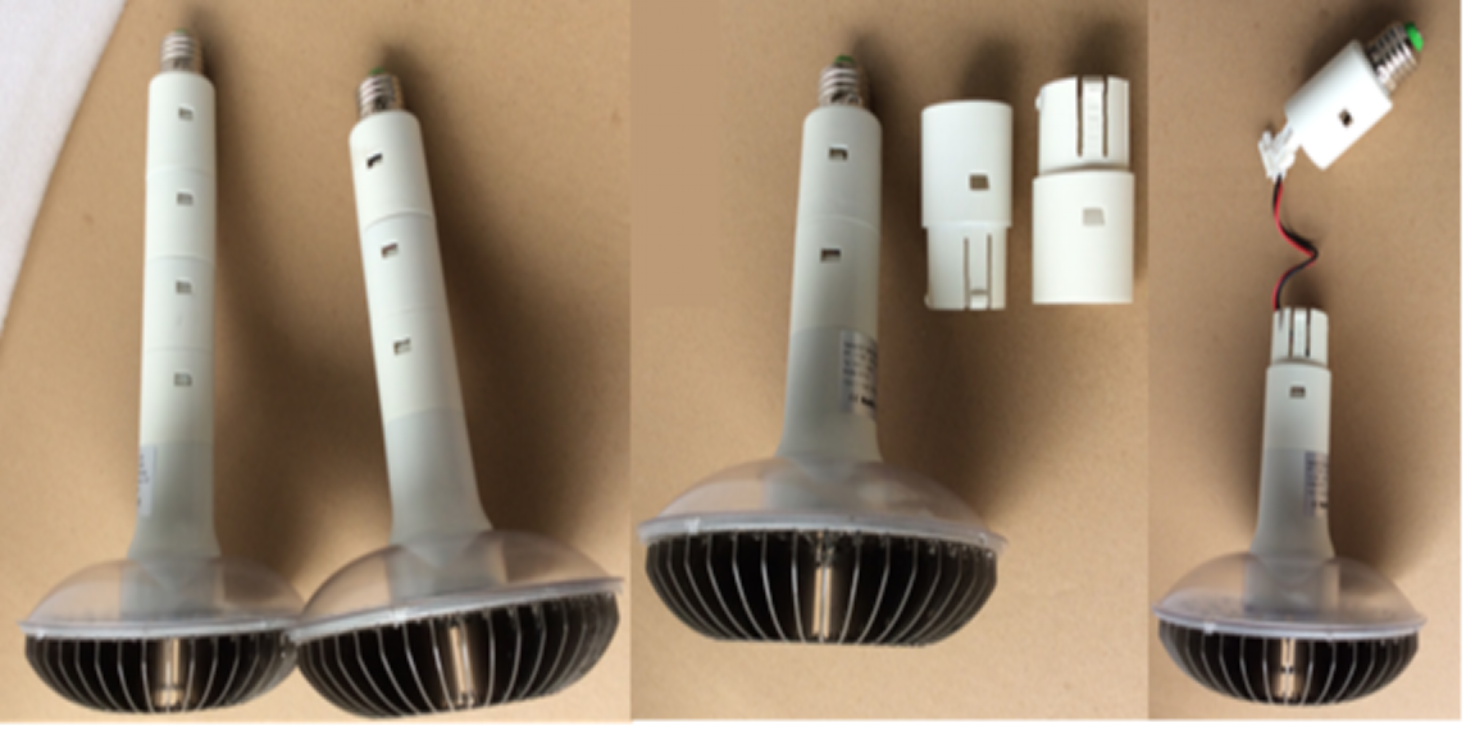

IP67-waterproof level, hot pluggable, easy for installation and replacement;
-
Independent intellectual property rights;
-
Easy tool onsite maintenance and repair;
DATA SHEET:
Wattage can be 30-60w
|
Consumption power
|
30W
|
45w
|
50w
|
60W
|
40W
|
E27-40W
|
|
Led Type
|
Cree-XTE/XPG3
|
Cree-XTE/XPG3
|
Cree-MHB
|
CREE-XML
|
Cree-XTE/XPG3
|
Samsung
|
|
Lumen/watt
|
100-120lm/w
|
100-120lm/w
|
100-120lm/w
|
100-110lm/w
|
100-110lm/w
|
100-120lm/w
|
|
Beam angle
|
55*145º (Asymmetric)
90*120º (Symmetric)
30º (Spot)
10º (Spot）
|
55*145º (Asymmetric)
90*120º (Symmetric)
30º (Spot)
10º （Spot）
|
70*110º
(Symmetric)
|
80*135º
(Symmetric)
|
85*150°
(Asymmetric)
|
120°(Around)
|
|
Working Current/Volt.
|
550mA/40-54V
|
820mA/40-54V
|
920mA/40-54V
|
1450mA/30-42V
|
800mA/32-50V
|
440mA/80-90V
|
|
Product size (mm)
|
112*115*70
|
112*131.5**71.5
|
112*131.5**71.5
|
171*131.5*71.5
|

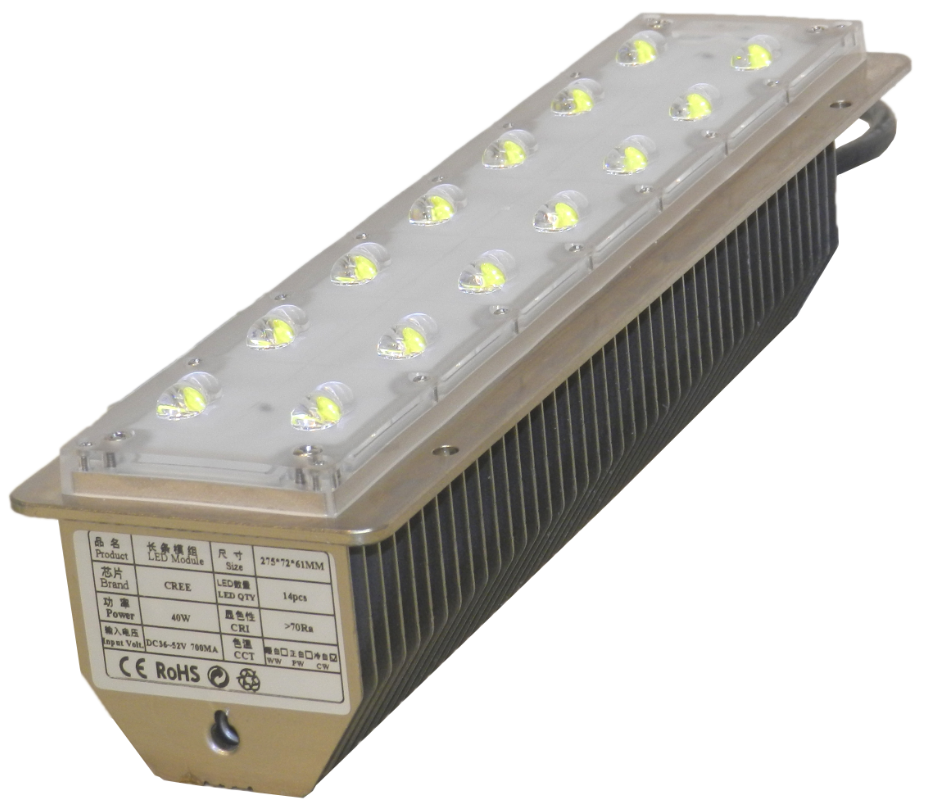

275*71*64.1
|
D150*393
|
|
Package
|
68*37*25cm
16pcs/CTN
|
68*37*25cm
16pcs/CTN
|
68*37*25cm
16pcs/CTN
|
65*36*23cm
12pcs/CTN
|
68*37*25cm
16pcs/CTN
|
52*52*43mm
18pcs/CTN
|
|
|
|
|
|
|
|
|

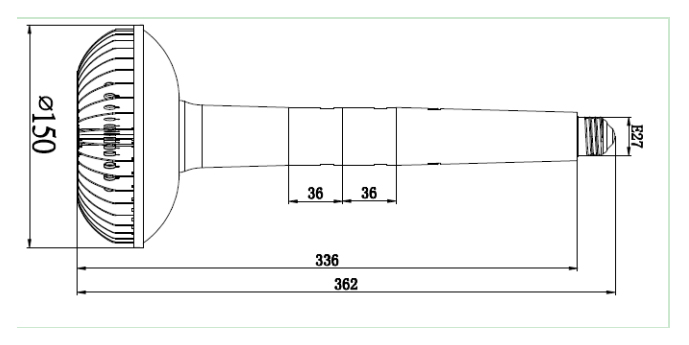

Product size:
