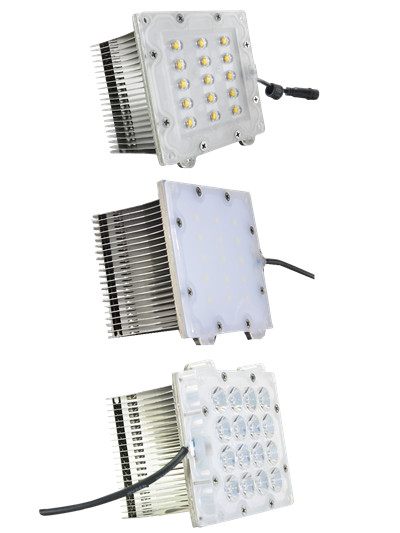

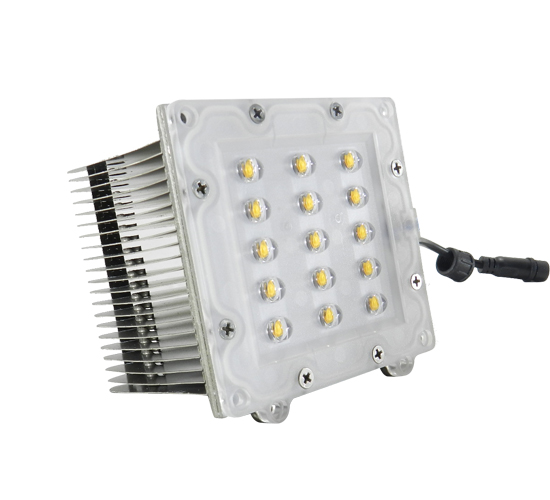

High Power Ip67 Led Module For Outdoor Lighting
Features：
-
Soldering
technology: To make sure the LED heat to heat sink more faster, more
uniformity and less heat resistance to keep led Junction temperature lower than
warranty the led lamp long life time and lower light degradation
-

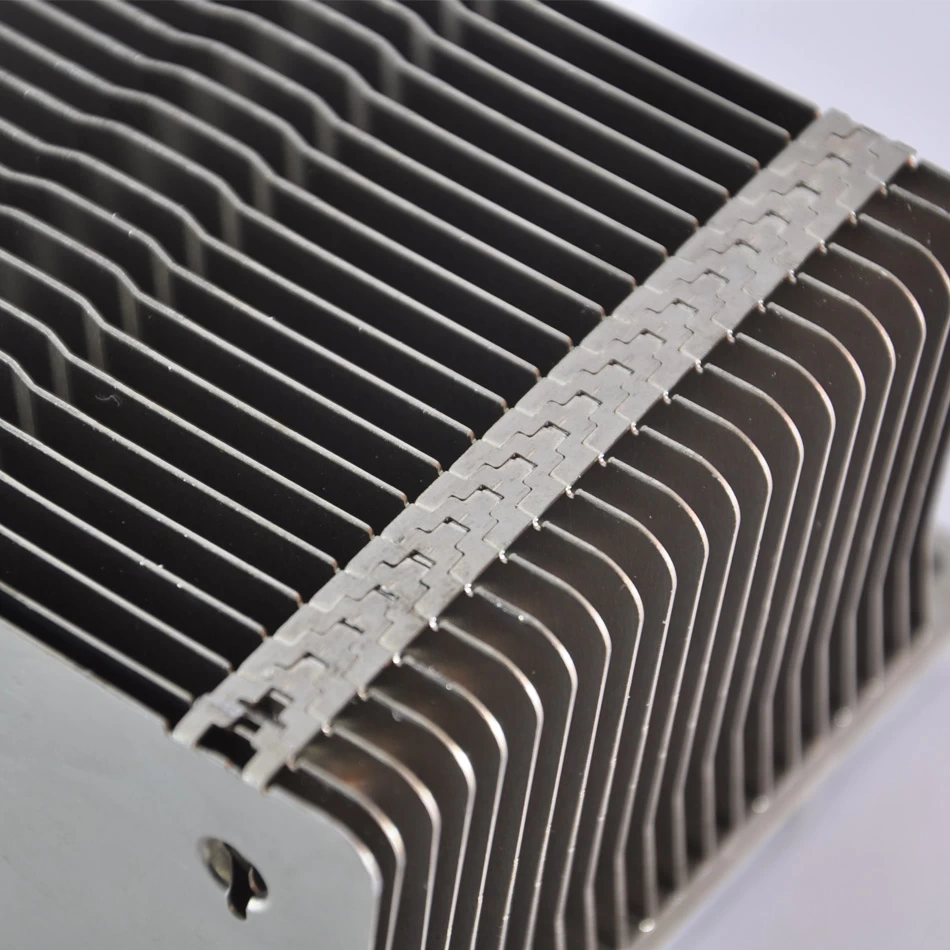

Heat sink:
Magnalium (Mg/AL): More light & Transfer speed is more faster
than common AL
-
Cree LEDs, flip chip technology, single units damage won't affect others' normal work
-
The most complete optical engine in the world;
-
Multiple lighting distributions available;
-
Wide power range: 30W, 45W, 50W, 60W,
40W;
-

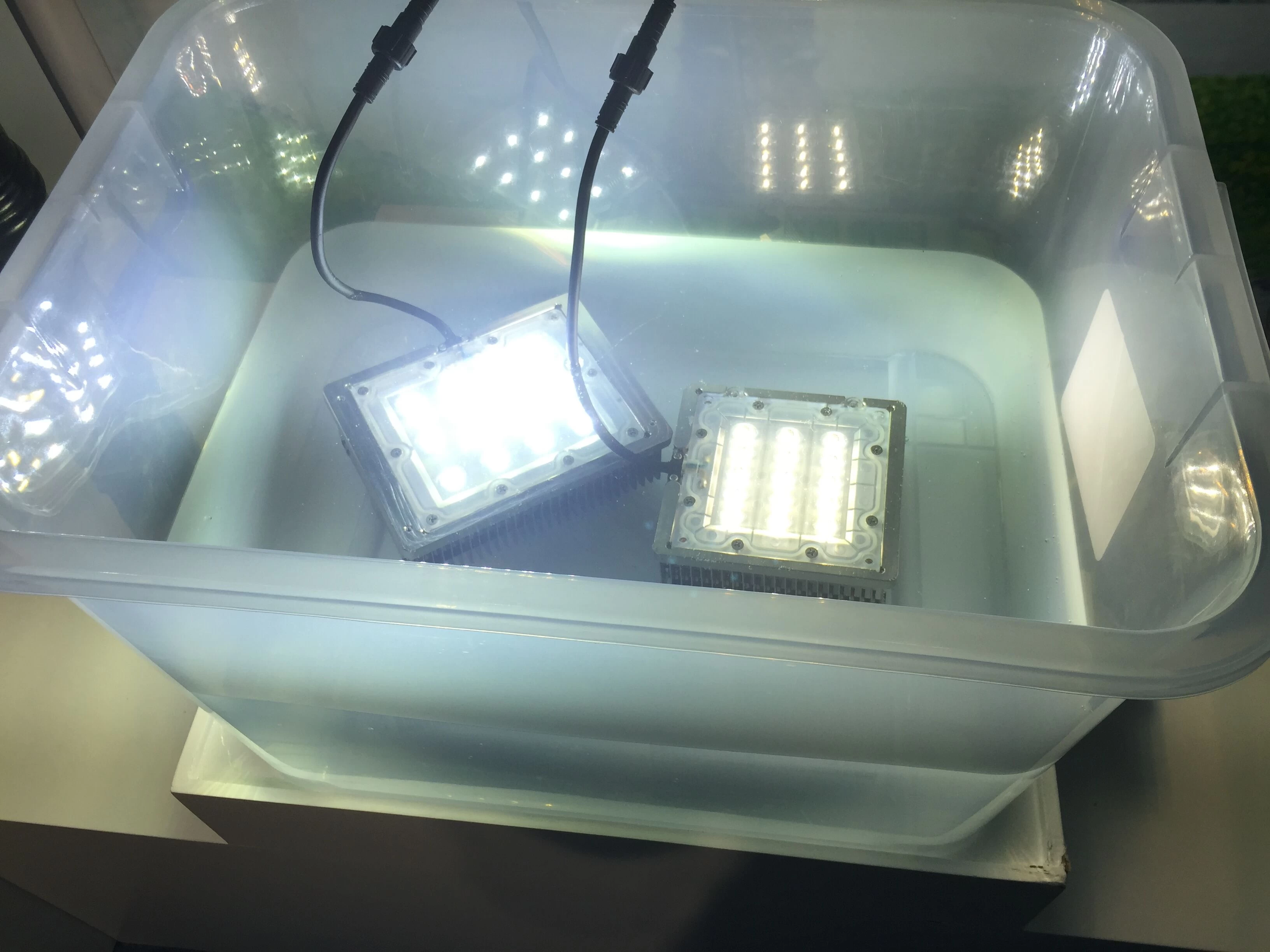

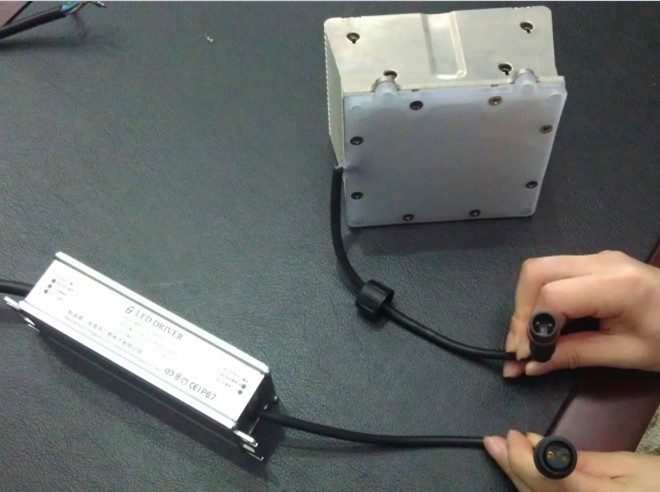

IP67-waterproof level, hot pluggable, easy for installation and replacement;
-
Independent intellectual property rights;
-
Easy tool onsite maintenance and repair;
-
5-year limited warranty.
DATESHEET:
|
Consumption
power
|
30W
|
45w
|
50w
|
60W
|
40W
|
E27-40W
|
|
Led
Type
|
Cree-XTE/XPG3
|
Cree-XTE/XPG3
|
Cree-MHB
|
CREE-XML
|
Cree-XTE/XPG3
|
Samsung
|
|
Lumen/watt
|
100-120lm/w
|
100-120lm/w
|
100-120lm/w
|
100-110lm/w
|
100-110lm/w
|
100-120lm/w
|
|
Beam
angle
|
55*145º
(Asymmetric)
90*120º
(Symmetric)
30º
(Spot)
10º (Spot）
|
55*145º
(Asymmetric)
90*120º
(Symmetric)
30º
(Spot)
10º （Spot）
|
70*110º
(Symmetric)
|
80*135º
(Symmetric)
|
85*150°
(Asymmetric)
|
120°(Around)
|
|
Working
Current/Volt.
|
550mA
40-54V
|
820mA
40-54
|
920mA
40-54V
|
1450mA
30-42V
|
800mA
32-50V
|
440mA
80-90V
|
|
Product
size (mm)
|
112*115*70
|
112*131.5**71.5
|
112*131.5**71.5
|
171*131.5*71.5
|
275*71*64.1
|
D150*393
|
|
Package
|
68*37*25cm
16pcs/CTN
|
68*37*25cm
16pcs/CTN
|
68*37*25cm
16pcs/CTN
|
65*36*23cm
12pcs/CTN
|
68*37*25cm
16pcs/CTN
|
52*52*43mm
18pcs/CTN
|
