40x40MM Dual Feed UHF Ceramaic Antenna

Ceramic antenna JT-605 is 3dBi ceramic antenna, small size, high sensitivity receive rfid antenna.




Feature:

◆Working frequency 902~928Mhz

◆RFID ceramic antenna

◆3dBi RHCP circular polarization

◆Size 40*40mm

◆It is widely embedded in PDA


Specification:


PERFORMANCE PARAMETERS:
Working Frequency 920~925MHz
Dimension 40x40x4mm
Reflecting plate size 50x50x1mm
Net weight 50g
Antenna gain 3dBi
Polarization RHCP Circular polarization
V.S.W.R 1.5
Impedance(Ω) 50
working temperature -30℃~+ 70℃

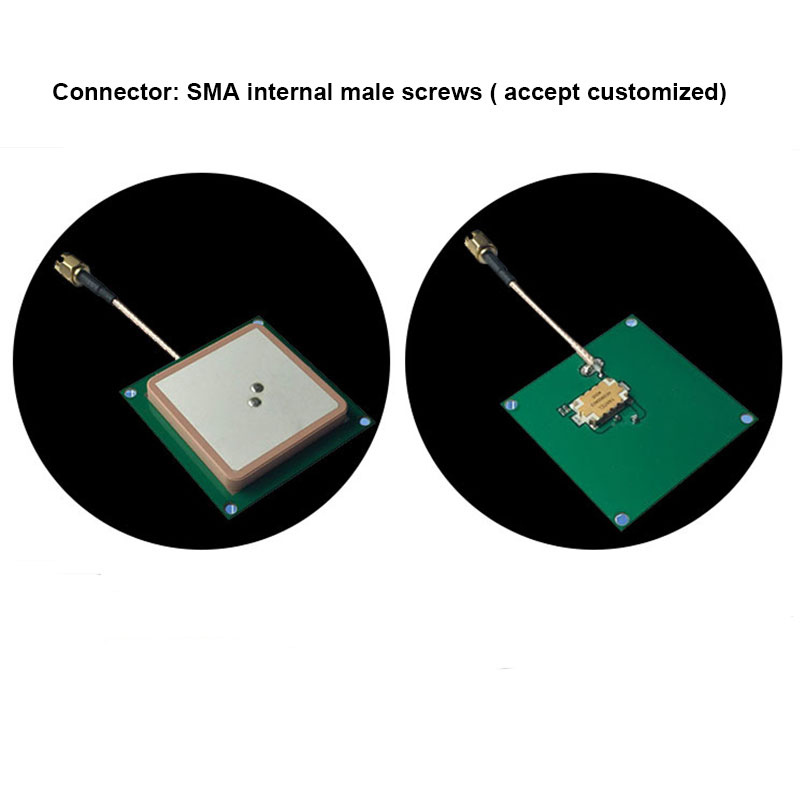

Connector SMA internal male screws(accept customized)
