Feature:
◆Working frequency 865~868Mhz/902~928Mhz
◆RFIDceramic antenna
◆5dBi RHCP circular polarization
◆small size,high sensitivity receive
Specification:
|
Performance parameters
|
|
Working Frequency
|
902~928
MHz or 865~868MHz
|
|

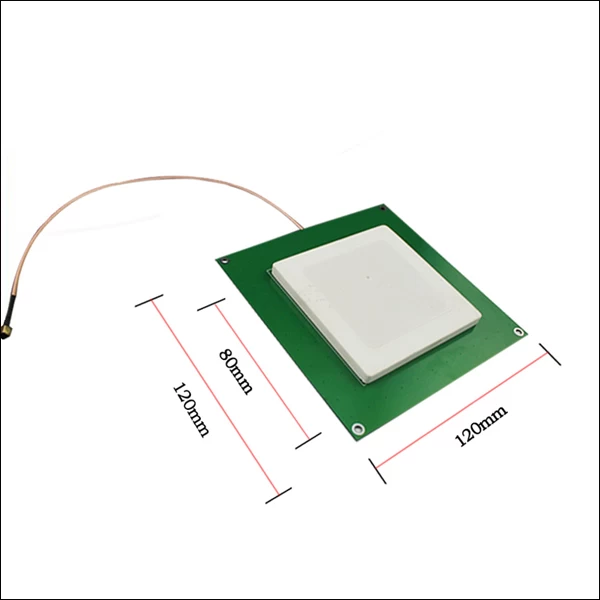

Dimension
|
80x80x4mm
|
|
Reflecting plate size
|
120x120x1mm
|
|
Antenna gain
|
5dBi
|
|
Polarization
|
RHCP
Circular polarization
|
|
V.S.W.R
|
1.5
|
|
Impedance(Ω)
|
50
|
|
Connector
|
SMA、MMCX、TNC( customized)
|
|
working temperature
|
-30℃~+ 70℃
|
