about this item
Capable of supplying 4 fixtures
Up to 4.5GPM
Self priming
Quick-Connect fittings
Continuous Duty
Run dry safe
Quiet operation
On-demand use
Industry Standard mounting pattern
Completely rubber mounting-base
Adjustable pressure switch
Specification
|
Type
|
4 Chamber positive displacement diaphragm pump, self priming, capable of being run dry
|
|
Control Type
|
Pressure switch & By pass control
|
|
Max Recommended Temperature
|
60° C（140° F）
|
|
Priming Capabilities
|
6 feet (1.8 m) suction lift
|
|
Re-start Pressure
|
Shut-off Pressure 40 PSI ： 30 PSI ± 5 PSI( ± 0.3 bar)
|
|
Inlet/Outlet Ports
|
3/4" QUICK ATTACH
|
|
Weight
|
5.4 lbs (2.4 kg)
|
|
eads
|
16 AWG, 11" (28 cm) long with 2-Pin connector / Leads
|
|
Duty Cycle
|
Intermittent
|
|
Max.Amp Draw
|
15.0 A
|
|
Fuse
|
22.5 A
|
|
Model
|
Voltage
|
Open Flow
(GPM/LPM)
|
Control Type
|
Max Draw
|
Shut-off Pressure
(PSI/BAR)
|
Valves
|
Diaphragm
|
Ports
|
Wire Connections
|
|
NMDP41-G45-40-12
|
12V
|
4.5 / 17.0
|
switch & By pass
|
15.0
|
40 / 2.8
|
EPDM
|
Santoprene
|
QUICK ATTACH
|
2-Pin/Leads
|
|
NMDP41-G45-40-24
|
24V
|
4.5 / 17.0
|
switch & By pass
|
6.0
|
40 / 2.8
|
EPDM
|
Santoprene
|
QUICK ATTACH
|
2-Pin/Leads
|

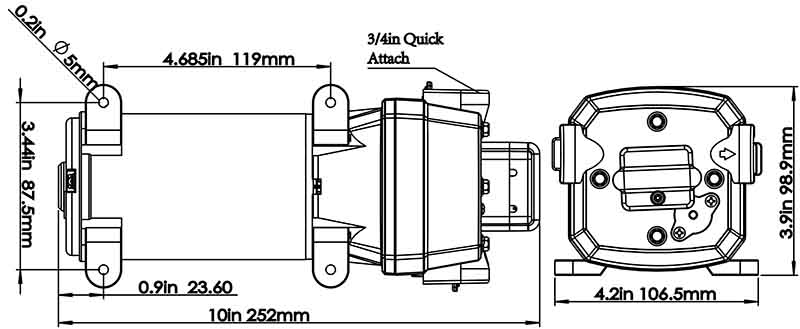

Dimensions
