42000 Liters Fuel Tanker Trailer For Sale Africa

-New model and design 42000 liters fuel tanker trailers

-American type 13 Tons Axle

-Durable 12R22.5 tire

-Spring suspension

-Pneumatic Control system



ITEM: 42000 Liters Fuel Tanker Trailer For Sale Africa


Feature

SUNSKY Tanker semi-trailers from China are popular used in many African countries like Tanzania,Malawi,Mozambique etc, perfectly tailored to the demanding requirements facing petrol station supply and haulage company . They are ideal for transporting fuel,diesel,gasoline etc. The trailer can be fitted with or without a dipstick measuring system. Weight-optimised trailers considerably reduce the empty weight and thus reduce heating consumption and tyre wear during transportation.


Advantages of fuel tanker trailer for sale


1.Design: The main frame and tank body of fuel tanker trailers are designed by 3D-CAD, have a more reasonable structure.

2.Material: The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell, the tanker body is stronger.

3.Performance:  Safe tanker facilities, manhole cover with p/v vent valves and safety valves,can be in carbon steel , aluminum and stainless steel materials.

4.Customized service: The capacity of fuel tanker trailer can be made from 30000 liters to 50000 liters capacity. Compartments from 1 to 8.To meet the clients' different requirements.


Specification


42,000L 3-axle Fuel Tanker Semi-trailer

Feature:

Carry Fuel,Oil,petroleum

Dimension(L*W*H):

11500*2500*3750 mm (42,000L)

Model

XM9400GRY

Material:

Carbon Steel

Compartment:

3 (14000L + 14000L + 14000L)

Capacity(kgs):

42,000L

Tare weight(kgs):

9,400kgs

Kingpin

JOST BRAND bolt-in 3.5”

Landing gear

JOST BRAND 19”

Tire size

12R22.5(13 sets)

Rim size

9.00*22.5(13 sets)

Axle

American type Axle,13 Tons

Leafs spring

Steel suspension with 8pcs of leafs spring

Brake system

RE 6 relay valve

Manhole:

Aluminum alloy ø500mm(20”) manhole with aluminum alloy cover; with breather valve;

Discharge Valve

Aluminum alloy discharge valve with cover

Foot Valve

Pneumatic control DN80 aluminum alloy foot valves

Pneumatic Control system

1set Pneumatic Control combined switch

1unit emergency switch

Discharge Hose

2 units 3”×6M factory PVC hose with quick coupling on both ends

Vapor Recovery & Overfill system

Optional

Fire Extinguisher Carrier

2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside

Electric system:

One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable

Prime & Topcoat painting

S.A.2.5standard sandblasting ;Zinc-rich & Polyurethane painting

We can build the trailers according to customer’s design and requirement


Quality Guarantee

1. More than 30 years experience in manufacturing semi-trailers since 1984.

2. One year warranty on the chassis of semi-trailer.

3. Spare parts support service.

4. The best brand-Wabco brand of braking system to ensure the brake performance and keep the driver safe.

5. Heavy duty design especially for the bad road condition in Africa.

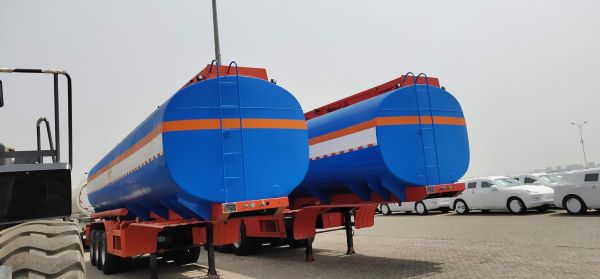

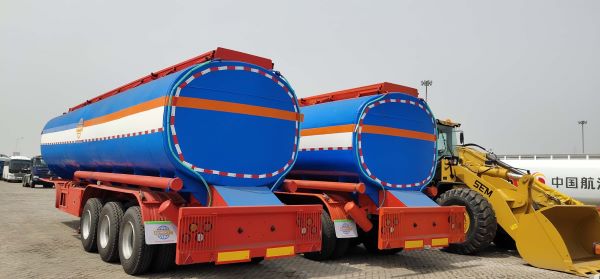

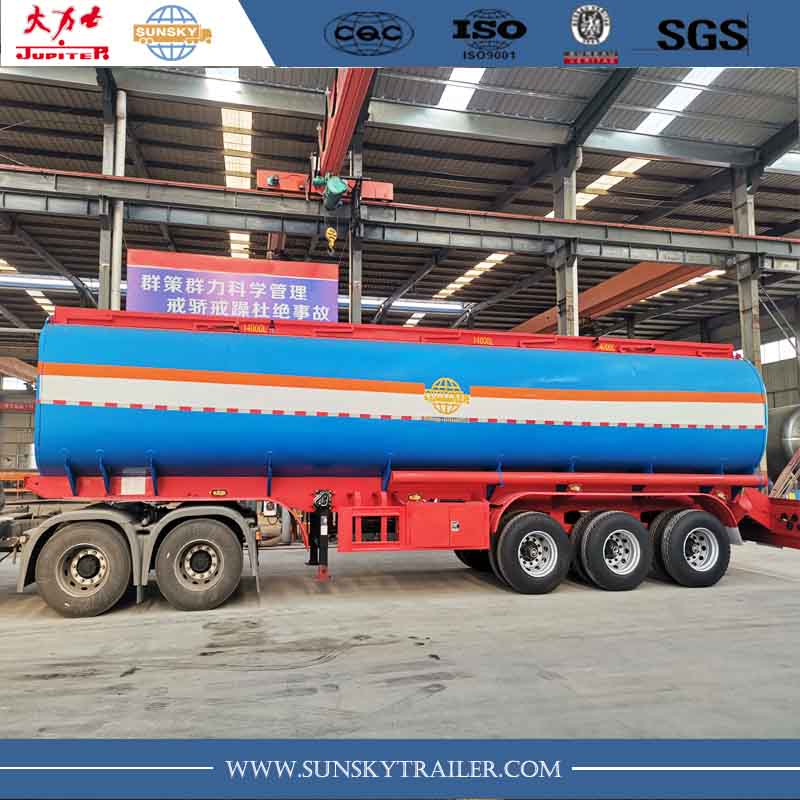

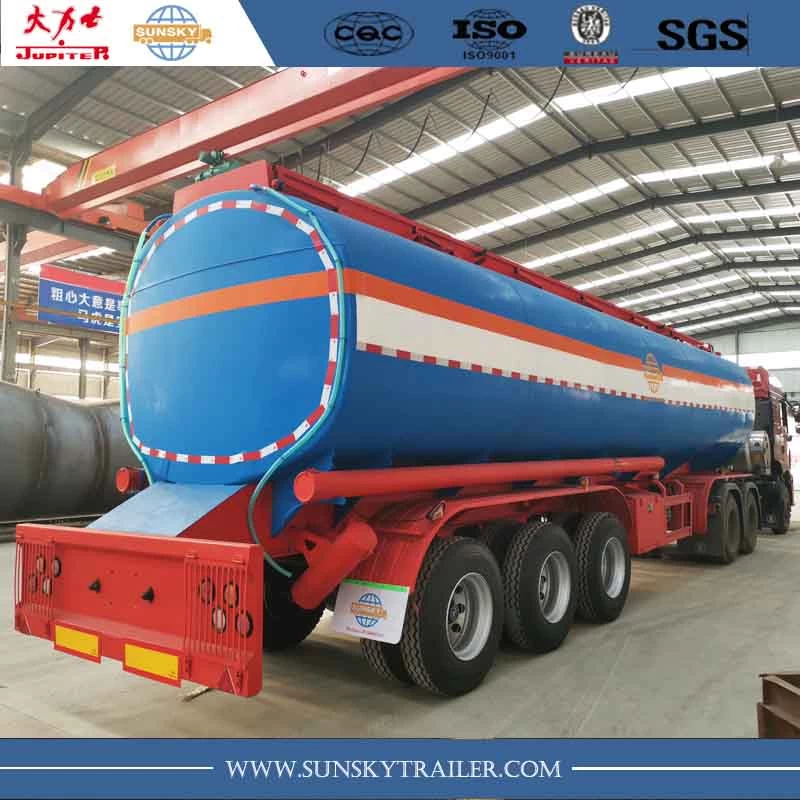

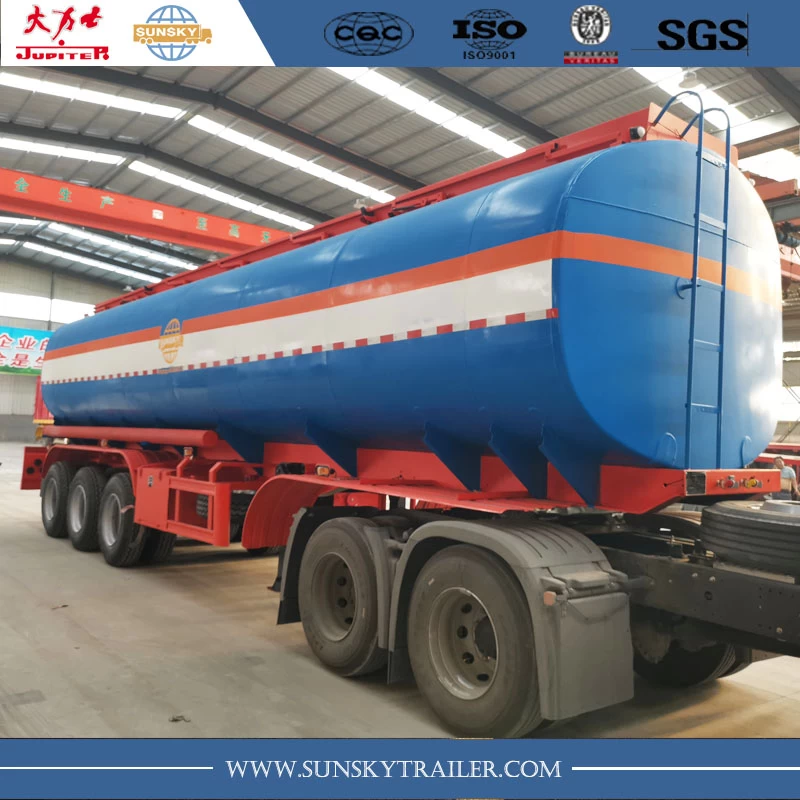

Detail photo of fuel tanker semi trailer for sale

fuel tanker semi trailer

china fuel tanker trailers
