42m3 aluminum Fuel tank trailer

aluminium tanker semi trailer, Fuel tanker,chemical liquid transportation aluminum tanker semi trailer for sale,10000 Gallon to 11100 Gallon Aluminum Tank Semi Trailer 3 Axle Oil Tanker Trailer, oil trailer truck fuel tank semi trailer(aluminum stainless steel, 2016 3 axle oil fuel tank trailer, tri- axle aluminum fuel tanker truck trailer

Facebook Twitter Pinterest LinkedIn 分享

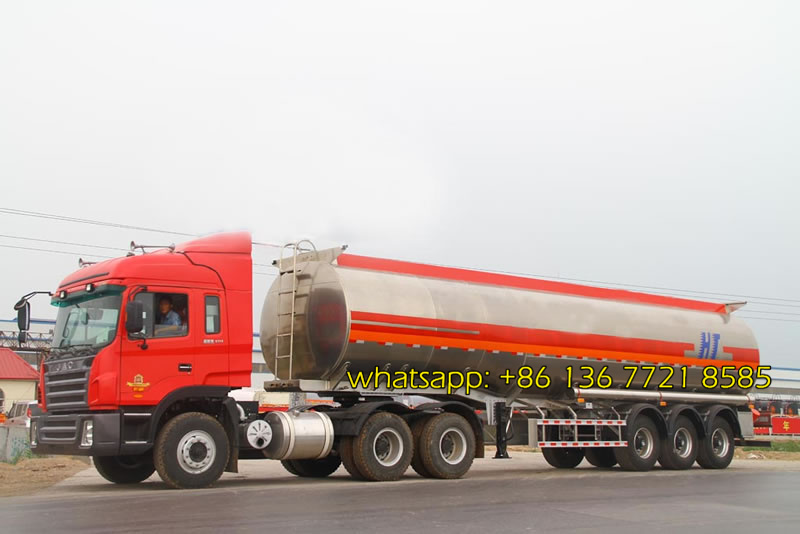

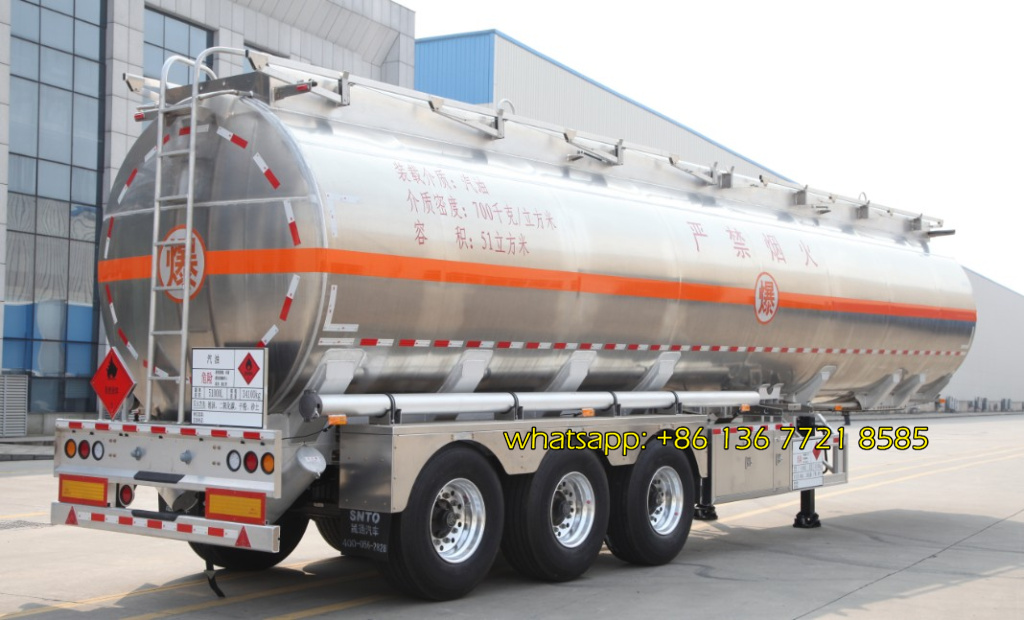

42m3~50m3 Aluminum Alloy Fule tank trailer

42m3~50m3 Aluminum Alloy Fule tank trailer

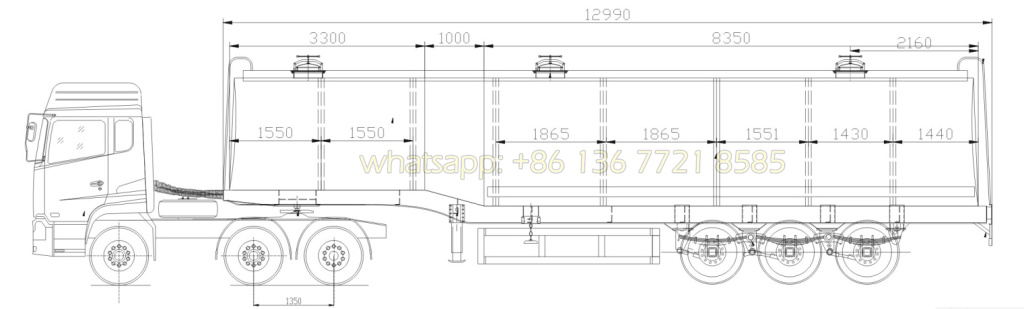

Basice drawing:

42m3~50m3 Aluminum Alloy Fule tank trailer drawing

ISUZU FUEL OIL CONTAINER SEMI TRAILER



Main Parameters
Tank Body
Shape Optional(Round or Suare)
Overall Dimension 13000×2500×3950(Exact size depend on the final design)
Tank Dimension 12600×2480×2150(Exact size depend on the final design)
Tare Weight About 9000 Kg
Total Volume(m3) 40m3~50m3
Tanker Body Material 5mm /Q235 Aluminum alloy
End Plate 6mm/Q235 Aluminum alloy

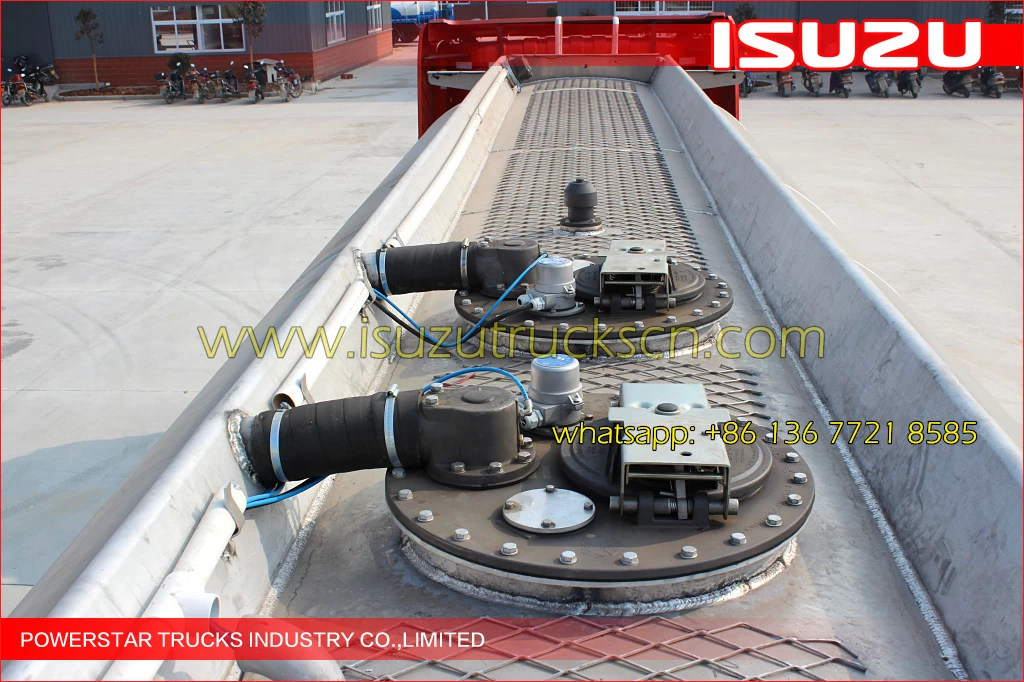

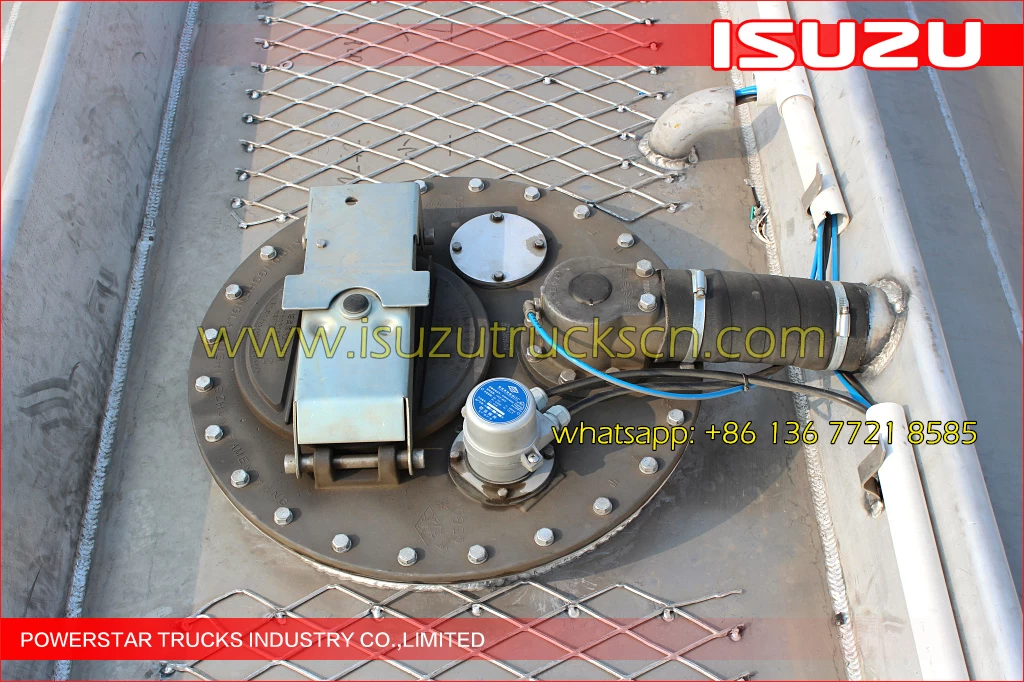

Manhole Cover  Aluminum alloy API manhole cover ,500mm

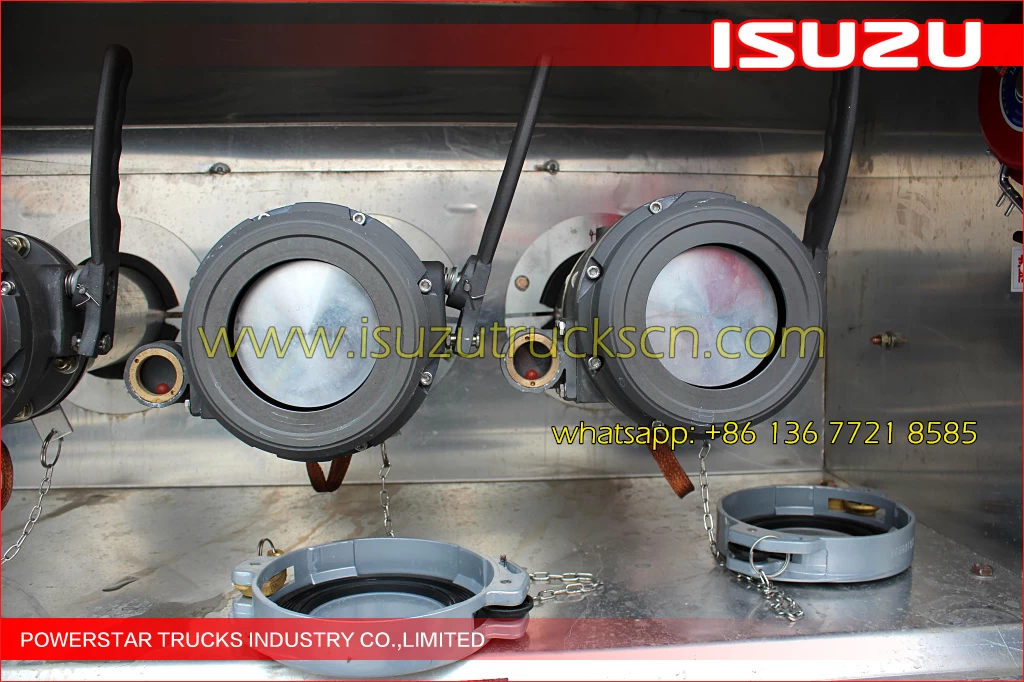

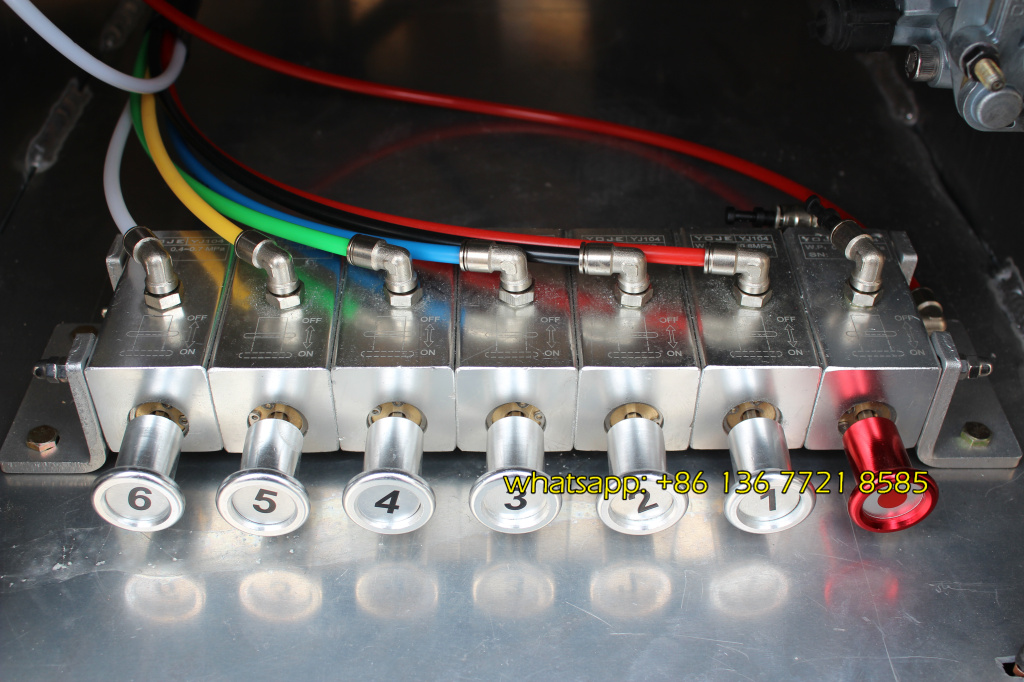

Bottom Volume Aluminum API Pneumatic Bottom Valve

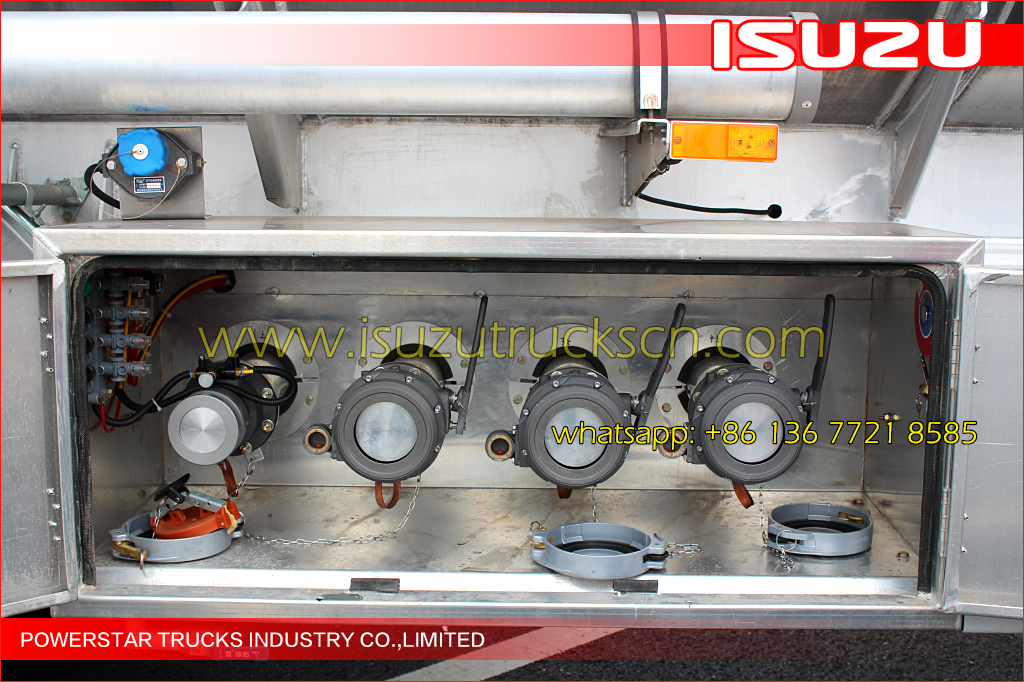

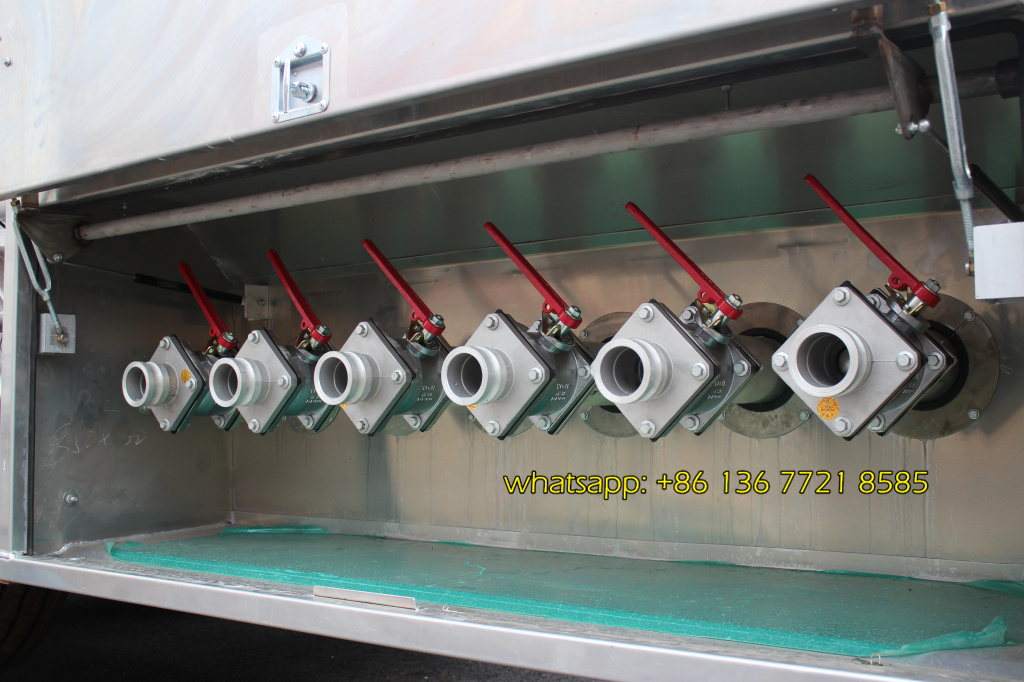

Discharging Valve Diameter is 3 inch
Compartments Optional
Discharging Pipe 4” rubber hose,2 pcs,6m/each

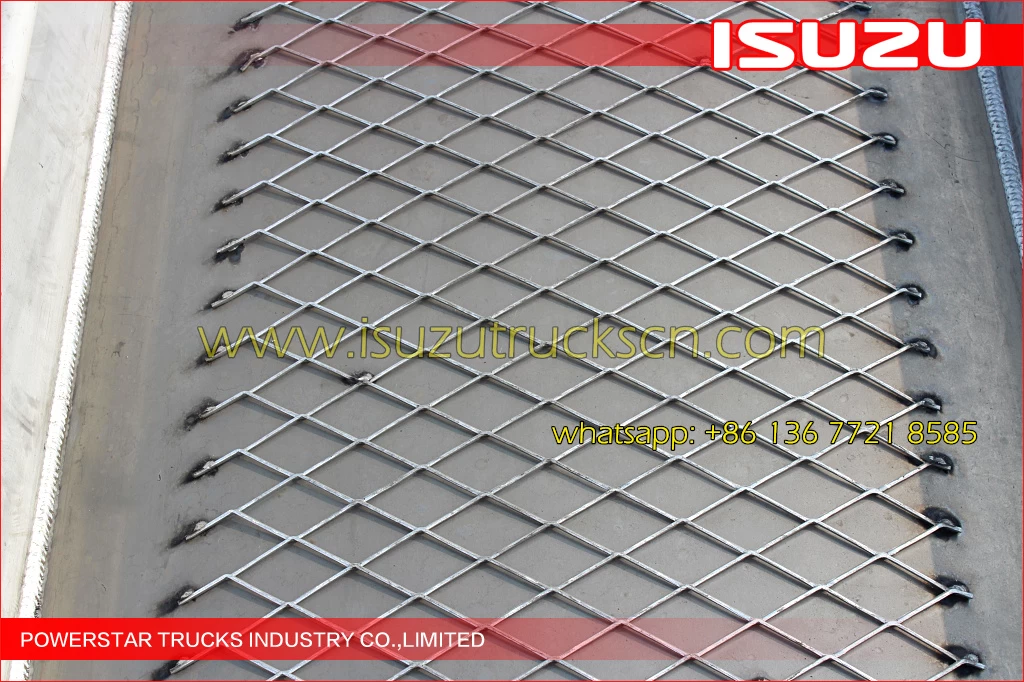

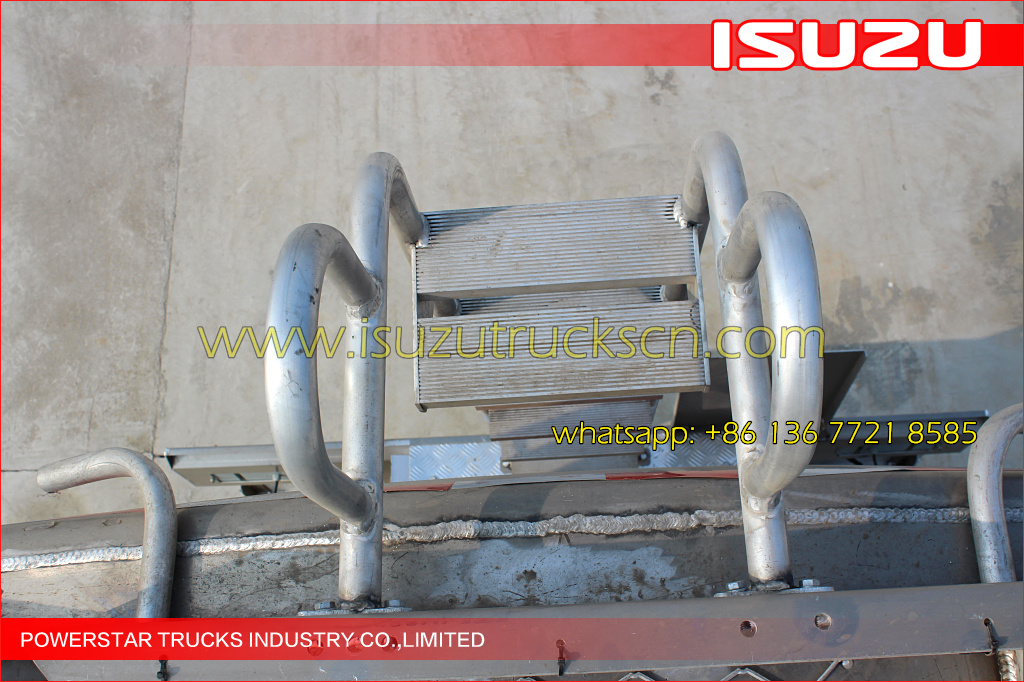

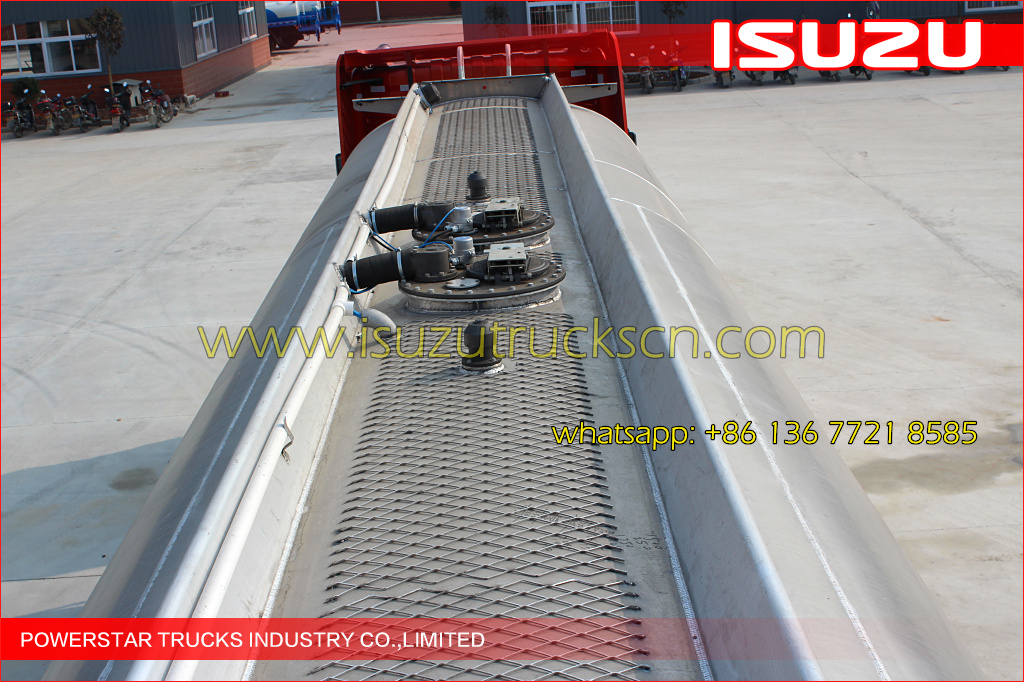

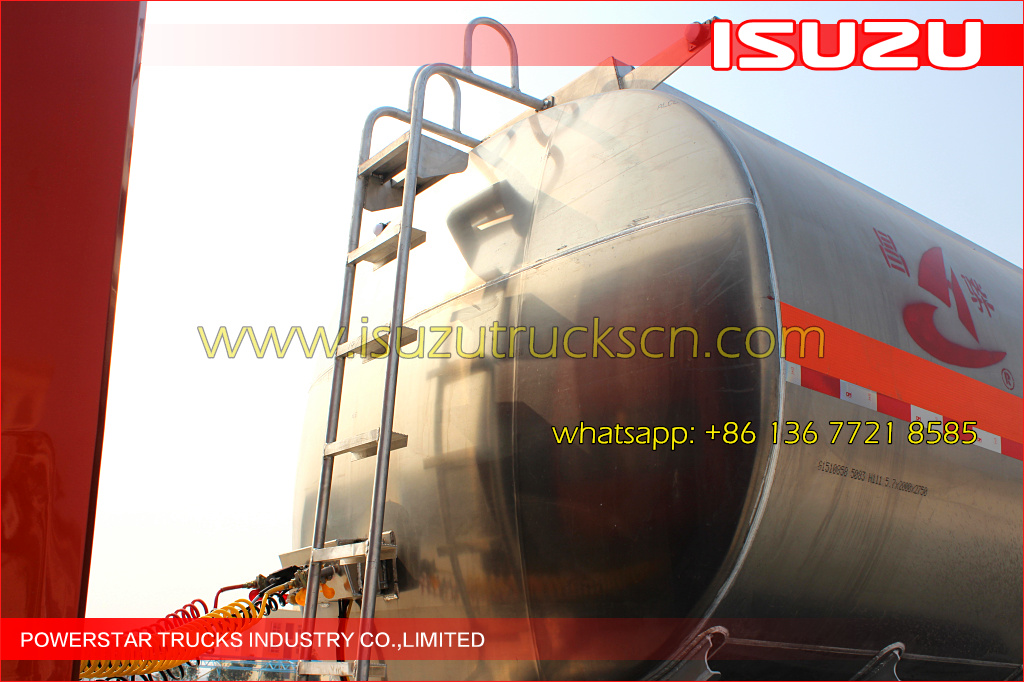

Cat Walk With (Common model or special design)
Chassis

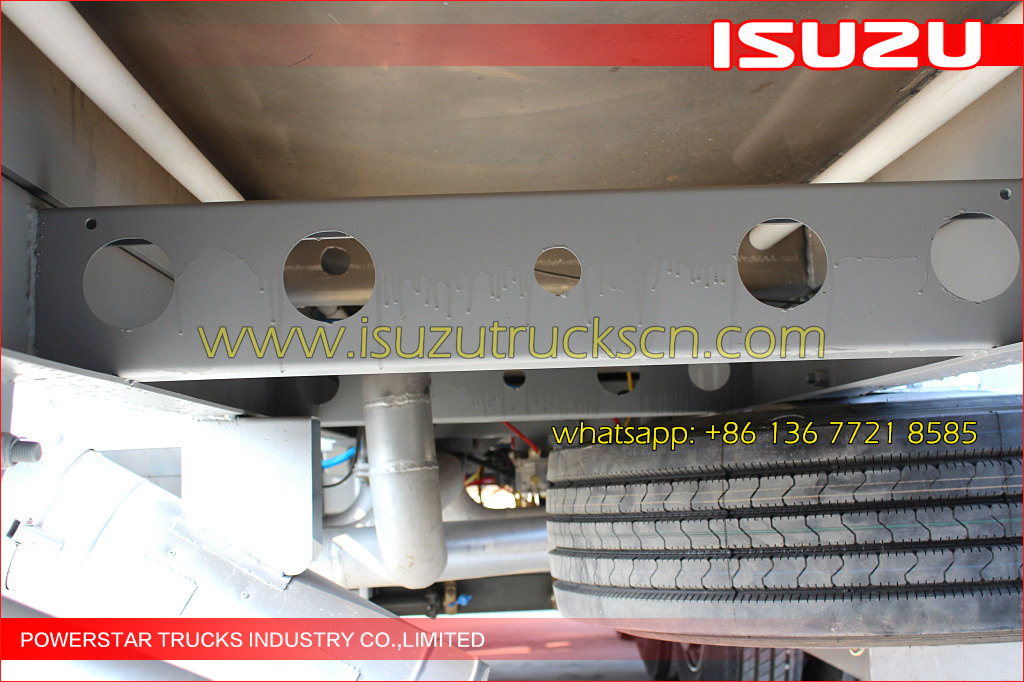

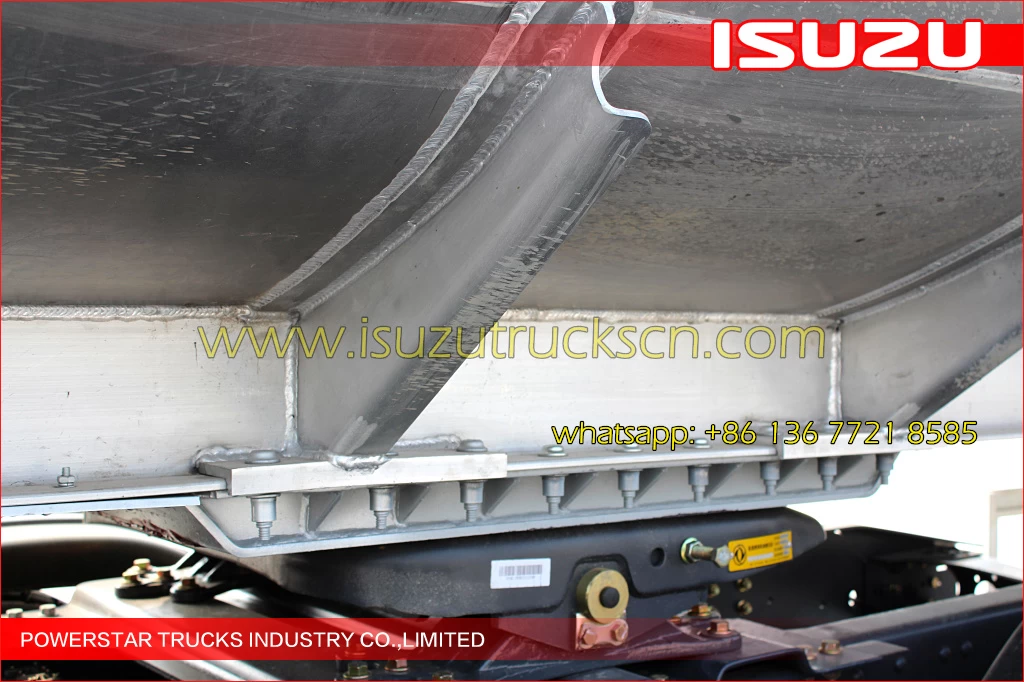

Main Beams Welding design or special design I beam ,connected by bolts and nuts Q345 carbon steel material

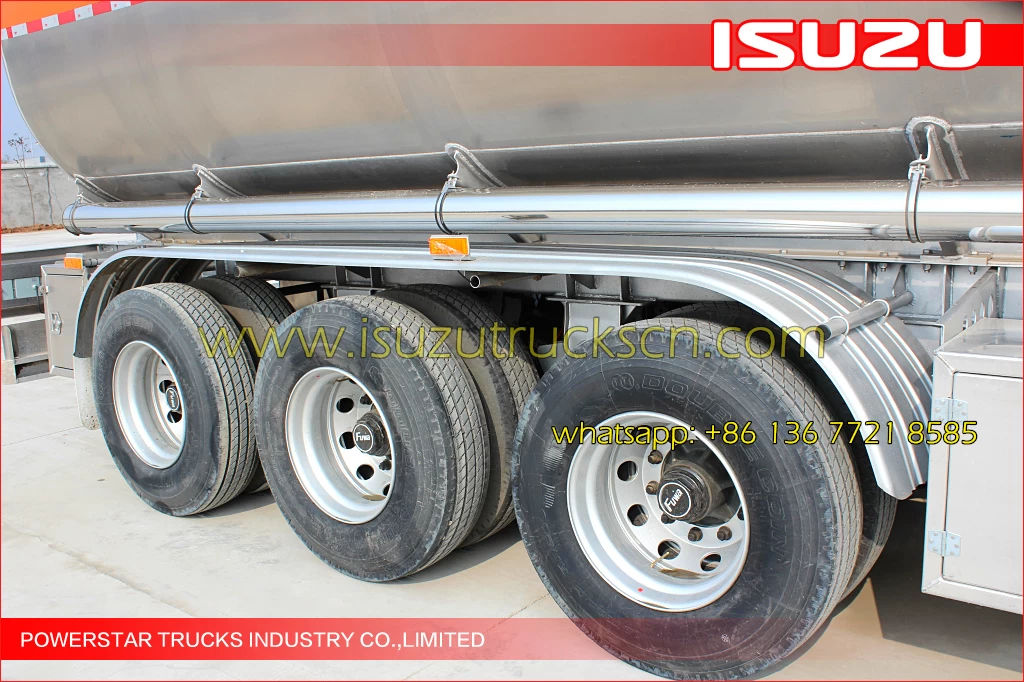

Axle 3 axles, BPW/FUWA/HUAJING brand

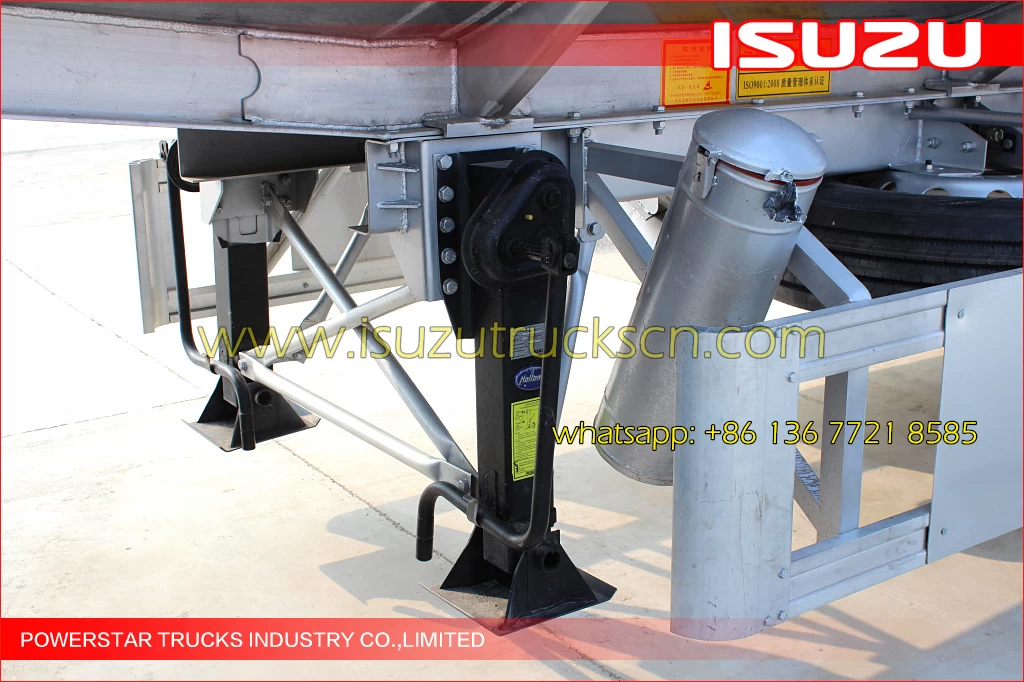

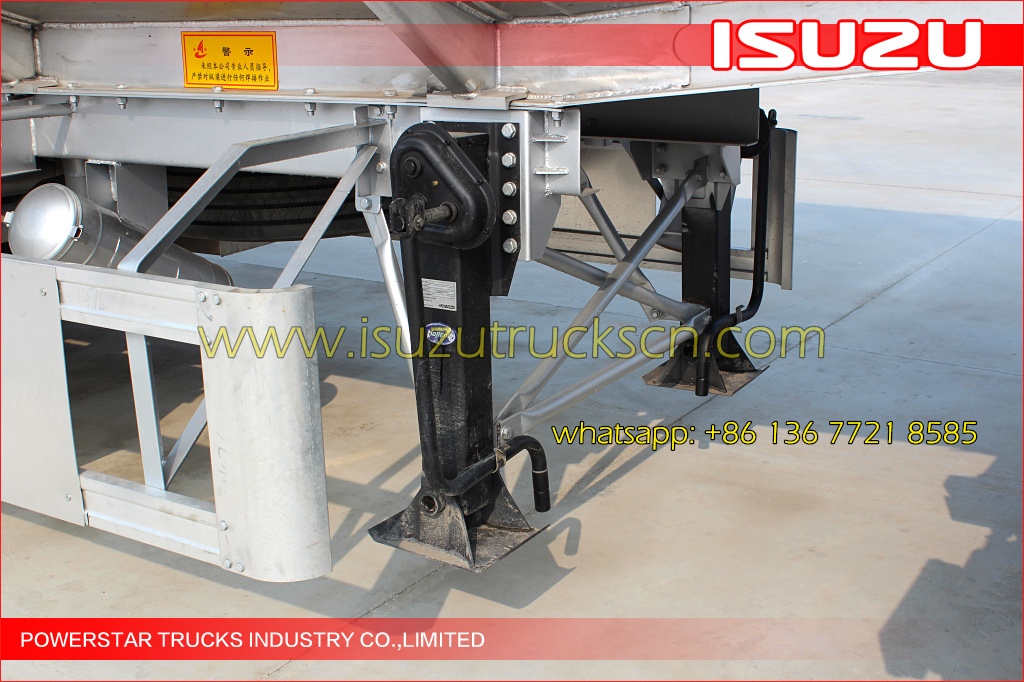

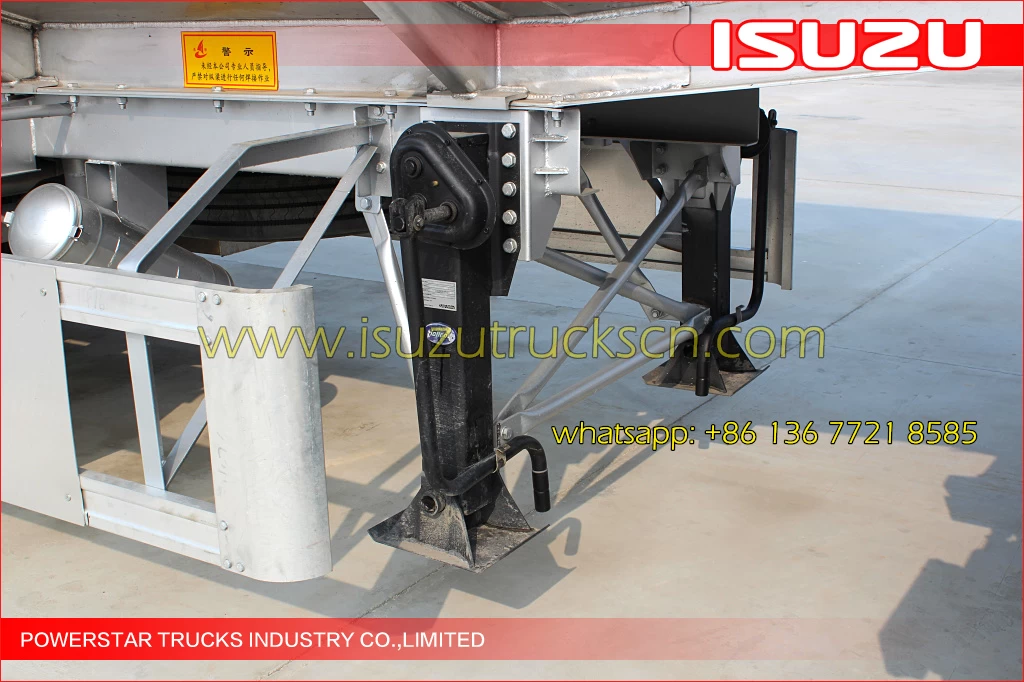

Landing Gear JOSTD200T or China brand 28T
King Pin JOST 2.00 OR 3.5 inch bolt-in king pin
Suspension Mechanical suspension(Germany or American type)/air suspension
Leaf spring 90(w)mm*13(Thickness0mm*10 layer or 100mm*12mm*12/without
Pneumatic Braking System WABCO RE 6 relay valve;Spring brake chamber;2 pieces of 45L air tanks.
Rim 9.00-22.5 China brand
Tire 12.00R22.5 Brand can be optional
ABS Optional
Painting Complete Chassis and blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint

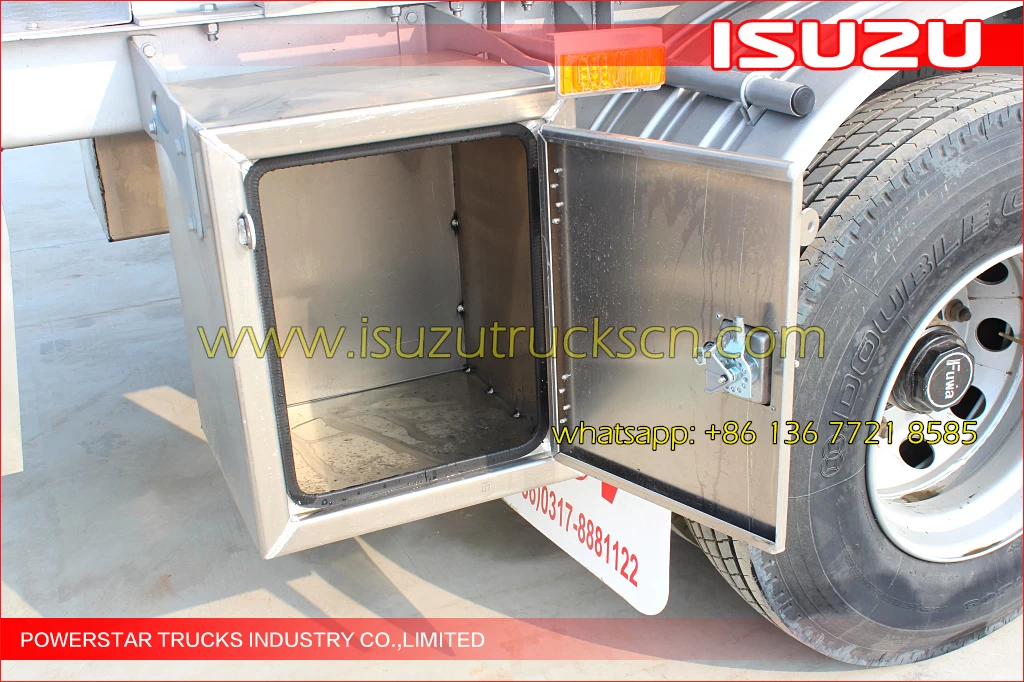

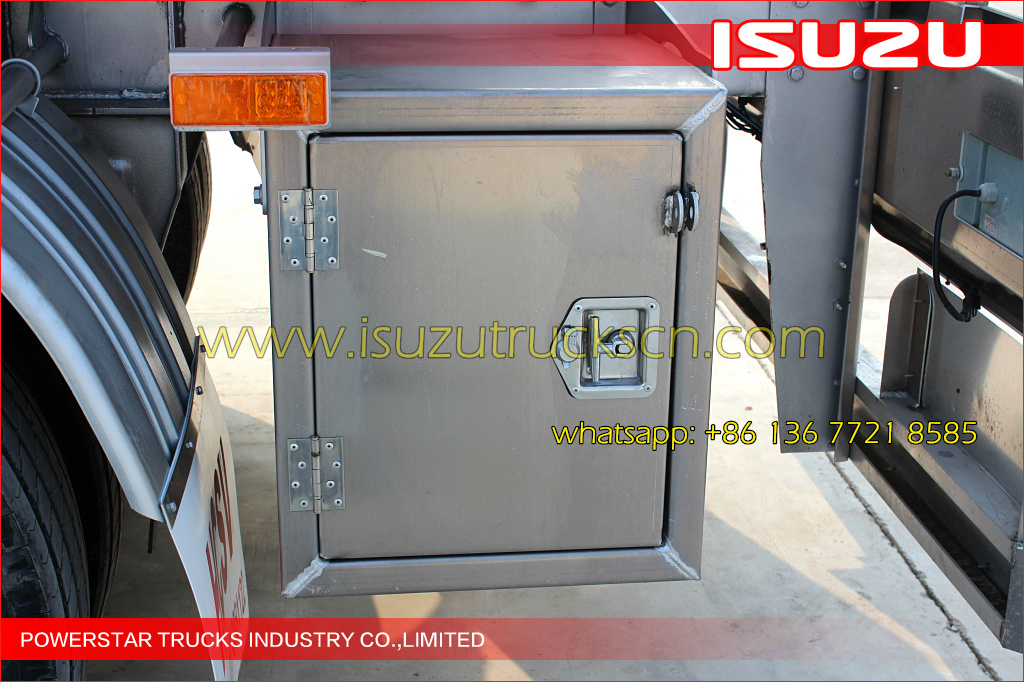

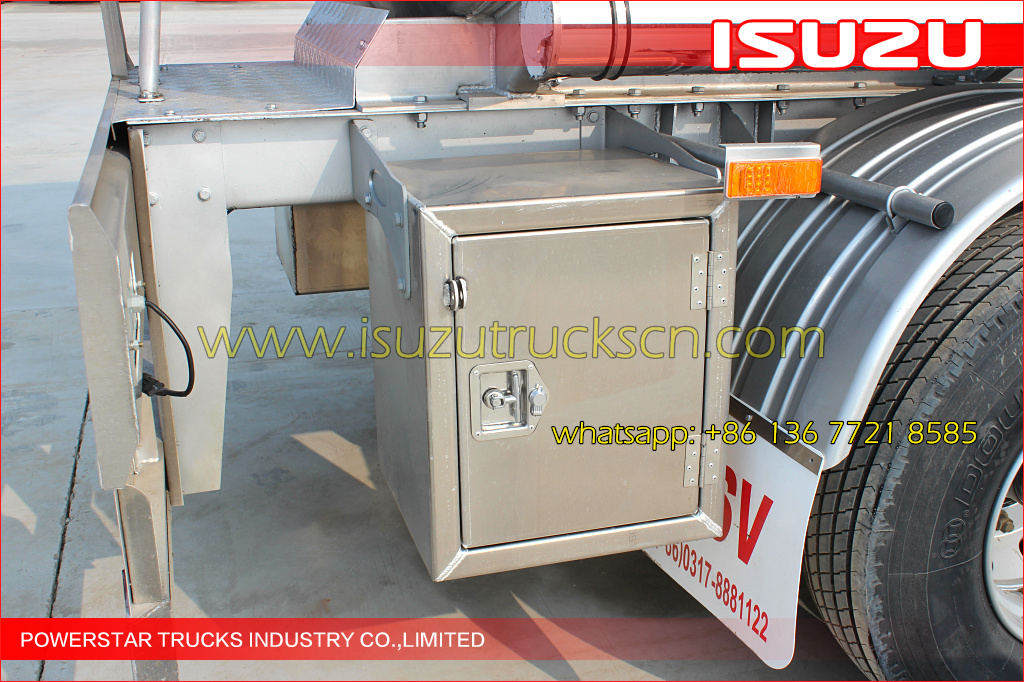

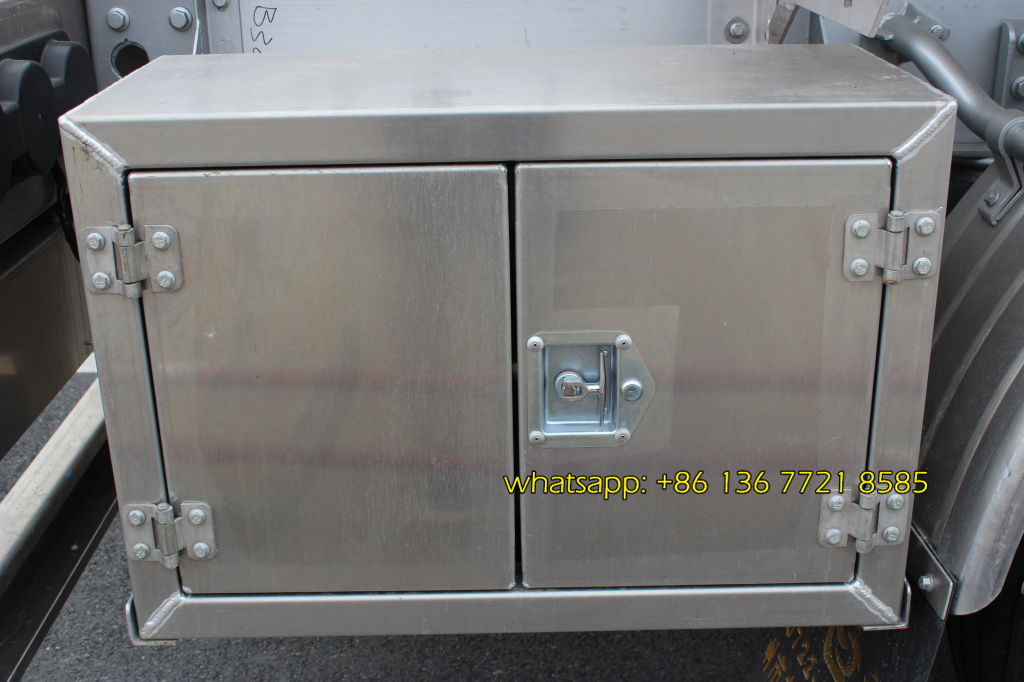

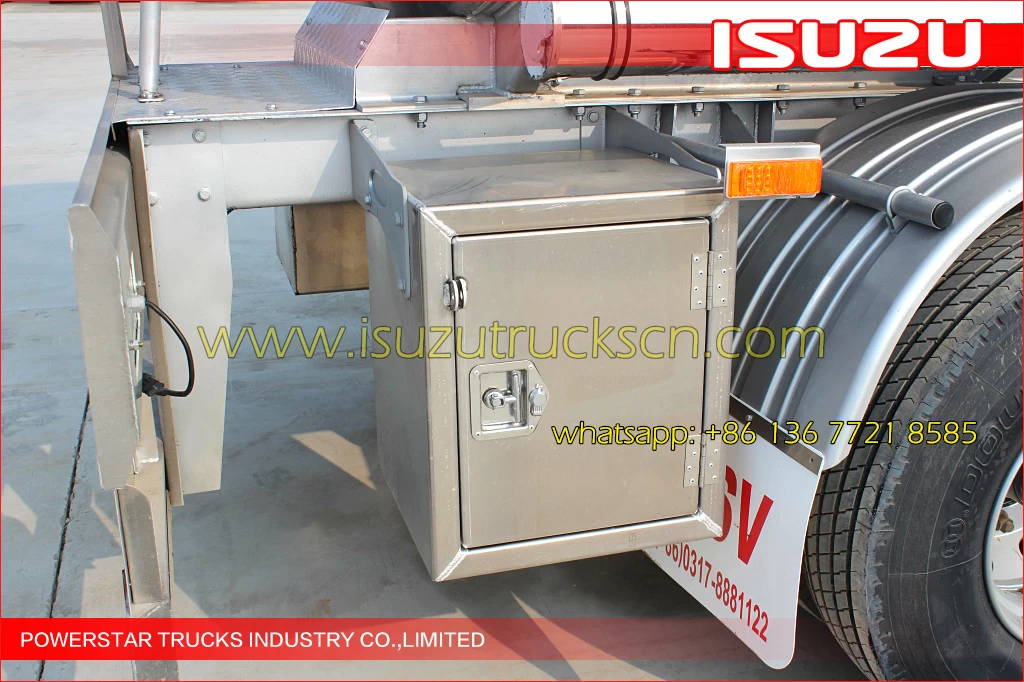

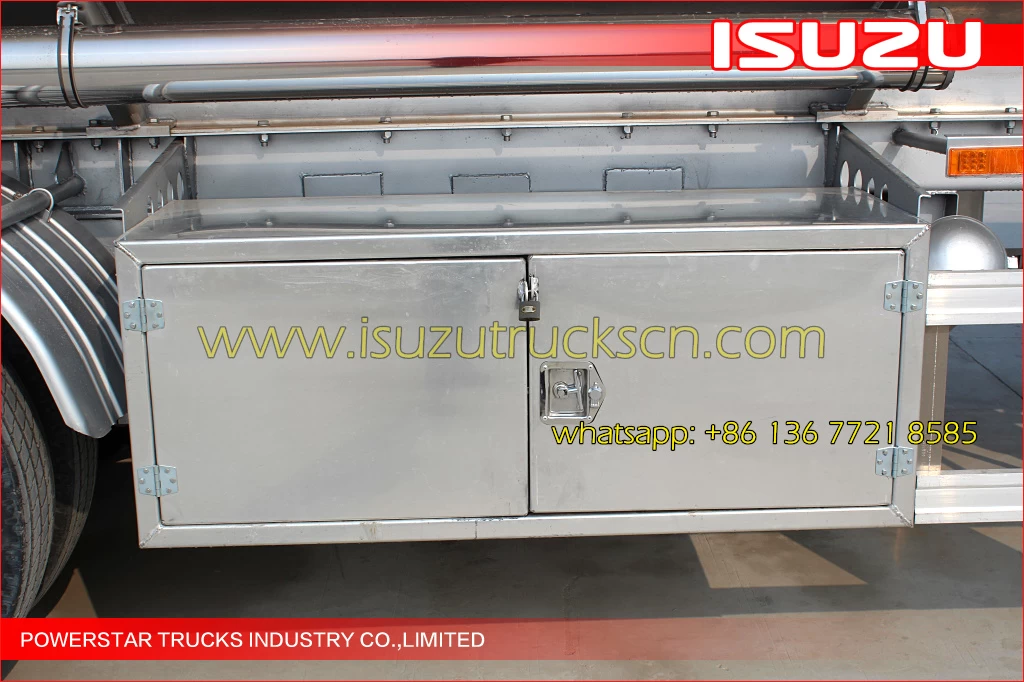

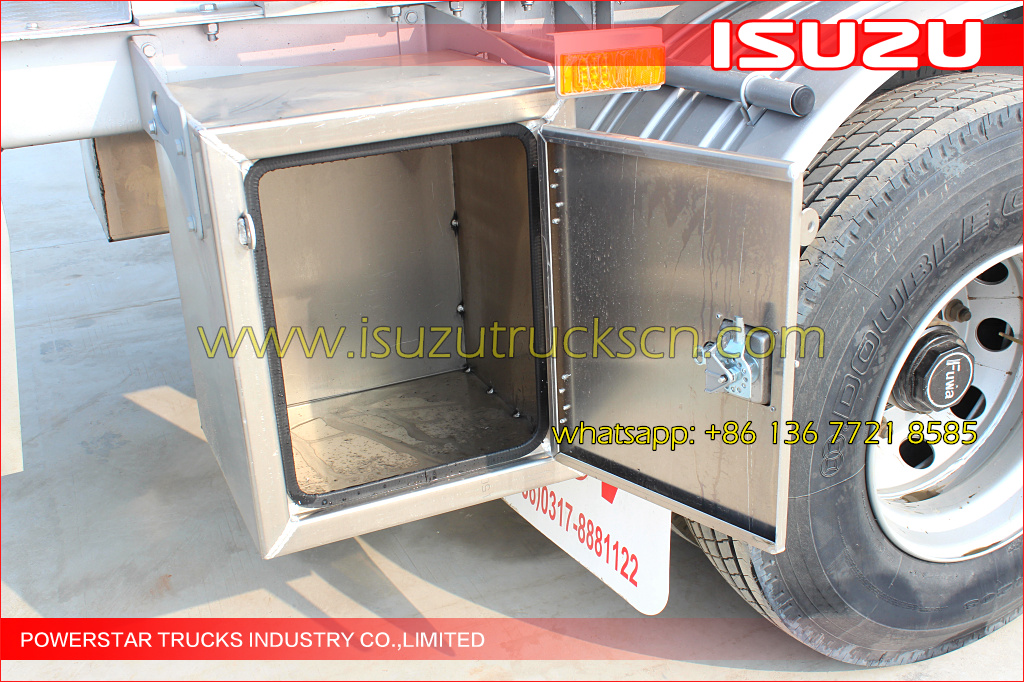

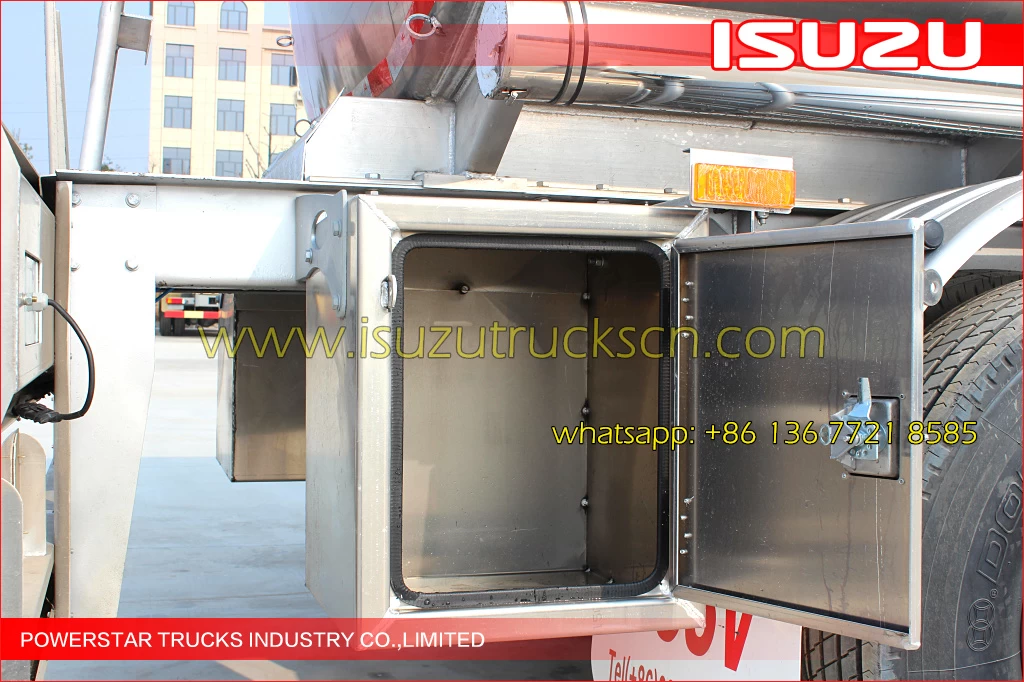

Accessories One standard tool lox
Shipping Terms By bulk cargo ship, RORO or 40HQ container

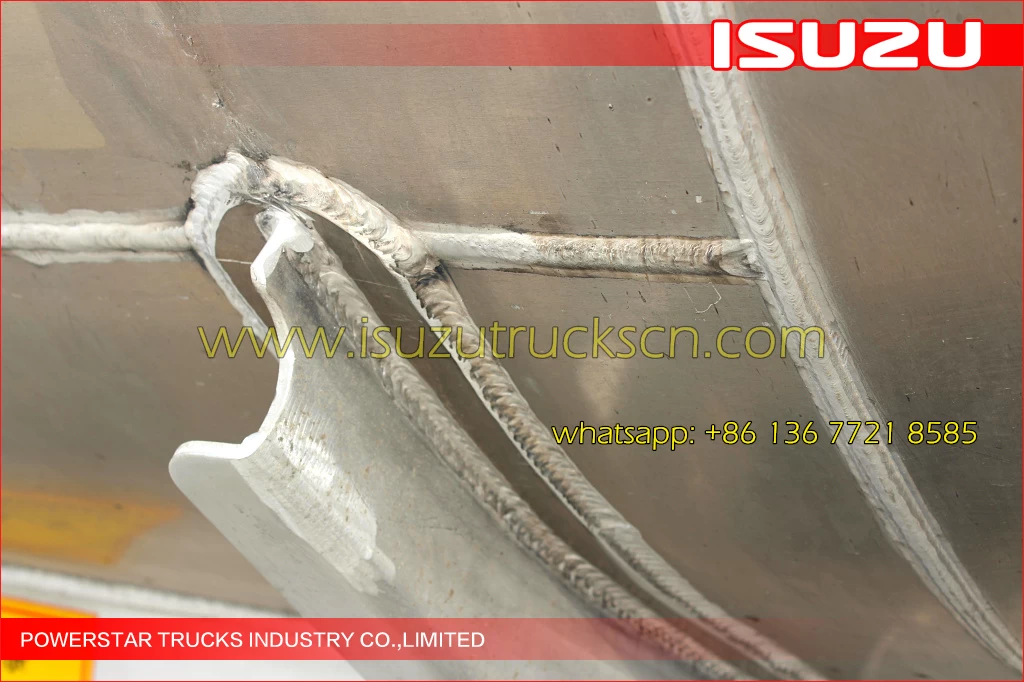

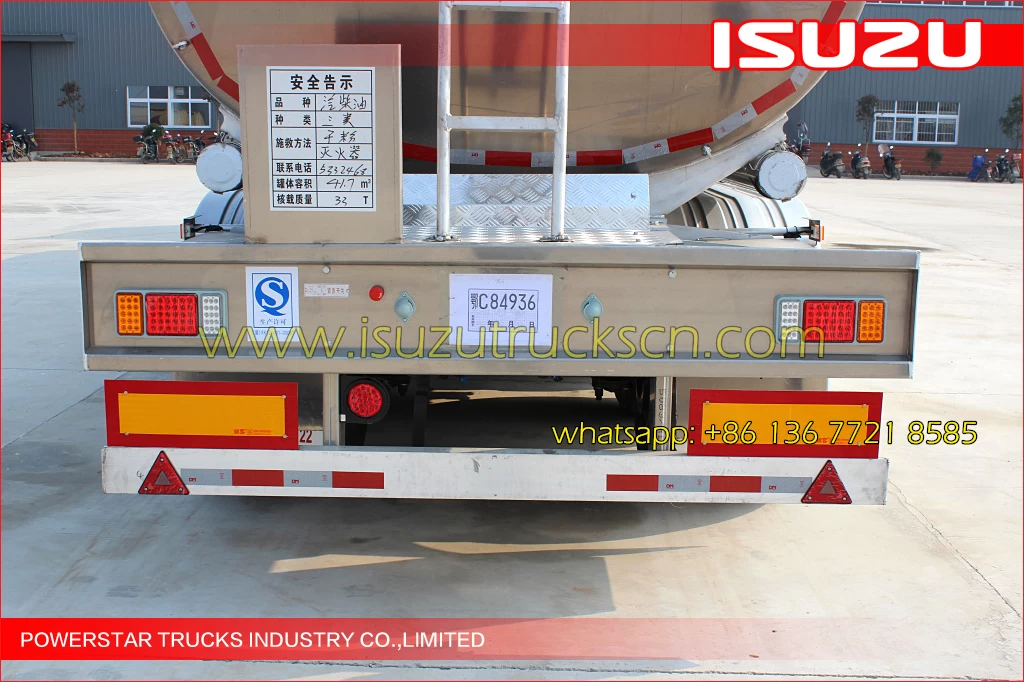

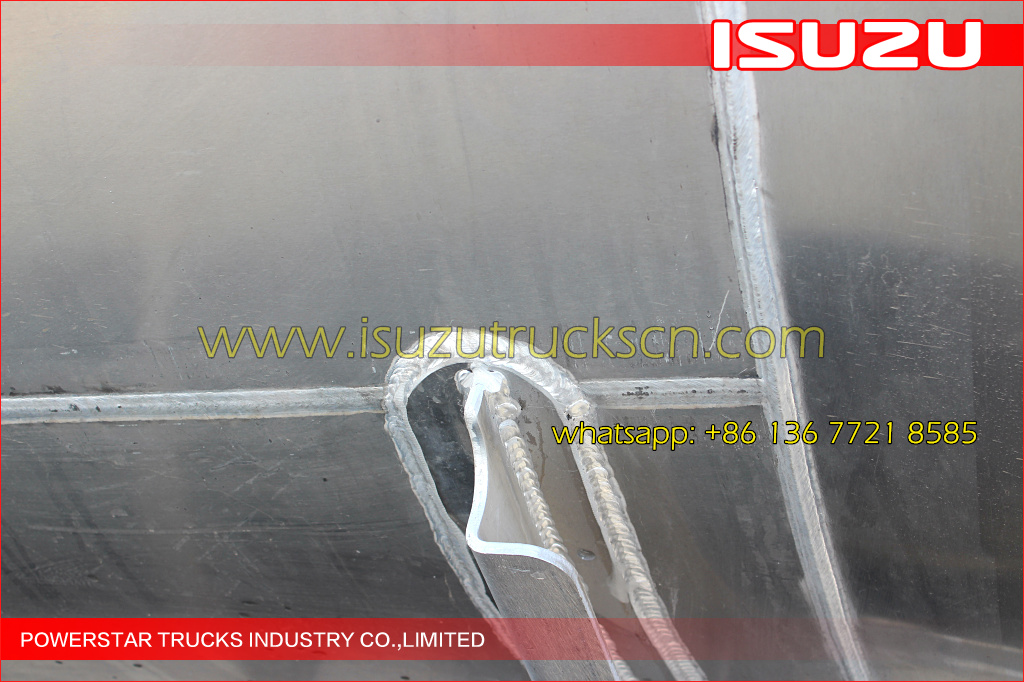

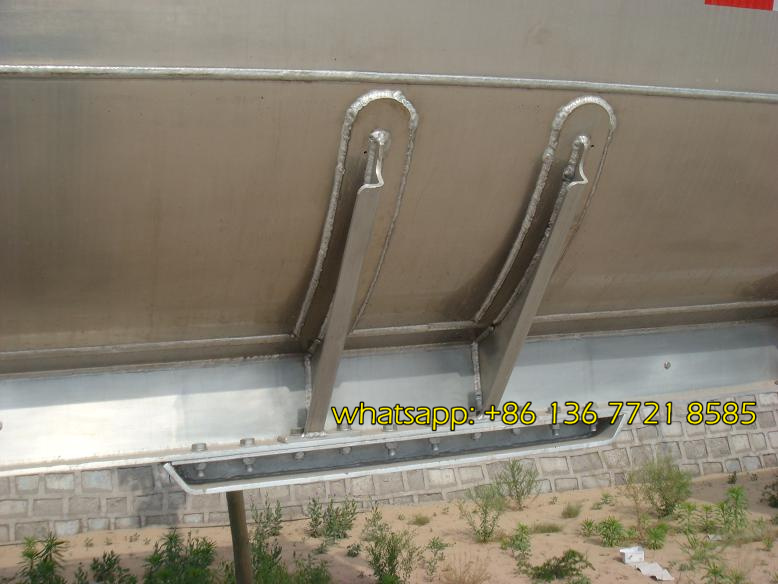

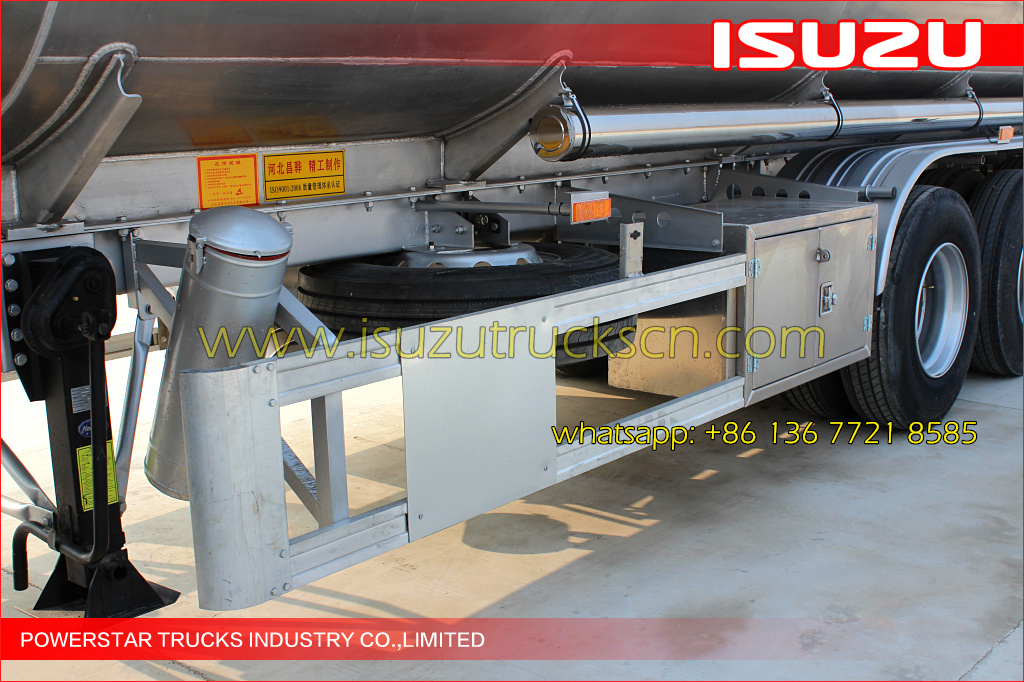

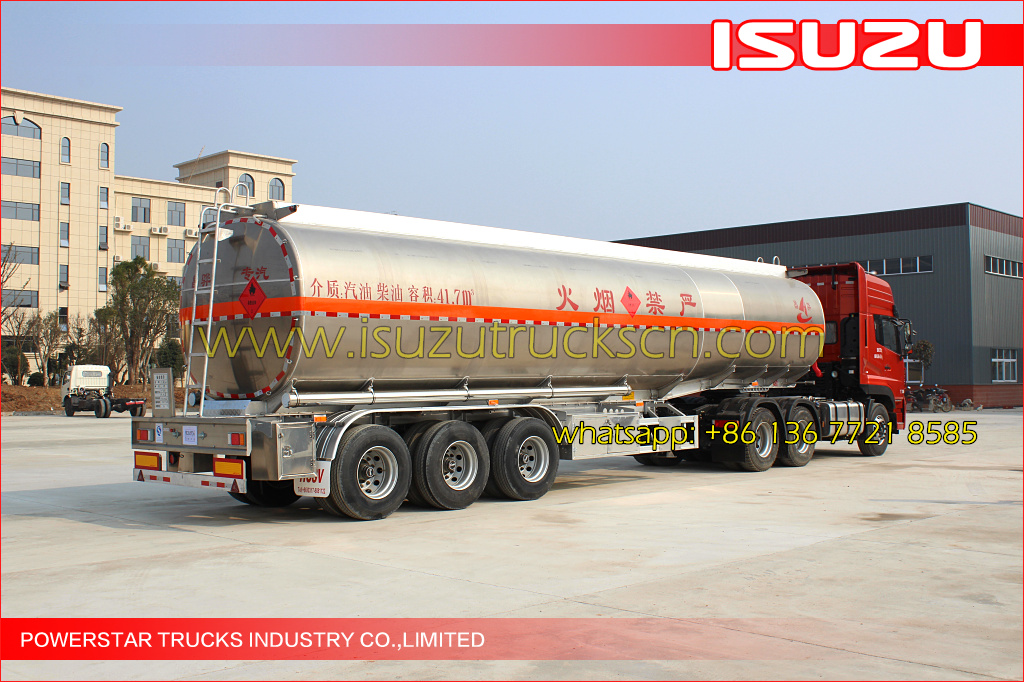

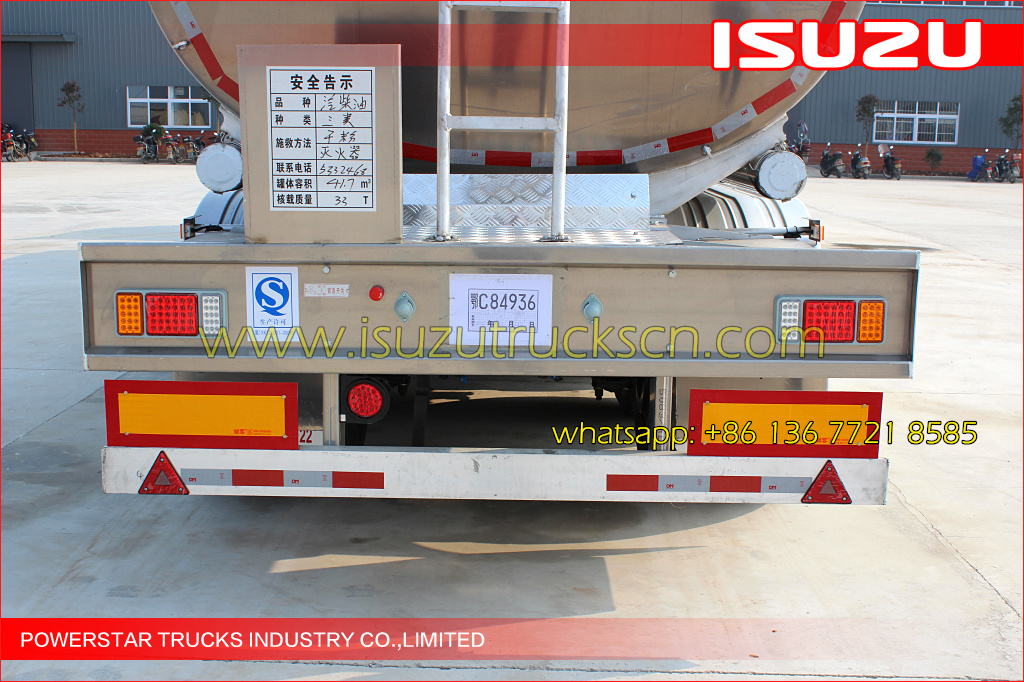

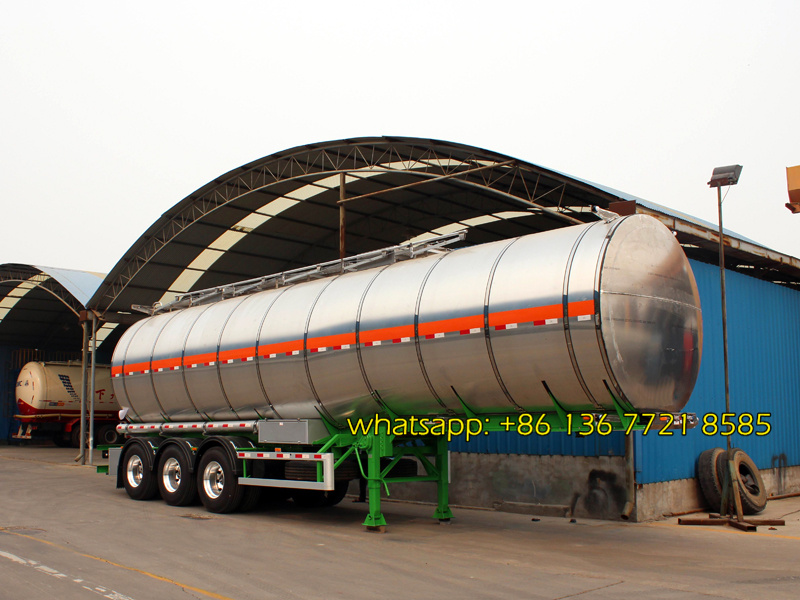

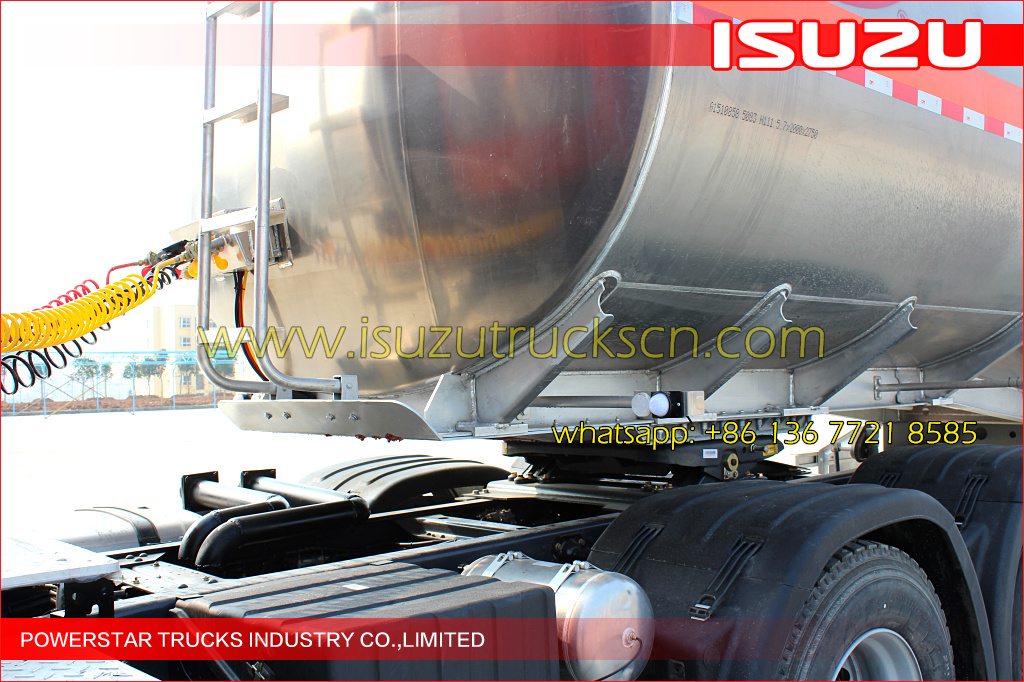

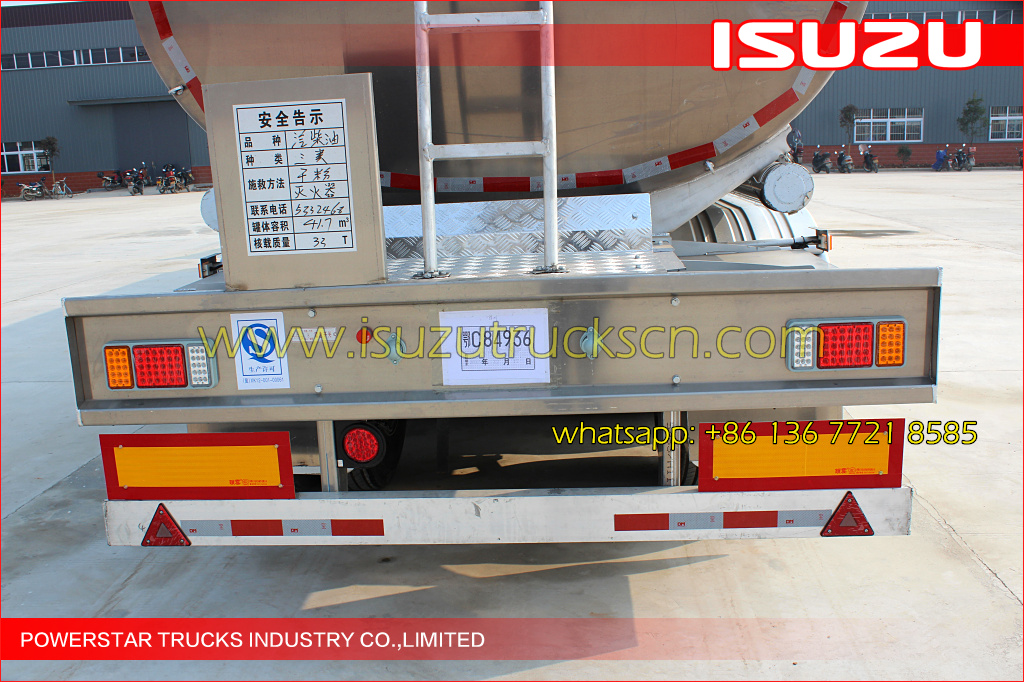

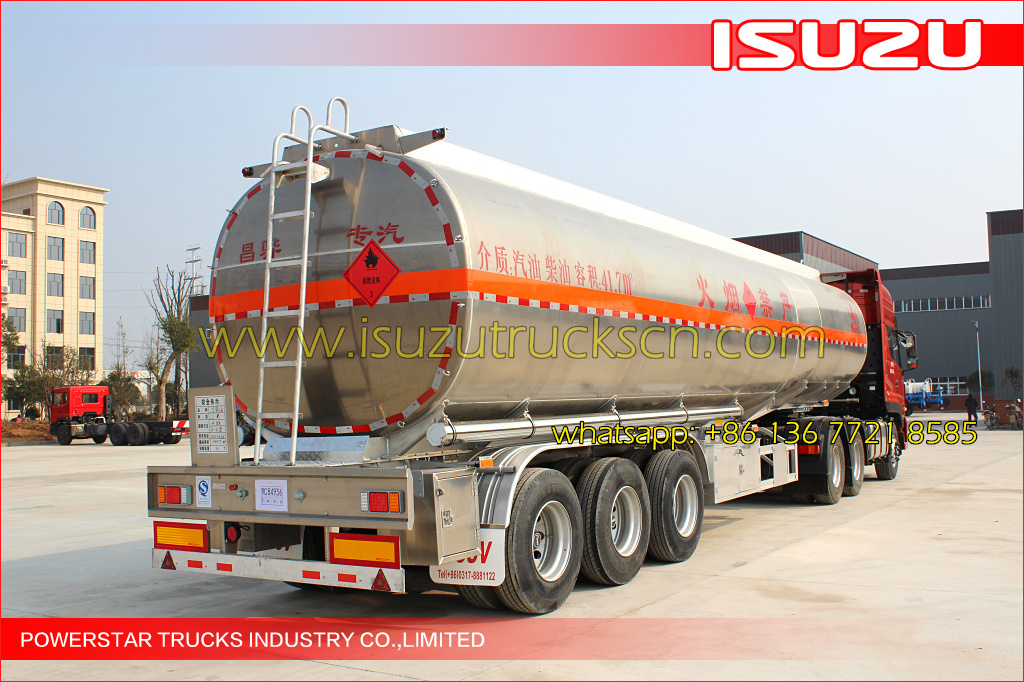

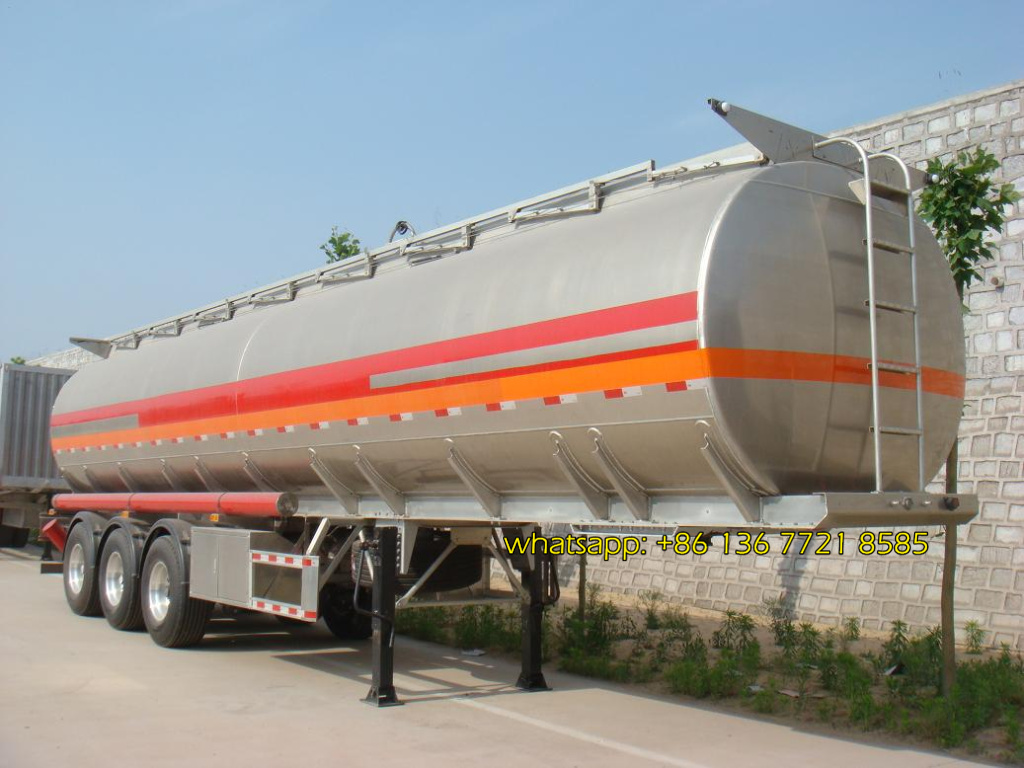

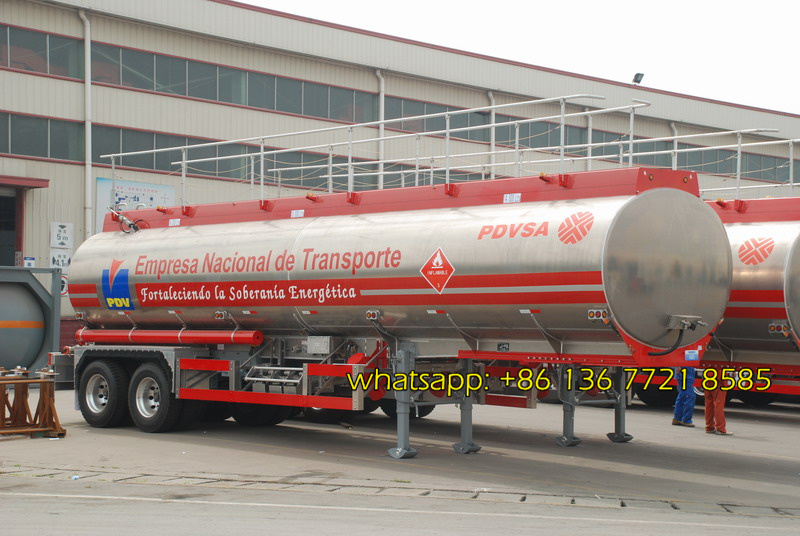

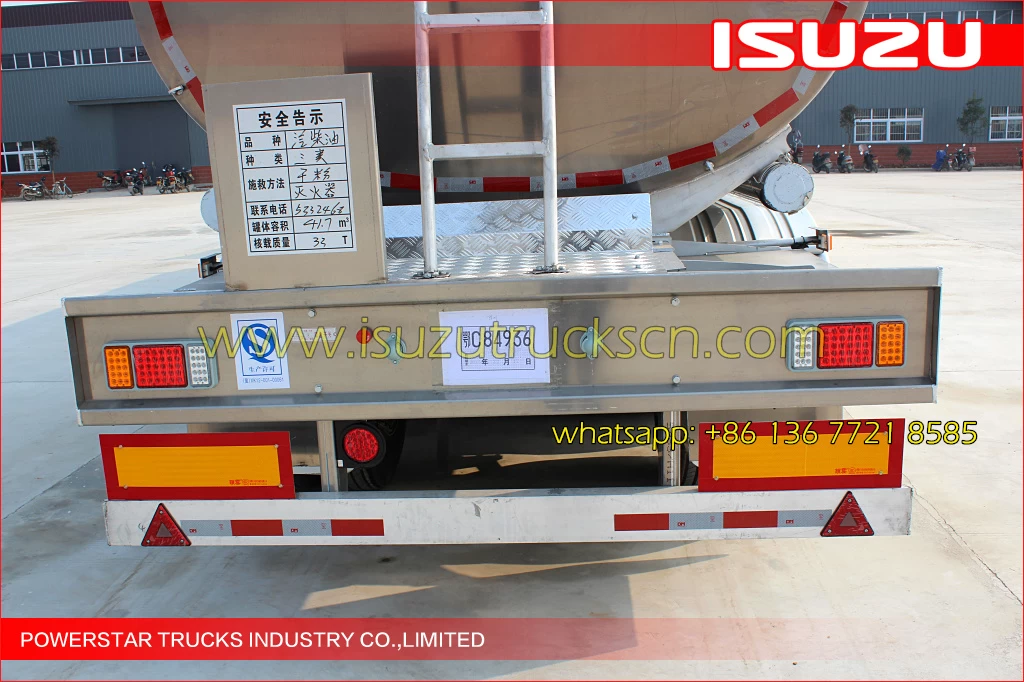

 More customer build example:

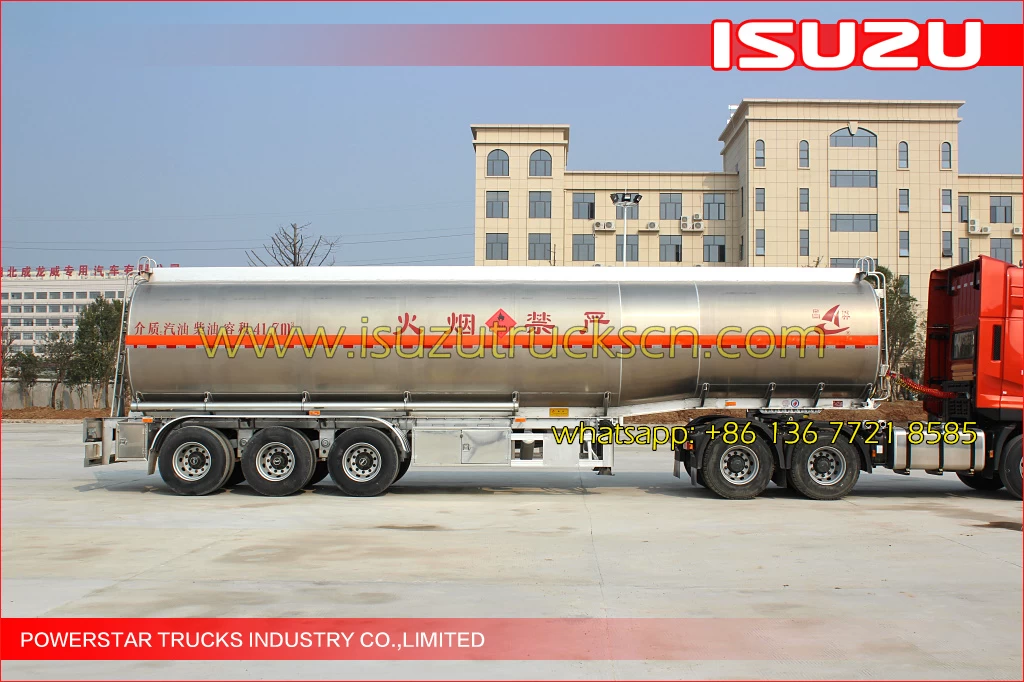

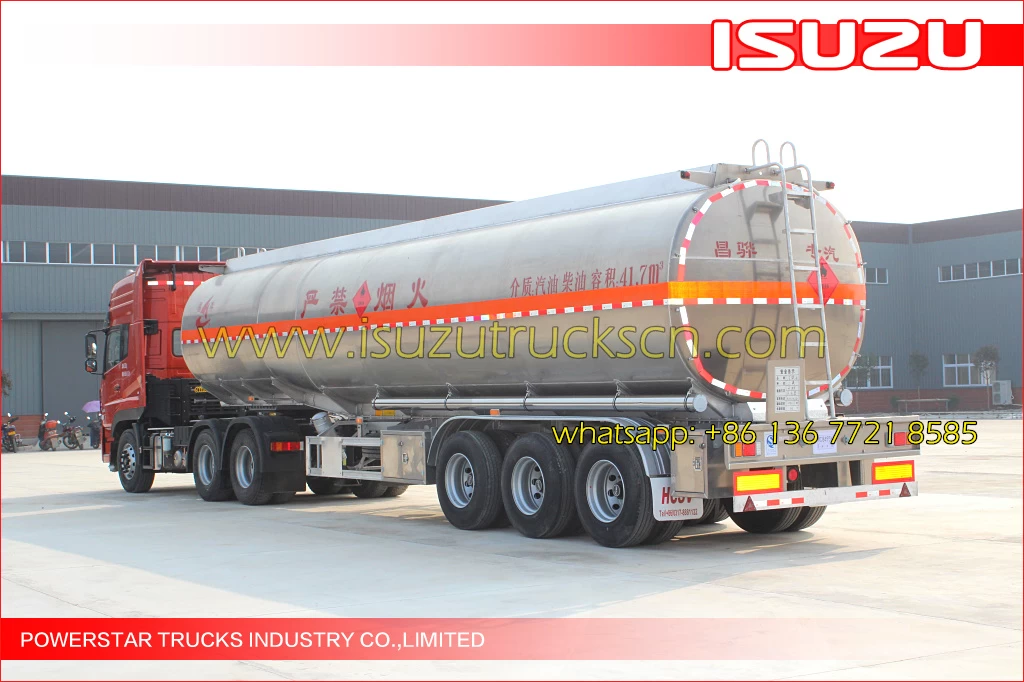

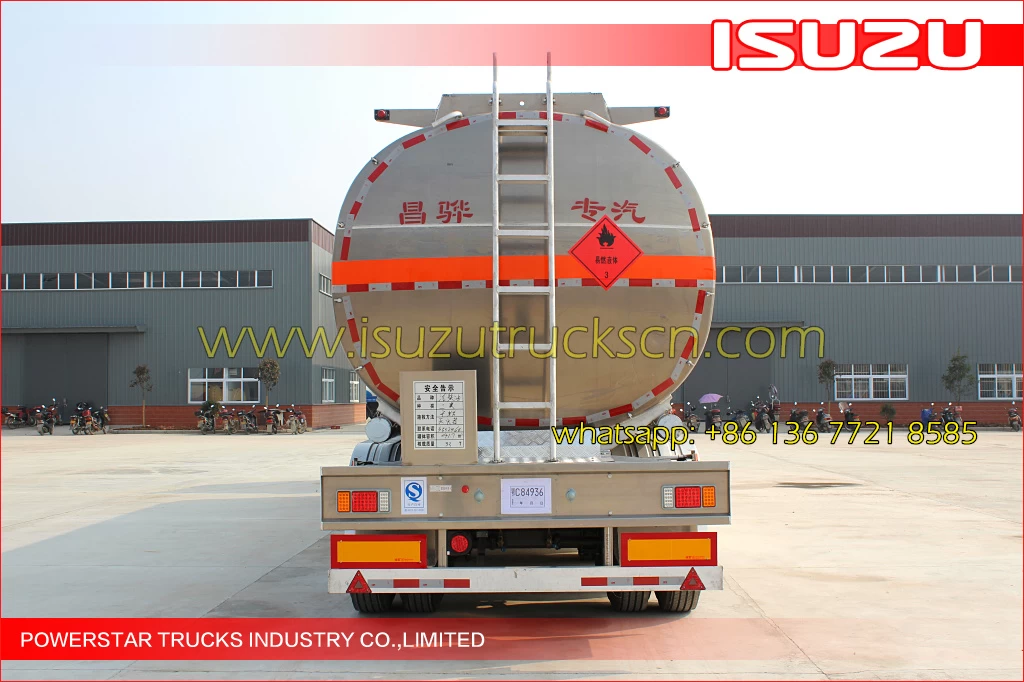

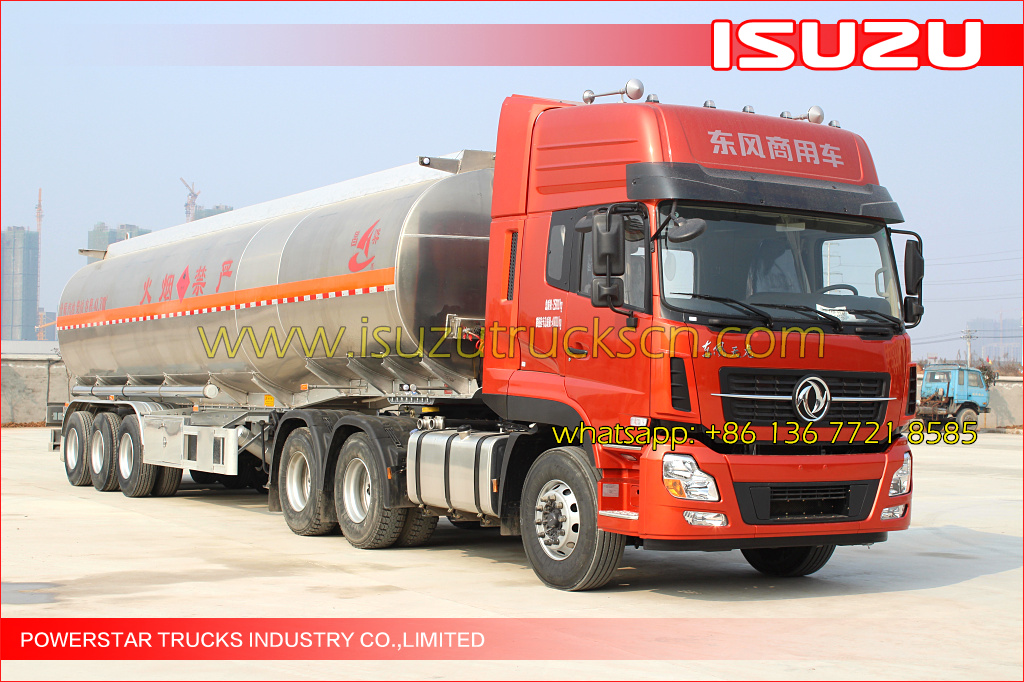

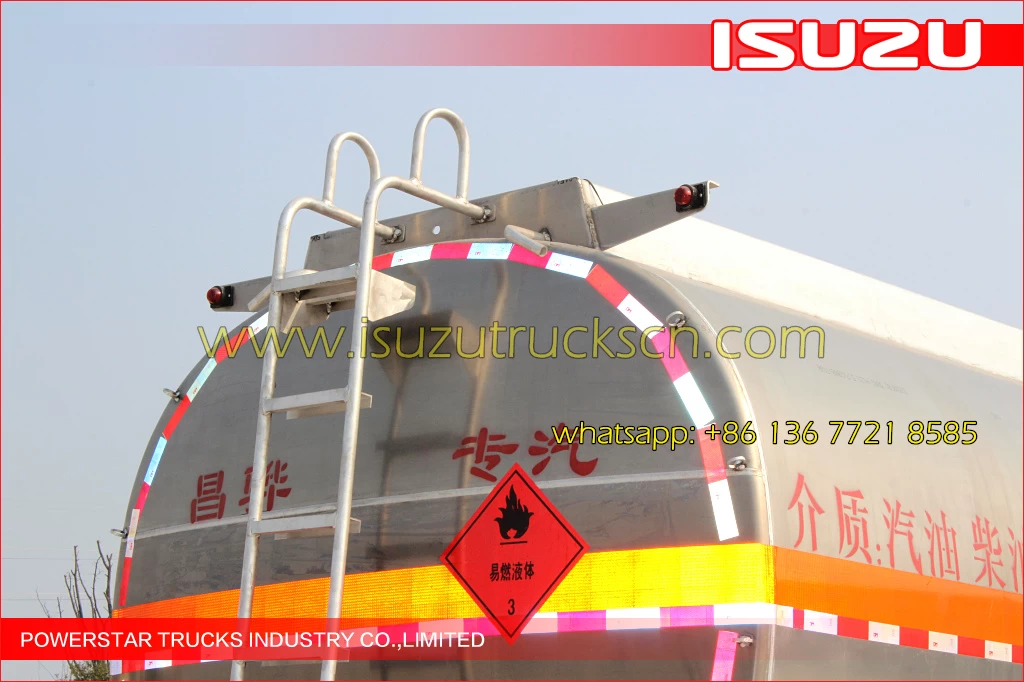

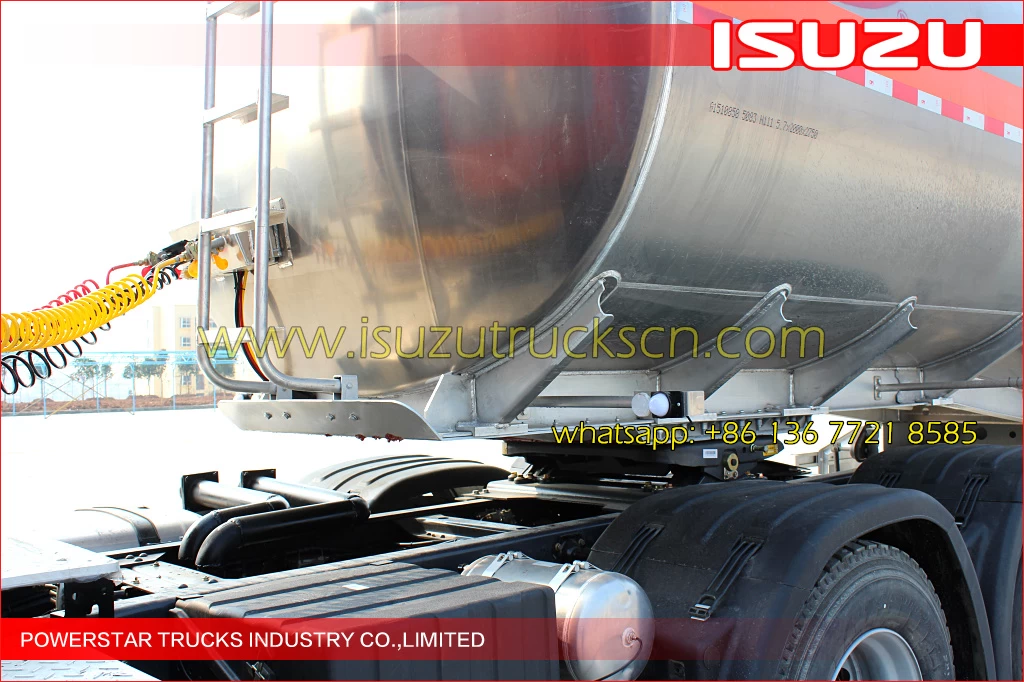

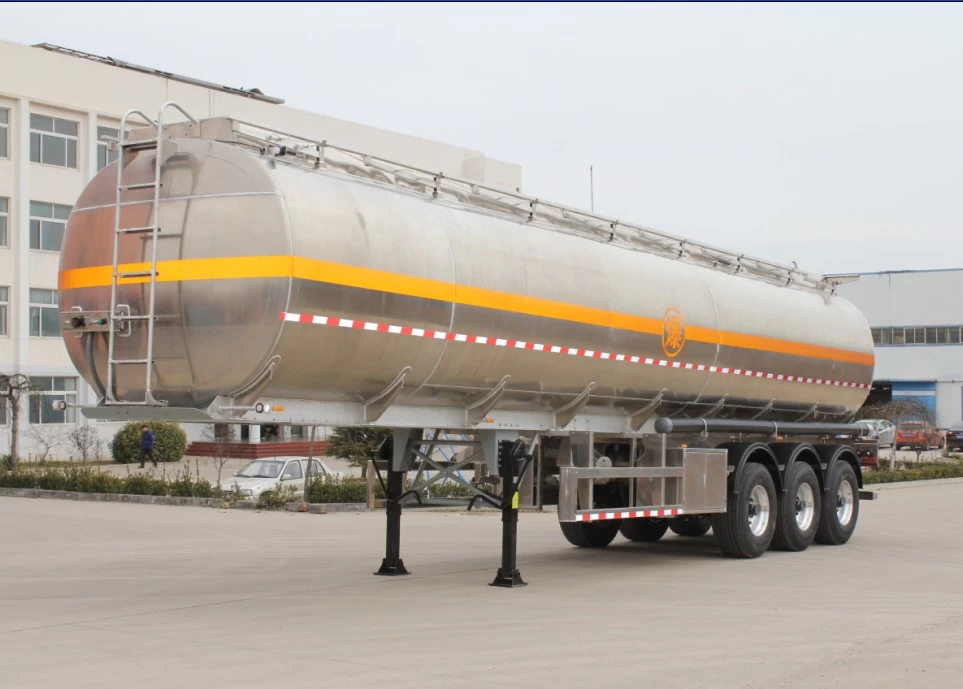

42m3~50m3 Aluminum Alloy Fule tank trailer


42m3~50m3 Aluminum Alloy Fule tank trailer


42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer



42m3~50m3 Aluminum Alloy Fule tank trailer
