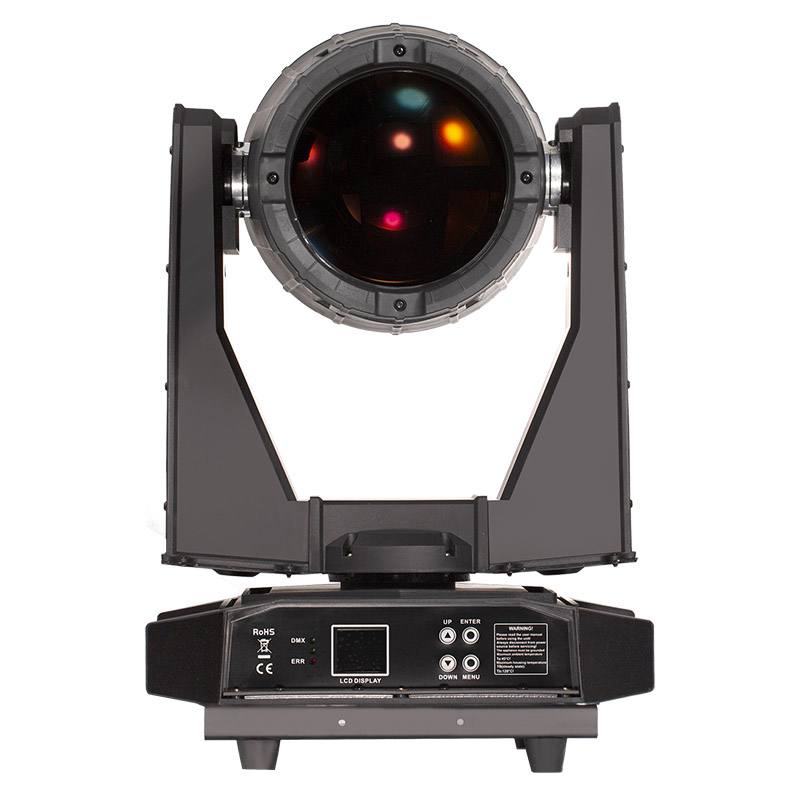

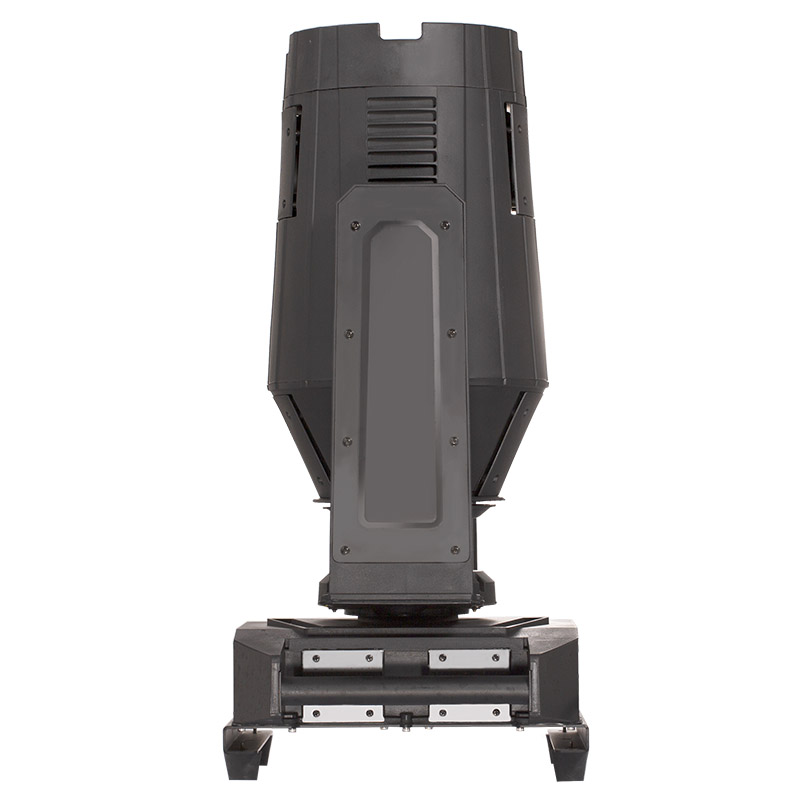

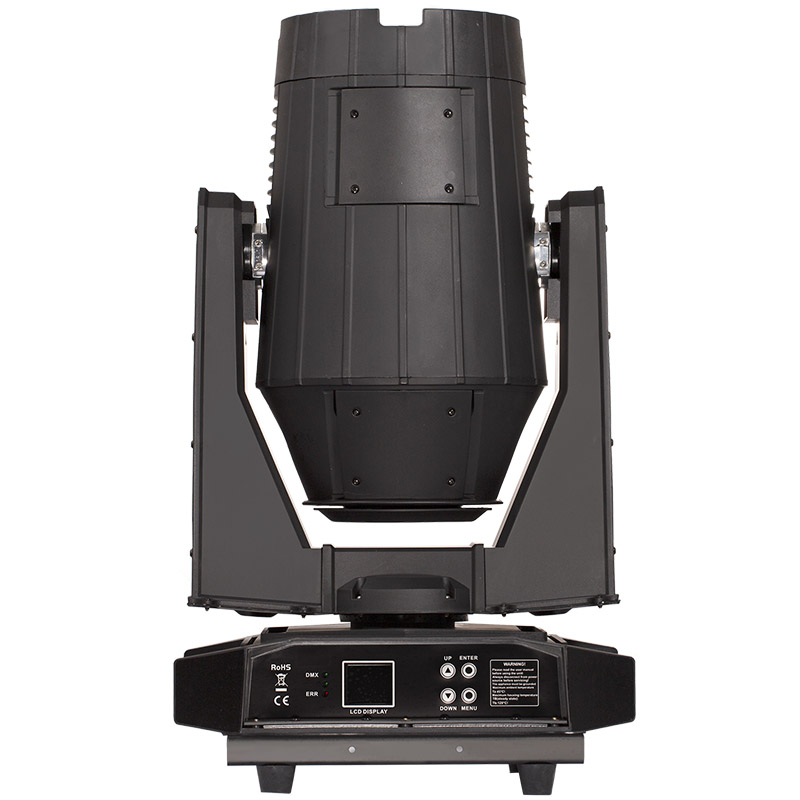

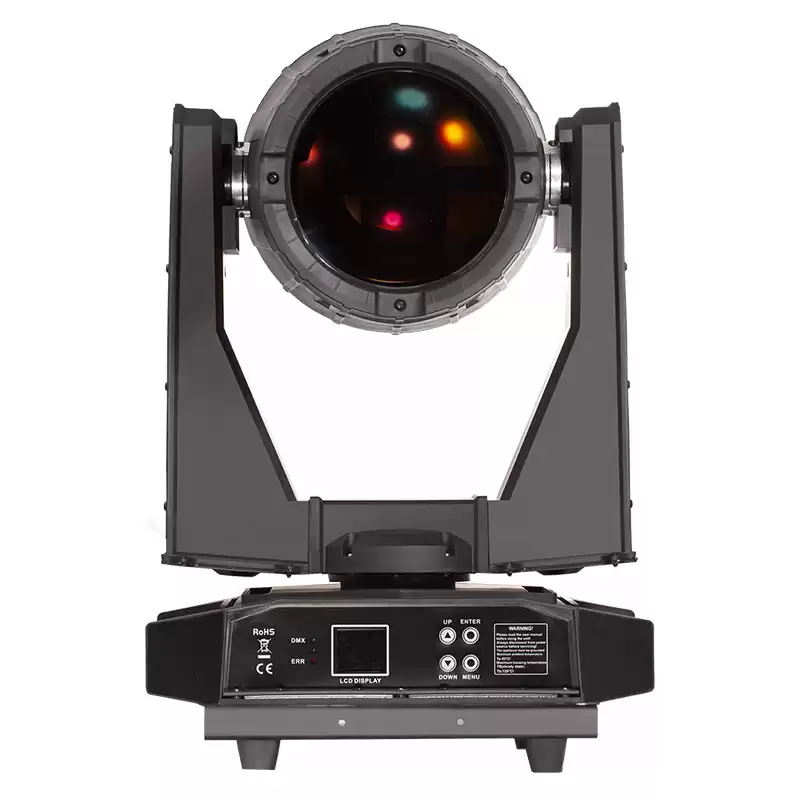

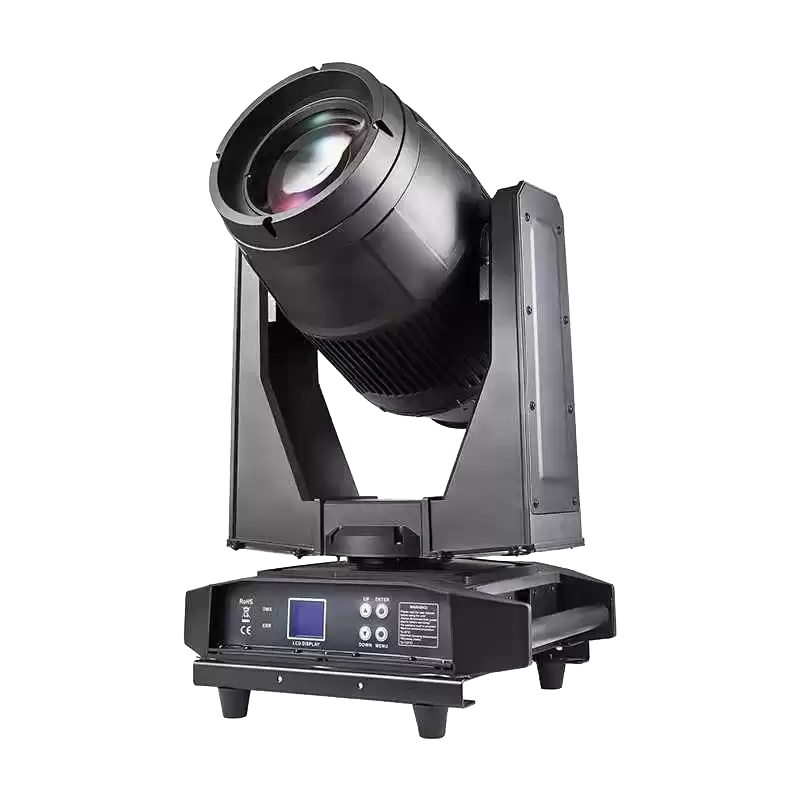

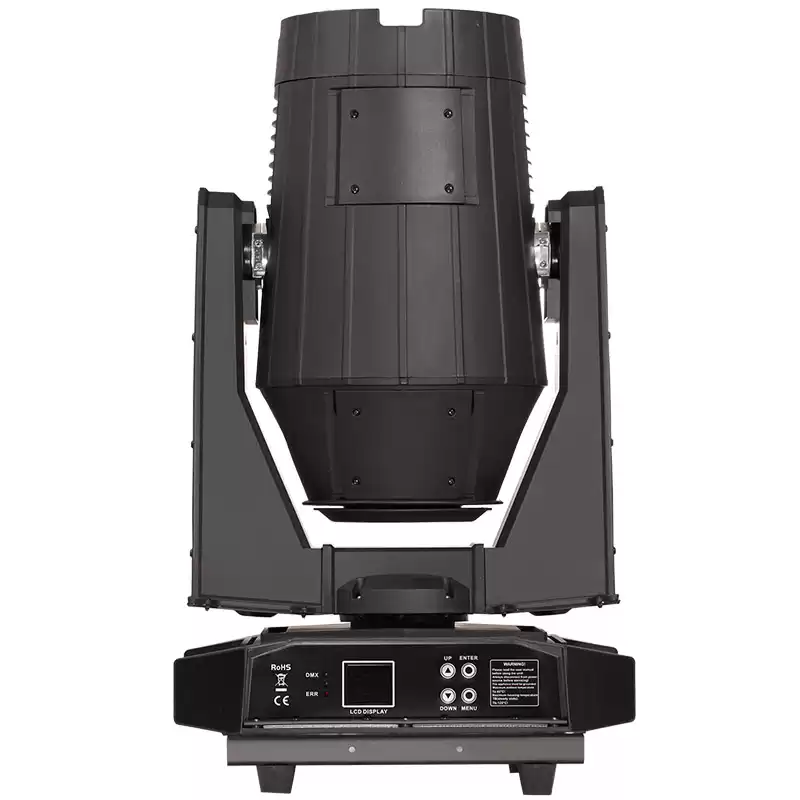

440W Outdoor Hybrid Moving Head Light

440W IP55 Hybird moving head light.It uses 440W lamp and owns color temperature 8000K,1.8-20°at beam model,4 -40° linear zoom,a bidirectional rotating gobo wheel and a bidirectional rotating prism plate .



The appearance design is exquisite, the housing adopts high-strength PA66, anti-UV treatment, high temperature resistance, anti-aging, IP55 dynamic rotating computer moving head beam light, using 440W gas discharge lamp as the light source, color temperature 8000K, beam mode: 1.8°~20°, spot mode: 4°~40° linear zoom, high-efficiency output beam spot wash three-in-one moving head light with long service life.A color wheel, a fixed gobos wheel, one rotating gobos wheel,two-way rotation can be rotated forwards and backwards to to adjust the frost effect,Pan/Tilt adopts three-phase motors, high-speed, smooth, stable and precise mechanical movement, in addition to DMX control, there is also a powerful RDM control technology.


●  Optics

. Light source:Osram 440W lamp

. Beam angle : beam mode: 1.8°~20°, spot mode: 4°~40°

. Lens diameter 150mm


●  Scanning

. Pan  / tilt operation

16bit fine-tuning

Smooth and precise positioning

Pan : 540 °,Tilt  270 °

Pan/Tilt speed can be ajustable

The scanning position can be memorized, and it will be reset automatically after no expected operation.

Pan  and tilt  with error correction function


●  Colour

. Color wheel: 11colors + Open, the color wheel has half-color effect and continuous forward and reverse of the color wheel.




●  Gobos

. 1 static gobos wheel:12gobos+White circle, pattern jitter effect

. 1 rotation gobos wheel: 9 pluggable gobos +white circle


●  Specification

. 2DMX channel modes: 16/20CH international standard DMX512 channels

. 2 control modes: DMX512, master-slave

. 1 two-way prsim wheel

. Focus: electronic focusing, ultra-smooth adjustment

. Dimming:0-100% linear dimming

. Frost:0-100% linear frost

. Strobe effect : Strobe0-20HzPuls StrobeRandom strobe


●  Display

. 2.4-inch TFT color display

. High anti-interference four-button touch button

. The display board can be reversed by 180 °, which is suitable for installation in unreasonable positions.


●  Software

. oftware update :Update fast and conviniently via DMX link

. Display the light usage time, which is convenient for customers to know the light usage in time


●  Other functions

. Setting and addressingRDM

. Heat cooling design: adopts wind direction drainage and temperature intelligent monitoring technology, which can monitor the status of lamp start, use, close shutter, and close bulb lamp. According to the temperature of different positions of the lamp, the heat cooling system is automatically adjusted to effectively control the temperature of the lamp. The internal multi-point intelligent temperature sensor is simultaneously displayed on the display screen. (Customizable humidity and temperature synchronization display control function)

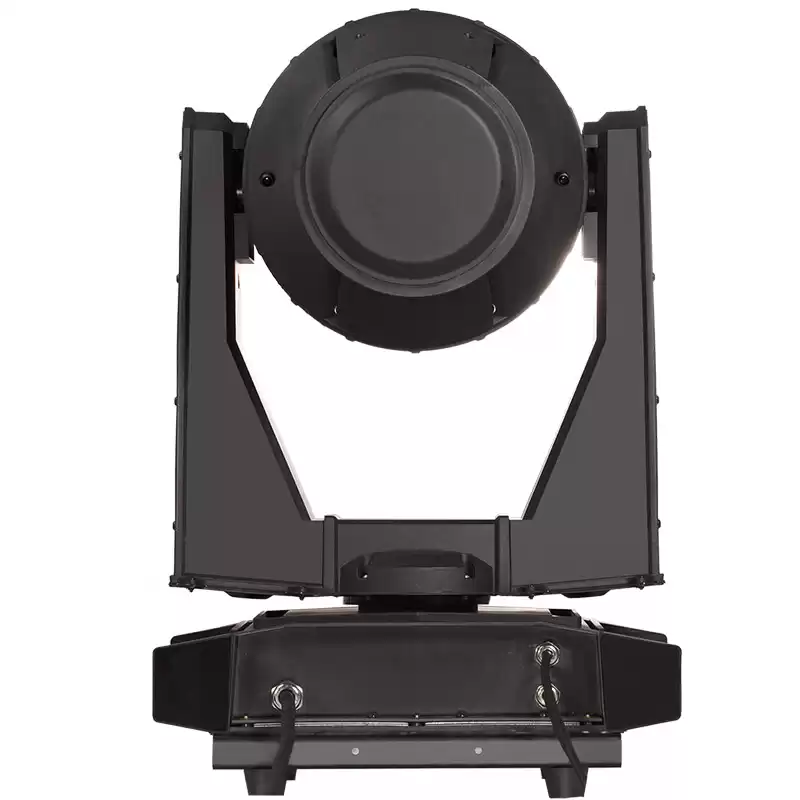

●  Power / DMX connection

. Power connection:3pin waterproof power cable input and output

. DMX XLR socket3 Pin waterproof  XLR socket input, output


●  Power

. AC100-240V 50/60HZ

. Power consumption600W


●  Protective class

. Housing material: PA66, high temperature resistance, extreme cold resistance, corrosion resistance, aging resistance, UV resistance

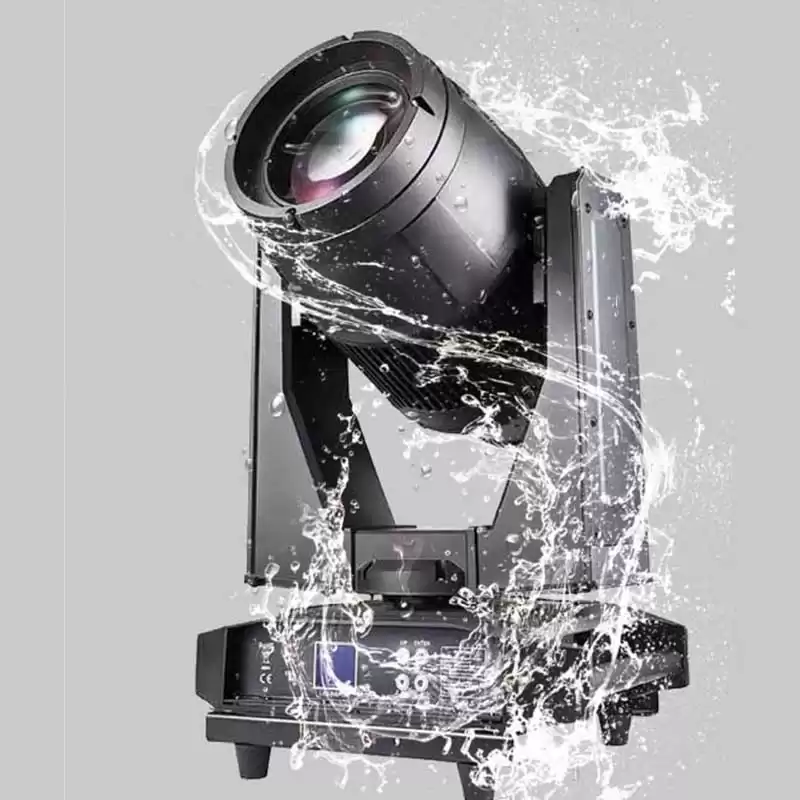

. Waterproof level: IP55


●  Working environment

. Indoor working temperature-20°C+40°C


●  Size and weight

. Packing size 725x465x500mm

. Net weight26KG

. Gross weight30KG


●  Certification

. CE,ROHS
