45 Ton Container Reach Stacker

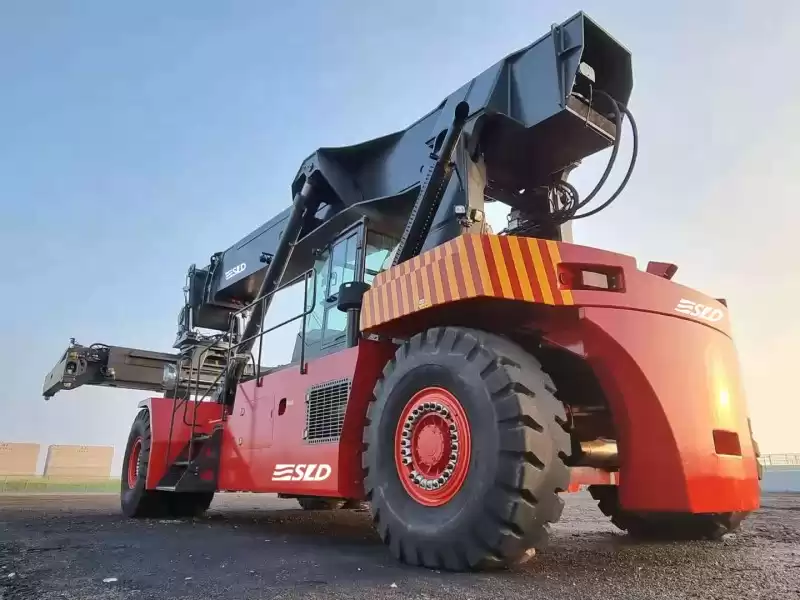

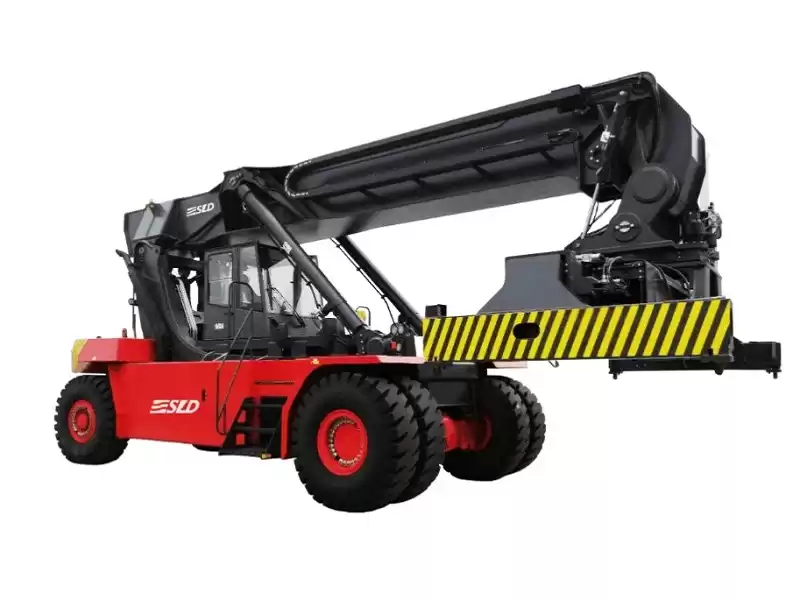

45 ton Container Reach Stacker is developed for stacking and transferring ISO 20’-40’ standard container, rated load capacity 45t. Can be used for port, storage yard, land port and logistics enterprise.

Reach stacker 45 ton adpots famous brand key parts, world class Linde hydaulic system, equipped with full Can-bus control system. Remote monitoring of key data and diagnostic reception by computer.FEM analysis supported design provides high strength of chassis and mast, making whole truck stable and robust. higher cost-performance.




45 ton Container Reach Stacker advantages:

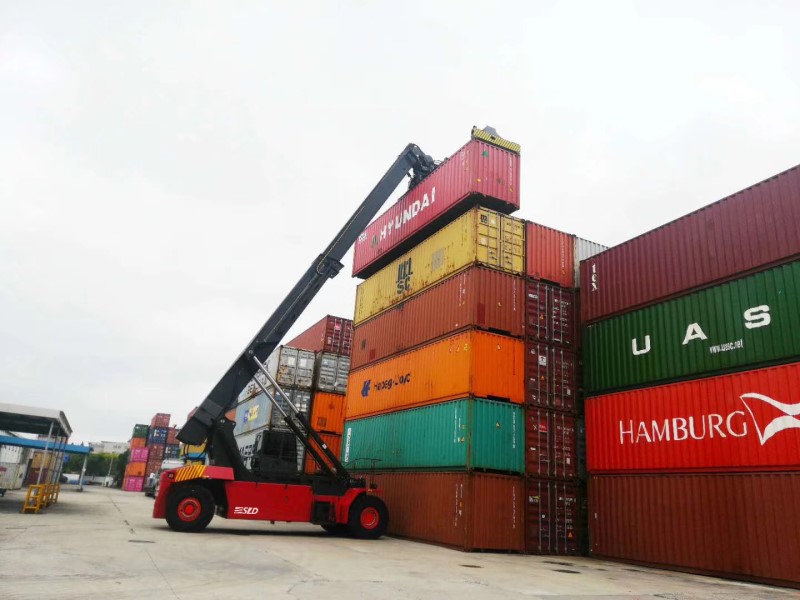

•  Rated load capacity 45 tons, Max. 6 high stacking, SLDR450 can operate all laden containers in various applications such as port, storage yard, railway stations, land port.

•  Equipped with advanced Linde hydraulic system, when lift 31 tons, SLDR450 lifting speed is 50% higher than other famous brands, So SLDR450 higher working efficiently.

•  SLDR450 uses automatic twist locks, automatic telescopic function, make operation easy.

•   Equipped with 5 shift gearbox ZF gearbox, the gear shift is more smoothly.

•   Having proportional flow control valve, SLDR450 can multifunction work at same time such as lift, extension, spreader, steering etc.

•  The main configurations of SLDR450 are world famous brands to ensure the truck highly reliable long service-life time.

•  On demand function, the engine speed is automatically adjusted according to the handle command sent by the driver to provide the oil supply required for this operation without stepping on the accelerator, so as to greatly reduce energy consumption (save fuel consumption by more than 20%) while ensuring the maximum comfort of the driver.

CHARACTERISTICS

Model

SLDR450

Power unit

Diesel

Operation type

Driver seated

Load capacity (L1, L2, L3)

Q (kg)

45000/31000/16000

Load centre, first row (L1)

c (mm)

1800

Load centre, second row (L2)

C (mm)

3860

Load centre, third row (L3)

C (mm)

6400

Axle centre to spreader center (L1-1/2 high)

x (mm)

2800

Wheelbase

y (mm)

6400

DIMENSIONS

Boom lift angle, raise/lowered

α/β(/°)

61/0

Height boom lowered

h1 (mm)

4945

Lift height (L1, L2, L3)

h3 (mm)

15900/14100/11350

Height, boom extended

h4 (mm)

19000

Height of cabin

h6 (mm)

3900

Height, operator's seat

h7 (mm)

2840

Towing coupling height

h10 (mm)

600

Twist lock height lowered

h13 (mm)

1495

Overall length with spreader

l1 (mm)

11618

Overall length

l2 (mm)

8410

Overall width

b1/b2 (mm)

4180/3400

Width of spreader 20'/40'

b3 (mm)

6050/12150

Ground clearance min.

m1 (mm)

345

Ground clearance, centre of wheelbase

m2 (mm)

350

Stacking aisle 20' containers

Ast (mm)

10225

Stacking aisle 40' containers

Turning radius

Ast (mm)

13050

Min. pivoting point distance

Wa (mm)

8605

Min. pivoting point distance

b13 (mm)

3400

Wheelspan, front wheels

b10 (mm)

3030

Wheelspan, rear wheel

b11 (mm)

2786

WEIGHT

Weight (unladen/laden)

kg

71400/116400

Load on drive axle (unladen/laden)

kg

36400/101900

Load on steering axle (unladen/laden)

kg

35000/14500

PERFORMANCE

Travelling speed (unladen/laden)

Km/h

25/21

Gradeability (unladen/laden)

%

30/28.8

Tractive force (unladen)

Kn

408

Lifting speed (unladen/laden)

m/s

0.39/0.28

Lowering speed (unladen/laden)

m/s

0.39/0.39

CABIN

Movable closed cabin

Equipped with A/C, cooling/heating functions

Noise level at driver's seat

dBA

74

ENGINE

Brand


CUMMINS

Type


QSM11

Cylinder no./displacement


6/10820 cm3

Rated power @ rated speed


250kw @ 2100rpm

Max. torque


1674Nm@ 1500rpm

Rated current of alternator


150A

Battery


24V

TRANSMISSION

Brand


ZF/5WG261 AUTO

Type


Auto-shift/interlock

Clutch type


Torque converter

Gear no.


5F/3R

TYRES

Drive wheels


18.00-25 40PR

Steering wheels


18.00-25 40PR

Type


Pneumatic

Pressure


10 bar

Quantity, front/rear


4/2

TANKS CAPACITY

Hydraulic oil tank

L

800

Fuel tank

L

500

DRIVE AXLE

Brand


Kessler/Germany

Model


D102PL341

STEERING AXLE

Brand


Kessler/Germany

Model


L102

Steering


Double action cylinder

BRAKE SYSTEM

Service brake


Hydraulic wet-disc

Parking brake


Electric released disc brake, enabled when power off

HYDRAULIC SYSTEM

Twin piston pump

Max. pressure: 310 bar

Load sensing system

Hydraulic cooler with electric motor

Separate brake oil tank

BOOM

2x Dual action lift cylinders

1x Dual action extension cylinder

SPREADER

Handling ISO 20'-40' containers

2x damping cylinder

2x gearbox & brake system

Brand

SP45

Rotate degrees

-105°/+195°

Sideshift

-800/+800mm

TRUCK SAFETIES

Error display system

Counter system for containers

Weighing system (low precision)

Electric anti-overload system

Full can-bus control system

Direction gearshift interlock

Parking brake enabled when power off

Seat switch

SPREADER SAFETIES

Locking/unlocking only after correct landing

Lifting/lowering only when the 4 twistlocks on same position

Anticollision rotation limit switch
