RS series Reach Stackers

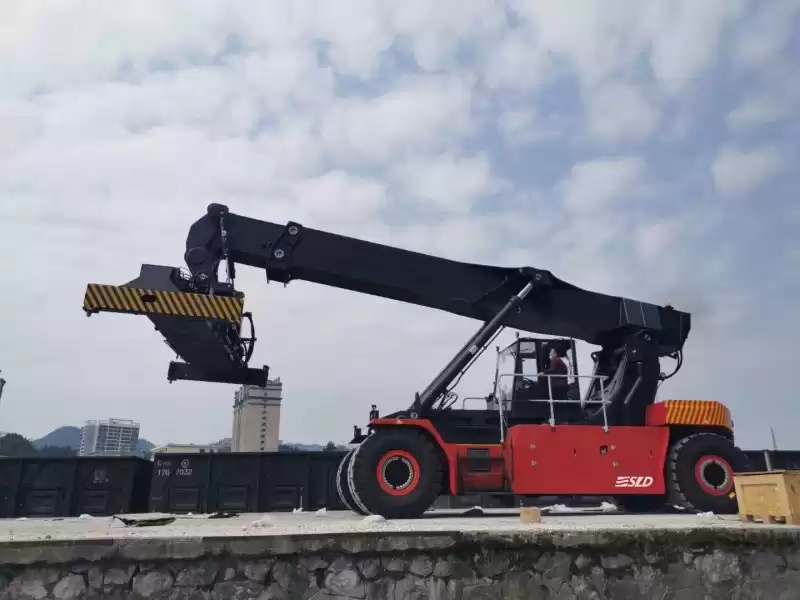

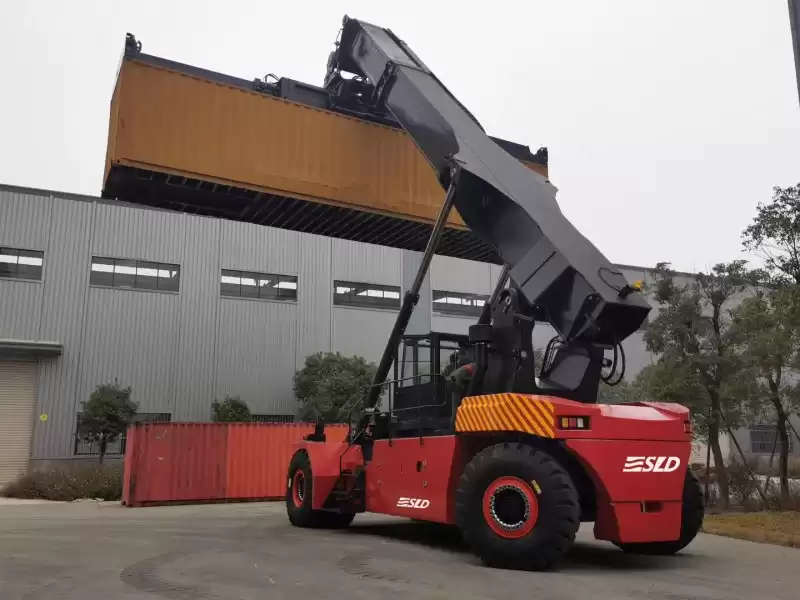

RS series Reach Stackers 45 TON are widely use in ports and railway transfer station for stacking and transferring heavy 20ft & 40 ft containers, cheap price, high efficient.


Model: SLDR450

Engine: Cummins QSM11, 246kw@2200rpm

Transmission: ZF 5WG261, 5/3 gears auto-shift

Drive axle: Kessler D102PL341-NLB wide type

Steer axle: Kessler L102

Tyres: 18.00-25 PR40

Pump: Linde hydraulic

Valve: Linde hydraulic

Spreader type: Handling ISO 20'-40' containers

5 high 9’6” containers or 6 high 8’6” containers






RS Series Reach Stackers 45 ton advantages:

1, Engine intake air prefilter exclusively uses high-level layout, more dust-resistant environment, using Friega double core air filter (with steel wire protection )to protect engine, turbocharger life prolonged significantly. All other brands are low-position layout to save cost. and many brand without steel wire protect.

2, SLDR450 front crane adopts the most advanced design concept and technology in the world. It has the best stability of the whole machine and the highest safety factor in all products.

3, SLDR450 has an unique characteristic: when the driver operate joystick, he doesn't need to step on the gas, the engine will automatically speed up, supply energy for hydraulic system on demand. At a given engine speed, through changing the angle of the pump swashplate, Achieve optimal performance. Drivers are in the most comfortable state. save fuel, Vertical lifting function to meet more complex lifting operation.

4, Kessler Dual-action Steering Cylinder with Mechanical Limit and System Buffer Valve. The positioning pin and bolt for fixing the steering cylinder are rigidly connected with the steer body. Guarantee accurate steering angle. Guarantee better connection strength. Protect tyre being scraping and wheel hub side knock. Prevent cylinder from overknocking. Prevent piston knock cylinder head ,to avoid oil leakage.

5, Cylinder and bearings, The unique design of subverting common feel. Cylinder Smaller diameter, better vision, free lubrication and less damage to bearings than other brand.

6, Cylinder Load Buffer, Real-time Monitoring of Cylinder stroke position by Safety Load System .The signal is transmitted to the load control system when the stroke of the cylinder is 5 cm from the maximum/minimum.

The angle of pump swashplate decreases .Reduce hyd oil flow, slowly action till to stop.

7, Equipped with full Can-bus control system. Fully integrated system time-to-time monitoring built-in sensors. The number of wiring harnesses has been greatly reduced. Sealed wiring connectors prevent moisture entering .counter container number.

8, Remote Diagnosis and Early Warning Function. Remote monitoring of key data and diagnostic reception by computer. Containing important fault codes . Through mobile app early warning, real-time curve atlas data in the last 30 days of each month. Containing record fault code. Optional remote monitoring system,can monitor the truck on PC or cell phone. Can provide real time operation and statistical data supporting customer decision making.

CHARACTERISTICS

Model

SLDR450

Power unit

Diesel

Operation type

Driver seated

Load capacity (L1, L2, L3)

Q (kg)

45000/31000/16000

Load centre, first row (L1)

c (mm)

1800

Load centre, second row (L2)

C (mm)

3860

Load centre, third row (L3)

C (mm)

6400

Axle centre to spreader center (L1-1/2 high)

x (mm)

2800

Wheelbase

y (mm)

6400

DIMENSIONS

Boom lift angle, raise/lowered

α/β(/°)

61/0

Height boom lowered

h1 (mm)

4945

Lift height (L1, L2, L3)

h3 (mm)

15900/14100/11350

Height, boom extended

h4 (mm)

19000

Height of cabin

h6 (mm)

3900

Height, operator's seat

h7 (mm)

2840

Towing coupling height

h10 (mm)

600

Twist lock height lowered

h13 (mm)

1495

Overall length with spreader

l1 (mm)

11618

Overall length

l2 (mm)

8410

Overall width

b1/b2 (mm)

4180/3400

Width of spreader 20'/40'

b3 (mm)

6050/12150

Ground clearance min.

m1 (mm)

345

Ground clearance, centre of wheelbase

m2 (mm)

350

Stacking aisle 20' containers

Ast (mm)

10225

Stacking aisle 40' containers

Turning radius

Ast (mm)

13050

Min. pivoting point distance

Wa (mm)

8605

Min. pivoting point distance

b13 (mm)

3400

Wheelspan, front wheels

b10 (mm)

3030

Wheelspan, rear wheel

b11 (mm)

2786

WEIGHT

Weight (unladen/laden)

kg

71400/116400

Load on drive axle (unladen/laden)

kg

36400/101900

Load on steering axle (unladen/laden)

kg

35000/14500

PERFORMANCE

Travelling speed (unladen/laden)

Km/h

25/21

Gradeability (unladen/laden)

%

30/28.8

Tractive force (unladen)

Kn

408

Lifting speed (unladen/laden)

m/s

0.39/0.28

Lowering speed (unladen/laden)

m/s

0.39/0.39

CABIN

Movable closed cabin

Equipped with A/C, cooling/heating functions

Noise level at driver's seat

dBA

74

ENGINE

Brand


CUMMINS

Type


QSM11

Cylinder no./displacement


6/10820 cm3

Rated power @ rated speed


250kw @ 2100rpm

Max. torque


1674Nm@ 1500rpm

Rated current of alternator


150A

Battery


24V

TRANSMISSION

Brand


ZF/5WG261 AUTO

Type


Auto-shift/interlock

Clutch type


Torque converter

Gear no.


5F/3R

TYRES

Drive wheels


18.00-25 40PR

Steering wheels


18.00-25 40PR

Type


Pneumatic

Pressure


10 bar

Quantity, front/rear


4/2

TANKS CAPACITY

Hydraulic oil tank

L

800

Fuel tank

L

500

DRIVE AXLE

Brand


Kessler/Germany

Model


D102PL341

STEERING AXLE

Brand


Kessler/Germany

Model


L102

Steering


Double action cylinder

BRAKE SYSTEM

Service brake


Hydraulic wet-disc

Parking brake


Electric released disc brake, enabled when power off

HYDRAULIC SYSTEM

Twin piston pump

Max. pressure: 310 bar

Load sensing system

Hydraulic cooler with electric motor

Separate brake oil tank

BOOM

2x Dual action lift cylinders

1x Dual action extension cylinder

SPREADER

Handling ISO 20'-40' containers

2x damping cylinder

2x gearbox & brake system

Brand

SP45

Rotate degrees

-105°/+195°

Sideshift

-800/+800mm

TRUCK SAFETIES

Error display system

Counter system for containers

Weighing system (low precision)

Electric anti-overload system

Full can-bus control system

Direction gearshift interlock

Parking brake enabled when power off

Seat switch

SPREADER SAFETIES

Locking/unlocking only after correct landing

Lifting/lowering only when the 4 twistlocks on same position

Anticollision rotation limit switch
