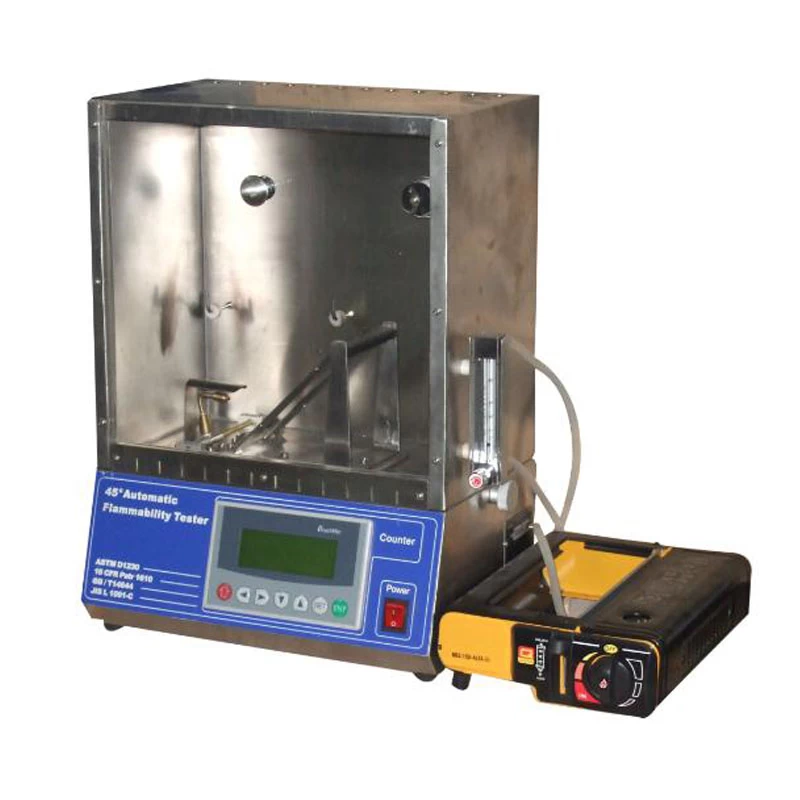

AG30-45Degree Automatic Flammability Tester
Application Of 45Degree
Automatic Flammability Tester
45 Degree Automatic Flammability Tester is used
to determine flammability of textile under controlled conditions.
Feature Of 45Degree Automatic Flammability Tester
1. Whole cabin and fixtures use SUS304 stainless steel, with
toughened glass transparent window.
2. The height of test fixture and flame is adjustable,
suitable for different thickness of sample.
3. Circulation ventilation system for long-term cooling of
the instrument to ensure stable internal environment.
Standards Of 45Degree Automatic Flammability Tester
ASTM
D1230, AATCC 33-1962, FTMS191-5908, 16CFR 1610, CALIF TB117, JIS L1091.
Key Specification Of 45Degree Automatic Flammability Tester
|
Model
|
AG30
45Degree Automatic Flammability Tester
|
|
Test chamber size
|
37*22*35cm, with 12 vent hole φ12.7mm
|
|

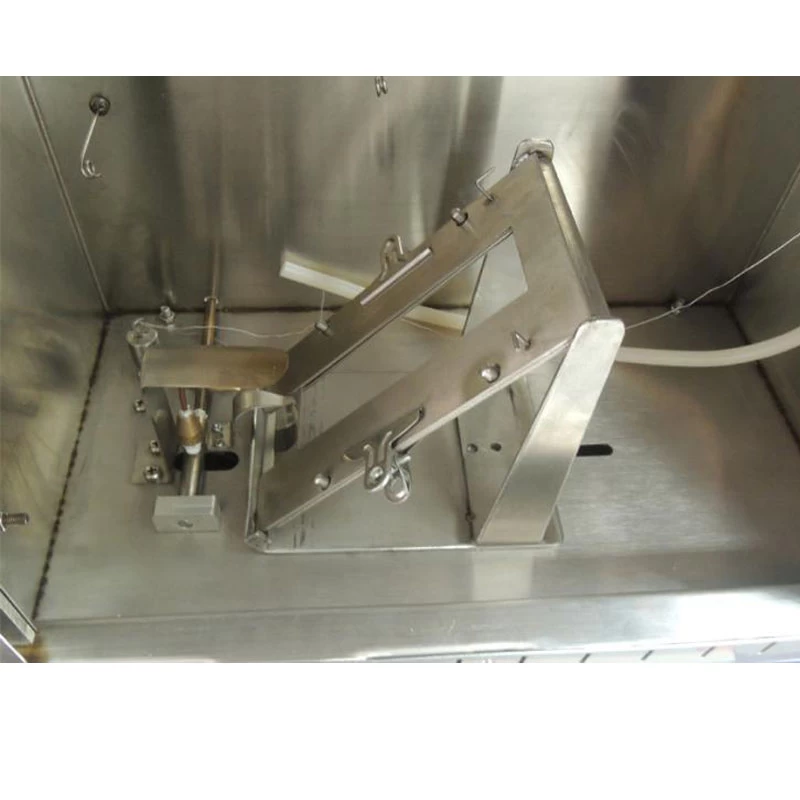

Sample shelf
|
45°
|
|
Sample clip
|
Slot on the board 38*152mm
|
|
Distance of fire nozzle axis and rotation axis
|
44mm
|
|
Distance of fire nozzle and sample surface
|
8mm
|
|
Distance of fire nozzle and mark line
|
127mm
|
|
Sample dimension
|
50*150mm
|
|
Dimensions
|
42*26*52cm (W*D*H)
|
|
Power
|
AC 220V, 50/60HZ
|
|
Weight
|
Test chamber 20kg, gas supply
device 10kg
|
Accessories Of 45Degree
Automatic Flammability Tester
|
Standard
Accessories
|
Sample fixture
|
5pcs
|
|
Spring clamp
|
10pcs
|
|
Brushing device
|
1set
|
|
Flame scale gauge
|
1pc
|
|
Cotton thread
|
1pc
|
|
Gas feed device
|
1set
|
|
Power line
|
1pc
|
