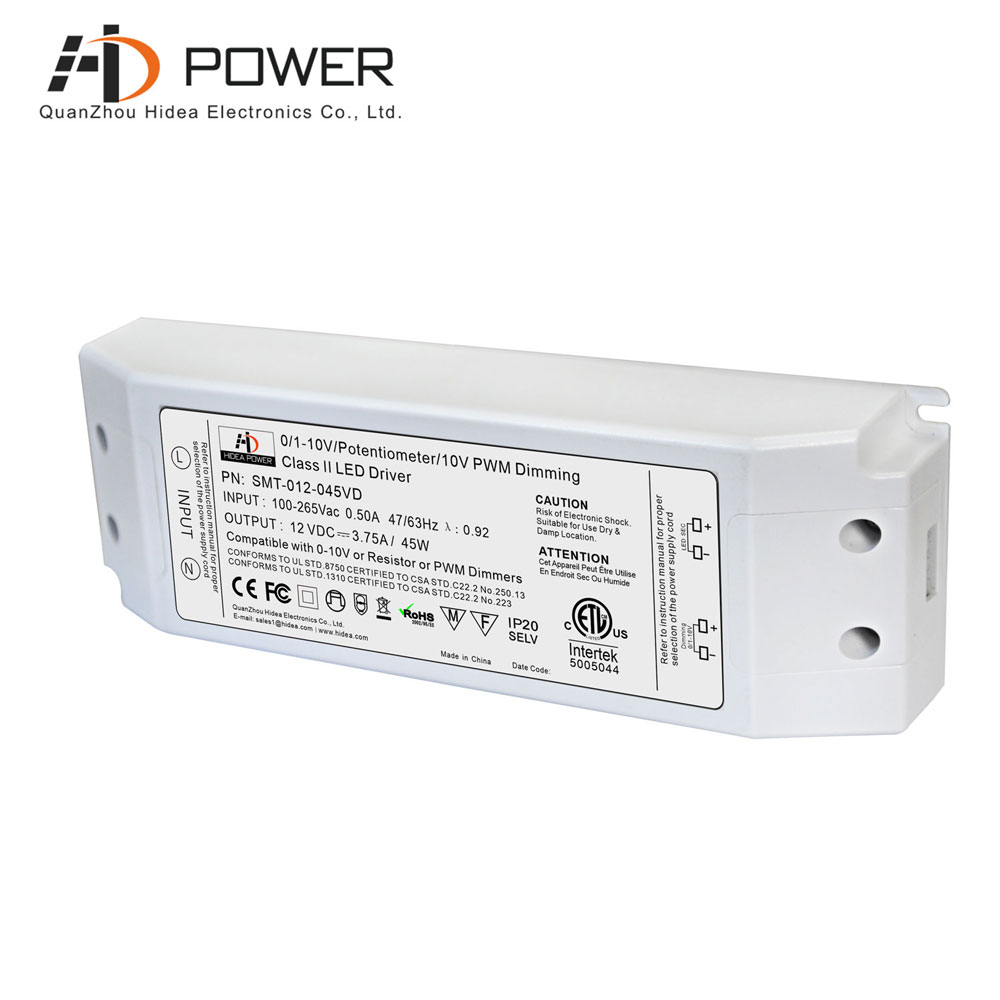

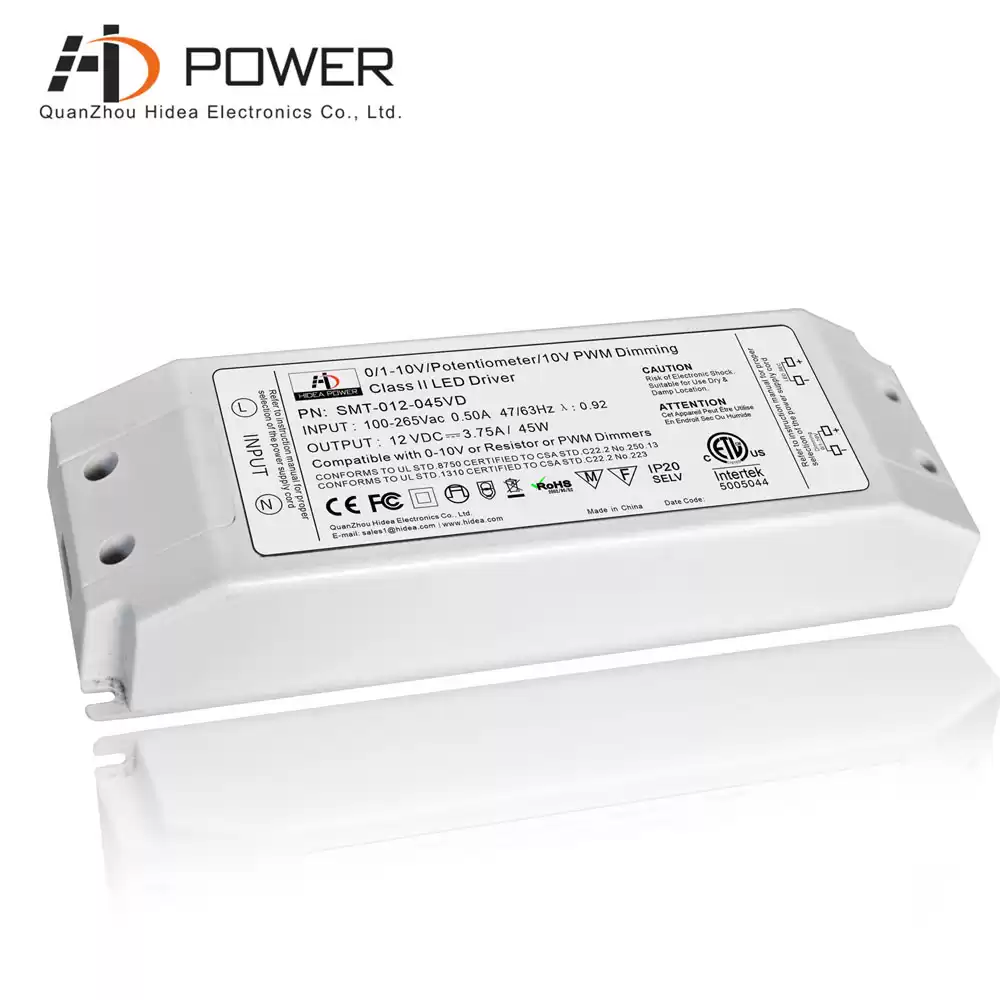

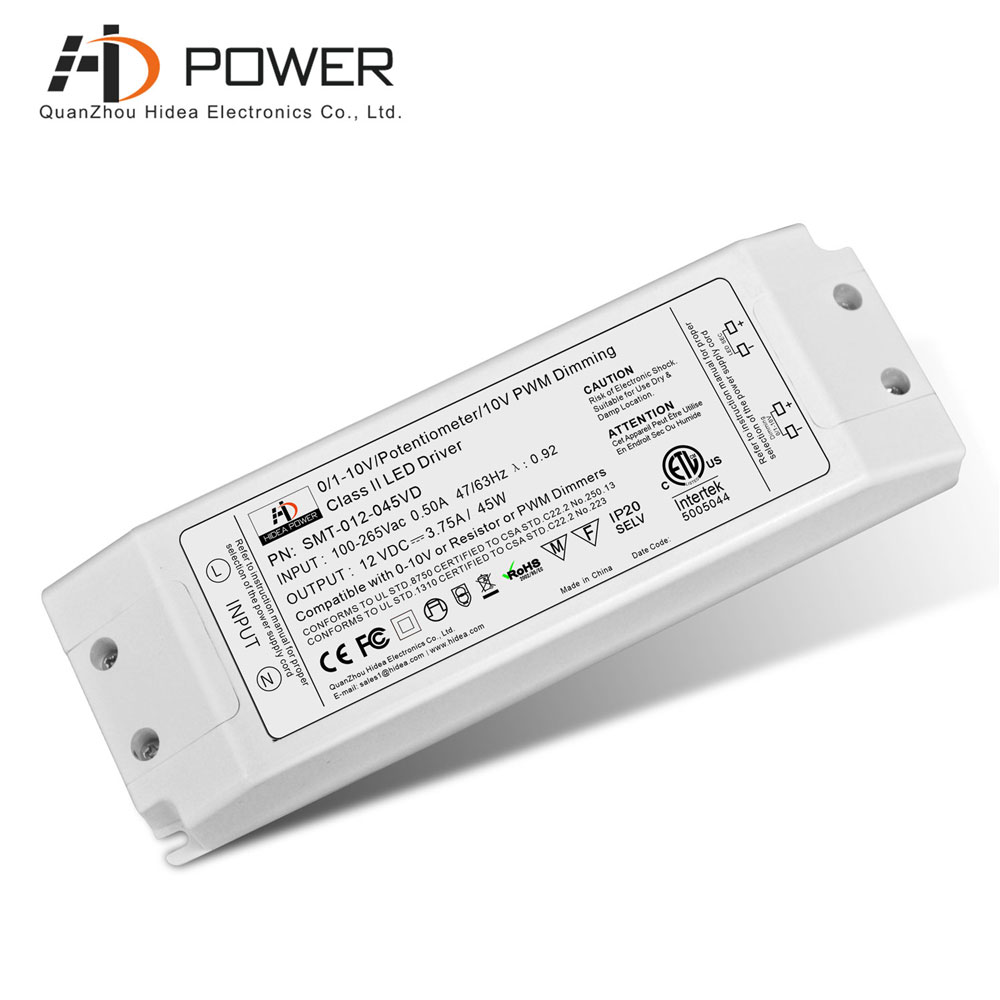

45w 24v 0 10v dimmable constant voltage dimmable led driver power supply

This 0 10v dimmable led driver 45w 12v, constant voltage working mode, working efficiency up to 88%, dimming range smoothly dimming between 0-100%, complies with global safety lighting laws


  • Dimming Mode0-10V Dimming
  • Working ModeConstnat Voltage LED Driver
  • Input Voltage100-265Vac
  • Output Power(Watt)45W
  • Output Voltage12/24Vdc
  • Shape & SizeStandard Size
  • Output Current
  • Size180*60*34mm
  • Weight550g
  • CertificationETL
  • Warranty5 Years

45w 24v 0 10v dimmable constant voltage dimmable led driver power supply

hideapowertech hot selling product 0 10v dimmable led driver 45W 24V, built-in active PFC function, PF>0.9, plastic shell suitable for indoor lighting project installation and use, with 3-year warranty

  Specification

Model SMT-012-045VD SMT-024-045VD
Output DC Voltage 12V 24V
Voltage Accuracy ±0.5V
Rated current 0~3.75A 0~1.87A
Rated power 45W
Input Voltage Range 100~130VAC, 170~265VAC
Frequency Range 47~63HZ
Power Factor ( Typ.) PF≧0.90/110V / PF≧0.90/220V
Full Load Efficiency(Typ.) >88%(110V)/ >88%(220V) >88%(110V)/ >88%(220V)
AC Current(Typ.) 0.52A@110V 0.26A@220V
Leakage current ﹤0.35mA/120VAC / ﹤0.7mA/220VAC
Protection Short Circuit Protection type: Hiccup mode, recovers automatically after fault condition is removed
Over Current ≦1.4*Iout
Over temperature 100℃±10℃ shut down o/p voltage, re-power on to recover
Environment Working TEMP. -40~+50℃
Working Humidity 20~95%RH,non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13
Withstand voltage I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
Others Weight 0.4Kg
Size 180*60*35mm(L*W*H)
packing 355*215*215mm/20pcs /CTN   185*65*45mm for inner box
Notes 1. All parameters NOT specially mentioned are measured at 110V~220VAC input , rated load    and 25℃of ambient temperature.
2.  Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3.  Tolerance:includes set us tolerance,line regulation and load regulation .

  Compatible Dimmer Type

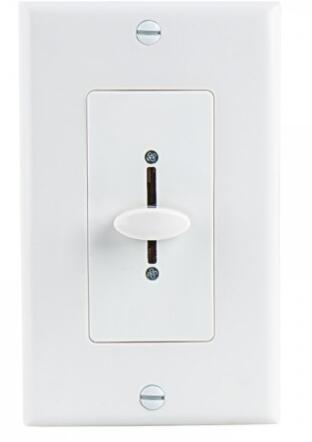

Lutron 0-10 volt DC low-voltage dimmer is designed for high-power LEDs, and compatible most 0 10v dimmable led power supply or light engines with a 0-10V current-sinking control. Features logarithmic response and reverse polarity protection.

  Related Products

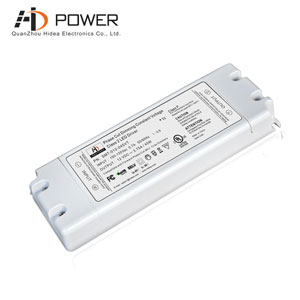

45w led drivertriac dimmable led driver 45W constant voltage working mode, plastic shell design, waterproof grade ip20, UL certified, complies with global safety lighting regulations, mainly sold to North America
