48V 100Ah 4U Cabinet Type Energy Storage Lithium Battery For Off Grid Solar Power System​

Wide Application for Solar Projects, UPS, 5G Station, Military Projects,Solar hybrid power system, home energy storage system. Welcome the world cooperation, we accept OEM with your logo design

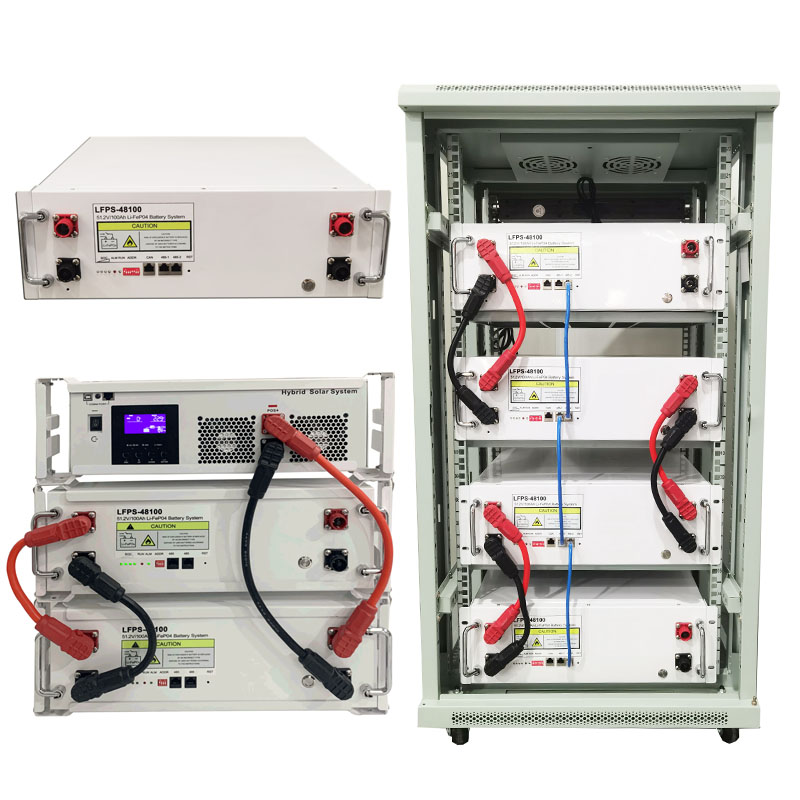

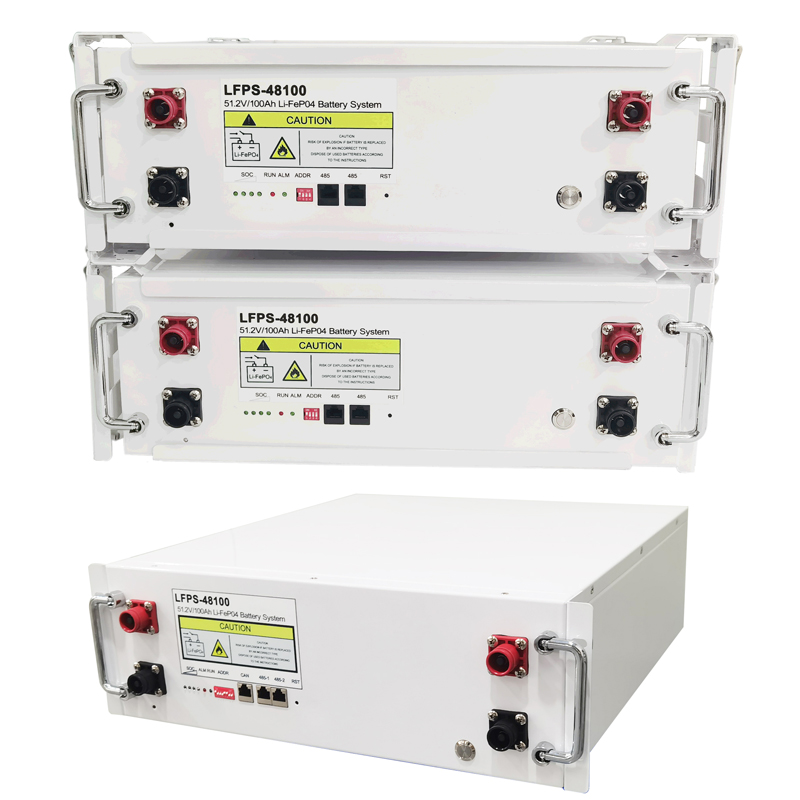

48V 100Ah 4U Cabinet Type Energy Storage Lithium Battery For Off Grid Solar Power System

The 48V 100Ah 4U cabinet energy storage battery is different from the Powerwall model. The zxdy-16s48100 ess rack type battery provides extended battery operation time when combined with the UPS system.

The battery module of the 3.5u 48V 100Ah rack type lithium iron phosphate lifepo4 deep cycle battery energy storage system is designed as the ESS battery module of the energy storage system. It can be used in series or in parallel. To increase the total system energy.

Our lifepo4 battery cabinet system are compatible with all industry-leading standard solar charging controllers, inverters and energy management systems。


Product Name : 48V 100Ah LiFePO4 Battery Pack

Built-in BMS: 16S 100A

Rate Capacity : 100Ah

Energy Power : 5120Wh

Nominal Voltage : 51.2V

Max Charge Voltage : 58.4V

Maximum Charging Current : 100A (1C)
Maximum Dicharge Current : 100A (1C)

Cycle Life : ≥6000 Cycles
Charging Temperature : 0~55°C
Discharging Temperature : -20~60°C

Dimensions(L*W*H) : 480*440*160mm

Weight : 49kg

Energy storage battery Features
1. Safe - fire resistance
2. Long cycle life - 95% DOD cycle Over 6000 times
3. Excellent high temperature performance - can work well under 60 ° C operating environment
4. High energy density - lighter and smaller
5. Maintenance-free type.
6. No contamination

lithium ion battery for large scale energy storage

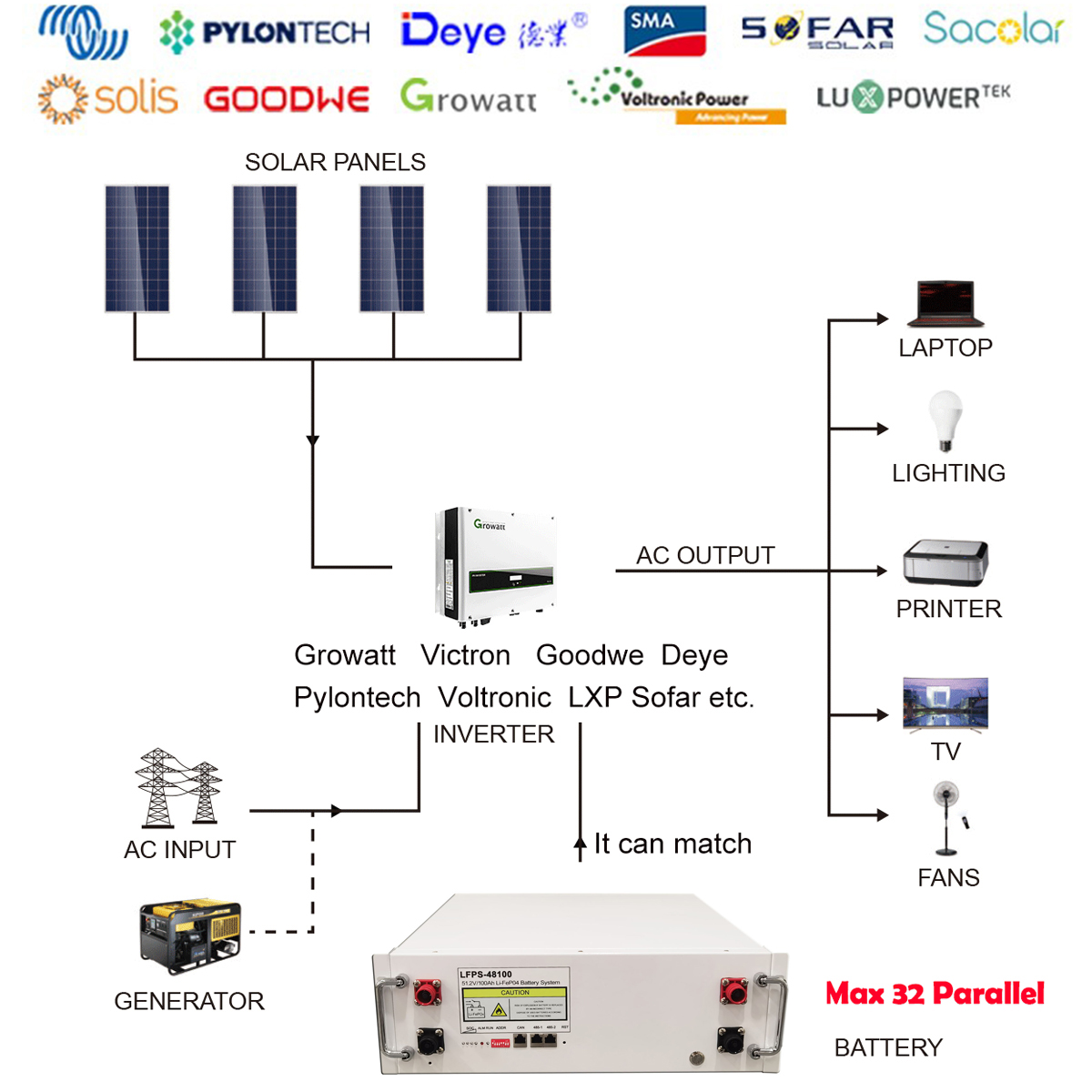

The lifepo4 battery solar system can be connected to multiple brands of inverters, Victron, Pylontech, Goodwe, Growatt, Voltronic, Deye, LXP, Sofar, GinLong, SMA, etc.

48V battery based energy storage

solar panels battery storage

lifepo4 battery 48v is suitable for:
Mountain communication base station
Solar energy storage
Reserve energy
Communication base station energy storage
Micro station/macro station
Home energy storage

lifepo4 lithium iron phosphate battery

In order to provide more efficient and cost-effective energy storage battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001

solar energy battery storage systems
