Product Name
48V 100Ah lithium golf cart battery pack
Highlights
-
Apply in Golf cart 48Volt electrical drive system
-
Lighter weight & Smaller volume
-
Made of higher density lithium battery cells
-
High end 100A battery management system includes brand Mosfet and IC chips built in with protecting against overheating, over charging, over discharge and short circuit etc
-
Customized hard metal case design
-
5 years life span under proper usage

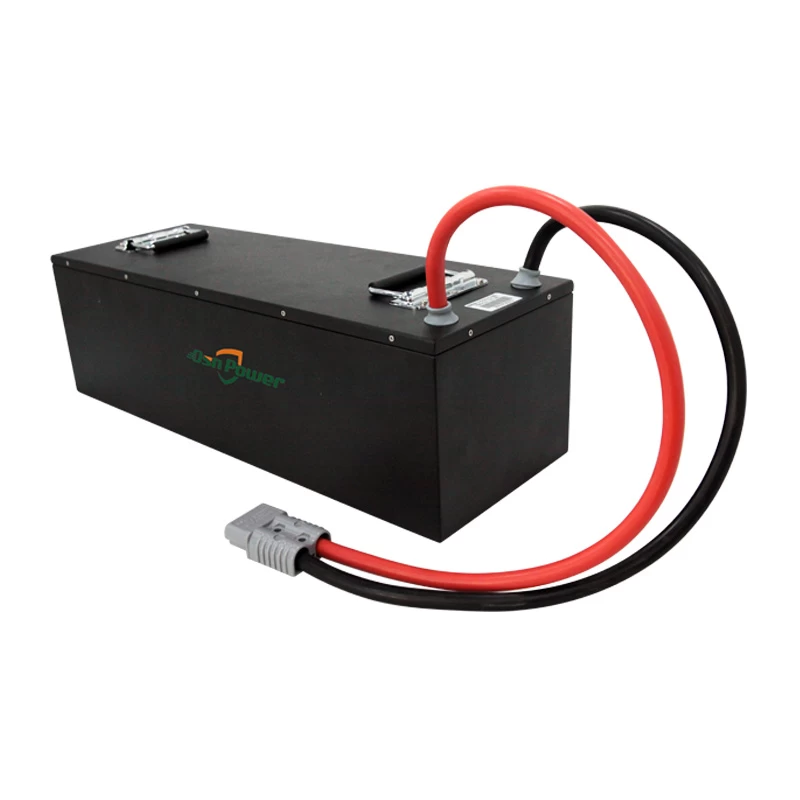

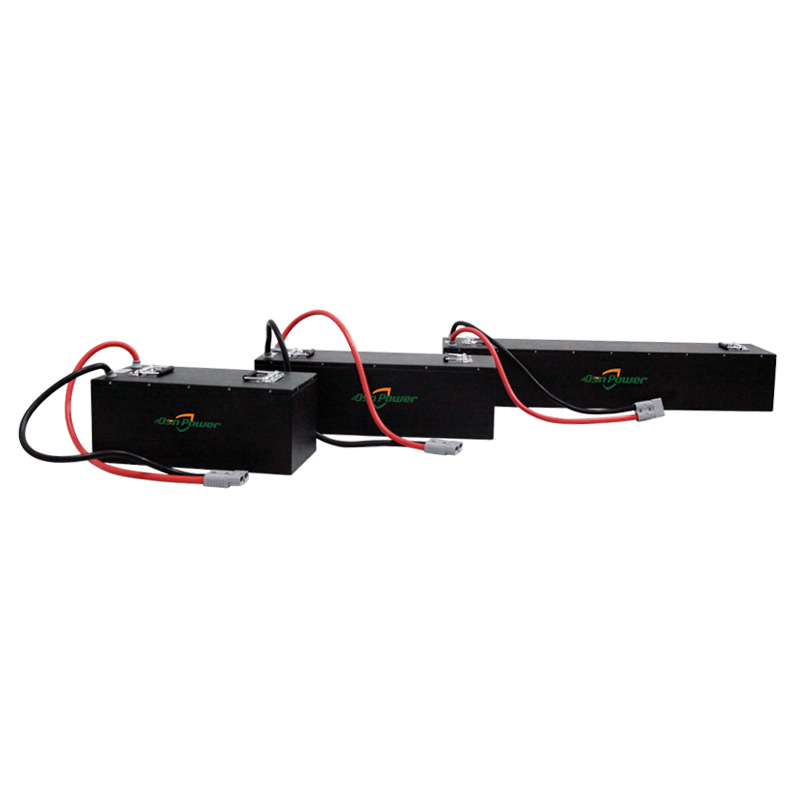

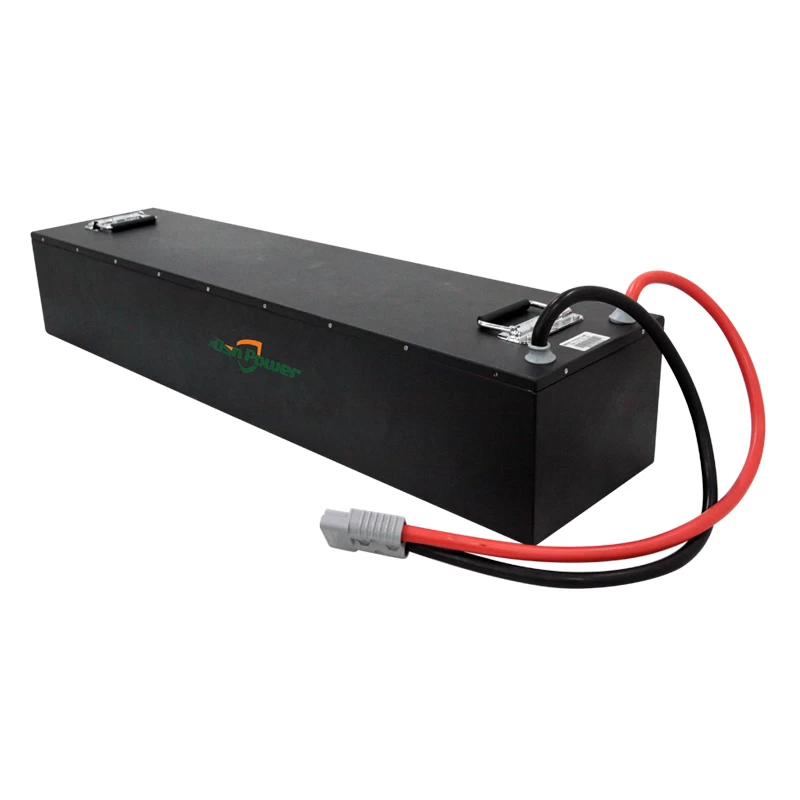

Photos of 48V 100AH Lithium golf cart battery
Datasheet of 48V 100AH Lithium golf cart battery
|
MODEL
|
OSN-GC-L48100
|
|
PERFORMANCE
|
|
Rated Capacity
|
100 Ah
|
|
Nominal Voltage
|
48.1V
|
|
Discharge Ending Voltage
|
32.5V
|
|
Charging Limited Voltage
|
54.6V
|
|
Max. Charging Current
|
100.0 A
|
|
Max. Continuous Discharging Current
|
100.0 A
|
|
Containing Cell
|
3.7V 100AH
|
|
Design Life
|
More than 10 years
|
|
Cycle Life
|
2000 cycles @80% DOD (dependant on actual DOD, usage & temp.)
|
|
MECHANICAL SPECIFICATIONS
|
|
Dimensions (W*D*H)
|
Length:460mm Width:230mm Height: 190mm
|
|
Weight
|
32.8 Kg
|
|
Enclosure
|
Metal case
|
|
Power terminal
|
175A Anderson connector
|
|
OTHER
|
|
Operating Temperature
|
Charging: 0 to +45°C / Discharging: -20 to +55°C
|
|
Storage Temperature
|
-20 to +60°C
|
|
Warranty
|
5 years
|
More features
-
Easy to install, Customize metal case with handle
-
Special technical requirements on battery accepted, our technician will design perfect lithium battery solution
-
Offer several types of 48V lithium battery for golf carts at different prices to meet high-end market and cost-effective market
-
3 years life time limited warranty
Related batteries for forklift
72V 100AH Lithium forklift battery
OSN power provide 12V-600V battery solution for different applications.
Any questions or battery requirements,please call us at +86-18575517952 or send email to service@osnpower.com
