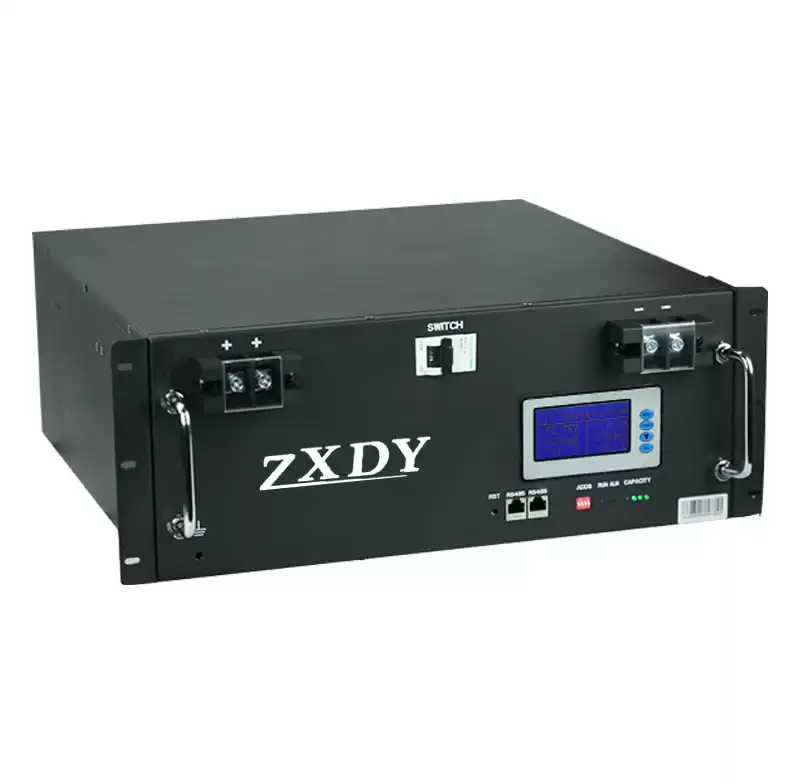

48V 150Ah LiFePO4 Battery Module Cabinet System Solar Lithium Iron Phosphate Battery Pack
The product adopts modular design, with higher integration and saving installation space; Using high-performance lithium iron phosphate cathode material, the battery cell has good consistency; Various forms of communication interfaces, such as can / RS485, can be customized according to customer needs, which is convenient and flexible to use the system for remote monitoring. High energy and low power consumption lithium battery equipment realizes higher energy supply, lower energy consumption, and reduces environmental pollution; Adopt all-round and multi-level battery protection strategies and fault isolation measures to ensure the safe operation of the system.
battery pack 48v lifepo4 product parameters
Battery type:lithium iron phosphate battery
Product model: 48v150ah-a2
Nominal voltage: 48V
Nominal capacity: 150Ah
Maximum voltage: 54.7v
Minimum voltage: 37.5v
Charging current ≤ 50A
Discharge current ≤ 100A

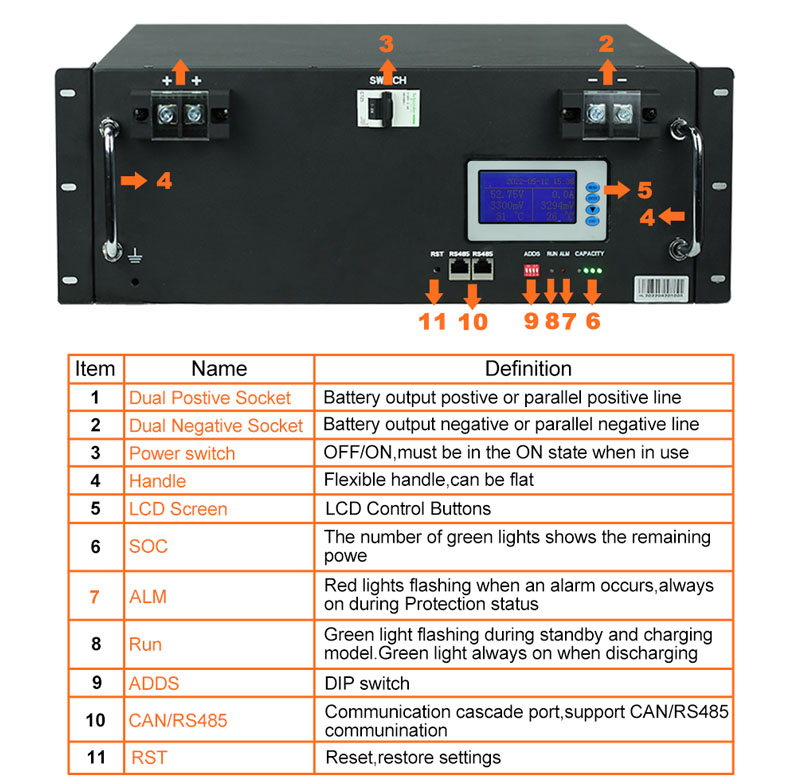

Communication mode: RS485, RS232
Power display:yes
Battery case metal:black
Temperature range :0 ~ 50 ° C (charging), - 10 ~ 60 ° C (discharging)

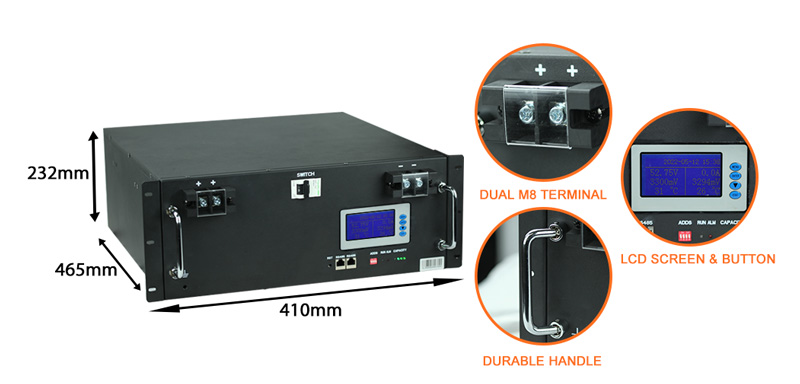

Battery size :465 * 232 * 410mm (standard 6U chassis)
Battery weight: 65kg (about)
Remarks: it can be customized according to the needs The size, shell, socket, etc. can be adjusted according to the needs Installation method / installation method cabinet type

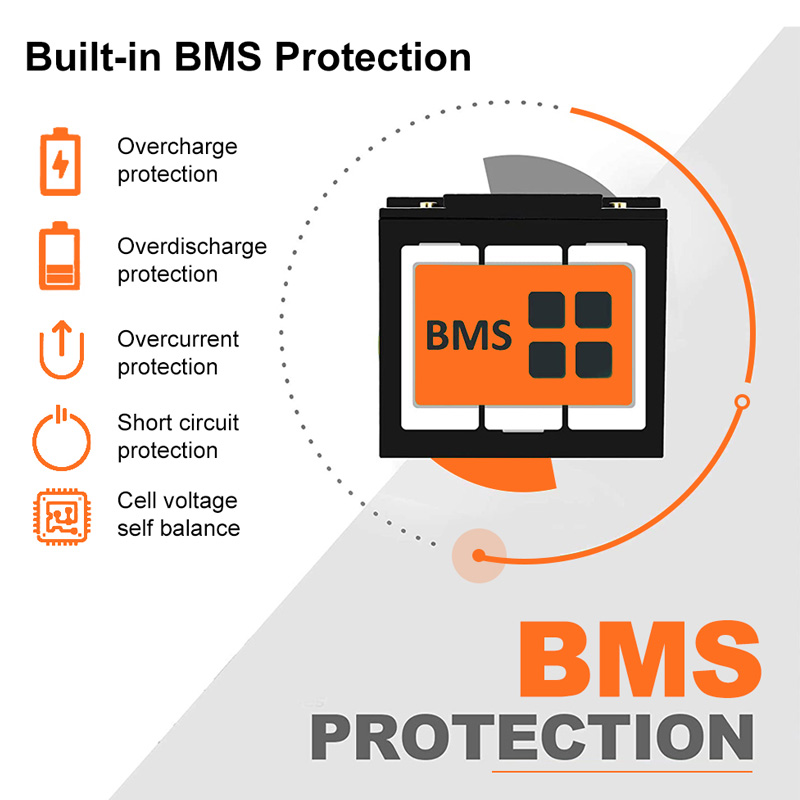

Battery storage station is equipped with BMS intelligent management system and has six protection functions
● Overcharge protection
● Over discharge protection
● overload protection
● short-circuit protection
● high temperature protection
● battery cell balancing

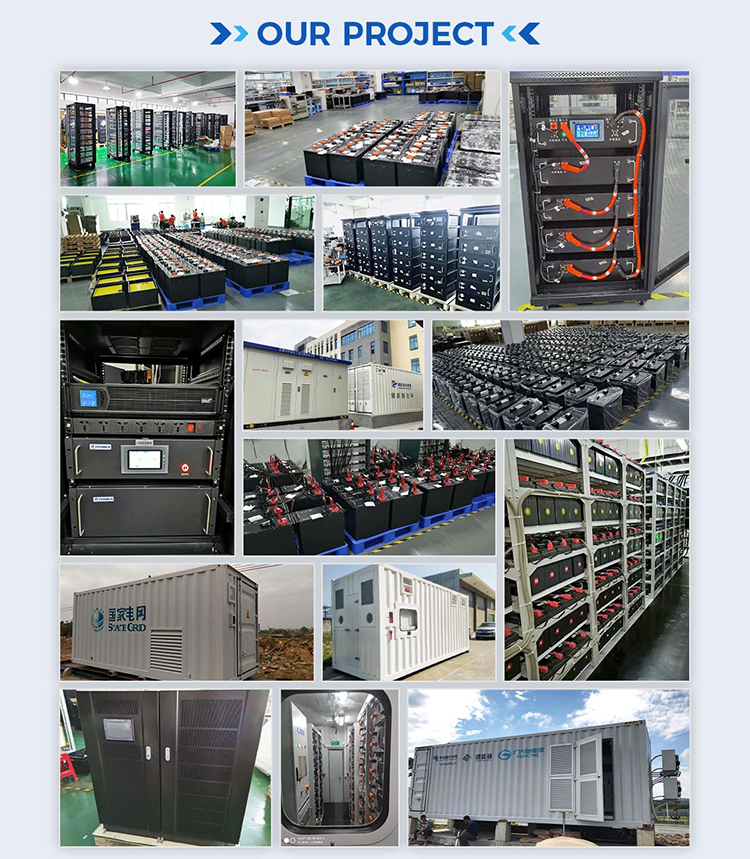

Lithium iron phosphate battery lifepo4 is mainly used for energy storage system, communication base station, industrial power supply, solar photovoltaic energy storage, UPS, photovoltaic power supply, island power generation system, and wind solar complementary system.
In order to provide more efficient and cost-effective solar energy storage battery products to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001
