48V 5KW Solar Powerwall LiFePO4 100Ah Lithium Home Battery Pack

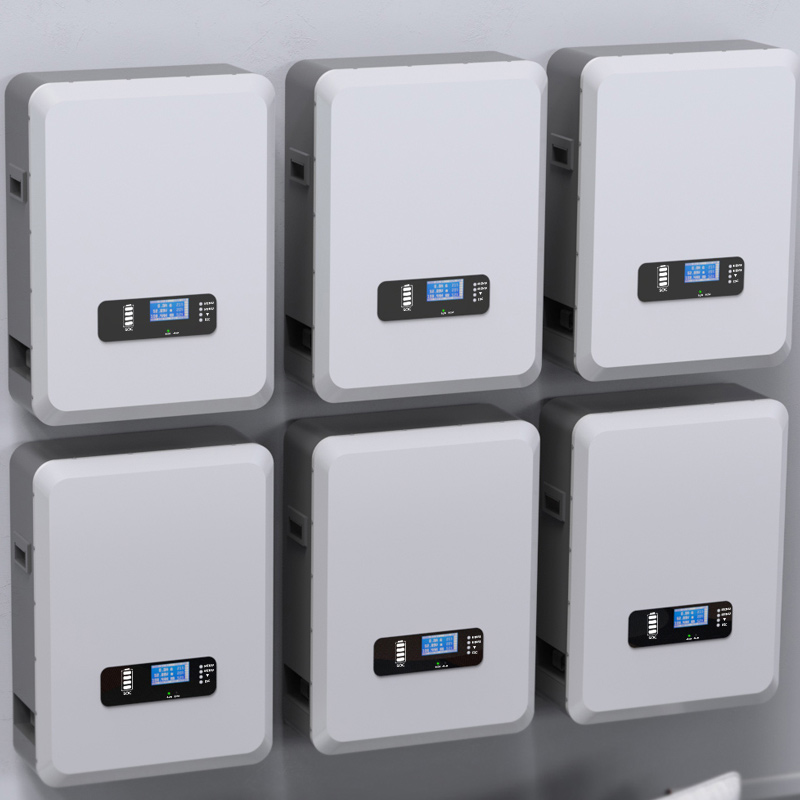

The wall mounted household energy storage battery produced by us is easy to install, simple to set up, plug and play, integrated body setting, light weight, small volume, BMS protection battery, safe and light; With communication RS485 / CAN protocol, support PC / Web / APP control, customizable; The deep cycle discharge times of lithium iron battery are more than 6000 times。
Our wall mounted household battery solar photovoltaic system has built-in inverter communication protocol and is compatible with most brands of inverters

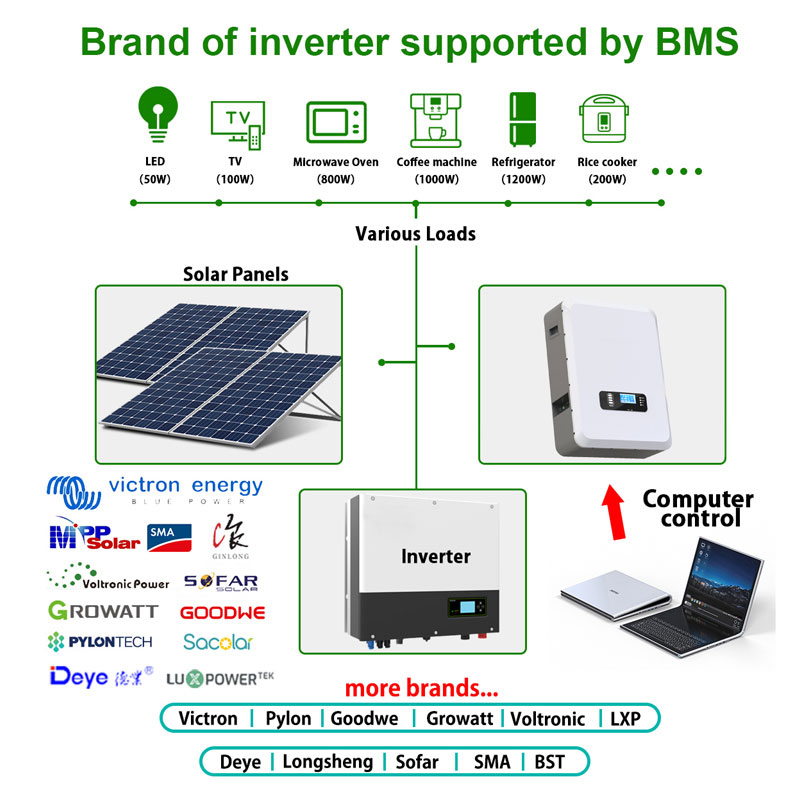

List of compatible inverter brands:
Victron, pylontech, goodwill, growatt, voltronic, Deye, LXP, sofar, Jinlong, SMA, tuobao

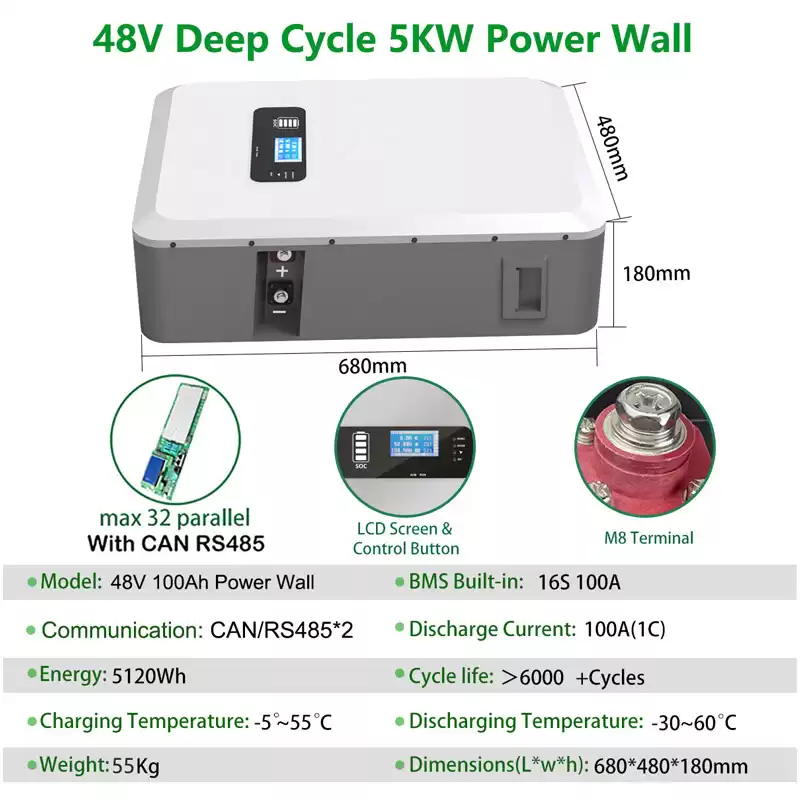

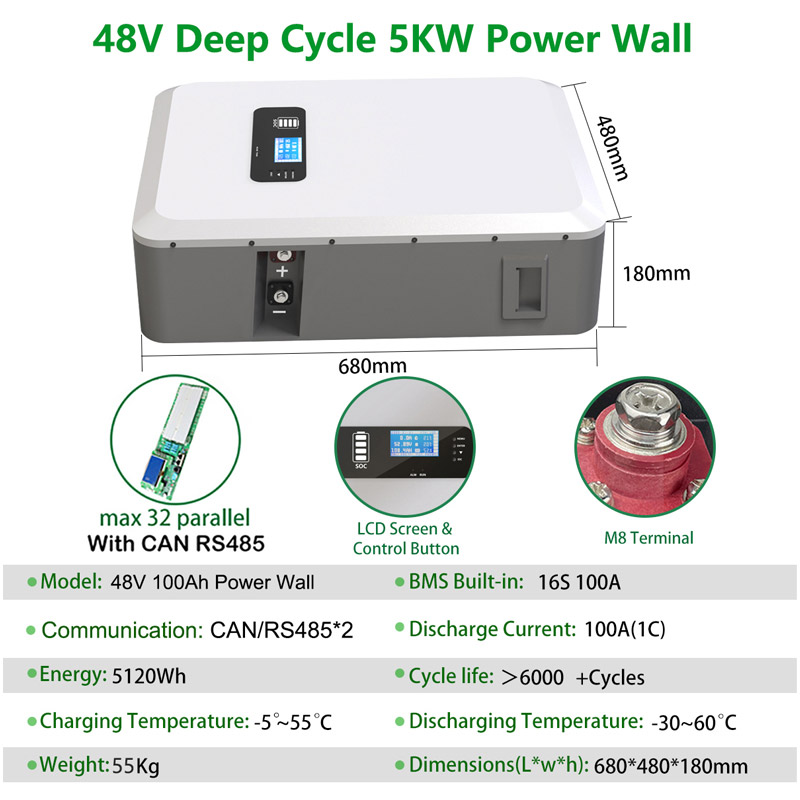

Battery Specifications:
Nominal Voltage: 48V
Nominal Capacity: 5.12KW
BMS:16S 100A（Max 32pcs in parallel）
Communication : CAN/RS485*2/UPS
Energy: 5120Wh
Cycle Life: ＞6000 Cycles
Max.Charging Current：100A
Discharging Current：100A
Max.Pulse Current：200A( Can be set up)
Battery Size: (L*W*H)680*480*180mm
Weight: 55KG

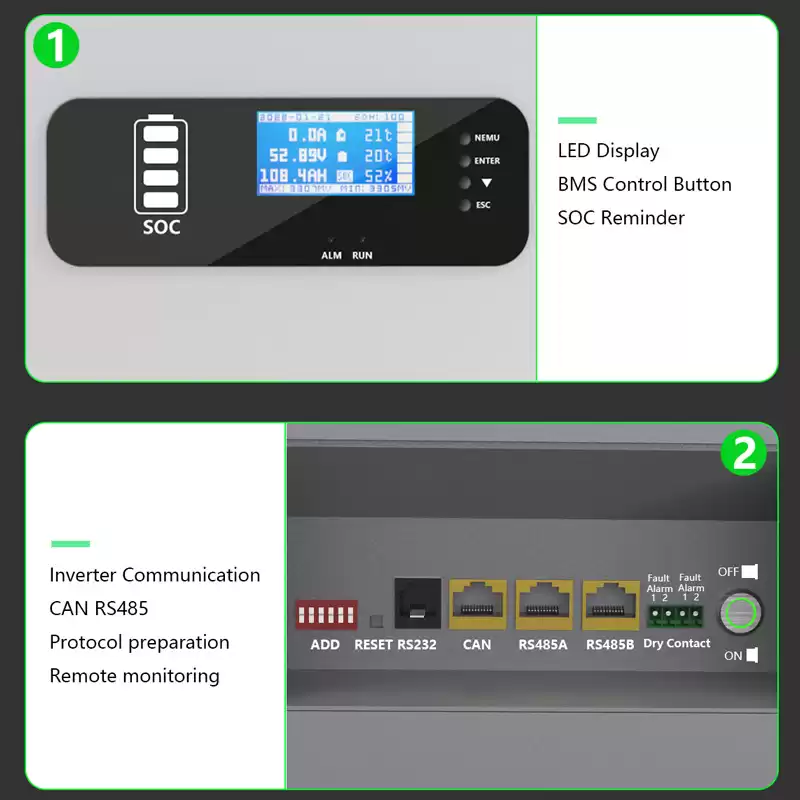

Display:LCD Screen
Warranty time: 3 years
Permanent technical support.
(Free replacement of new parts within three years)
Important features:

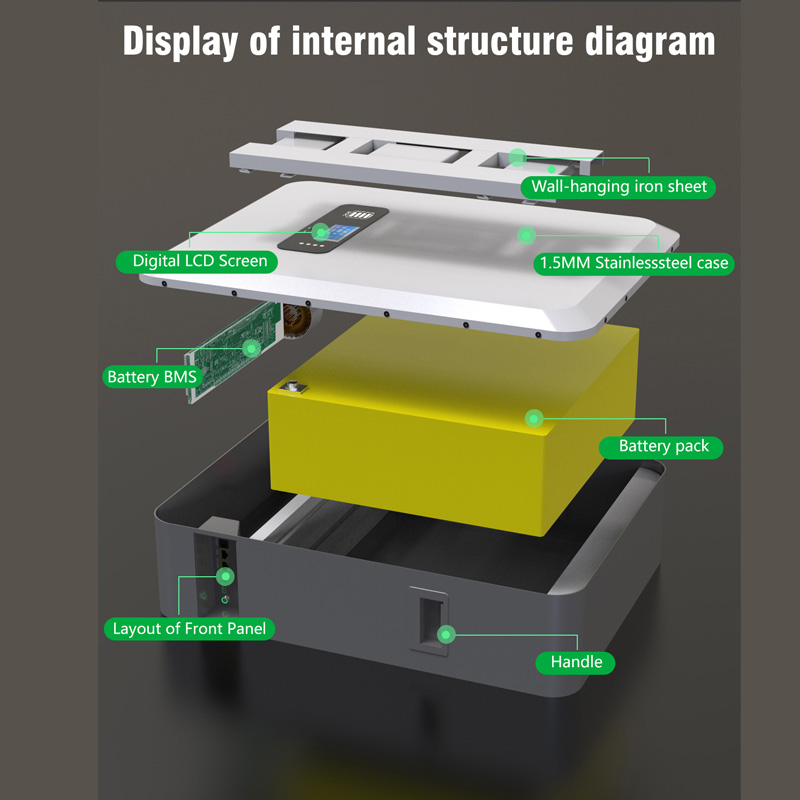

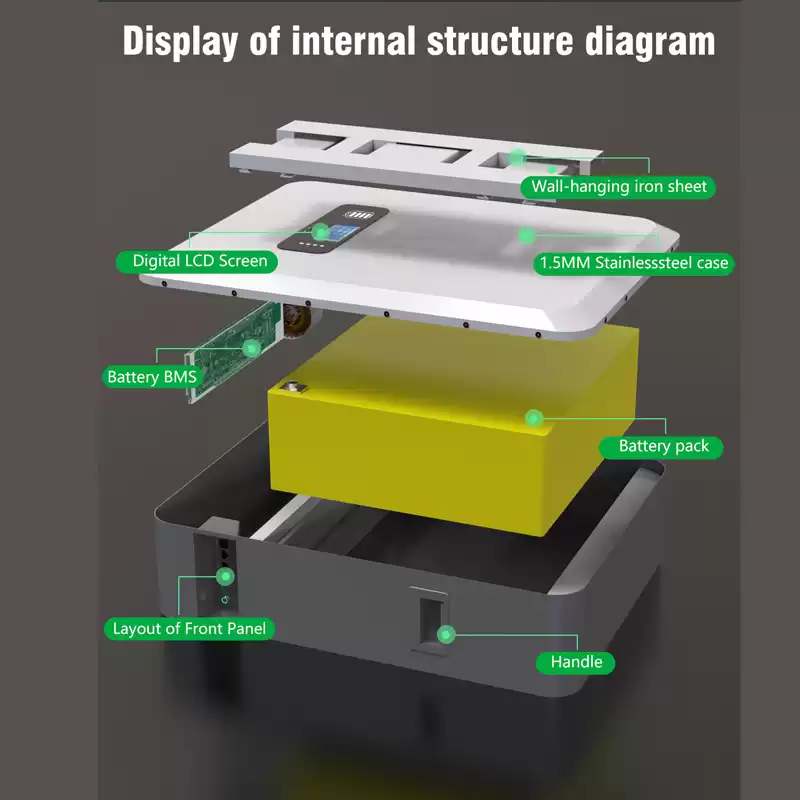

Built-in battery management system
UPS CAN BUS RS485 Communication

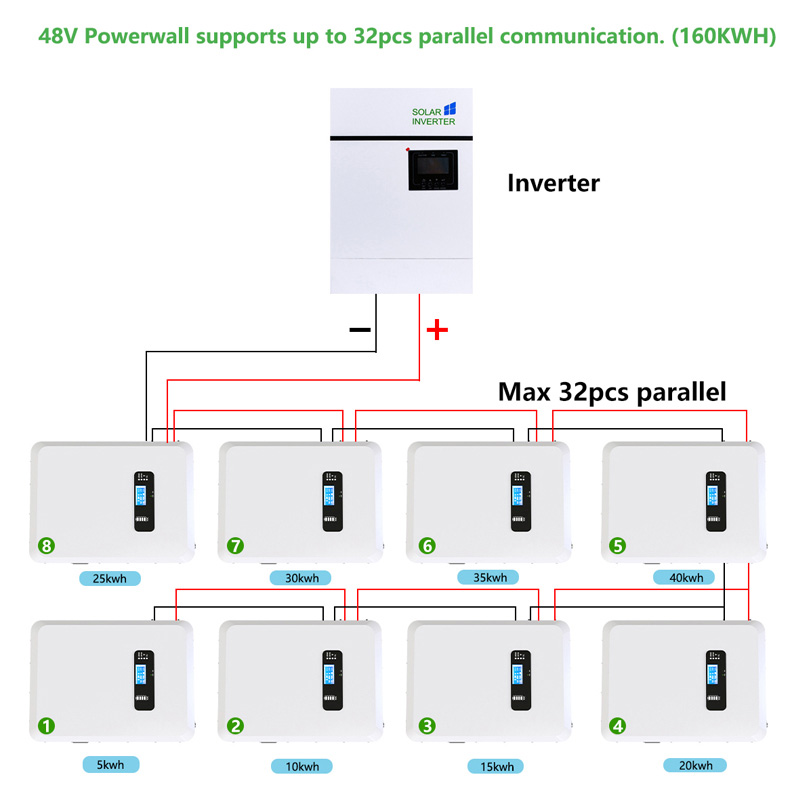

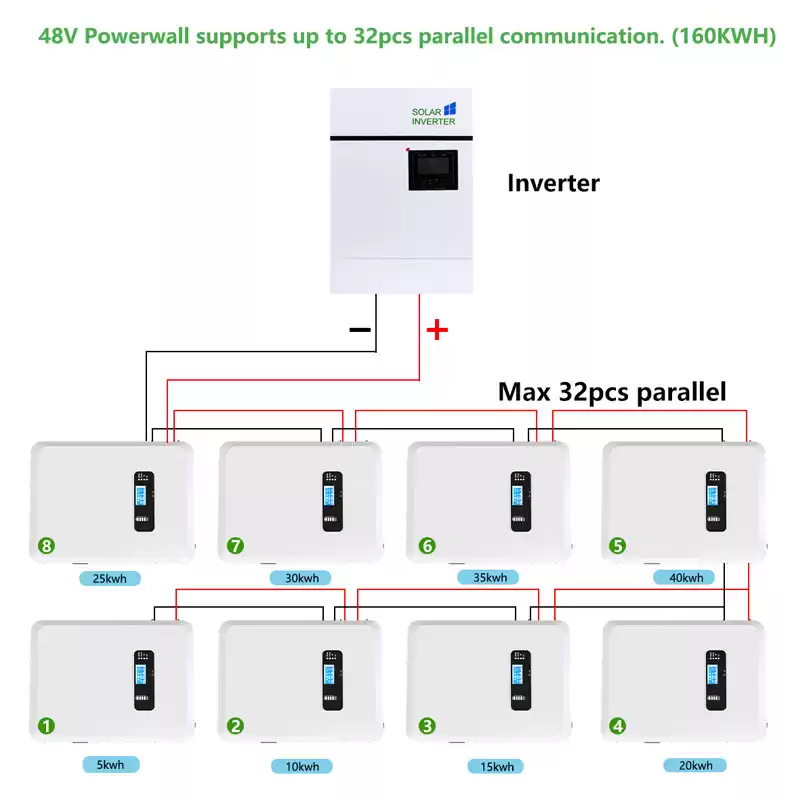

The 48V Power Wall supports up to 32pcs parallel connection (160KWH), which can expand the battery energy storage capacity at any time in the future.

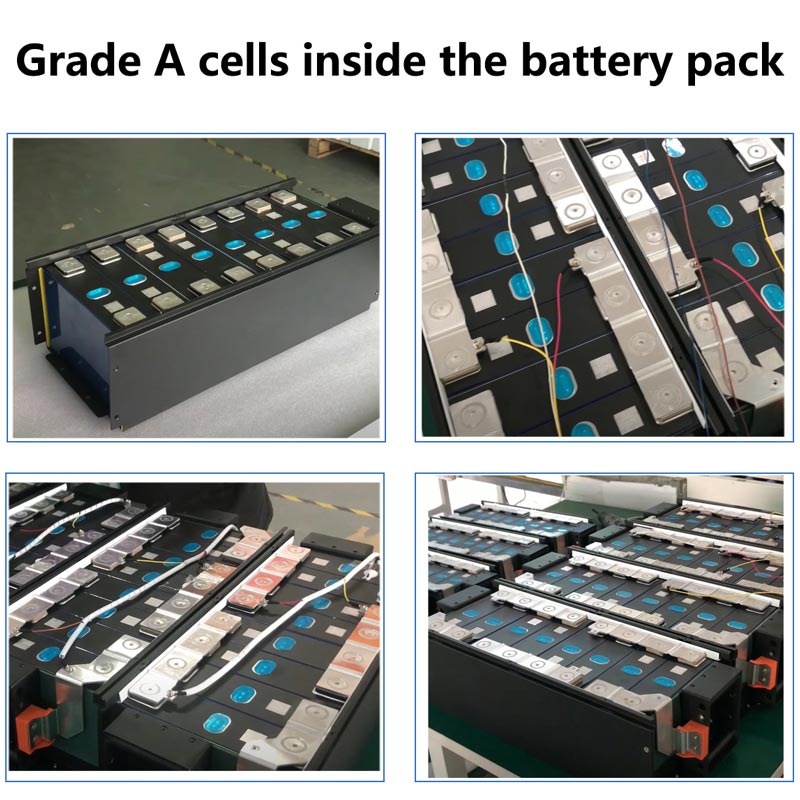

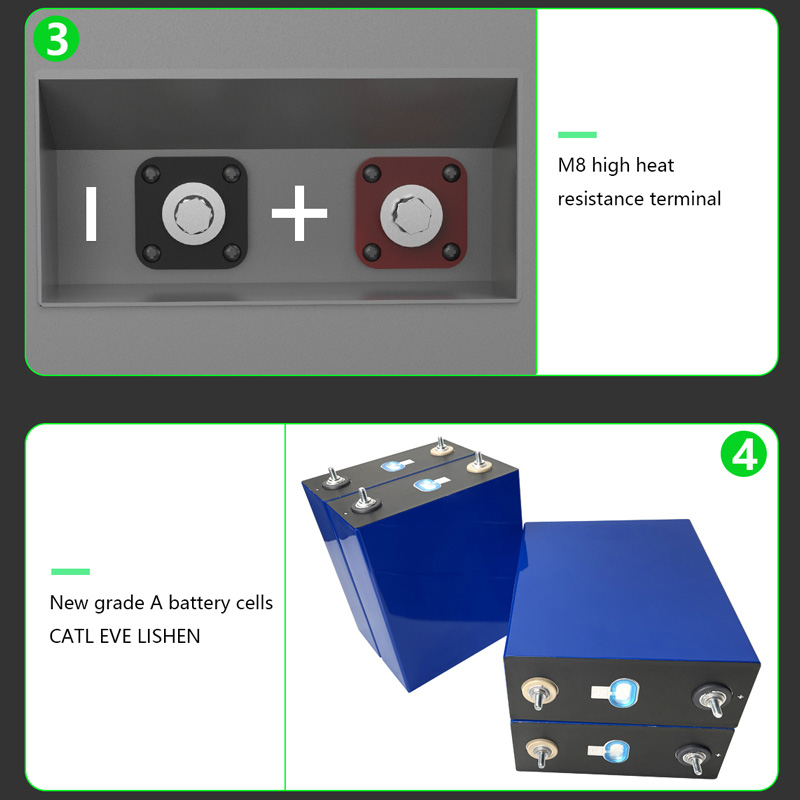

Our wall mounted battery is a new class a battery, which is very safe. Service life > 6000 times; For our battery pack, we only use the battery connection with internal resistance less than 0.05 Ω and voltage difference no more than 0.005v.

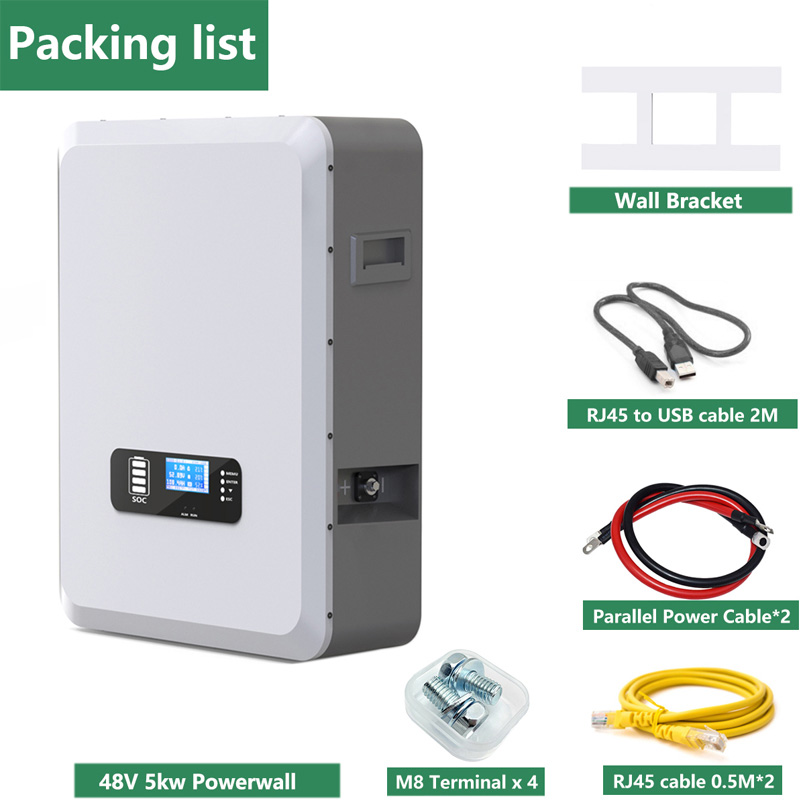

Shipping and packaging scenario of lithium powerwall battery

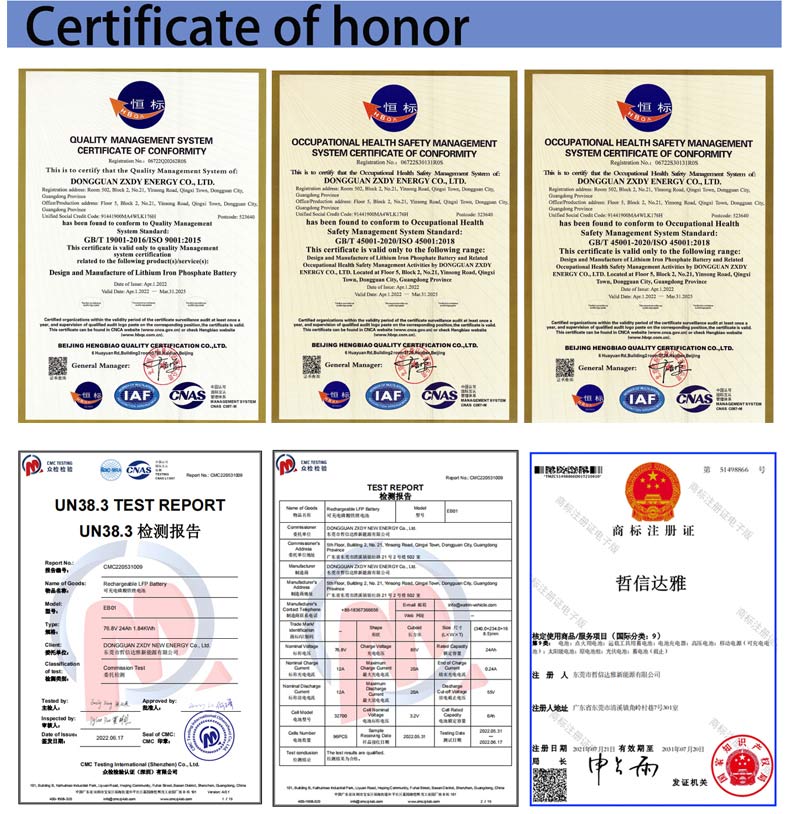

In order to provide more efficient and cost-effective powerwall home battery to meet customers' growing power demand and high quality requirements, we have passed the following certification:
1. GB / T 45001-2020 / ISO 45001 06722s30131r0s 2018 occupational health and safety management system.
2. GB / T 24001-2016 / ISO 14001r 2015 environmental management system 06722e20137r0s.
3. GB / T 19001-2016 / ISO 90012015 quality management system 06722q20262r0s.
4. UN38.3 rechargeable lithium iron phosphate battery cmc220531009.
5. MSDS rechargeable lithium iron phosphate battery cmc220531009m01.
6. Dangerous goods transportation certificate: rechargeable lithium iron phosphate battery seksz202206265622wx83001.
