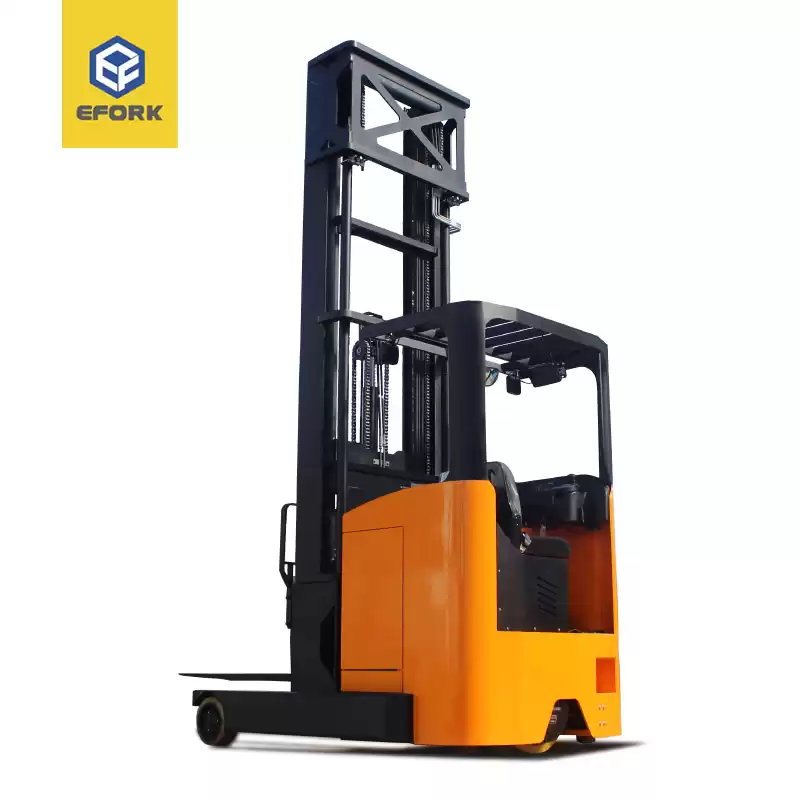

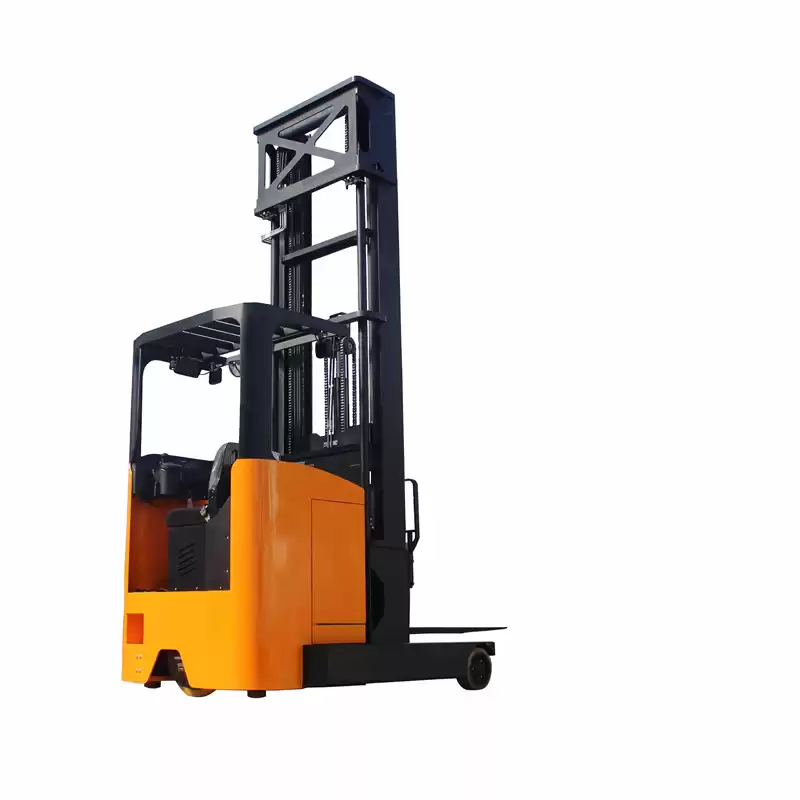

Product Name:48V Seated Rider Electric Reach Truck Reach Truck 1500kg 2000kg 6m 7.5m Electric Battery
Product Advantage:
Ergonomics Design
1.Easy operation joystick design and multi-function display with wheel position, which can makes operation more comfortable and convenient;
2.Adjustable seat can provide operator with the most comfortable operation environment;
Specification：
|
Name
|
Electric reach truck（Seated Type 48V）
|
|
Model
|
Unit
|
CQD15E-30
|
|
Capacity
|
Kg
|
1500
|
|
Mast type
|
|
Duplex mast
|
|
Max. lifting height
|
H（mm）
|
3000
|
|
Load center
|
C（mm）
|
500
|
|
Wheel type
|
|
Polyurethane tire （PU）
|
|
Fork size
|
（mm）
|
1070*100*35
|
|
Overall length include fork
|
L（mm）
|
2270
|
|
Overall width
|
S(mm)
|
1295
|
|
Height--Mast Lowered
|
H1（mm）
|
2100
|
|
Mast height,fork raised(with load-backrest)
|
H2（mm）
|
3965
|
|
Height of overhead guards
|
(mm)
|
2180
|
|
Min.stacking.aisle
|
(mm)
|
2855
|
|
Turning radius
|
WQ（mm）
|
1745
|
|
Max.Walking Speed
|
Km/h
|
6.8/7.8
|
|
Grade ability
|
%
|
≤10
|
|
Total Weight
|
Kg
|
3000
|
|
Driving wheel
|
mm
|
Ø382*142
|
|
Front wheel
|
mm
|
Ø267*114
|
|
Balance wheel
|
mm
|
Ø180*76
|
|
Battery capacity
|
V/Ah
|
48/300
|
|
Charger
|
V/A
|
48/40
|
|
Driving motor
|
Kw
|
6.5
|
|
Lifting motor
|
Kw
|
6.3
|
|
Walking Adjustable Type
|
|
Holzer accelerator
|
|
Breaking
|
|
Electromagnetic
|
|
Quote
|
RMB
|
|
Basic configuration：
1、US CURTIS Control system，Stepless speed regulation；
2、Brand contactor,
3、Brand hydraulic lifting pump station;
4、48V/400AHLead acid battery；
5、48V/50Aexternal intelligent charger
6、Brandsealing elements
7、Vertical AC drive motor
8、Vertical transmission gearbox
9、High wear resistant polyurethane wheel（Bearing wheel, driving wheel and balancing wheel）
10、Pedal foot switch, seat, steering wheel
11、Fork lift with buffer
12、Forged fork, suitable for single and double pallets
13、Multi function electricity meter
14、Electromagnetic brake
15、Electric Power Steering
