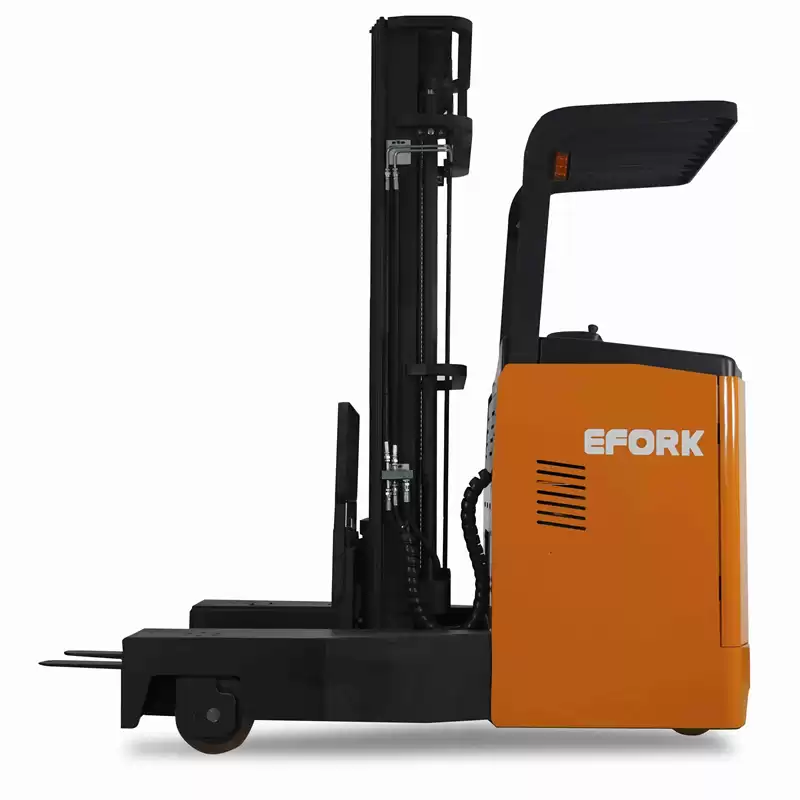

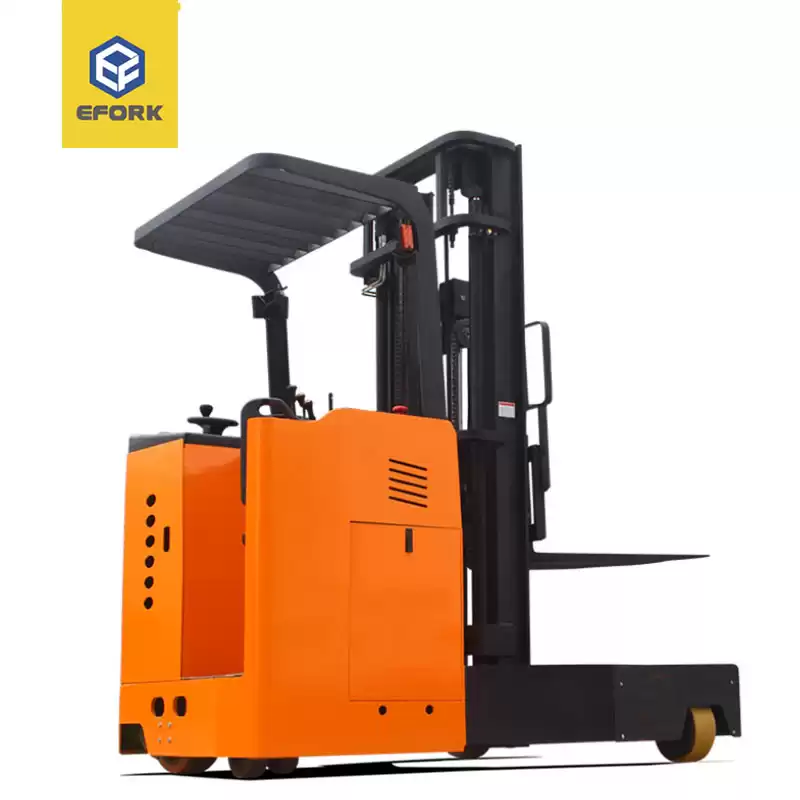

Product Name:Multi Directional Forklift Electric Four-Direction Reach Forklift
Specification：
|
Name
|
Electric reach truck（Four Direction )
|
|
|
|
|
Model
|
UINT
|
CQD20S-45S
|
|
Power
|
|
Electric
|
|
Capacity
|
KG
|
2000
|
|
Max lifting height
|
H2(mm)
|
4500
|
|
Load center
|
C(mm)
|
500
|
|
Wheel type
|
|
Polyurethane tire （PU）
|
|
Fork size
|
mm
|
1070*100*35
|
|
Forkadjust range
|
mm
|
260-720
|
|
Overall length
|
L(mm)
|
3250/2550
|
|
Overall width
|
S(mm)
|
1690
|
|
Height--Mast Lowered
|
H1(mm)
|
2100
|
|
Maximum height when fork is lifting
|
H(mm)
|
5416
|
|
Turning guards (outside)
|
Wa（mm）
|
2000
|
|
Aisle width with（1000*1000pallet
|
|
2900
|
|
The height of overhead guards
|
Mm
|
2280
|
|
Min ground clearance
|
mm
|
80
|
|
Max travel speed
|
Km/h
|
7.0/8.0
|
|
Lifting speed
|
mm/s
|
120/270
|
|
Grade ability
|
%
|
≤10
|
|
Total weight
|
KG
|
3400
|
|
Driving wheel
|
mm
|
Ø382*142
|
|
Front wheel
|
mm
|
Ø267*114
|
|
Balance wheel
|
mm
|
Ø180*76
|
|
Battery capacity
|
V/Ah
|
48/400
|
|
charger
|
V/A
|
48/50
|
|
Drive motor
|
Kw
|
6.5
|
|
Lifting motor
|
Kw
|
8.6
|
|
Drive control type
|
|
6.5（AC）
|
|
Walking Adjustable Type
|
|
Holzer accelerator
|
|
Break
|
|
Electromagnetic
|
|
Parking break
|
|
Electromagnetic
|
Basic configuration：
1、US CURTIS Control system，
2、UK AIBRIGHT contactor ,
3、Brand hydraulic lifting pump station;
4、48V/400AHLead acid battery；
5、48V/40Aexternal intelligent charger
6、Brand sealing elements japanese NOK
7、Vertical AC drive motor
8、Vertical transmission gearbox
9、High wear resistant polyurethane wheel（Bearing wheel, driving wheel and balancing wheel）
10、EPS
11、Multi function wheel indicator
12、Electromagnetic brake
13、Stepless speed regulation
