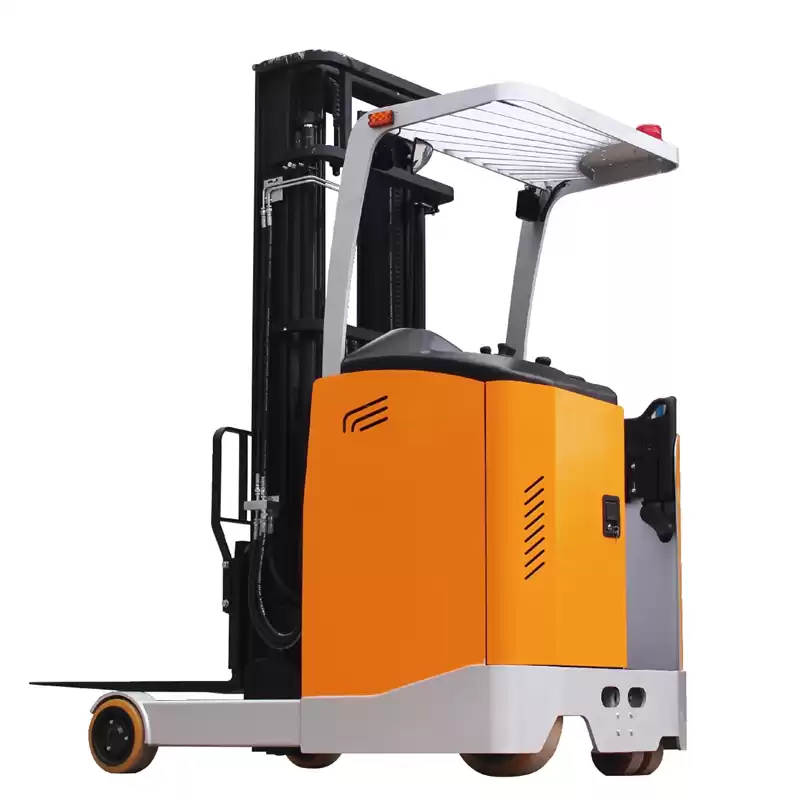

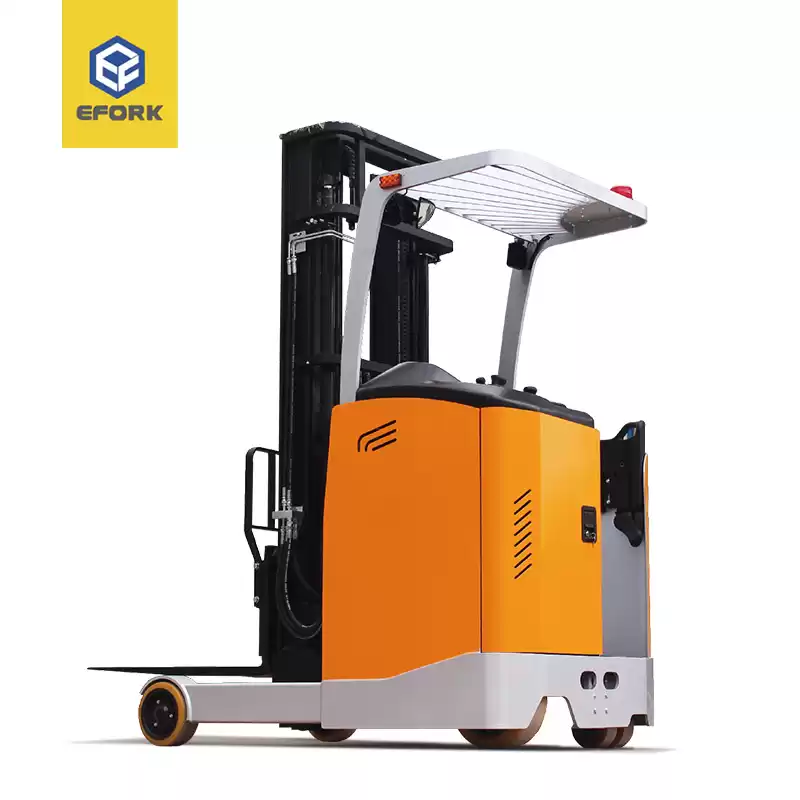

Product Name:48V Standing Type Reach Truck
Product high lights:
Electric power steering
●Keep the steering more effortless, reduce fatigue strength and improve efficiency while retaining the sense of road.
Strong endurance
●AC drive motor, some models use AC lift motor, which is efficient and energy efficient.
●Meet many job requirements under heavy working conditions.
Specification
|
Name
|
Electric reach truck（Side standing type）（48V）
|
|
Model
|
Unit
|
CQD15-45S
|
|
Capacity
|
Kg
|
1500
|
|
Mast type
|
|
Triplex full free mast
|
|
Max. lifting height
|
H（mm）
|
4500
|
|
Load center
|
C（mm）
|
500
|
|
Wheel type
|
|
Polyurethane tire （PU）
|
|
Fork tilt angle(Forward/backward)
|
mm
|
3/5
|
|
Fork size
|
（mm）
|
35*122*1070
|
|
Fork spread
|
（mm）
|
210-710
|
|
Mast reach distance
|
mm
|
530
|
|
Overall length include fork
|
L（mm）
|
2327
|
|
Overall width
|
S(mm)
|
1098
|
|
Height--Mast Lowered
|
H1（mm）
|
2100
|
|
Mast height,fork raised(with load-backrest)
|
H2（mm）
|
5460
|
|
Turning radius
|
mm
|
1680
|
|
The height of overhead guards
|
mm
|
2280
|
|
Min.stacking.aisle
|
mm
|
2730
|
|
Min. ground clearance
|
mm
|
85/105
|
|
Max.Walking Speed
|
km/h
|
7/6.5
|
|
Lifting speed
|
mm/s
|
330/245
|
|
Grade ability
|
%
|
≤10
|
|
Total weight
|
KG
|
2500
|
|
Driving wheel
|
mm
|
382x142
|
|
Front wheel
|
mm
|
267*114
|
|
Balance wheel
|
mm
|
180*76
|
|
Battery capacity
|
V/Ah
|
48/300
|
|
Lifting motor
|
KW
|
6.3
|
|
Drive motor
|
KW
|
4.5
|
|
Drive Controlling Type
|
6.5（AC)
|
|
Walking Adjustable Type
|
Holzer accelerator
|
|
Braking
|
Electromagnetic brake
|
|
Quote
|
|
Basic configuration：
1、US CURTIS Control system，Stepless speed regulation；
2、Brand contactor, Electric Power Steering
3、Brand hydraulic lifting pump station;
4、48V/300AH Lead acid battery；
5、48V/40A external intelligent charger.
6、Brand sealing elements
7、Vertical AC drive motor
8、Vertical transmission gearbox
9、High wear resistant polyurethane wheel（Bearing wheel, driving wheel and balancing wheel）
10、Curve speed limiter
11、Multi function electricity meter
12、Electromagnetic brake
