48Volt Solar Power Systems Battery Storage 48v100Ah

OSN POWER 48Volt Solar Power Systems Battery Storage 48v100Ah is built-in high quality BMS battery management system, which can manage and monitor cells information ,including voltage, current and temperature etc. Also, our BMS can balance cells charging and discharging to extend cycle life. Multiple batteries can connected in parallel to expand capacity and power in parallel for larger capacity and longer power .






Product Name

48Volt Solar Power Systems Battery Storage 48v100Ah

Highlights

  • Long lifetimes - 6000 cycles @85% DOD (dependant on actual DOD, usage & temp.) and low self-discharge rate
  • Easily scalable and stackable 5kWh modules - up to 200kWh in a single installation
  • A self-designed BMS protects the cell from overcharge, over-discharge, over current, short circuit .
  • Built-in accessible 125A DC breaker On/Off switch - increases safety .
  • Communication Protocol: Optional RS232/RS485
  • Simple rack-based installation system
  • LCD display available

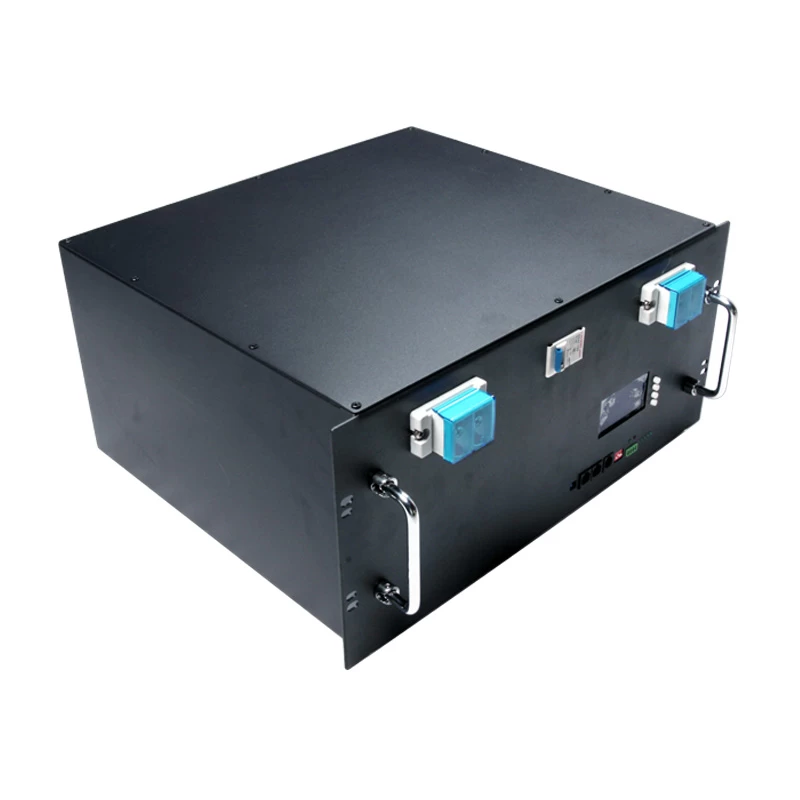

48Volt Solar Power Systems Battery Storage 48v100Ah Picture as Below





Our 48v 100Ah solar battery pack is scalable energy storage from 5 to 200 kWh

Specification for LiFePO4 solar 48v 100Ah 5KWH System


MODEL

OSN-ESS-48100L

PERFORMANCE

Rated Capacity (5hr)

100 Ah

Nominal Voltage

51.2 V

Discharge Ending Voltage

32 V

Charging Limited Voltage

58.4 V

Max. Charging Current

100 A

Max. Continuous Discharging Current

100 A

Parallel Connection

Optional (up to 16P). When paralleling Max. charging current = 20A

Containing Cell

3.2V LiFePO4 Cell

Design Life

More than 10 years

Cycle Life

6000 cycles @85% DOD (dependant on actual DOD, usage & temp.)

Discharge Rate

1C

Response Time

> 1ms

MECHANICAL SPECIFICATIONS

Dimensions (W*D*H)

482* 430 * 216 mm

Weight

43.9Kg

Enclosure

3U steel enclosure with protection handles

Communication Ports

RS485 RS232 & SNMP available

OTHER

Operating Temperature

Charging: 0 to +45°C Discharging: -20 to +60°C

Storage Temperature

-20 to +60°C

Humidity

5% to 95% Relative Humidity (Non-condensing)

Warranty

5 years


Other Features

-Safe

OSN LFP battery modules are a practical and economical battery system based on Lithium-iron-phosphate technology (LFP or LiFePO4).

-scalable

Available in standard 2.5kWh modules, the LFP battery modules can be easily scaled in multiples up to 200kWh in a single installation, making them suitable for a range of applications.

-Efficient

OSN's LFP battery modules feature a round-trip efficiency of 92%, low self discharge rate of 3+ years, and unlike traditional lead acid battery.


Application:

Home Solar Energy Storage


Related Products

Energy Storage System


With 10 years experience of making LiFePO4/NCM/LTO packs, we can customize any packs for you.

Please email us at service@osnpower.com to get solution and quotation.
