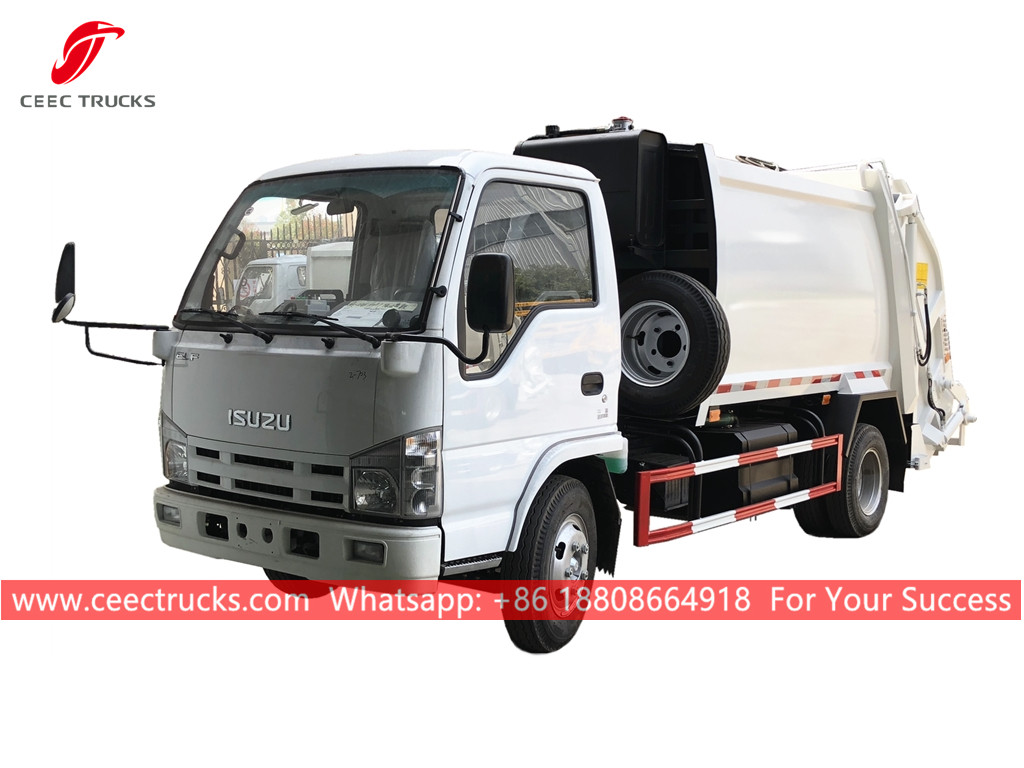

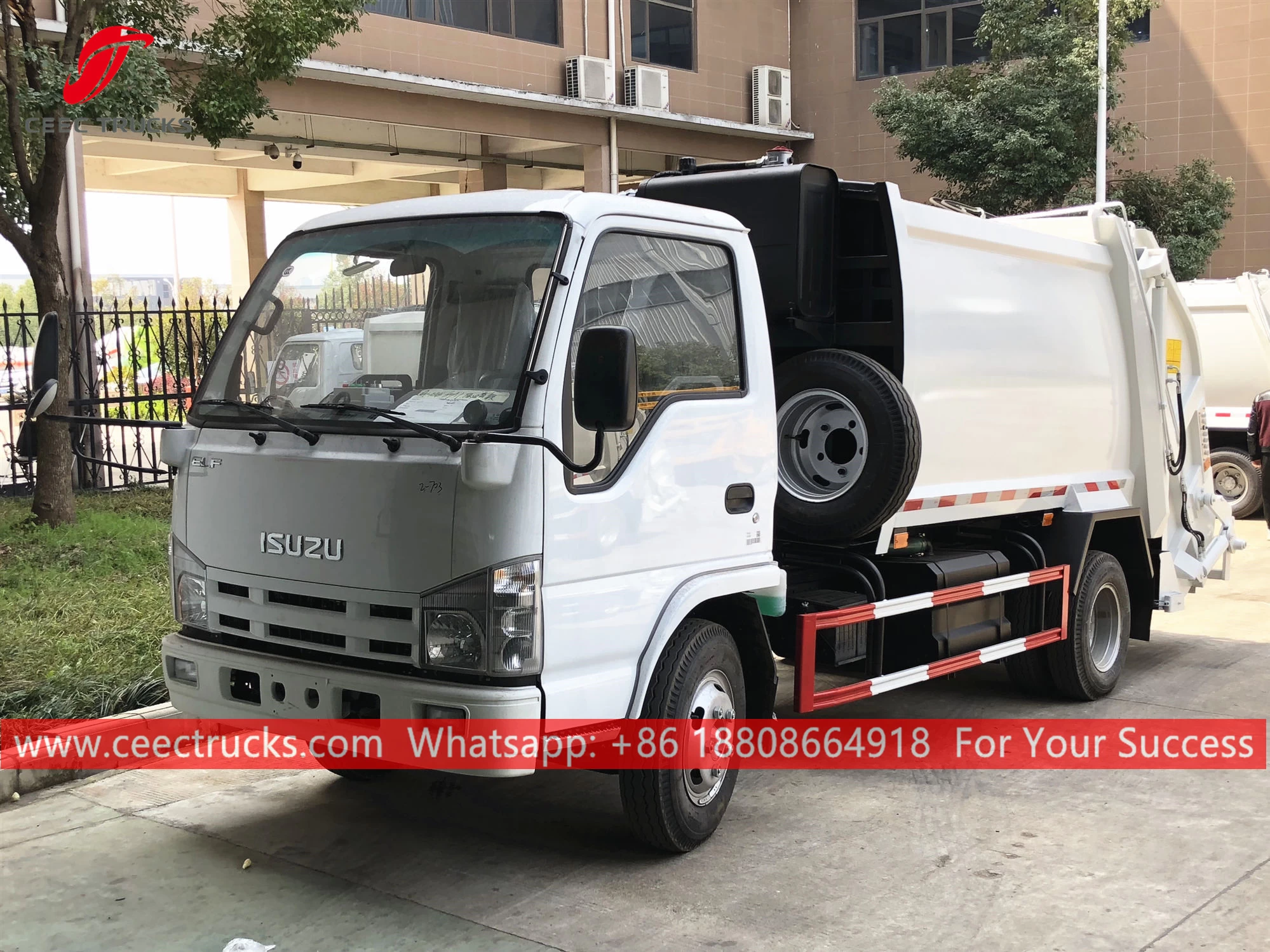

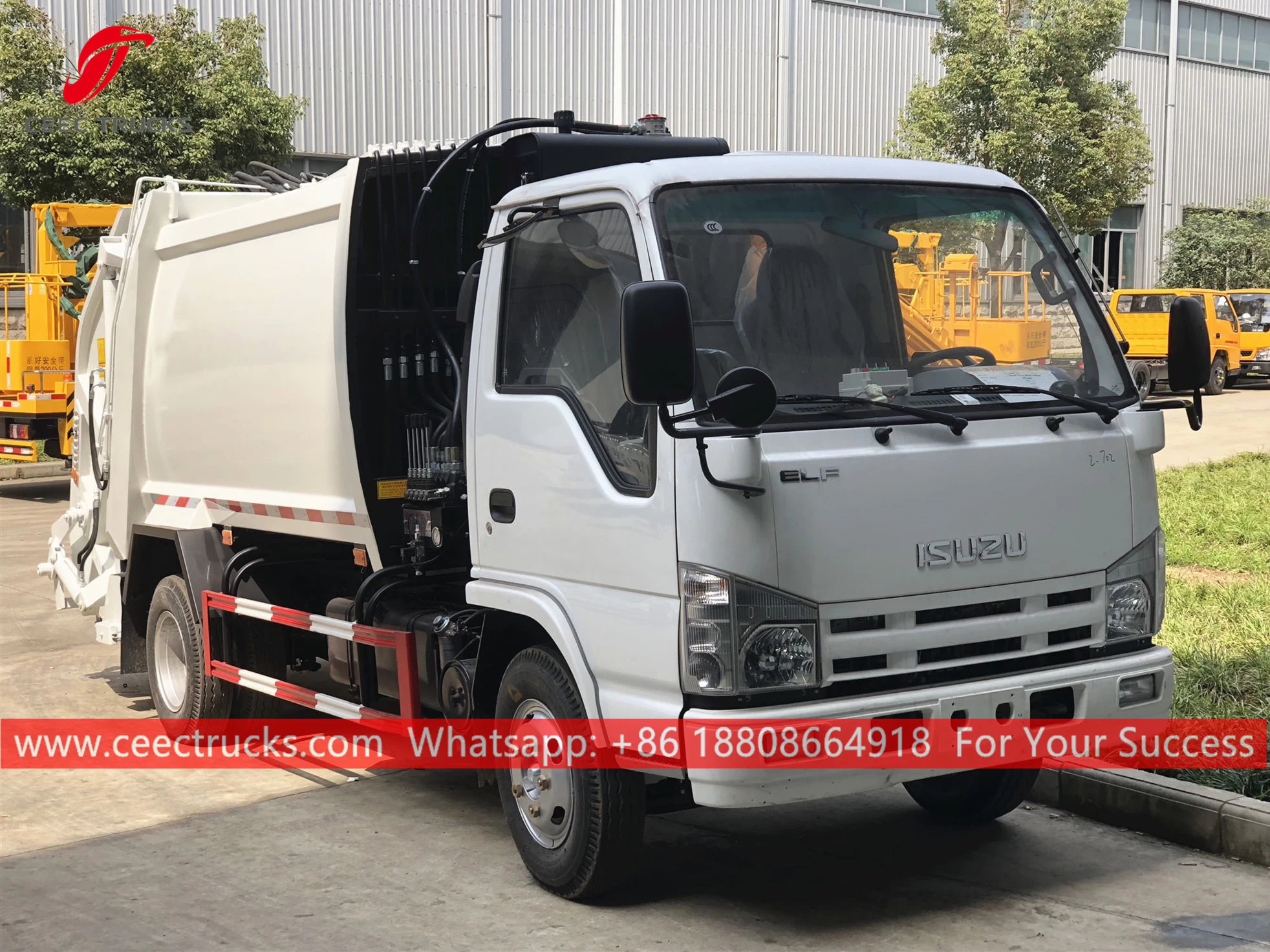

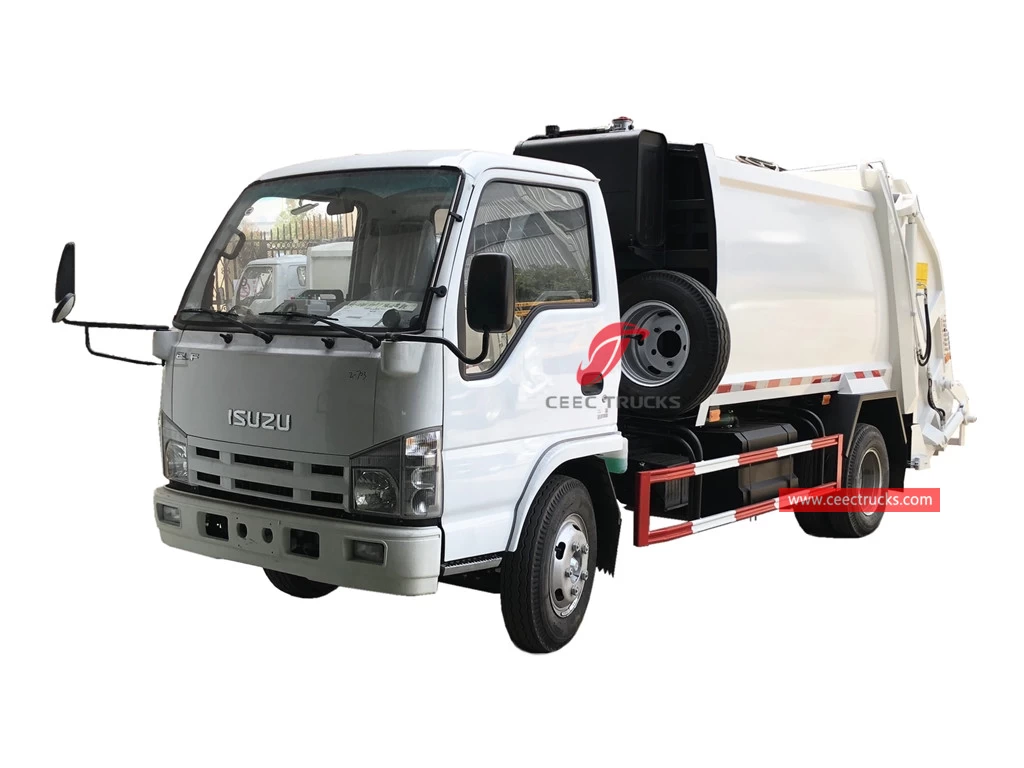

4CBM Garbage Compactor Truck ISUZU

Myanmar customer buy ISUZU 4cbm Rear loading hydraulic garbage compactor, ISUZU 98HP diesel engine, MSB 5-shift manual gearbox, PLC control box, painting and logos depend on requirement.



 Applications:



ISUZU Waste compactor vehicle (also called ISUZU Rubbish compactor trucks for sale, compression garbage truck ISUZU, low price Garbage compactor truck, Rear loading garbage trucks) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS  compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:




  Refuse compactor truck ISUZU (4 cbm)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

6960 * 2100 * 2520 mm

GVW / Kerb Weight

7,300kg / 5,130kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (72 KW)

Displacement

2999 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2 (left hand drive)

Transmission

ISUZU MSB 5 speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

98 km/h

Paint

Metallic paint

Superstructure

Body capacity

4 cbm

Fill Hopper capacity

1.2 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

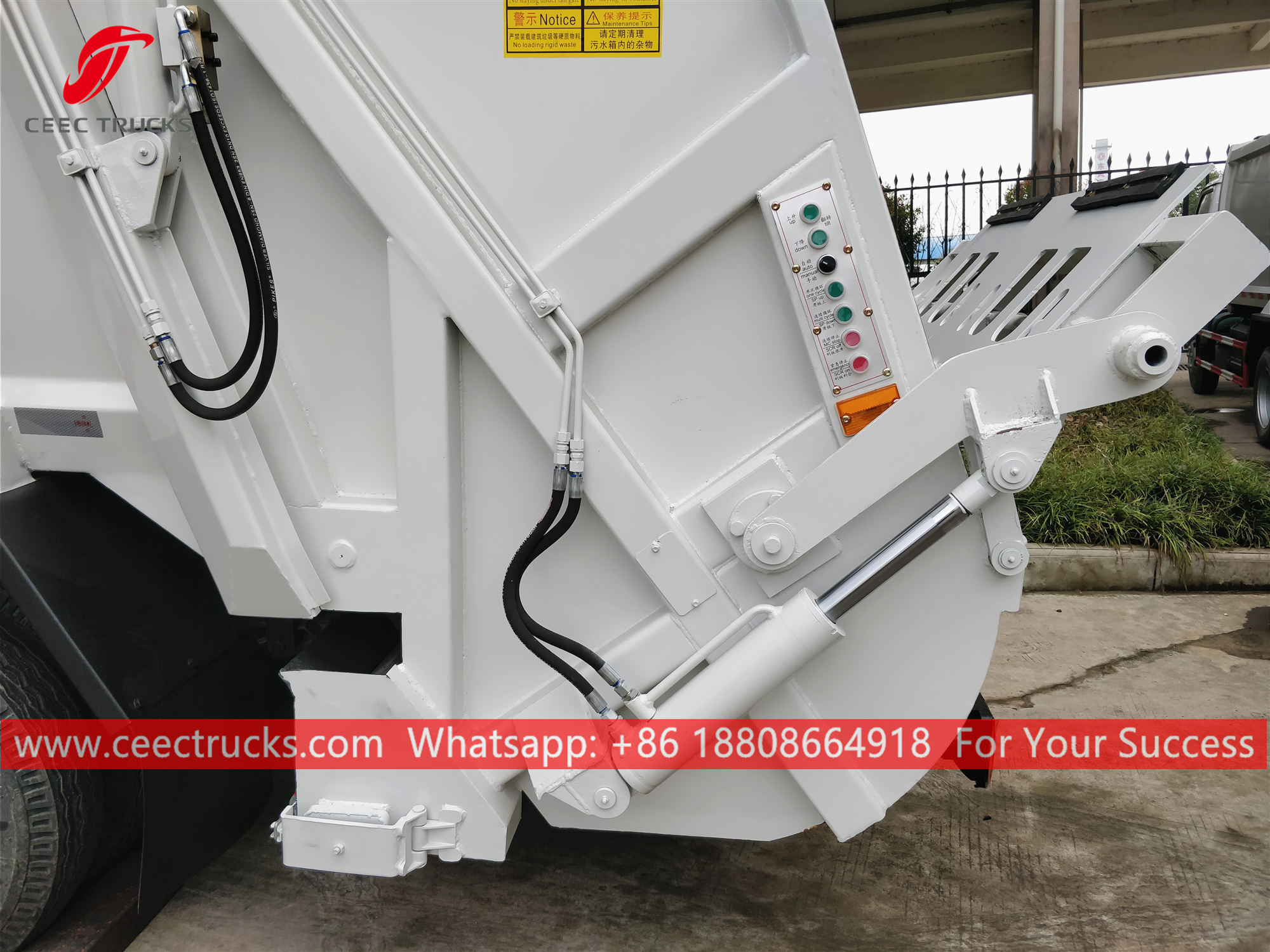

Control system

Electrically Hydraulic control

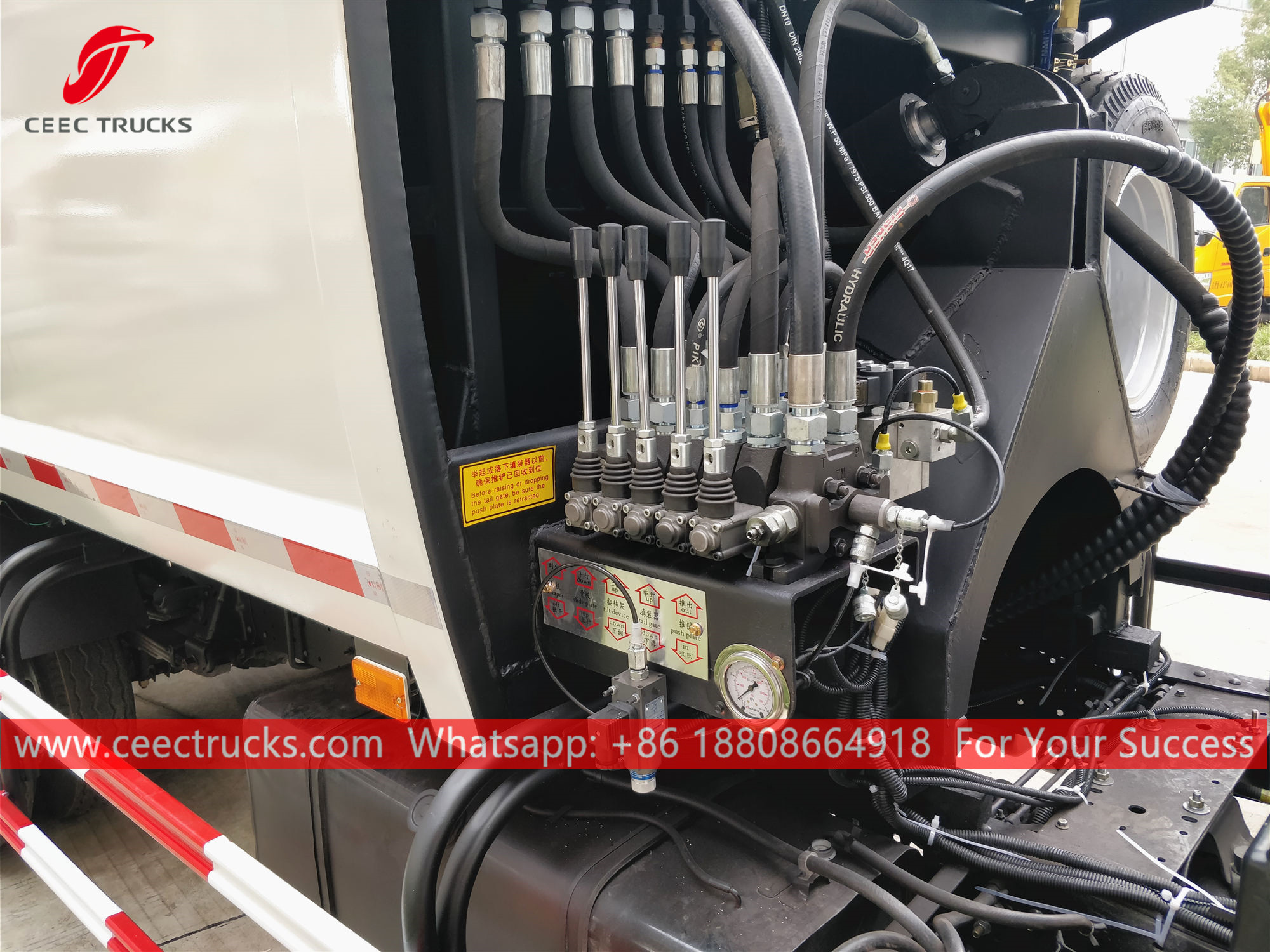

Manual hydraulic control

Control panel

English or Your language

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.
