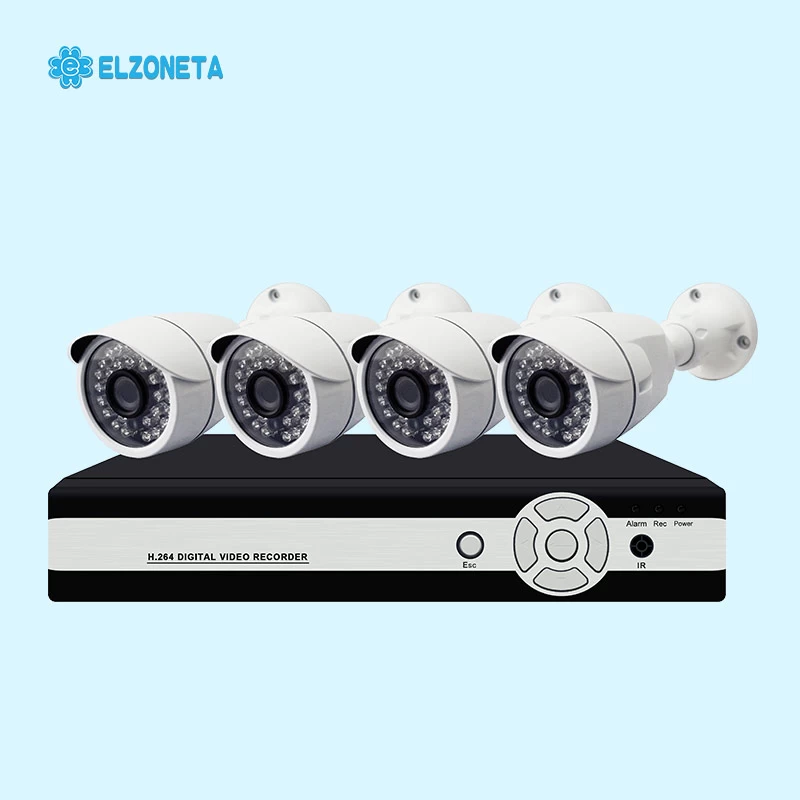

EC-DK402S 4CH 4MP Face Detection XVR Kits With 4pcs 1080P Camera
What is XVR?
XVR is a mixed video recorder which can connect not only analog cameras but also IP cameras. So generally speaking, it can use as DVR and NVR.
Features:
4CH Face Detection XVR Kit
1.) 4ch 4MP Face detection XVR
2.) 1ch face detection/4ch Perimeter analysis
IR Bullet camera
1.) Solution:1.3/2.0/4.0MP optional
2.) 3.6mm HD fixed lens
Specifications:
|
Camera
|
|
Type
|
TVI Bullet Camera
|
|
Model No.
|
EC-AG03
|
|
Resolution
|
2.0Megapixel
|
|
Signal
System
|
PAL /
NTSC
|
|
Mini
Illumination
|
0.01lux(IR
off), 0.00lux(IR on)
|
|
Lens
|
3.6mm HD fixed
lens optional
|
|
Angle
of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm)
|
|
Alarm
type
|
NO
|
|
PIR
distance
|
NO
|
|
Alarm
Control
|
NO
|
|
Leds
|
36pcs IR
leds
|
|
Siren
function
|
NO
|
|
Interface
|
1ch
BNC/1ch power
|
|
4CH Face detection XVR
|
|
Model No.
|
EC-XR401
|
|
Chipset
|
Hi3520Dv300
|
|
Smart
function
|
1CH face
detection or 4ch perimeter function
|
|
HDD
|
Support 1
HDD
|
|
Alarm
|
4in/1out
|
|
Audio
|
1in/1out
|
|
Output
|
HDMI/TVI/VGA
|
|
Network
|
1RJ45
Fast Ethernet
|
|
Others
|
Support
digital zoom, cloud, P2P, Onvfi, App alarm push
|
Package:
4CH 4MP Face detection XVR 1pcs
IR Bullet Camera(2.0MP) 2pcs
18.3Meter video cable 4pcs
12/2.5A power adaptor 2pcs
4CH power Splitter 1pcs
