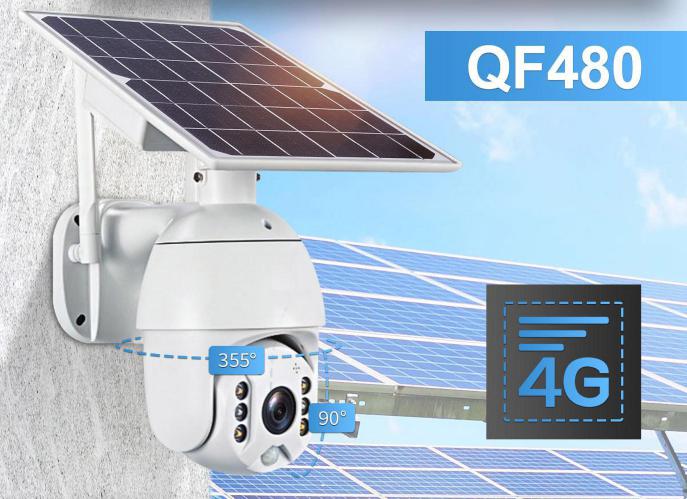

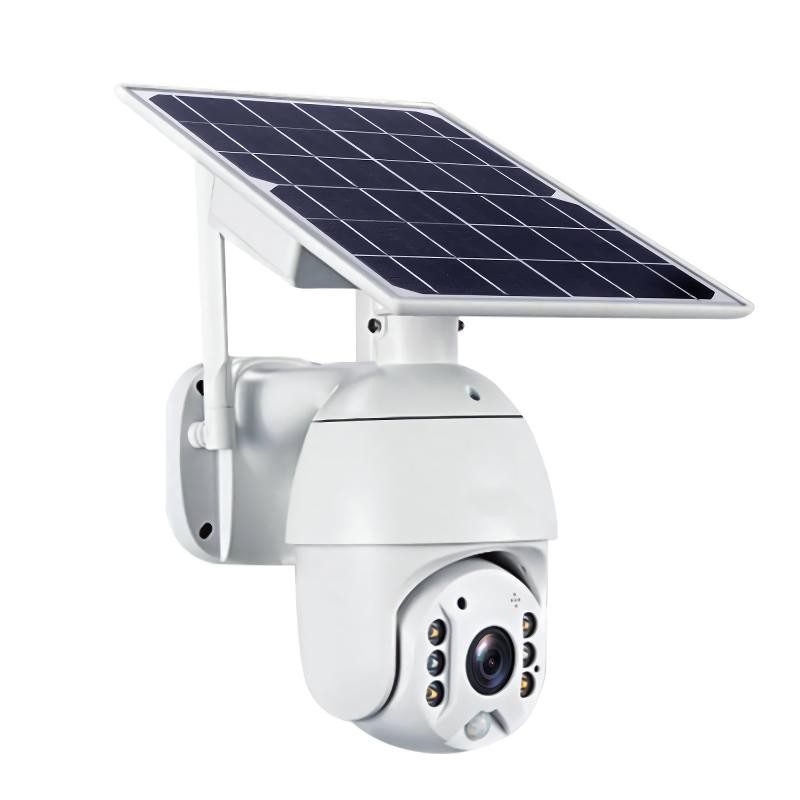

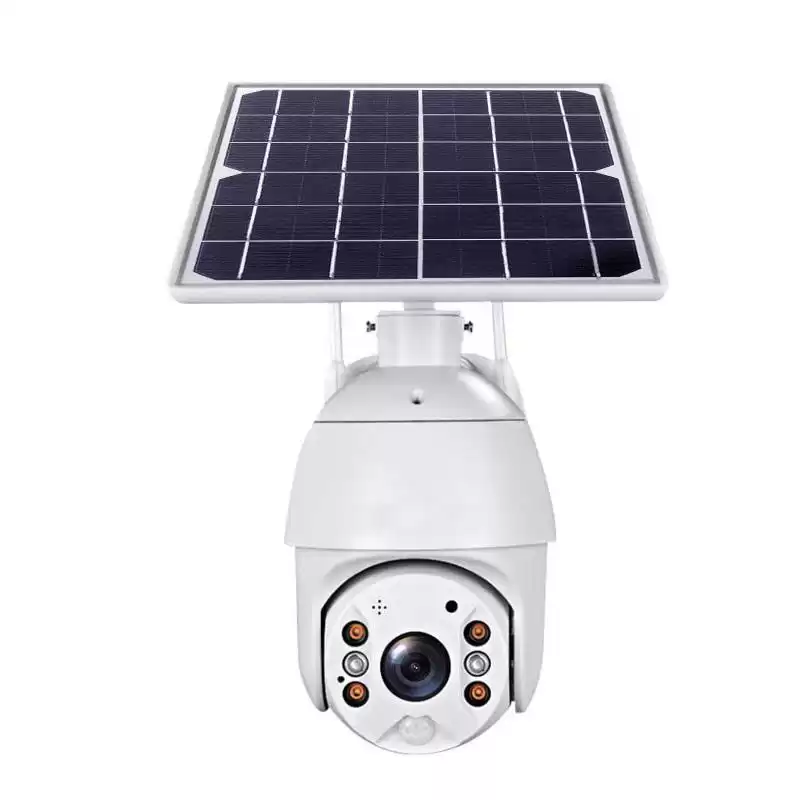

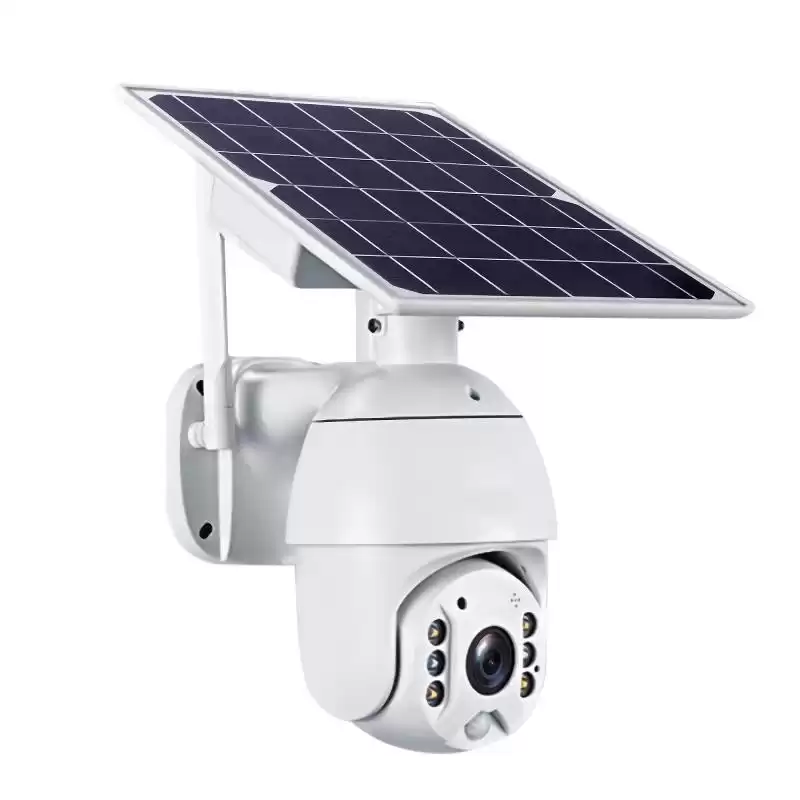

Product Name:4G HD 1080P Solar Panel Security Smart PTZ Camera

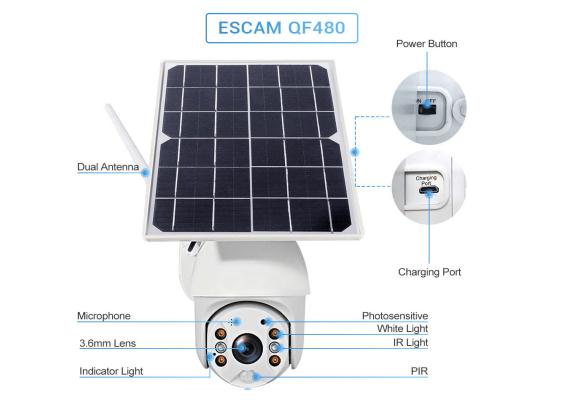

Feature
●4G Remote Viewing,Built-in 4g module, no need cable,easy to installation, plug and play, suitable for anyplace without network.
●Pan 330°I Tilt 90° Monitoring,Sliding screen manually enables remote control of the rotation of camera and real-time monitoring.

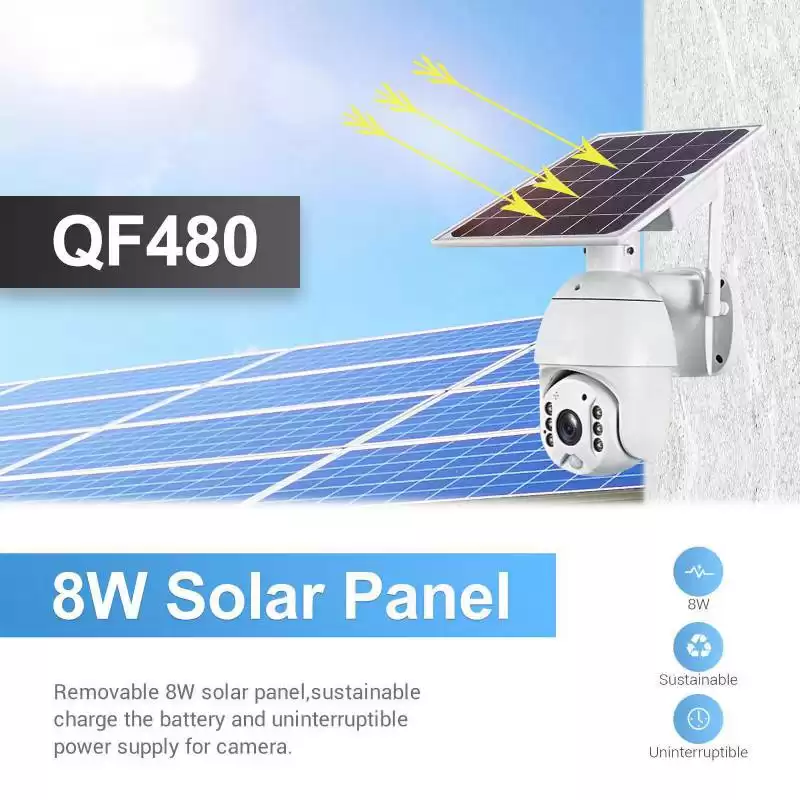

●Removable 8W solar panel,sustainable charge the battery and uninterruptible power supply for camera.
●PIR Motion Detection,Through the newest algorithm, the equipment push accurate alarm, reduce mistake report.it will make alarm record and save.
●Smart Dual Light Modes,With 4Pcs White LED and 2Pcs IR LED,Monitor moving objects, automatically illuminate.
●TWO Way Audio,Build in Microphone and high quality audio speaker with loud volume, it can do two way talk online between camera and mobile phone.
●IP66 Waterproof,Suitable for indoor and outdoor use,all weather environment applications.
●Support 128GB TF card And Cloud Storage.Free 30-day cloud storage and Max 128G SD card Record, data security is more stable.
Specification
|
Model
|
ANSDEN YAB-QF480
|
|
Camera Parameter
|
|
General
|
|
Main processor
|
HI3518E
|
|
Operation System
|
Android,IOS
|
|
Image Senor
|
1/2″ progressive Sensor
|
|
Compression
|
H.264+/H.265
|
|
Resolution
|
1920*1080 1080P
|
|
Internet Connection
|
|
4G
|
TD-LTE,TD-LTE / LTE FDD, TD-LTE / LTE-FDD
|
|
Alarm
|
|
Detection Mode
|
PIR + Radar dual detection
|
|
Detection Distance
|
0~12M
|
|
Detect Angle
|
120°
|
|
Alarm
|
PIR sensor + radar both detection,Message push to APP
|
|
PTZ
|
|
PTZ Angle
|
Horizontal 360 ° Vertical 120°
|
|
Speed
|
Horizontal 55 °/S Vertical 40°/S
|
|
Night Vision
|
|
Full color night vision
|
0.00001 Lux
|
|
IR LED
|
infrared LED 30M IR distance
|
|
White light LED
|
white light LED 30M distance
|
|
Audio
|
|
Built-in speaker
|
3W
|
|
Built-in microphone
|
voice monitoring distance 20M
|
|
Lens
|
|
Lens
|
3.6mm
|
|
Lens Angle
|
120°
|
|
Storage
|
|
Cloud Storage
|
storage when alarm recording
|
|
Local Storage
|
TF Card Max 128G
|
|
Power
|
|
Power
|
Solar energy and 18650# battery
|
|
Solar Energy consumption
|
7.8W
|
|
Battery Capacity
|
Max 6pcs 18650 battery (6*2500MA,Optional)
|
|
Operating power consumption
|
Max 4W
|
|
Standby consumption
|
0.003W
|
|
Others
|
|
Working Environment
|
Indoor/outdoor
|
|
Operation Temperature
|
-30°~+60°
|
|
Humidity
|
0%~90%RH
|
|
Package
|
|
Product weight
|
1.6KG
|
|
Product size
|
244*170*101mm
|
|
Packing weight
|
1.84KG(Not include battery)
|
|
2.15KG(Include battery)
|
|
Packing size
|
287*201*172 mm
|
|
Carton weight
|
12KG/6PCS(Not include battery)
|
|
14KG/6PCS(Include battery)
|
|
Carton size
|
615*300*360mm
|
|
Package List
|
Solar Panel*1,WIFI Camera*1,Screw Kit*1,USB Charging Cable*1,User Manual*1,
Position Paper*1，18650 battery*6(Optional)
|

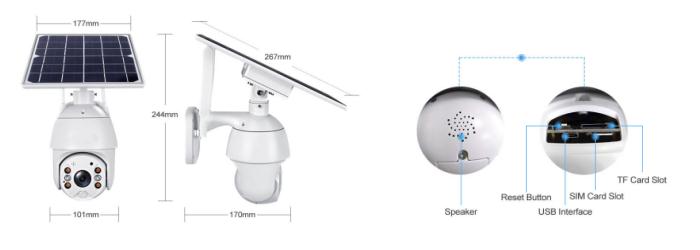

Dimension
Support 128GB TF card And Cloud Storage.Free 30-day cloud storage and Max 128G SD card Record, data security is more stable.
Application
4G Remote Viewing,Built-in 4g module, no need cable,easy to installation, plug and play, suitable for anyplace without network.
