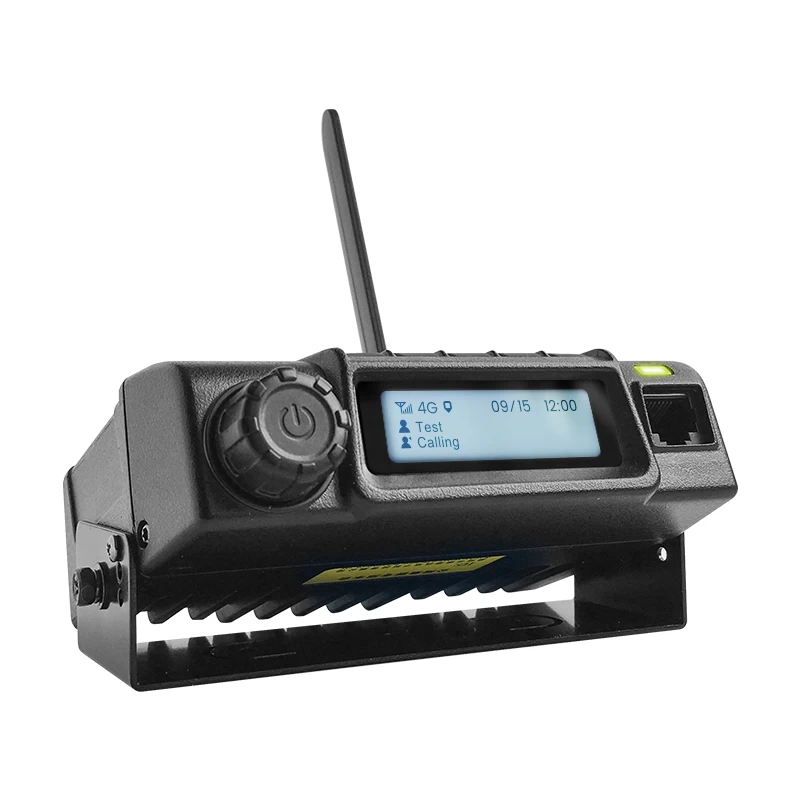

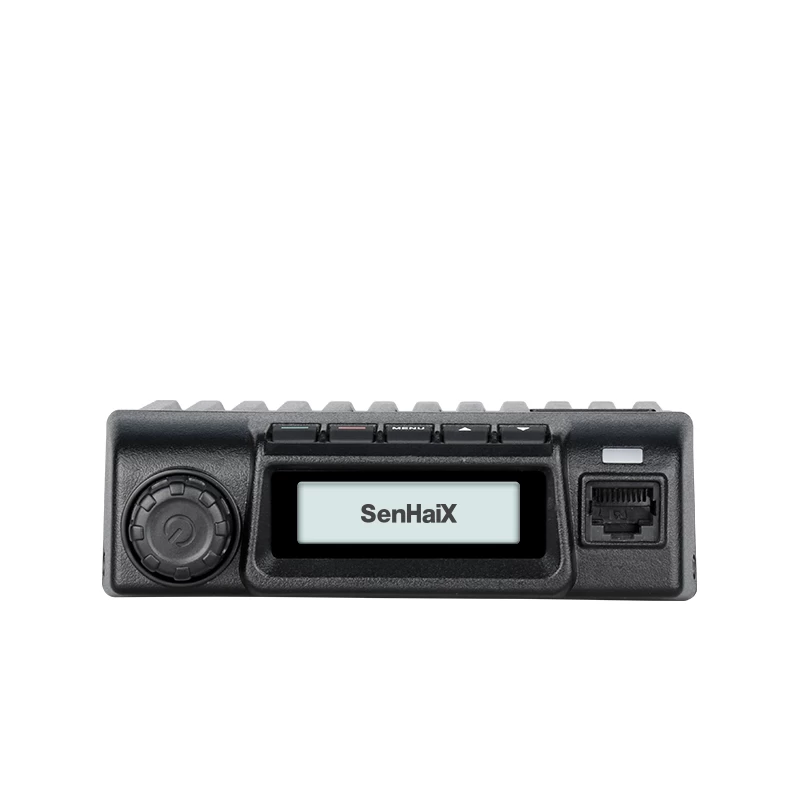

4G LTE Mobile Car Radio

SenHaiX SPTT-100 4G, simple-to use Vehicle Radio with GPS function, REAL PTT platform, 4G LTE Network Radio, easy to operate mobile radio, are created to give you the immediate, reliable communication you need to keep mobile teams working efficiently.

Facebook Twitter Pinterest LinkedIn 分享

Description

Technical Specifications

General Specification
Dimension				1209538MM
Weight				280G
Operating Voltage				12-36V DC
GPS Antenna				External Active
ACC Function				Support
Frequency Band
GSM				EGSM900MHZ
				DCS1800MHZ
CDMA200/EVDO				BC0
WCDMA				Band1
				Band8
TD-SCDMA				TD-SCDMA 1.9G
				TD-SCDMA 2G
LTE-FDD				LTE-FDD B1
				LTE-FDD B3
				LTE-FDD B8
LTE-TDD				LTE-FDD B38
				LTE-FDD B39
				LTE-FDD B40
				LTE-FDD B41
TX Power
GSM/GPRS Power Level				EGSM900:4(2W)
				DCS1800:1(1W)
EDGE Power Level				DGSM900:E2(0.5W)
				DCS1800:E1(0.4W)
CDMA 1X Power Level				3（0.25W)
UMTS Power Level				WCDMA:3(0.25W)
				EVDO:3(0.25W)
				TD-SCDMA:2(0.25W)
LTE Power Level				3（0.25W)
Receiving Sensitivity
Frequency			Sensitivity			Sensitivity(Max)
EGSM900			＜-109dBm			3GPP
DCS1800			＜-109dBm			3GPP
WCDMA 2100			＜-110dBm			3GPP
WCDMA 900			＜-109dBm			3GPP
TDSCDMA 1900			＜-109dBm			3GPP
TDSCDMA 2000			＜-109dBm			3GPP
CDMA BC0			＜-109dBm			3GPP
LTE FDD/TDD			As follows			3GPP
Reference sensitivity
E-UTRA	3GPP Standard				Test Data	3GPP Standard		Duplex Mode
Frequency Band		3MHZ	5MHZ	10MHZ	10MHZ	15MHZ	20MHZ
1	-	-	-100	-97	-101	-95.2	-94	FDD
3	-101.7	-98.7	-97	-94	-99	-92.2	-91	FDD
8	-102.2	-99.2	-97	-94	-102			FDD
38	-	-	-100	-97	-101	-95.2	-94	TDD
39	-	-	-100	-97	-101.5	-95.2	-94	TDD
40	-	-	-100	-97	-101	-95.2	-94	TDD
41	-	-	-99	-96	-101	-94.2	-93	TDD
GPS Parameters
GPS Sensitivity				-159dBm（GPS)/-158dBm（GLONASS)/TBD(BD)
Cold Start Sensitivity				-148dBm
Positioning Accuracy (in the open air)				2.5m
TTFF(In the open air)				Hot Start＜1S，Cold Start＜35S
Type				16-channel,C/A Code
GPS L1 Frequency				1574.42±1.023MHZ
GLONASS Frequency				1597.5~1605.8MHZ
BeiDou Frequency				1559.05~1563.14MHZ
Update Frequency				Default 1Hz
GNSS Data Format				NMEA-0183
GNSS Current Consumption				100mA(GSM/CDMA 1X/UMTS/LTE Sleep，VBAT Pin）
GNSS				Active

Standard Accessories

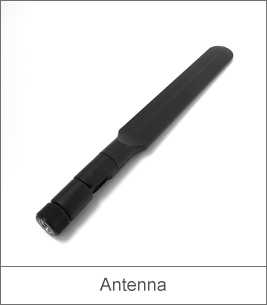

Mobile Radio GPS Antenna Senhaix Mobile Radio Power Cable Senhaix

Optional Accessories

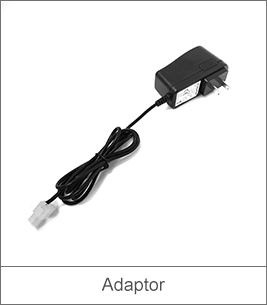

Mobile Radio Car Charger Senhaix
