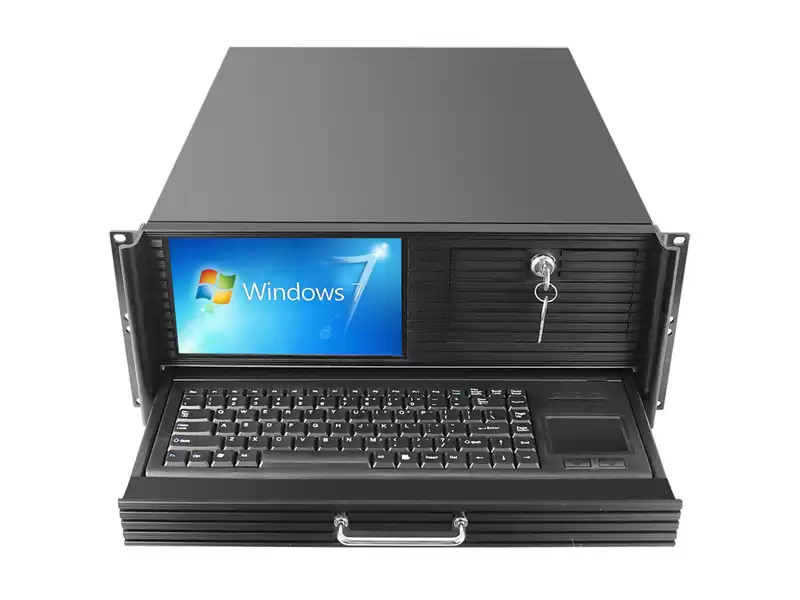

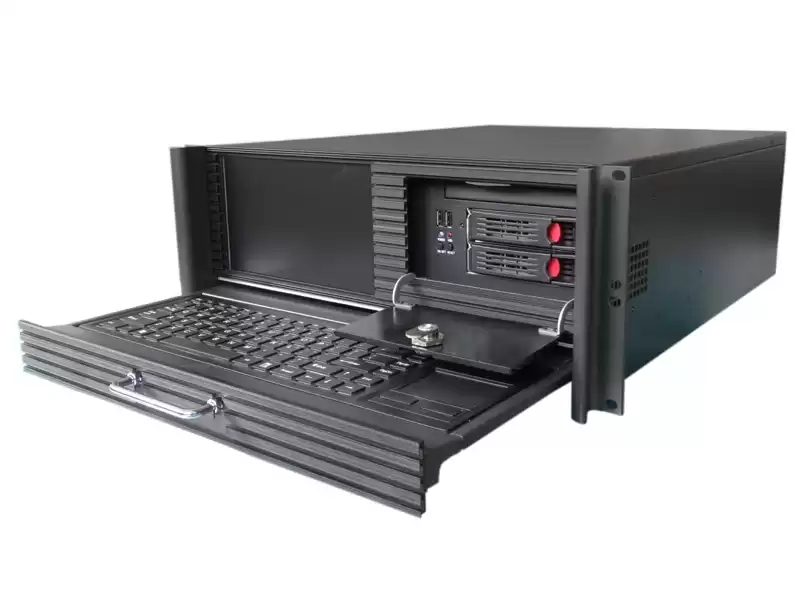

4U Rackmount Industrial PC All-in-one Workstation with Integrated 8.9" Display and Drawer Keyboard and Mouse

19inch Standard Rackmount 4U Industrial PC with 7-slot or 4-slot Expansion, Support generations of i3 i5 i7 series CPU



4U Rackmount Industrial PC All-in-one Workstation with Integrated 8.9" Display and Drawer Keyboard and Mouse



Product Introduction

The IPC-8406 is a 4U rack-mountable all-in-one workstation with an integrated 8.9" industrial display. With a hidden keyboard and touchpad underneath the chassis, you can work efficiently with a simple pull. It can be widely used in various fields such as communication, network, finance, electric power, transportation and industrial automation.



Specifications Optional Configurations
Chassis Aluminum panel,all steel structure, industrial black
Front Inside the door: power switch, Power/HDD indicator, 2USB2.0;2 removable hard drive bays;1DVD bay;8.9" LCD Screen(1024*600);drawer keyboard and mouse Customizable with customer logo or more serial or parallel ports
Back PS/2 power supply; large square hole for motherboard; 7-slot expansion;3COM,2LPT and  2 x 2PIN Phoenix terminalscan be added  Customizable 14-slot rear window
Hard disk rack 2 x 3.5" mobile hard drive cages, 1 x laptop DVD bay
Adaptive Motherboard Support all ATX/Micro-ATX motherboards in Yanyue
CPU/GPU Intel i3 2120 Dual Core 4 Threads 3.3G Hz Support all generations of Celeron, Pentium, i3, i5, i7 series CPU
Memory 4G DDR3  Optional 2G/8G/16G/32G memory
Hard Disk 1T HDD Optional 32G/64G/256G/1T SSD; support 2.5 inch SSD and HDD
Interfaces AC input;PS/2;KB/MS;4USB2.0;2USB3.0;2RJ45(Gigabite);VGA,DVI;HDMI;Audio Line-Out;MIC Input;6COM(Standard) Optional leads to all interfaces on the chassis
Expand PCIEx16;  PCIEx4;  PCIEx1;4PCI Depending on the expansion slot on the motherboard
Size Handle not included:483*520*178 Net/Gross Weight 9/10KG
Power Supply 300W PS/2 Industrial Powern Supply Optional higher power
Installation mode 19" Standard Rackmount



Product Features

■ With drawer keyboard and mouse
■ 8.9” LCD screen, resolution 1024*600
■ Support all ATX/ Micro-ATX motherboards in Yanyue
■ 7-slot expand
■3COM ,2LPT and 2Phoenix Terminal can be added at the back
■ Flexible configuration, flexible configuration of CPU, memory, hard disk according to customer requirements

7-slot Rackmount 4U Industrial PC4-slot Rackmount 4U Industrial PC



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
    Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration



Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
