GXR ISUZU 4x2 350HP Tractor Head Trucks
Isuzu
Prime Mover Truck Tractor Unit
Isuzu Truck
tractor unit is an articulated vehicle composed of a towing engine or tractor
and a trailer that carries the freight. The tractor and trailer are detachable,
that is, the tractor can be used to haul other trailers, or vice versa.
According to connection type of tractor and trailer, there are full trailer and
semi trailer. A full trailer is a trailer that is supported by front and rear
axles and pulled by a drawbar. A semi trailer is a trailer that has no front
axle and is supported by a road tractor.
Key further of 350HP Isuzu VC46 Prime Mover
1. Excellent Isuzu
6UZ1 Surging Power
2. Lightweight and
High Strength Frame
3. Style of Great
General
4. Working with
Great Care
5. Cost-efficient
and Worry-free Performance
Main
specifications:
|
Model
|
PT4250UK46
|
|
Driving Type
|
4x2
|
Left
hand drive
|
|
Weight
|
Kerb Weight (kg)
|
6450
|
|
Max. Fifth Wheel
Payload (kg)
|
15000 kg
|
|
Max. Towed Mass (kg)
|
30000 kg
|
|
Overload Range of Gross
Vehicle Weight (kg)
|
40000 @ complex road
|
|
Dimensions (mm)
|
Wheelbase
|
3450
|
|
Overall
Dimension
|
5790x2490x3580
|
|
Front Overhang
|
1370
|
|
Rear Overhang
|
970
|
|
King Pin Diameter
|
90#
|
|
Min. Ground Clearance
|
285
|
|

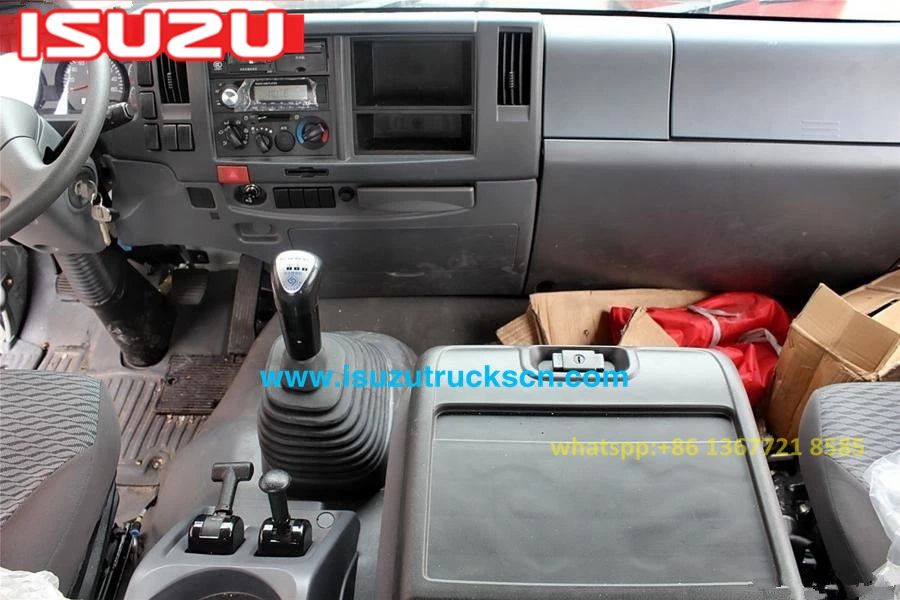

Cab
|
All-steel-welded

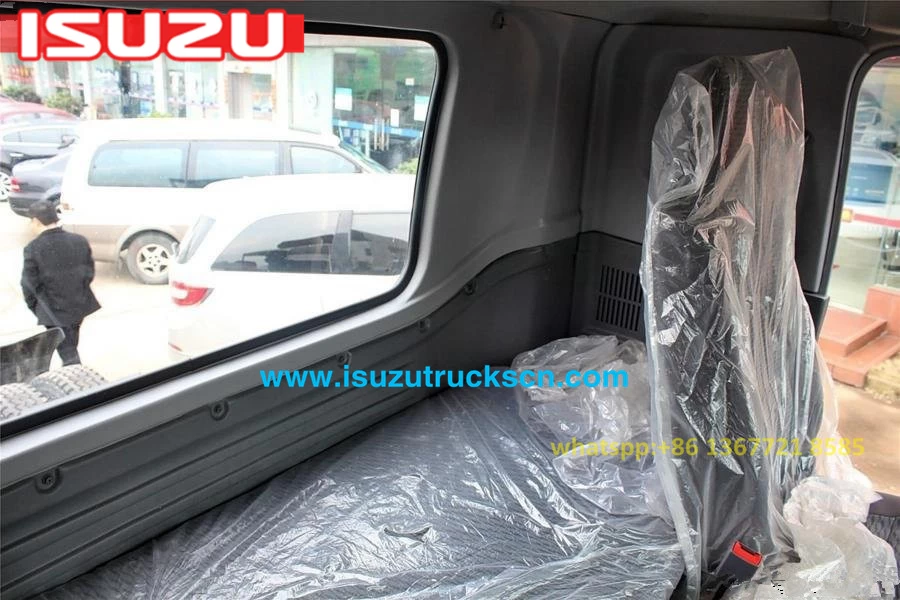

construction, 3 seats with 1 sleeper
|
|
Engine
|
Model:
|
6UZ1-TCG40
|
|
Cylinder
in Line
|
6
|
|
Capacity
|
9839
ml
|
|
Type
|
Diesel,
turbo charged inter-cooled
|
|
Max.
Power:
|
257/2000
KW/RPM
|
|
Max.
Torque
|
1422/140
N.m/RPM
|
|
Gearbox
|
9JS119TA shift, mechanical type, 9
forward and 1 reverse with
|
|
Brakes
|
Type
|
2
independent pneumatic circuits, disc/drum
|
|
Parking
|
Mechanic
with spring cylinder, rear
|
|
Emergency
|
Combined
with parking brake
|
|
Engine
|
Decompression
|
|
ABS
|
Yes
|
|
Axles
|
Type
|
ISUZU
exclusive high-performance axle
|
|
Loading
|
Front
9T
Rear
20T
|
|

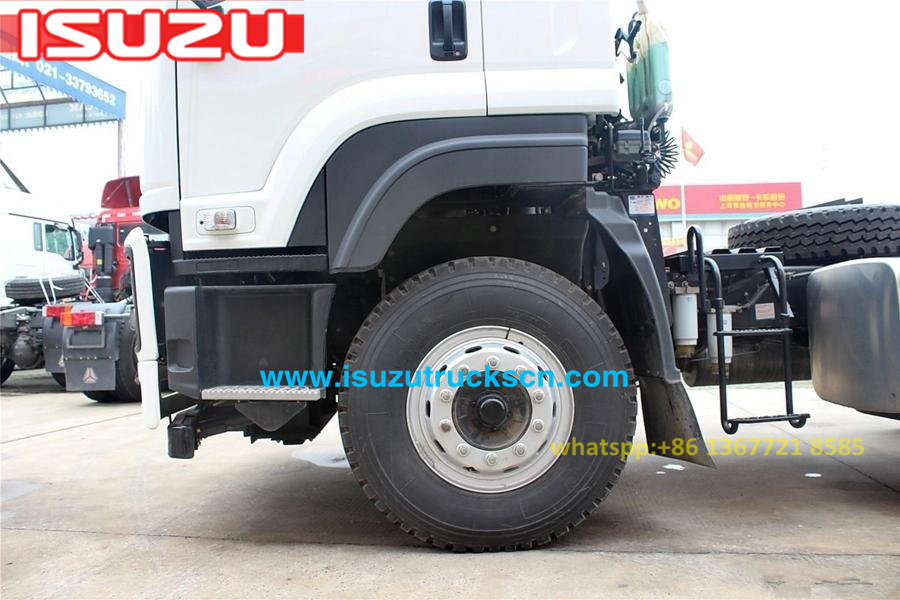

Tyre
|
11.00-20
|
|

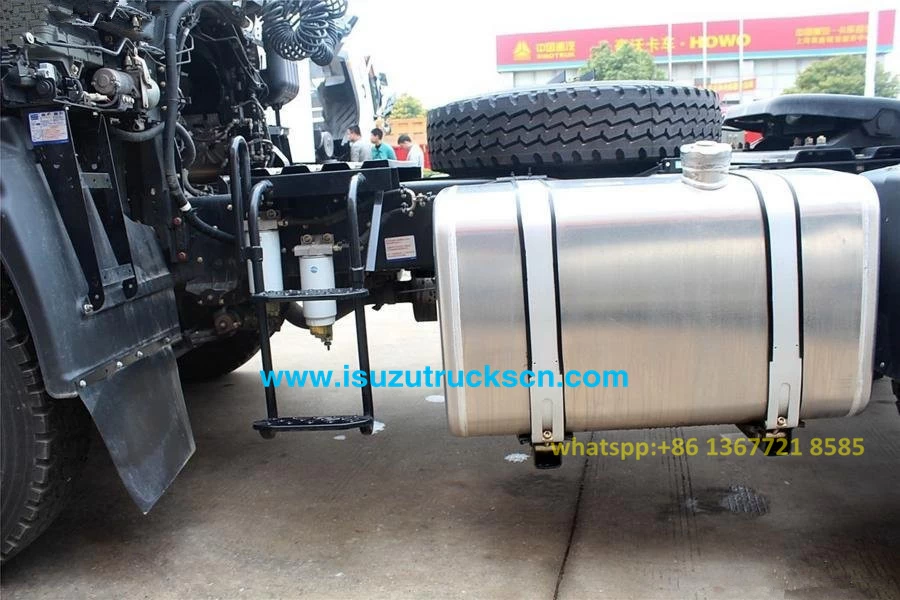

Fuel tank
|
400
L
|
|
Color
|
White
|
|
Max Speed
|
105
km/h
|
|
HOT sale Isuzu Trucks
|
|
|
Over view of 4x2 GXR Tractor Truck:
 |
|

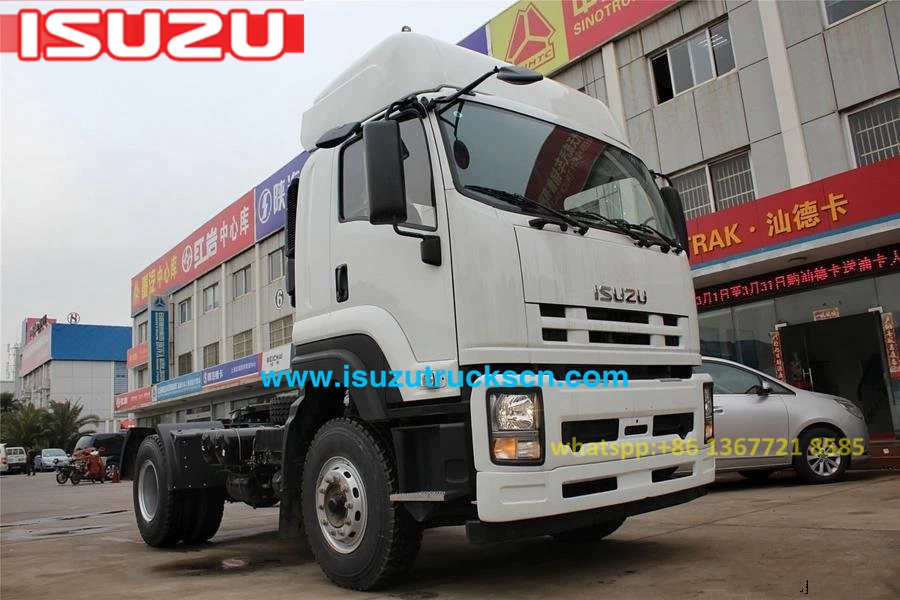

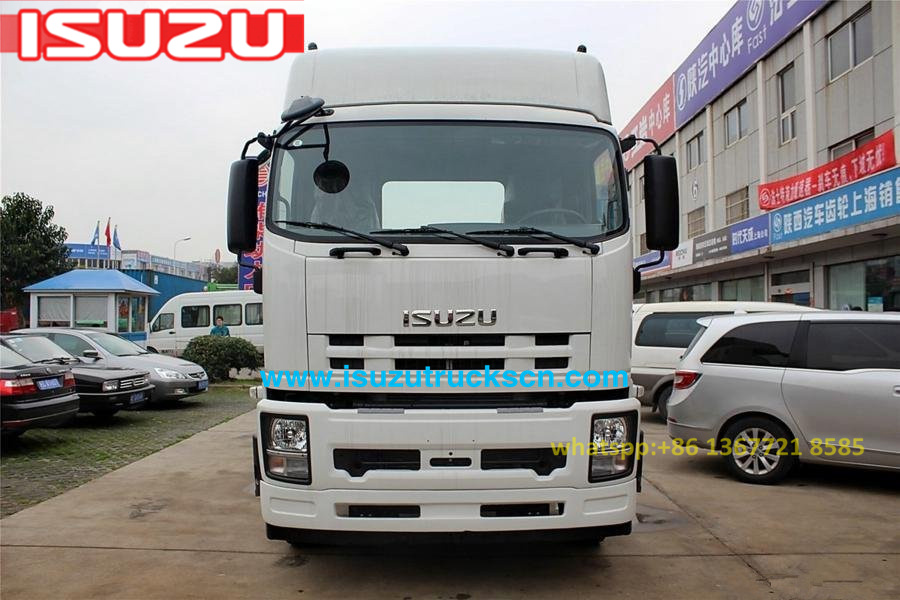

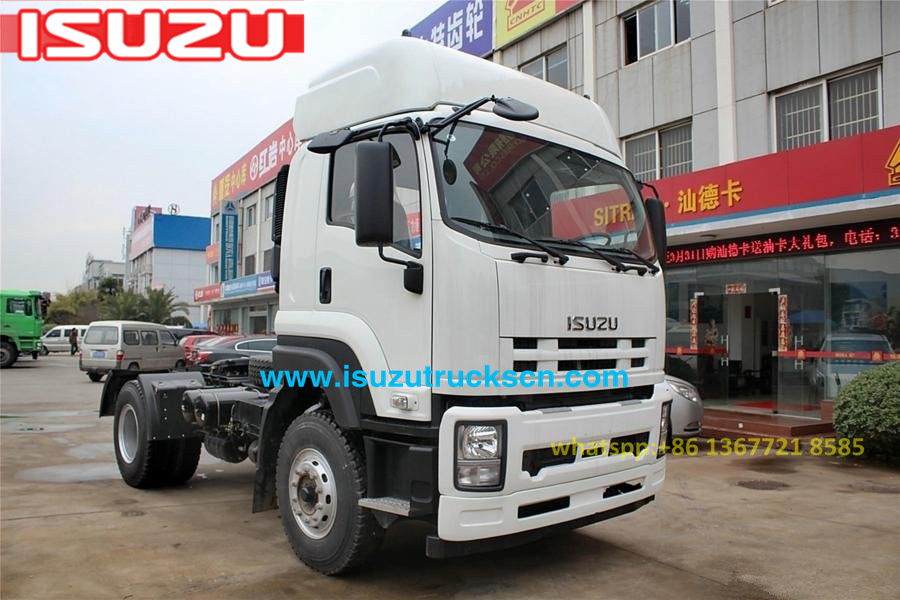

| Front right view |

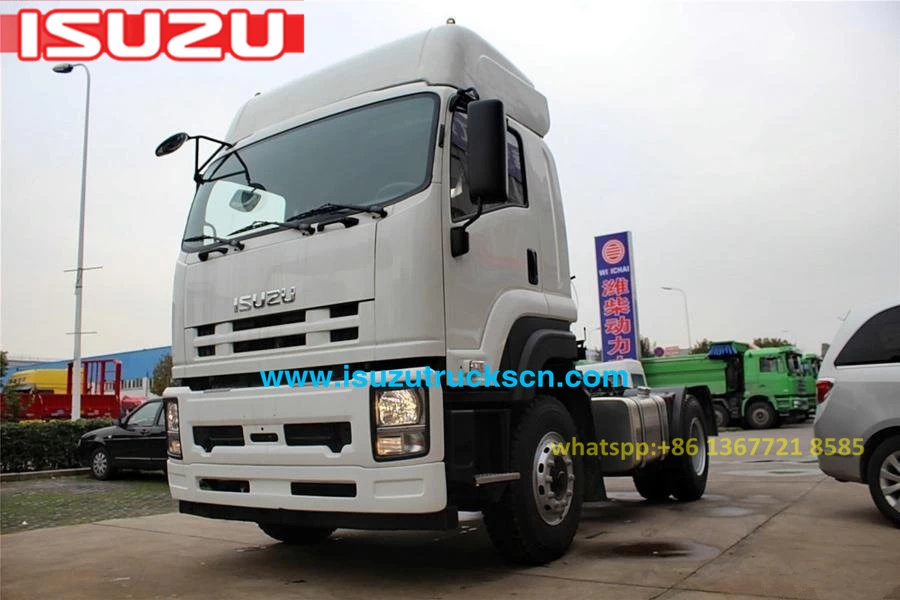

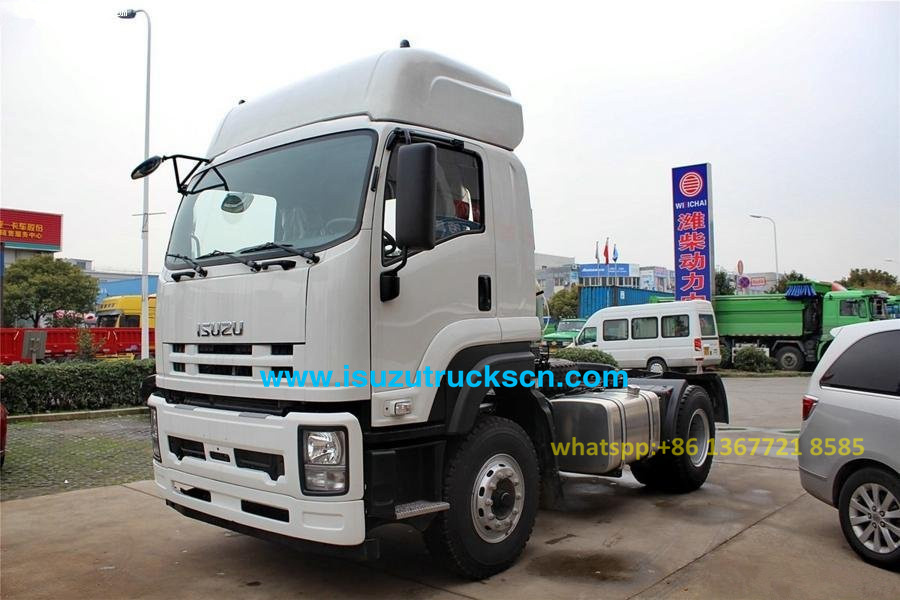

Front left view |
 |
 |

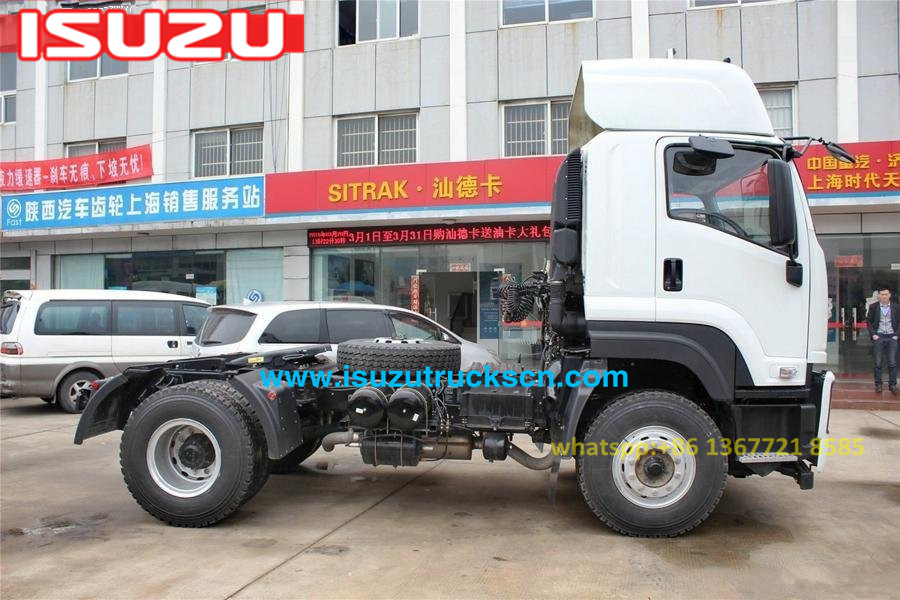

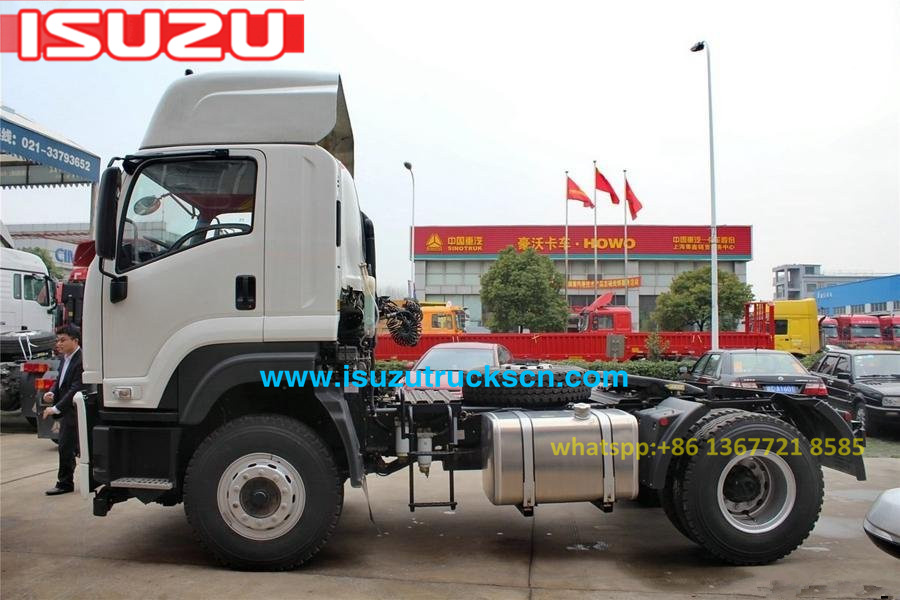

| Right side view |
Left side view |
 |
 |

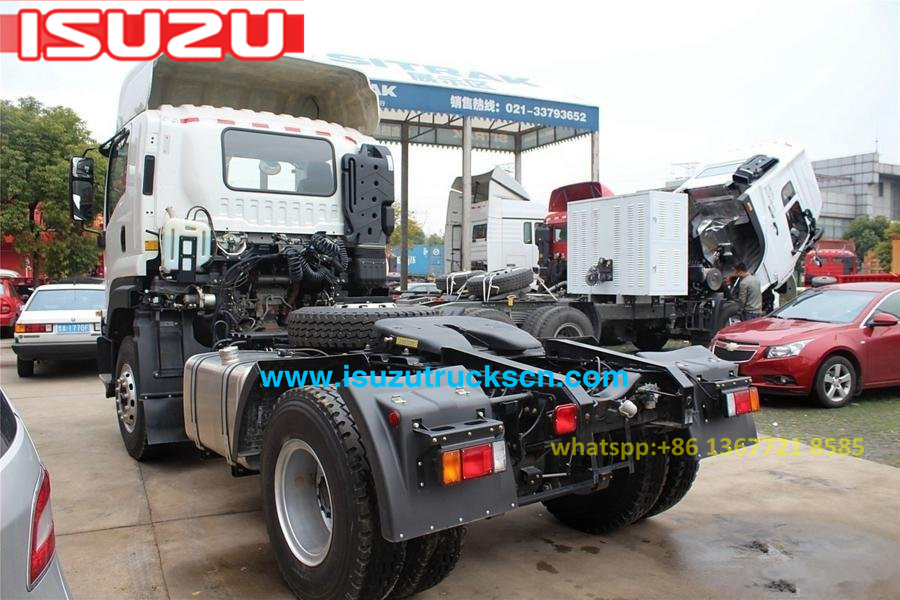

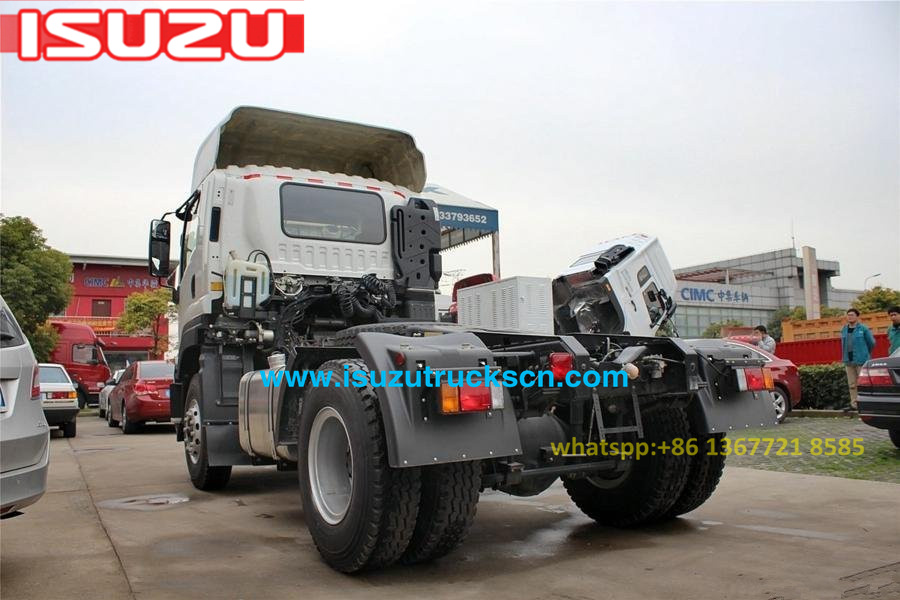

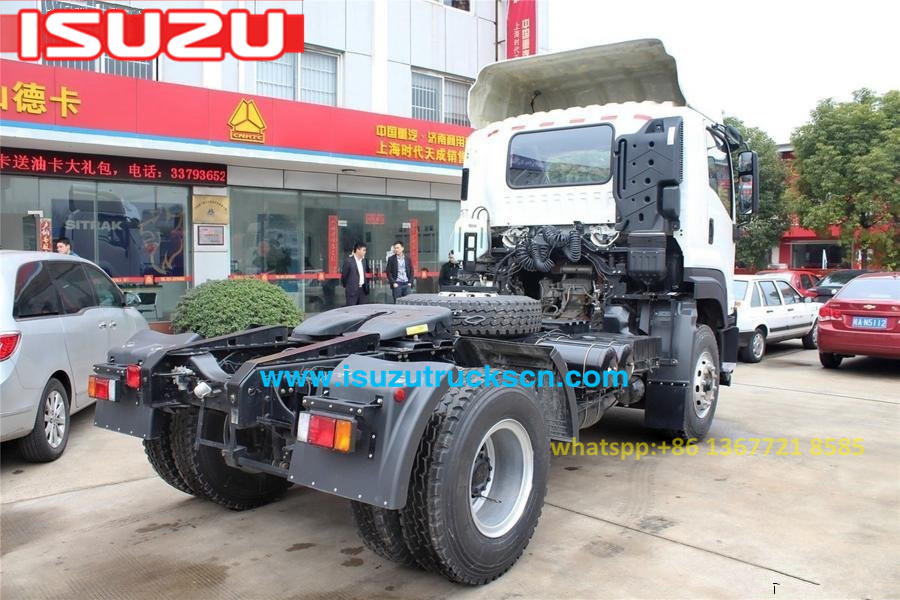

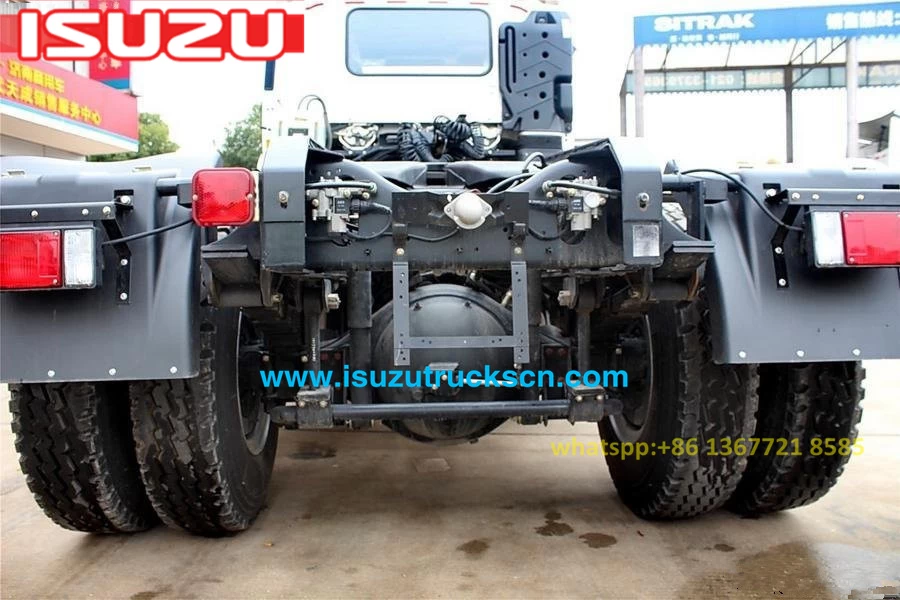

| Rear left view |
Rear right view
|
