5.0 Inch TFT 800(RGB)*480 lcd module with PCAP or RTP

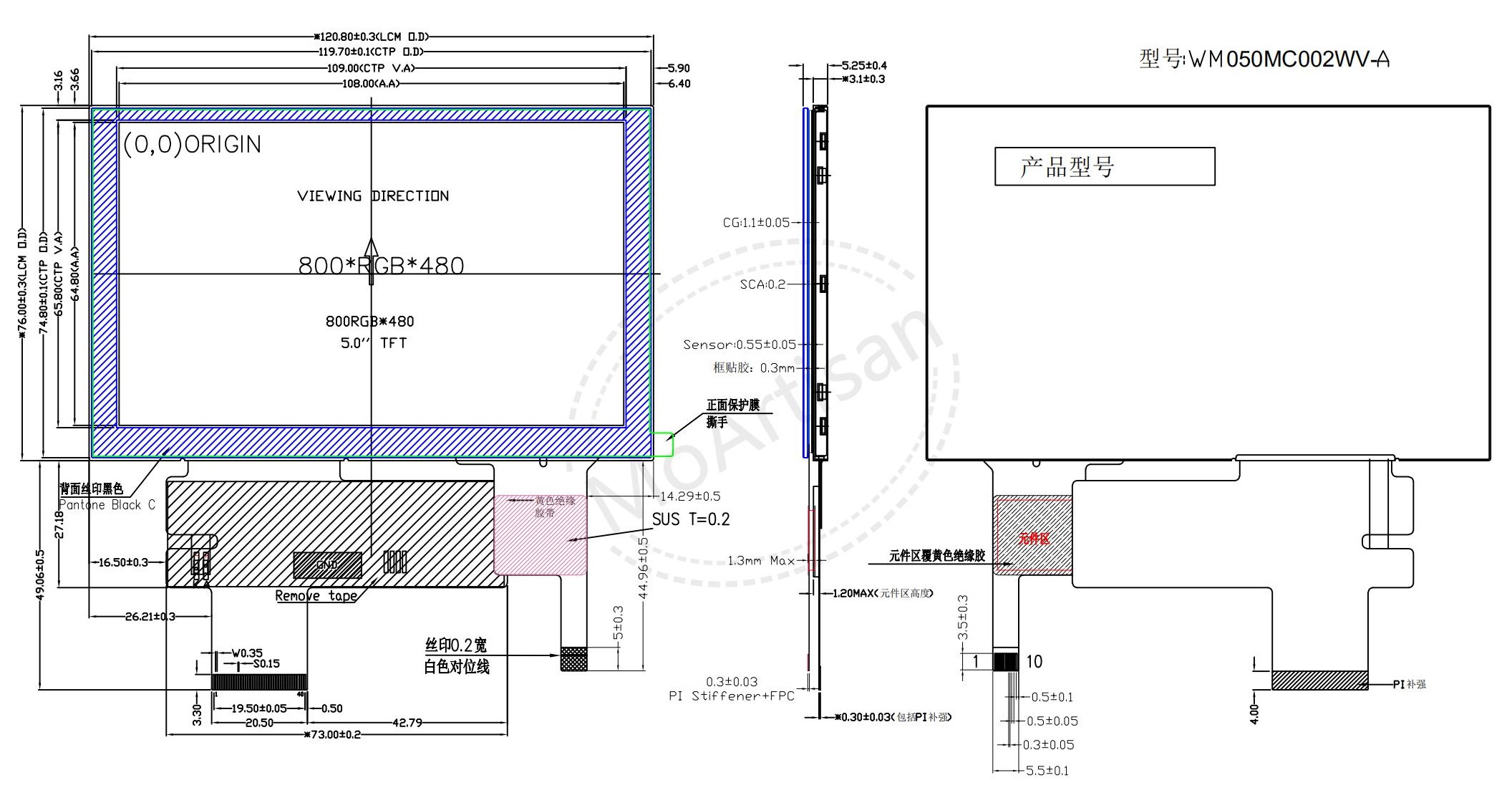

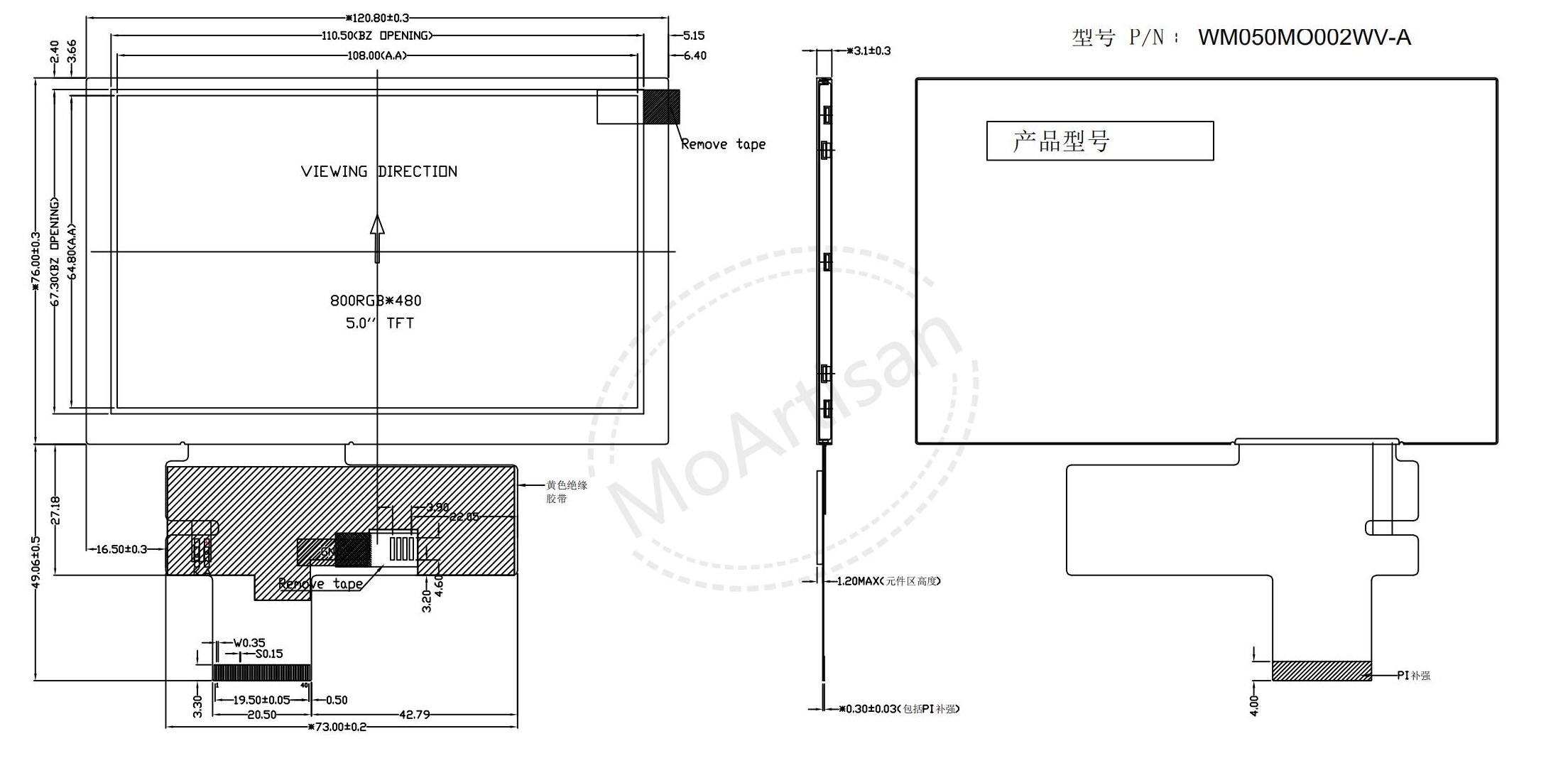

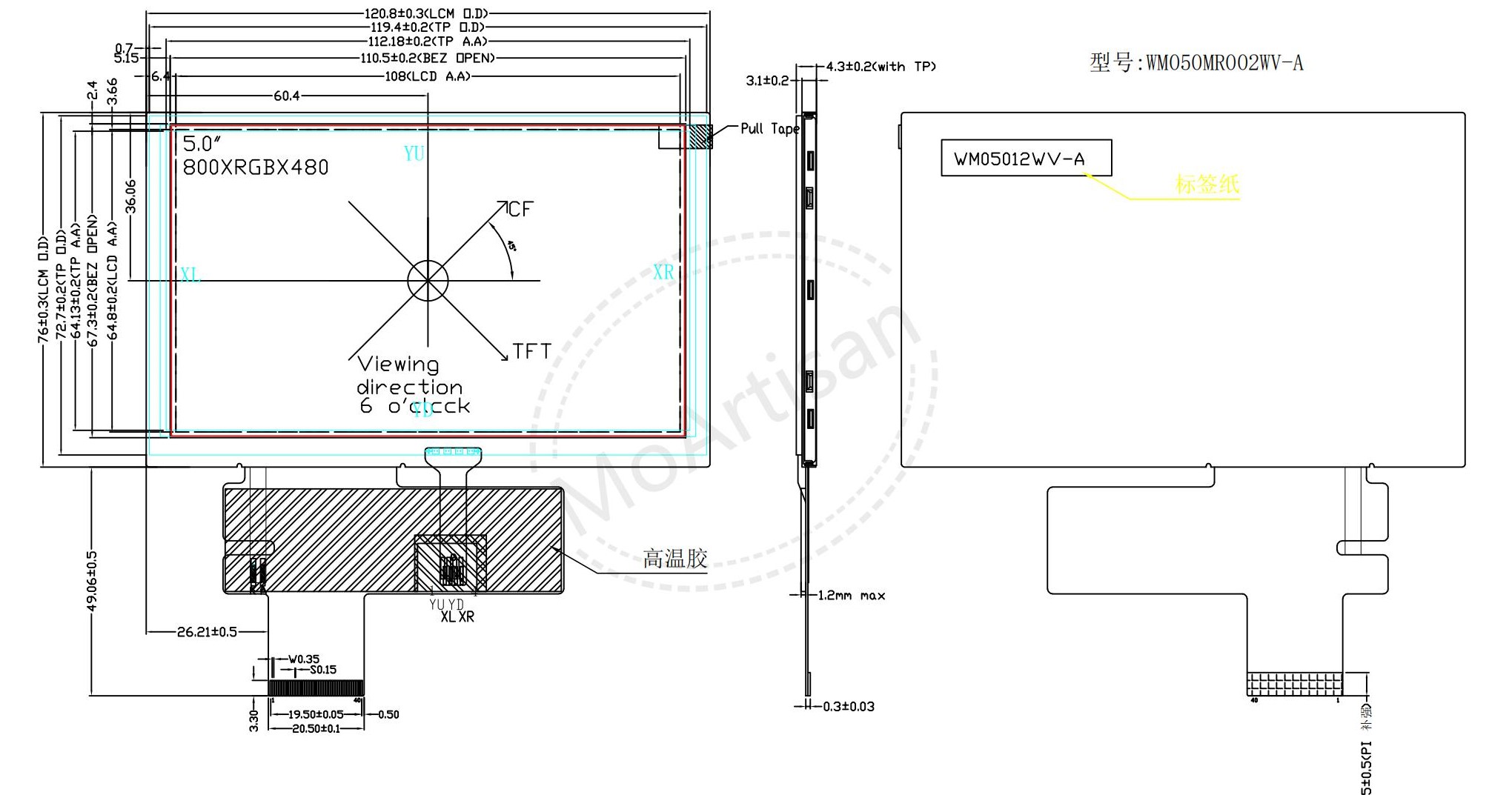

Production drawings

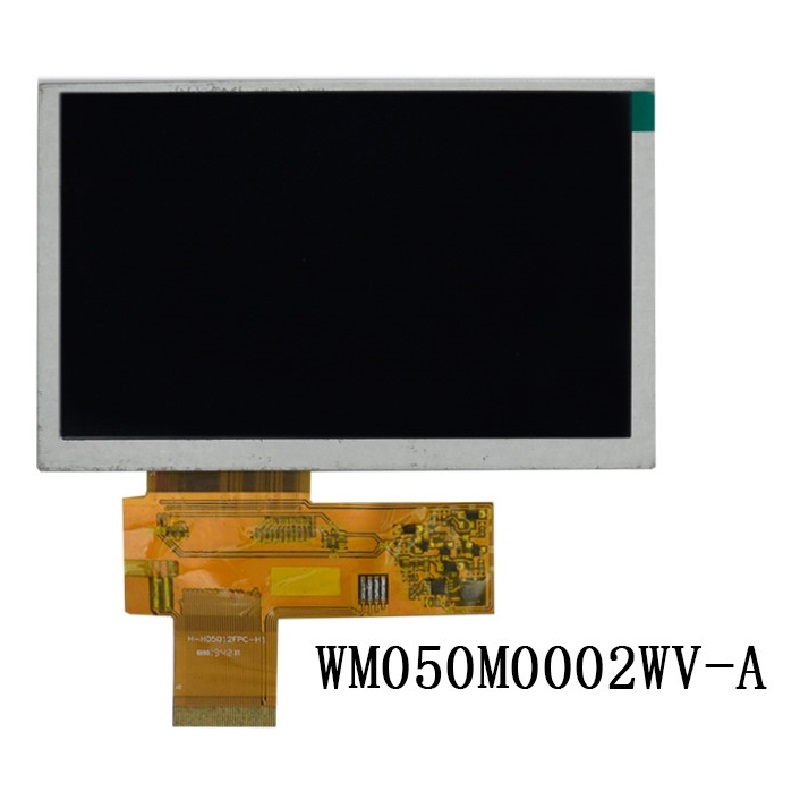

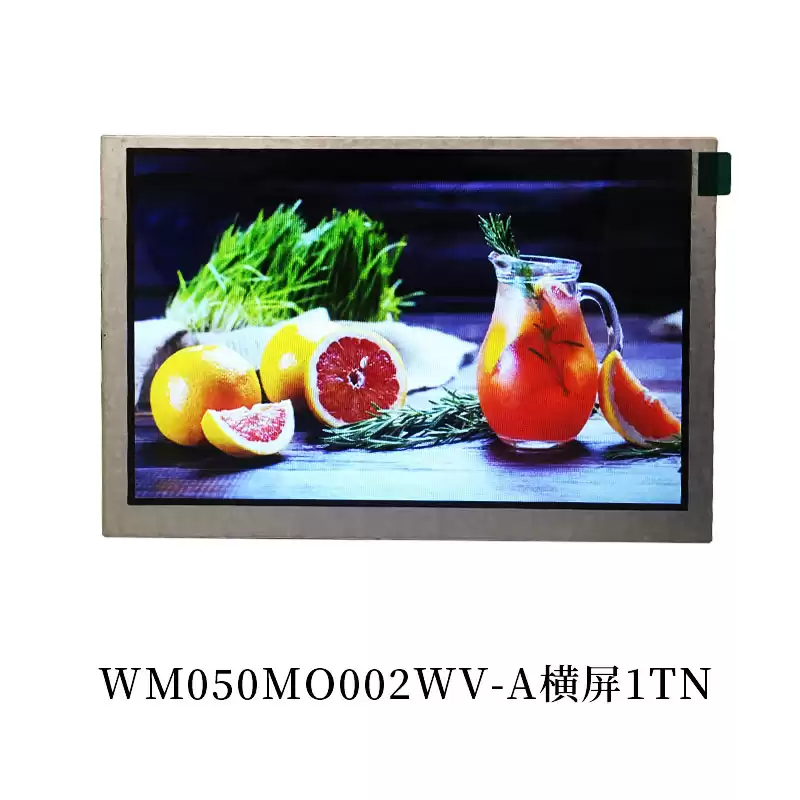

WM050MO002WV-A Introduction
-
A 5.0 (15:9) inch diagonally measured
active display area.
-
WVGA (800 horizontal by 480 vertical pixel)
resolution.
-
5.0 inch TN WVGA TFT module with 500 nits brightness.
-
you can add a PCAP.
-
also can choose the module with a RTP.
|
|
About Part Number WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
5.0
|
WVGA, 800RGB*480, TN 6 O'clock, wide temp, PCAP, RTP.
|
120.8x76x3.1
120.8*76*5.25
120.8*76*4.3
|
2X6 LED
(50K)
|
40 PIN FPC, 24 Bit, RGB
|
500 nits/600
420 nits/600
400 nits/600
|
Topa: -20~+70
Tstg: -30~+80
|
60/70/75/75
|
WM050MO002WV-A
WM050MC002WV-A
WM050MR002WV-A
|
Production Applications
GPS, Automobile Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of production can be customized.
Lead time for samples: 3~4 weeks.
FAQ:
What are the features of this product WM050MO002WV-A?
ANSWER:
This is a very regular model.
It was adopted by many users.
The touch screen can be freely selected, namely the capacitive touch panel is compatible with the resistive touch panel in size.
