Product Name

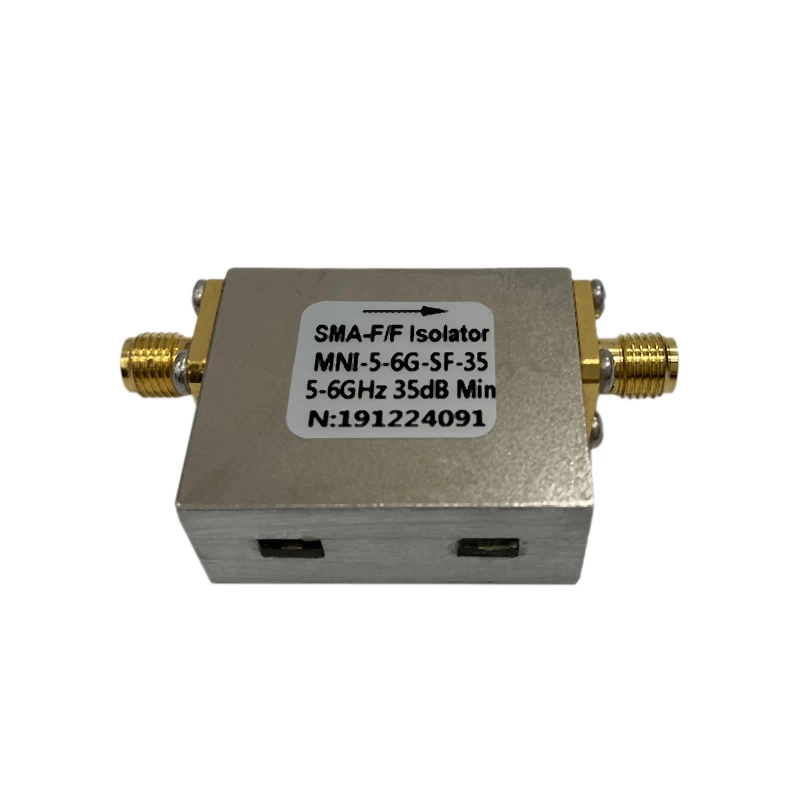

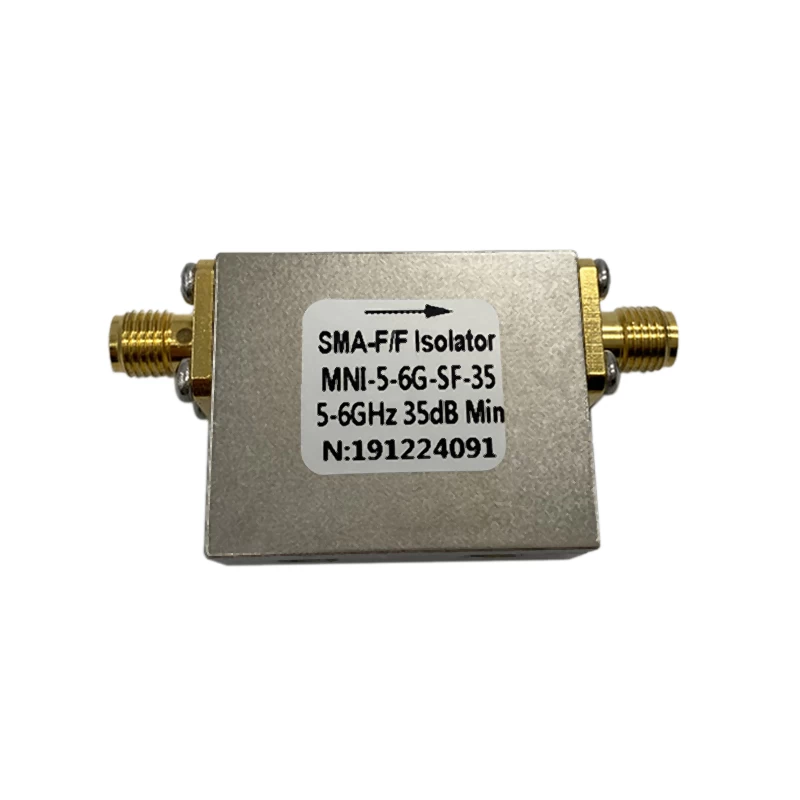

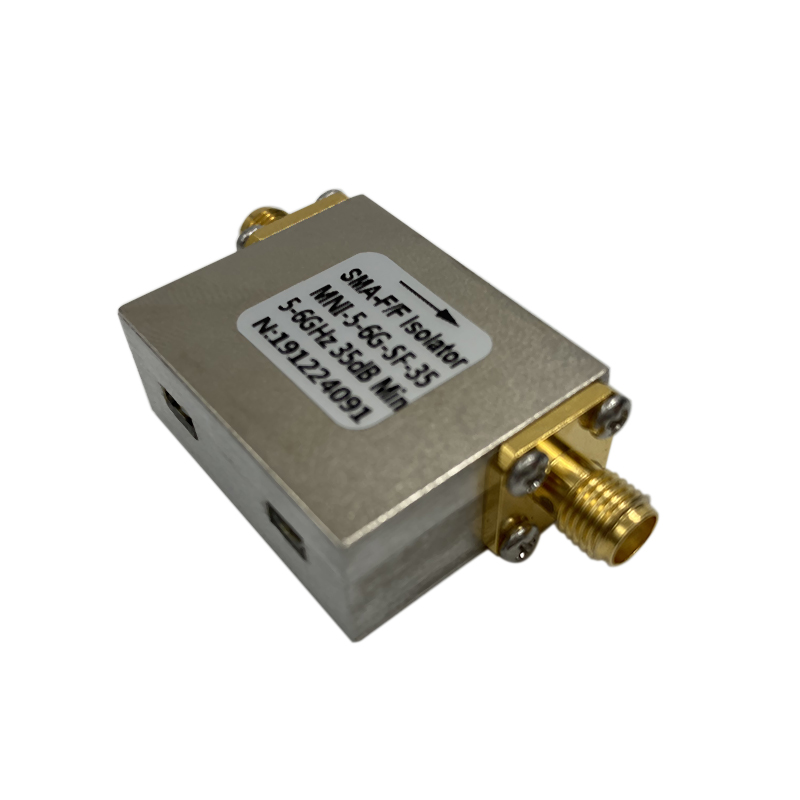

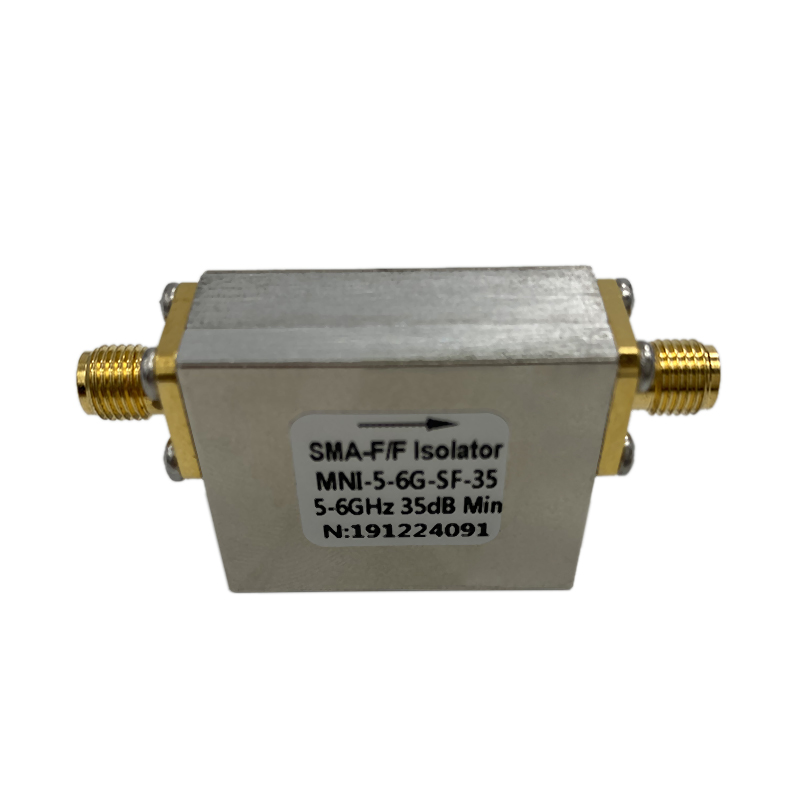

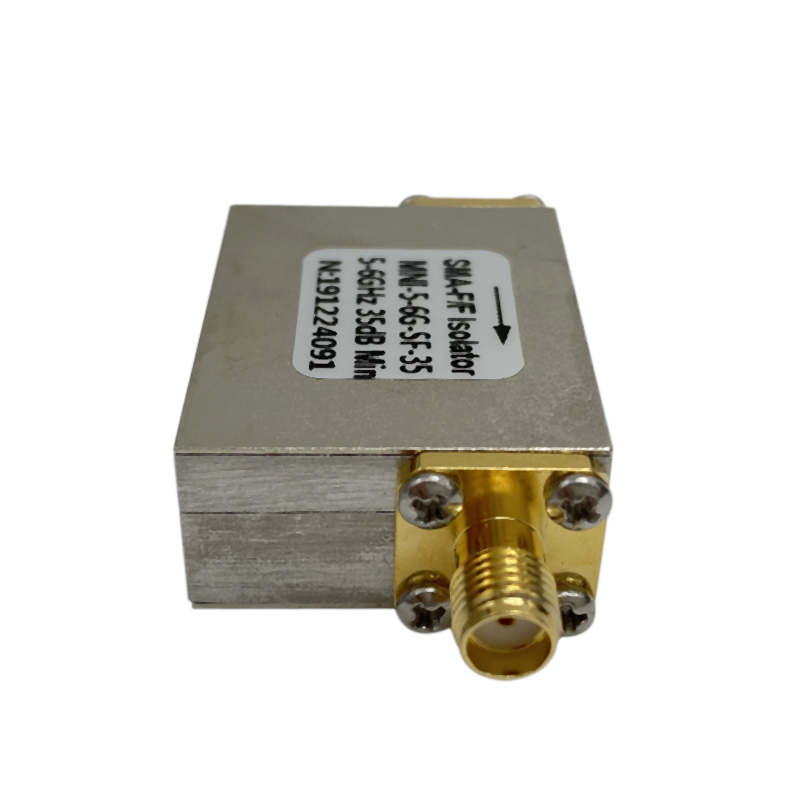

RF Isolator(5-6GHz,SMA-FEMALE connector type,10W)
5-6GHz Isolator is Low VSWR,Low Insertion loss and High Isolation and 5-6GHz Coaxial Isolator is Widely used for Military,Space and Commercial Applications
Product Features
◆ Wide Frequency Band 5-6GHz
◆ 2G/3G/4G/LTE Coverage
◆ Low VSWR
◆ High Isolation
Technical &Mechanical Specifications
|
Model No.
|
MNI-5-6G-SF-35
|
|
Freq(MHz)
|
5-6GHz
|
|
Insertion Loss(dB)
|
≤0.6
|
|
VSWR
|
≤1.3
|
|
Isolation(dB)
|
35min
|
|
Power Rating(W)
|
10
|
|
Reverse Power(w)
|
5
|
|
Impedance(ohm)
|
50
|
|
Connector
|
SMA-Female
|
|
Direction
|
Clockwise
|
|
Color
|
Light Grey
|
|
Temp(deg)
|
-30~+70
|

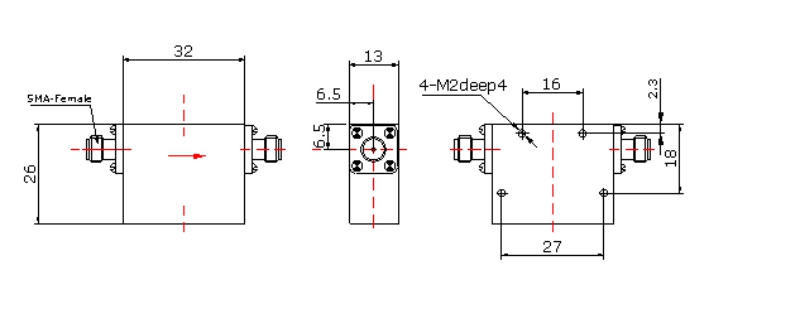

Mechanical Drawing (mm)
