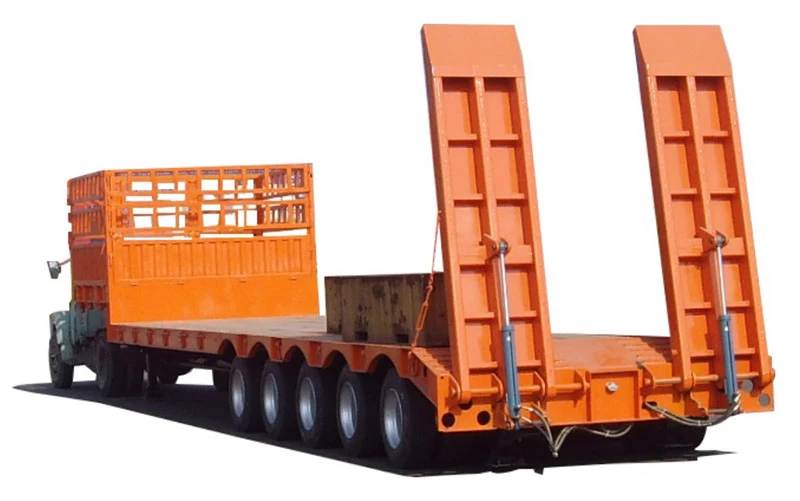

5 Axles Heavy Lowbed trailer

China heavy duty 5 lines 6 lines multi axles hydraulic low bed semi trailer,3 axles concave beam lowbed semi trailer with dolly for adding

load-bearing (80ton capacity),100 ton 5 axle low bed semi trailer for sale

Facebook Twitter Pinterest LinkedIn 分享



Technical parameters

SPECIFICATIONS   3 axle low loader

Remark

 The specification just for your reference, we can build trailer as your specific requirements

Dimension

 11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized )
Loading Capatity 40 T - 150 T  low bed semi trailer
Axle 13T/16T, BPW/FUWA/Chinesebrand  low bed semi trailer
Rim 6.5-20/7.5-20/8.00-20/8.5-20
Tire

8.25R20/10.00R20/11.00R20/12.00R20
Suspension Tri-axle Mechanical suspension or Air Suspension (Chinese  brand or BPW brand)
King Pin JOST brand 2.0 or 3.5 inch (bolted or welded type)
Landing Gear JOST brand or Chinese brand 28 Tons
Main Beam Height:450mm-580mm Q354B steel
Side Beam 16mm-30mm "I" Steel
Ladder Manually operated or Hydraulic type
Gooseneck

Optional  low bed sem i trailer
Brake Chamber WABCO (brake system)
ABS Optional
Light LED light
Voltage 24V
Socket 7-Pin Socket
Surface Coating Sandblasted, anti-rust chassis surface is avaible with 1 layer of anticorrosive primer and 2 layers of top coats.
Customization Customized heavy duty low bed trailer Available , this specification just for you reference
