5 CBM faw refuse compactor truck

2017 best sale FAW brand 5cbm trash compressor truck, FAW truck chassis 4*2 model, CHAOCHAI 117HP diesel engine, 5-shift manual gearbox, as for 5000L refuse compactor tanker, which use high strength material steel, thickness over 5mm, with electrical and hydraulic control device for easy operation.

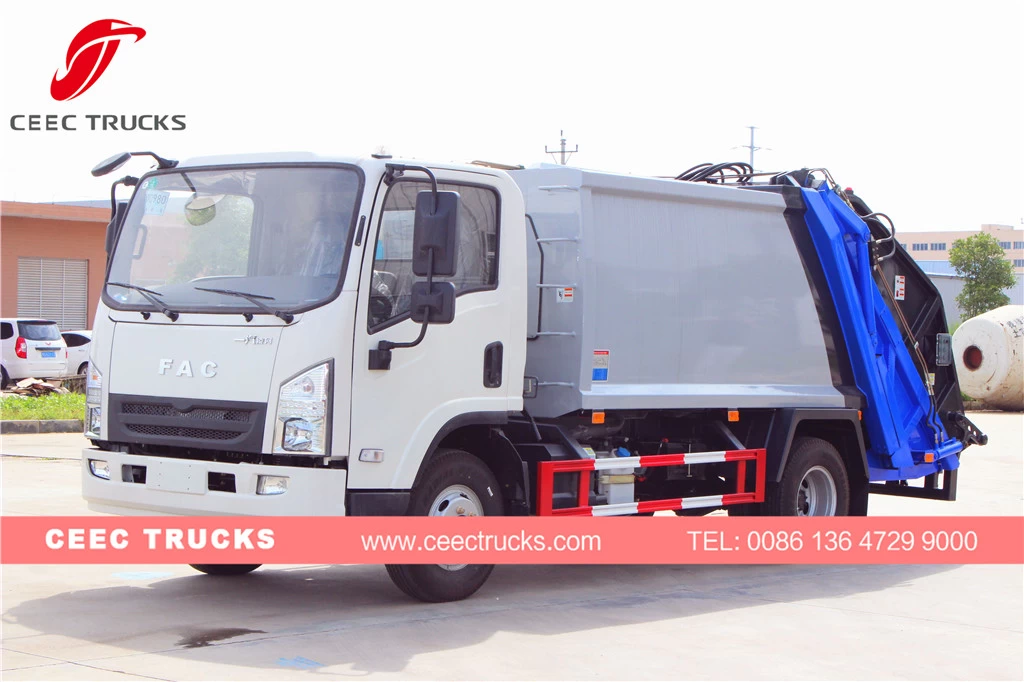

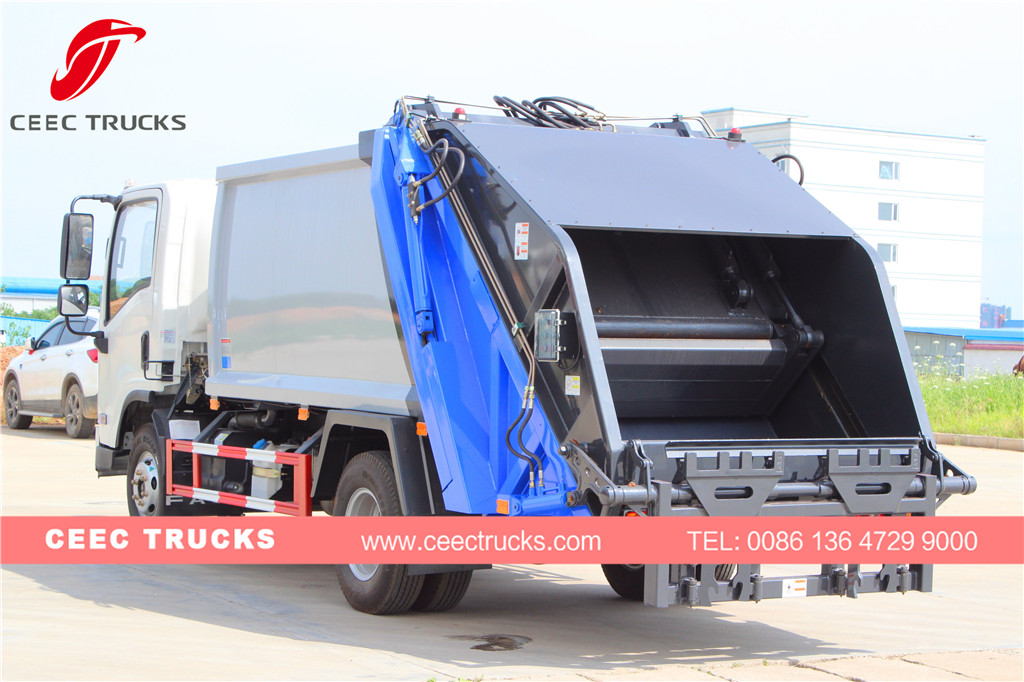

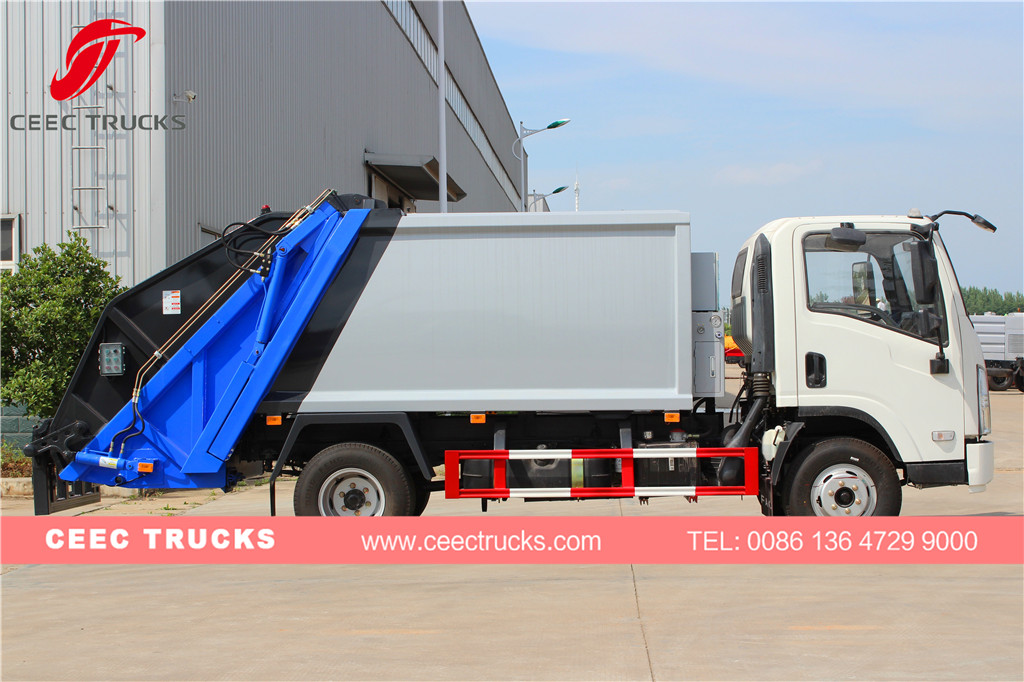

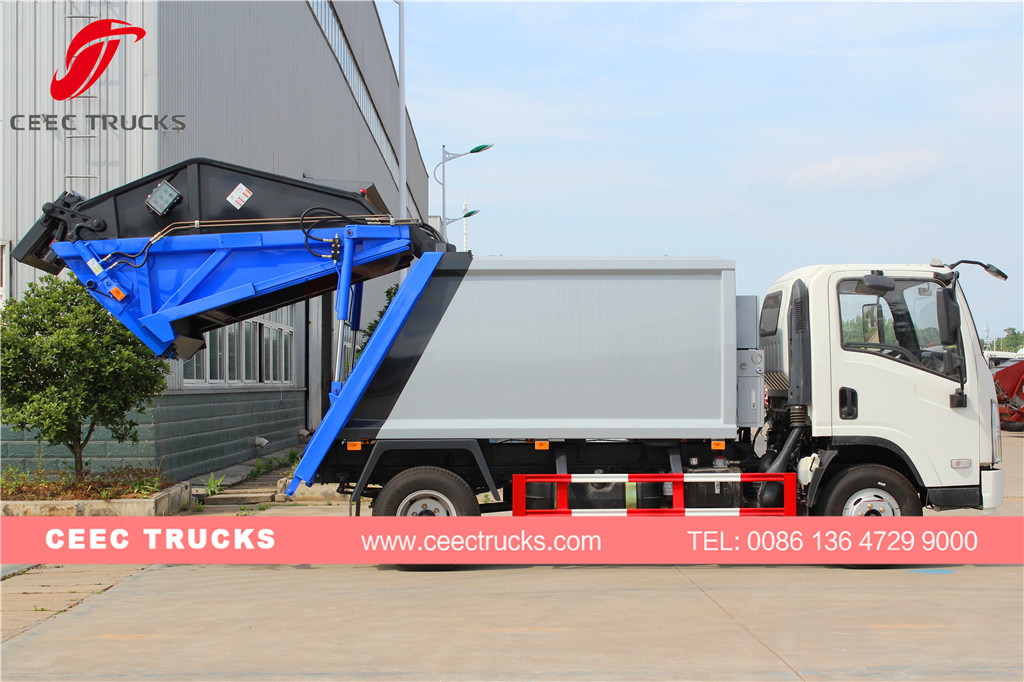

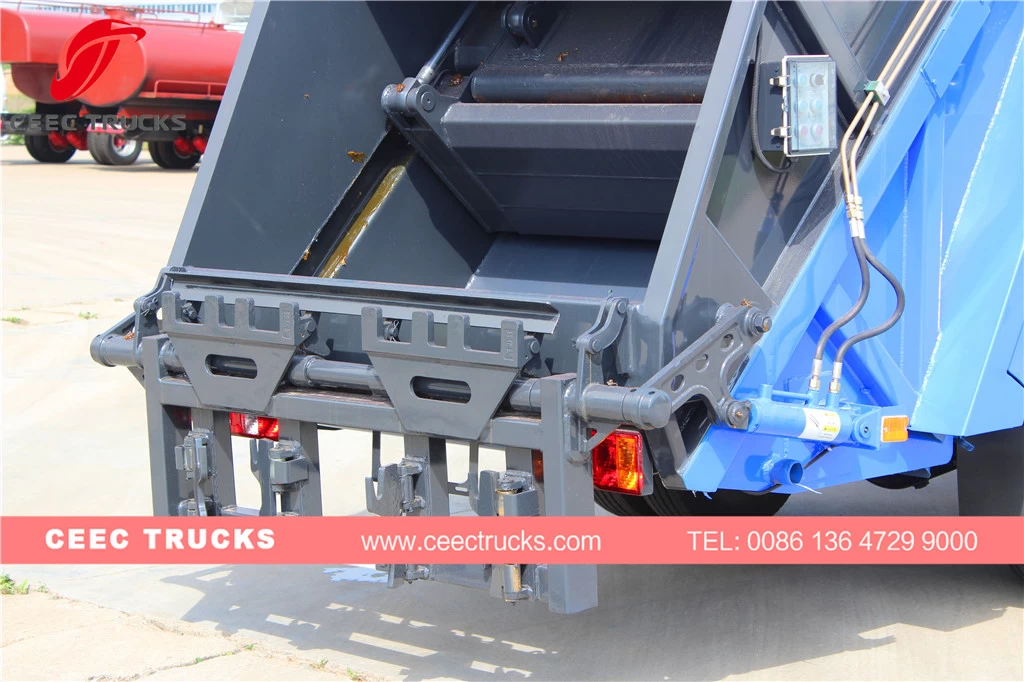

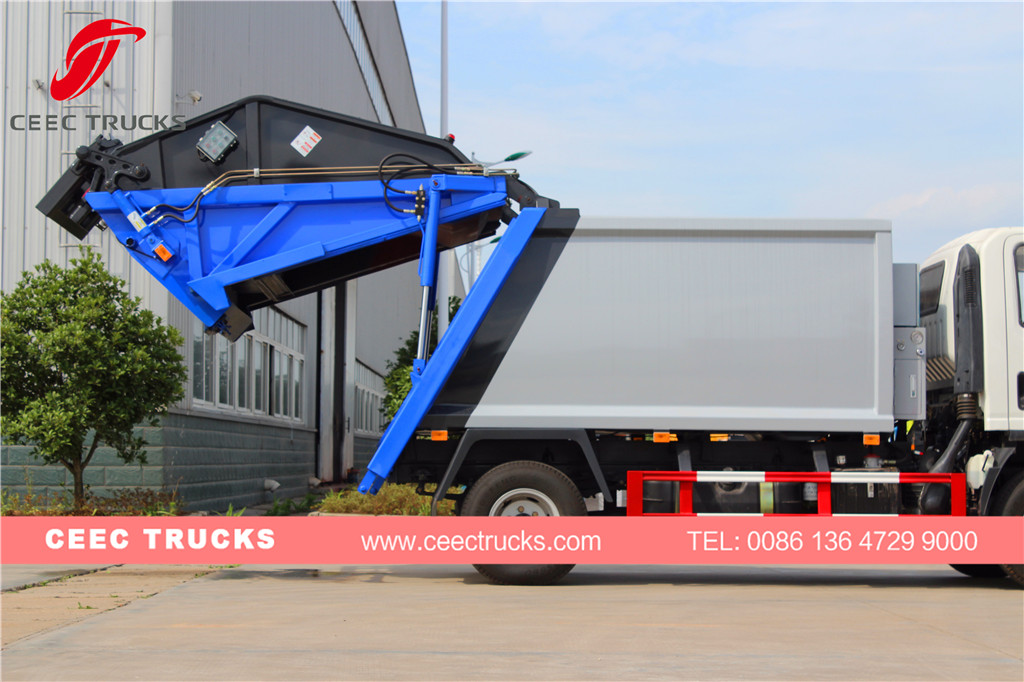

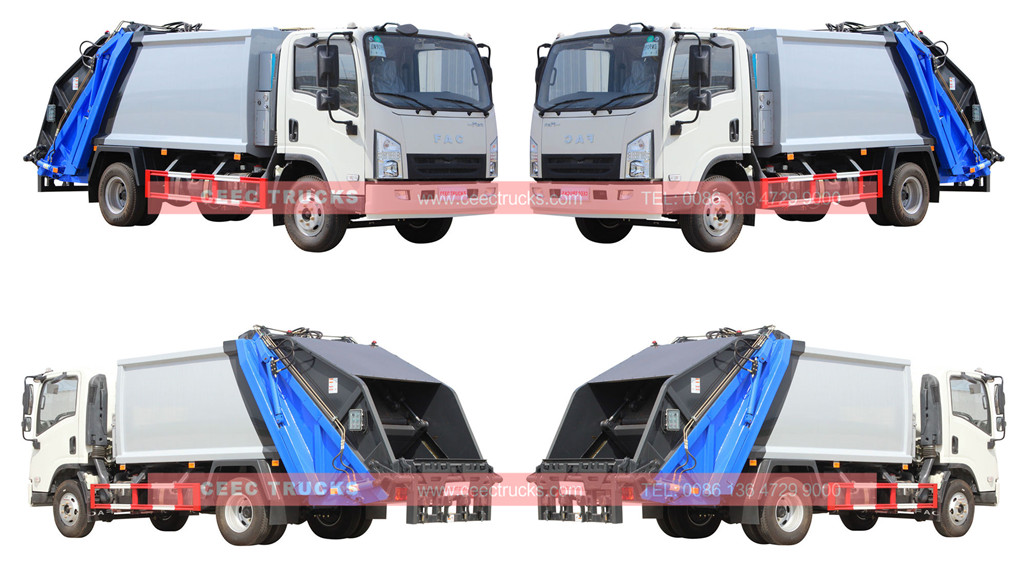

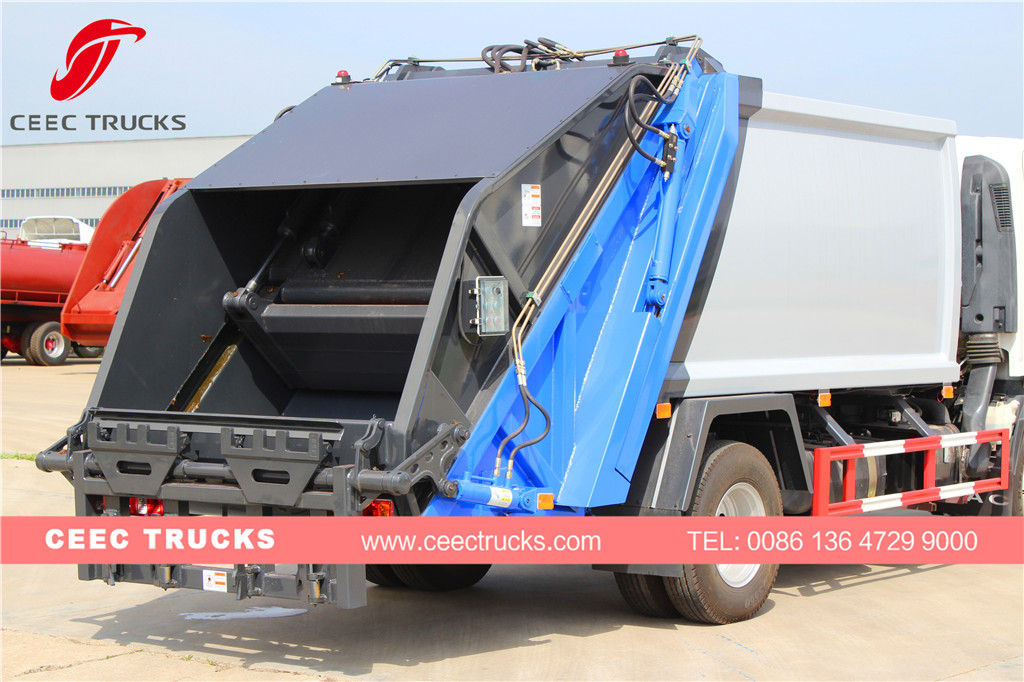

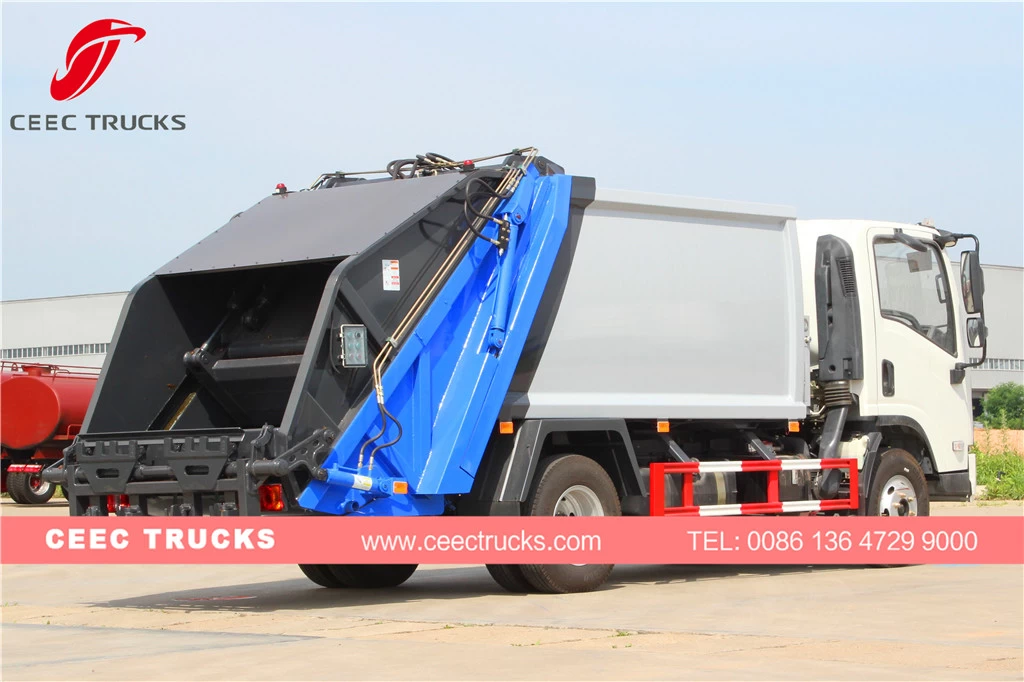

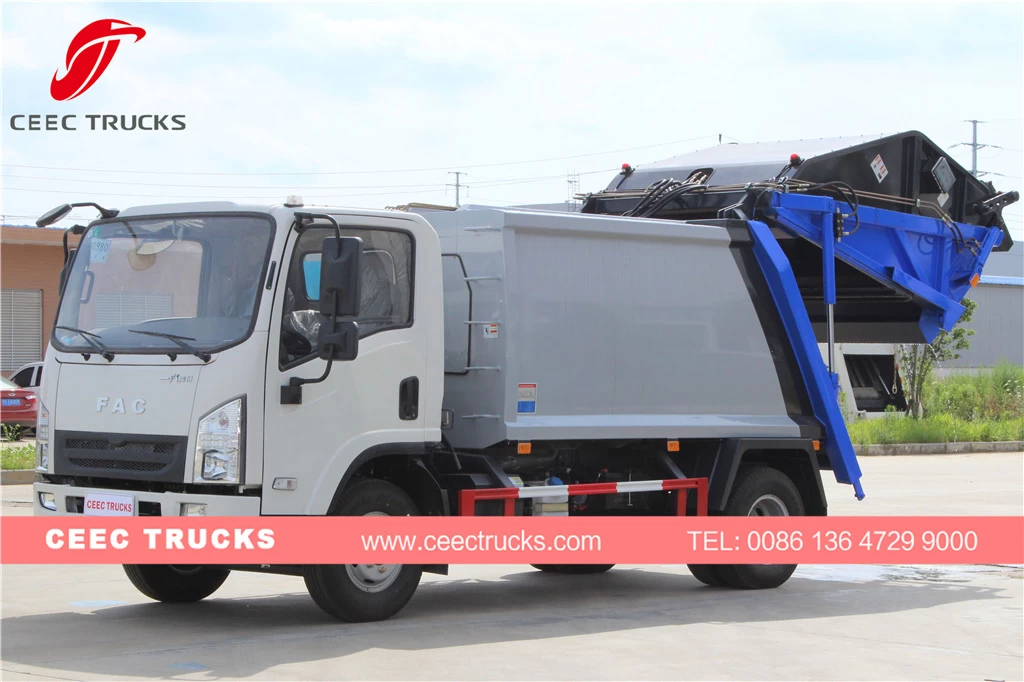

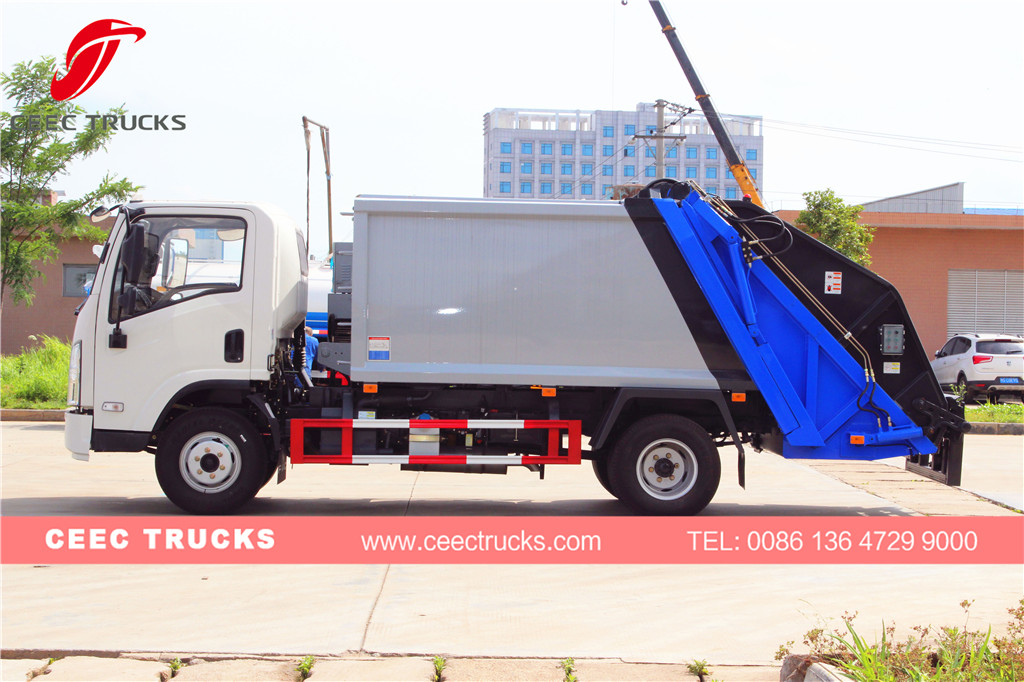

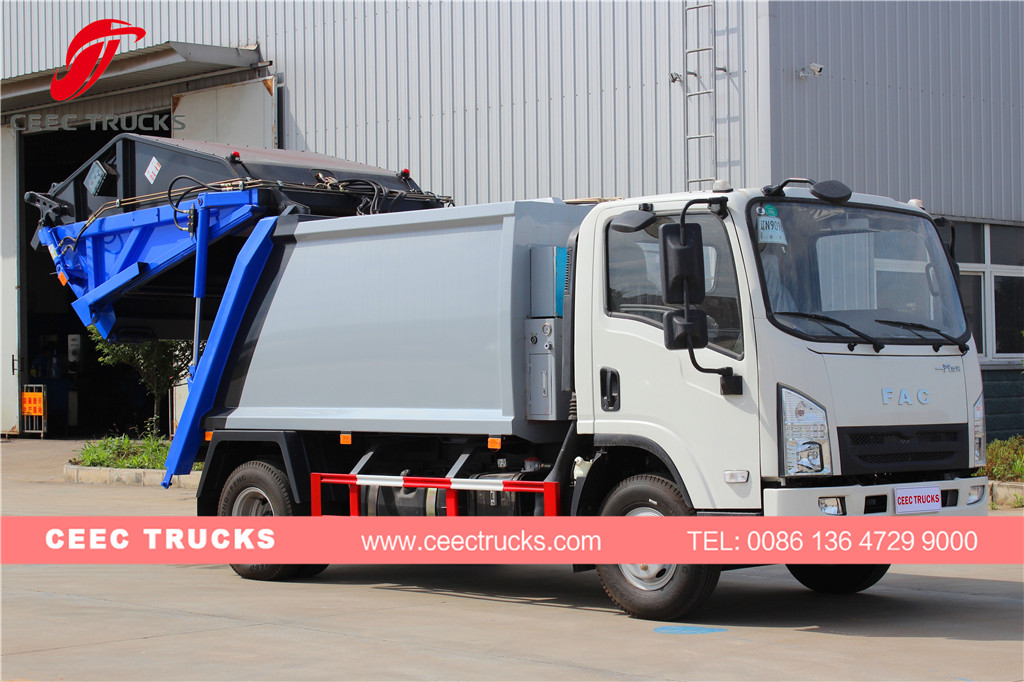

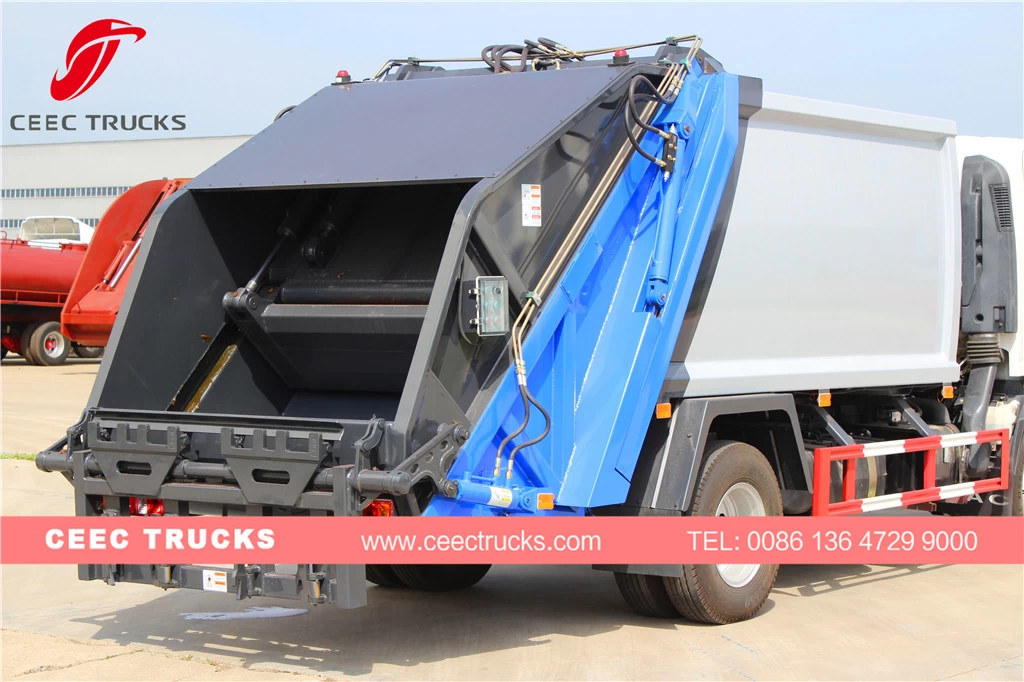

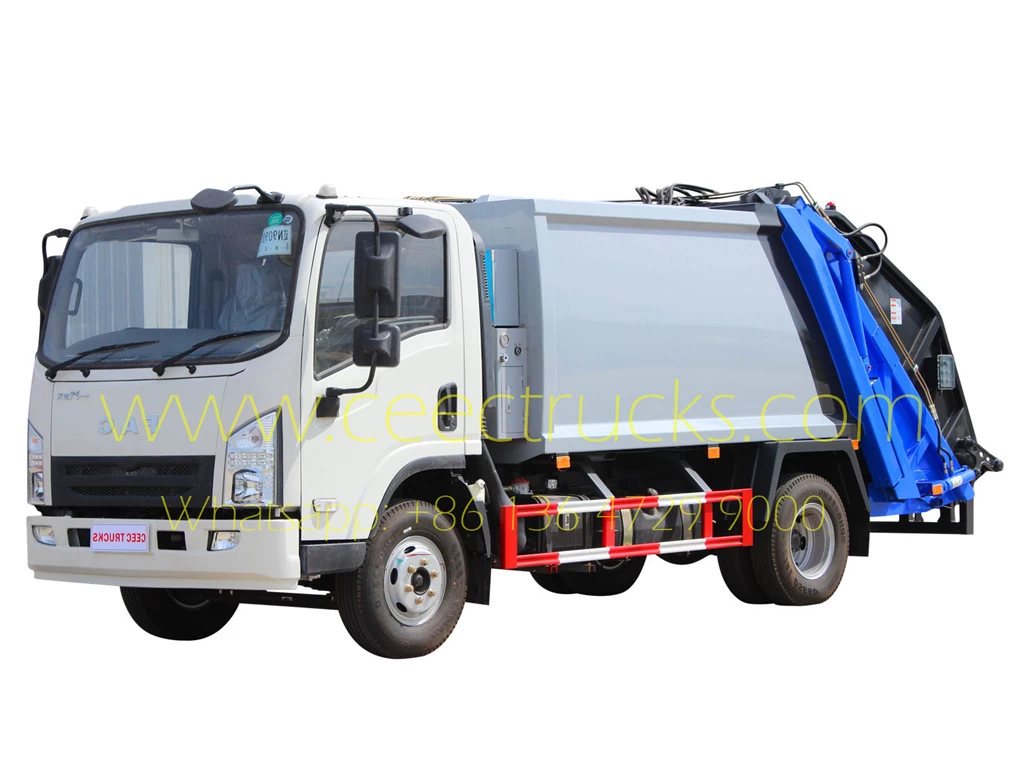

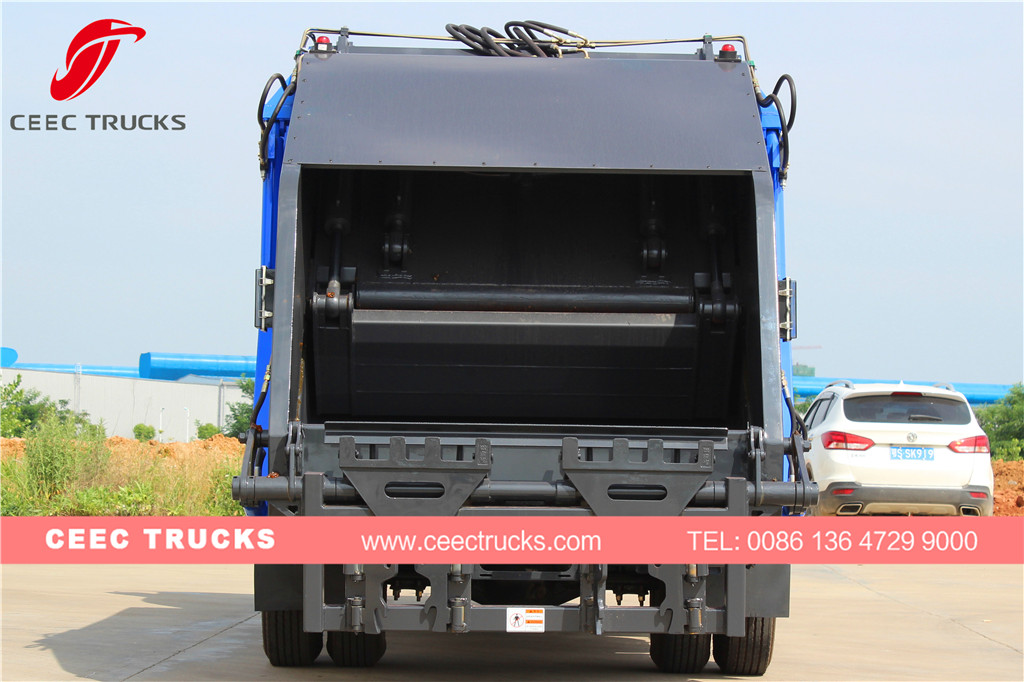

wholeview FAW brand 5cbm garbage compactor trucks



 Applications:



Garbage compactor vehicle FAW (also called Hydraulic pressing garbage truck, rear loader garbage truck, compactor garbage truck, back loading garbage compression truck, waste collection vehicle) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airpot, and densely-populated areas like industrial and mineral enterprises and military units.



CEEC TRUCKS FAW 5000L compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.



The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.



 Key Features:



---- FAW chassis, perfect performance

---- FAW engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.



 Specifications:



Garbage compactor truck FAW (5 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

FAW

Overall Dimension

6230 * 2000 * 2490 mm

GVW / Kerb Weight

8,000kg / 4,350kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

FAW

Power

117 HP (86 KW)

Displacement

3707 ml

Emission Standard

Euro IV or V

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

3308 mm / 2

Tire Specification

7.00-16

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

5 cbm

Fill Hopper capacity

0.8 cbm

Sewage tank

 200 liters

Filling work cycly time

 20~25 s

Discharge model

Horizontal Ejection

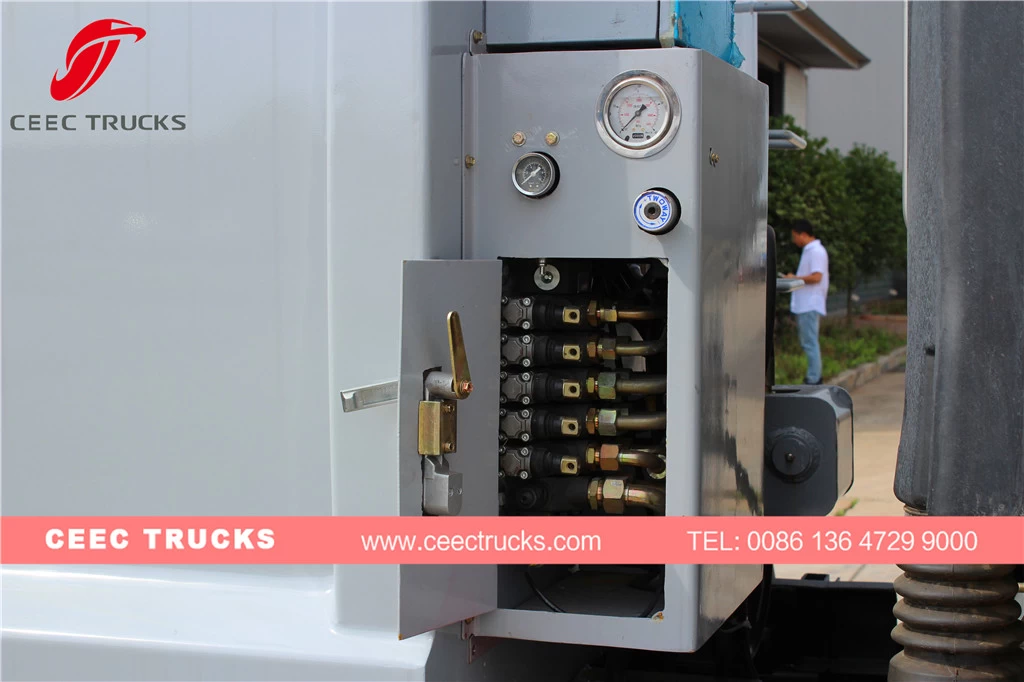

Control system

Electrically Hydraulic control

Manual hydraulic control

Control panel

English or Your language

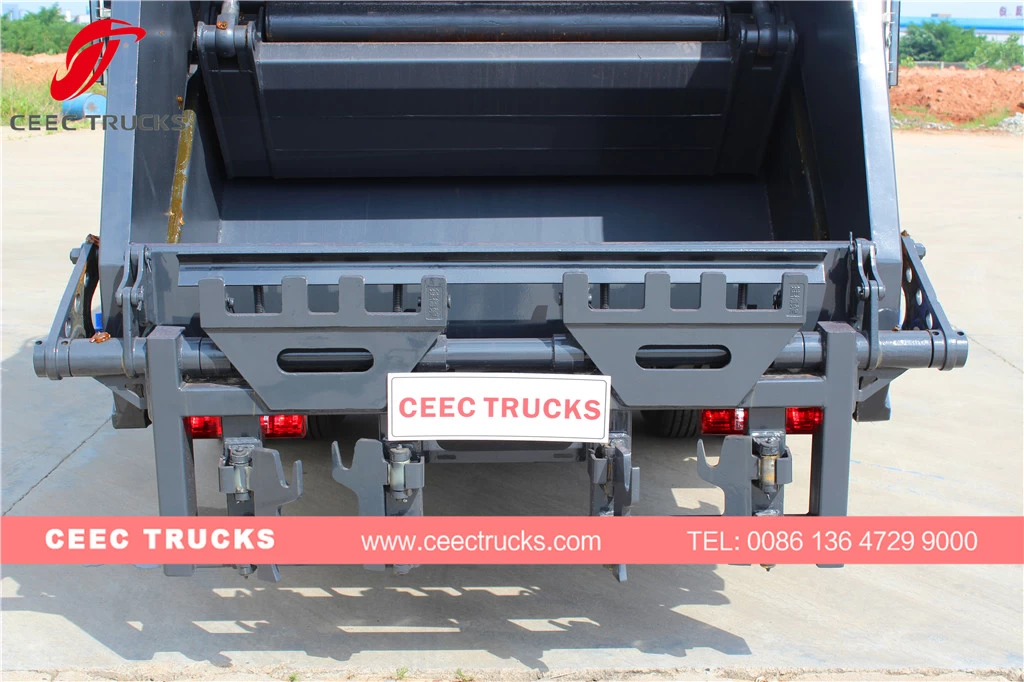

All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,

handrail, fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Italy mulit-valve can be choose.

** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.



 CEEC supply ISUZU 5cbm garbage compactor truck drawing
