Printing Method

Thermal Transfer/Thermal

Printing Resolution

203dots/inch(8dots/mm) Dot Dimension: 0.125x0.125mm(1mm=8dots)

Max Printing Speed

2-6 inch/s

Max Printing Width

120mm

Max Printing Length

2286mm(90")

Memory

8 MB FLASH ROM, 8 MB SDRAM

Media

continuous,fan-fold

Width: 4.72″ (120 mm) max., 0.78″ (20 mm) min.

Supply roll:OD 5″ (127 mm) max  ID 1″ (25.4 mm) min.

Thickness: 0.0024″ - 0.01″(0.06- 0.254 mm), including liner.

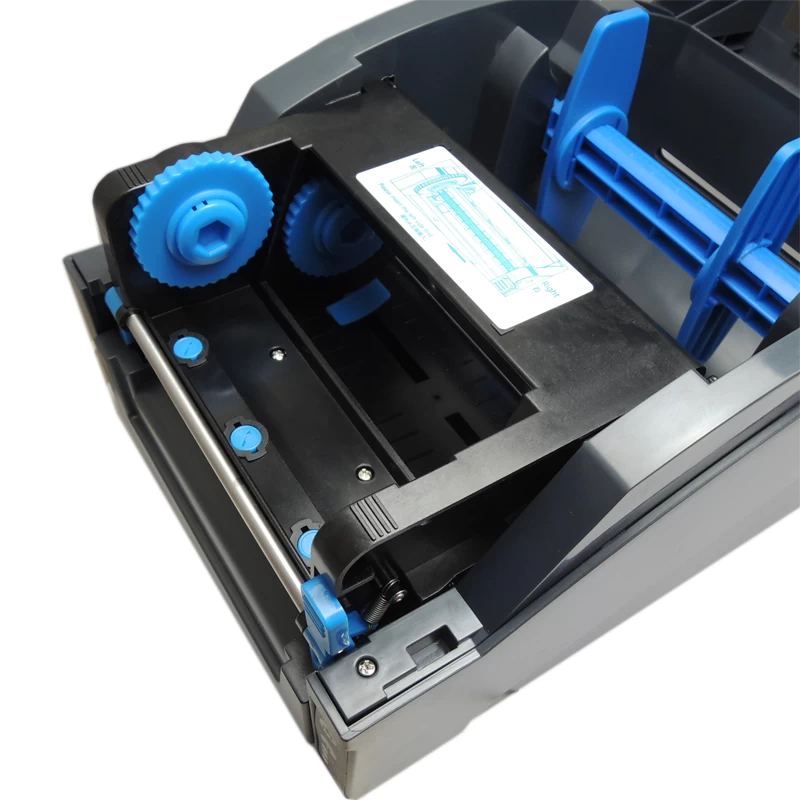

Ribbon

Wax, Wax/Resin, Resin

Ribbon roll: OD 2.64″ (67 mm) max., ID 1″ (25..4 mm) core

Max width: 120 mm; Max length: 300 m.

Media Sensor

sensor adjustable with hand not in paper guide

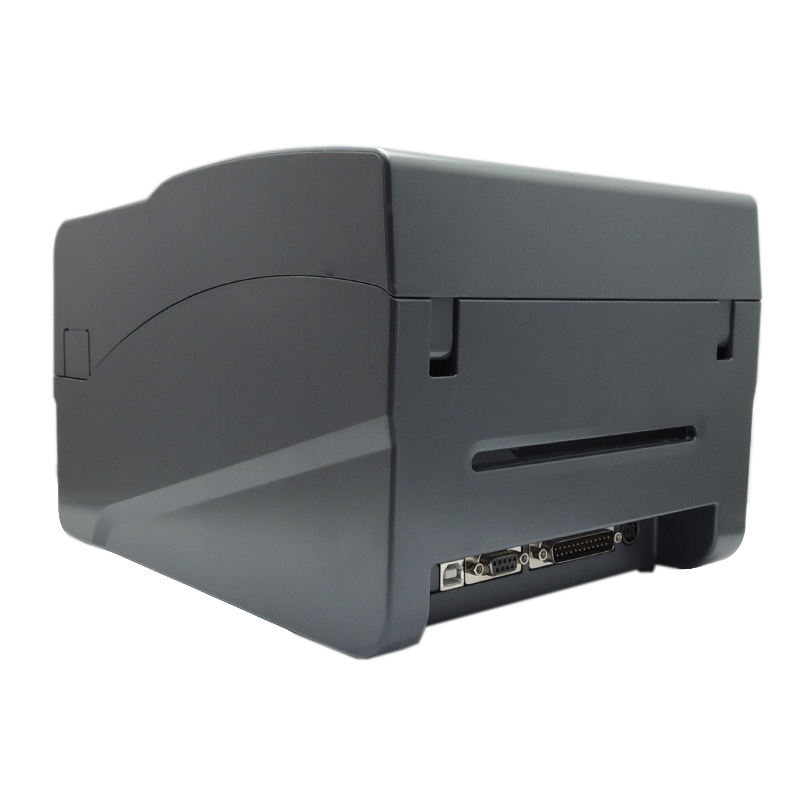

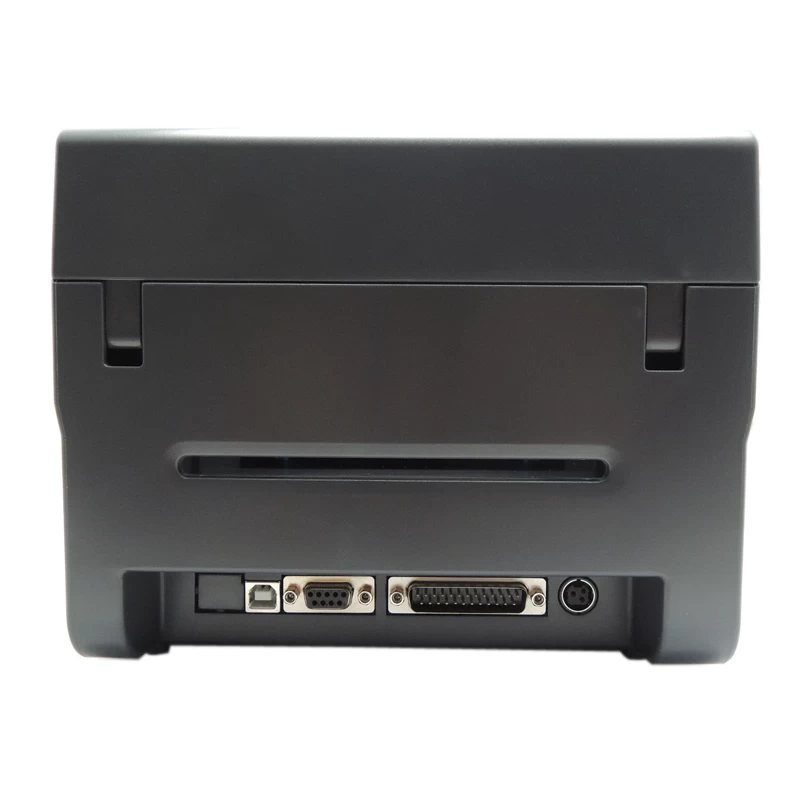

Interfaces

Serial, USB, Parallel

Power Rating

Input：AC 110V/240V，Output：DC24V/2.5A，60W

Operating Environment

Temperature: 5℃ – 45℃ (41°F ~ +104°F); Relative humidity: 25% - 85% non condensing

Storage Environment

Temperature: -10℃ – 50℃ (-10°F ~ +140°F); Relative humidity: 10% - 90% non condensing

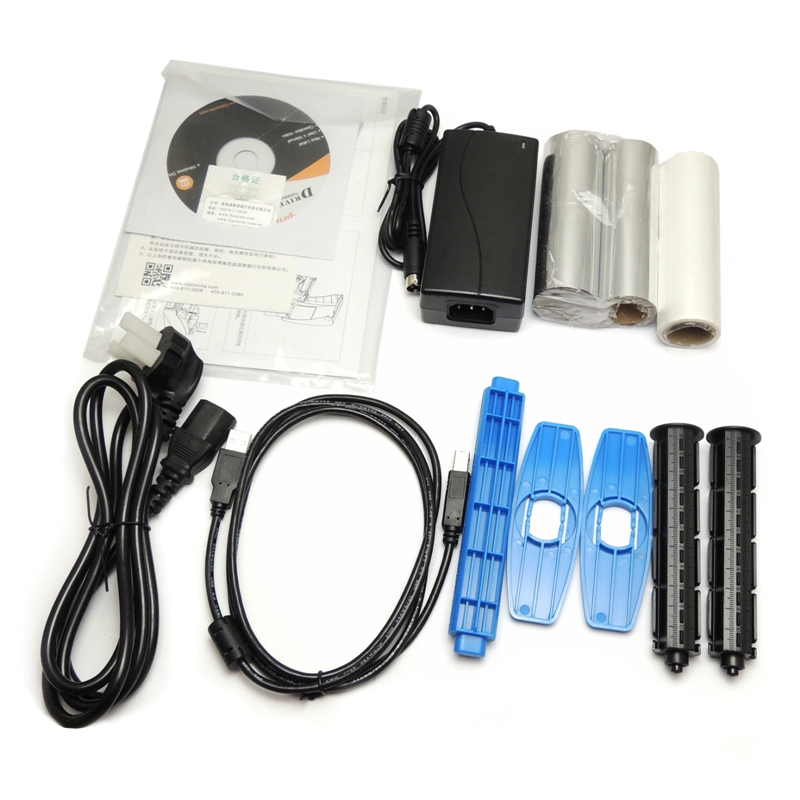

Accessary available

 Peeler Kit

Reliability:

50KM

Weight

2.1 kg

Dimensions

285x210x180(WxDxH)
