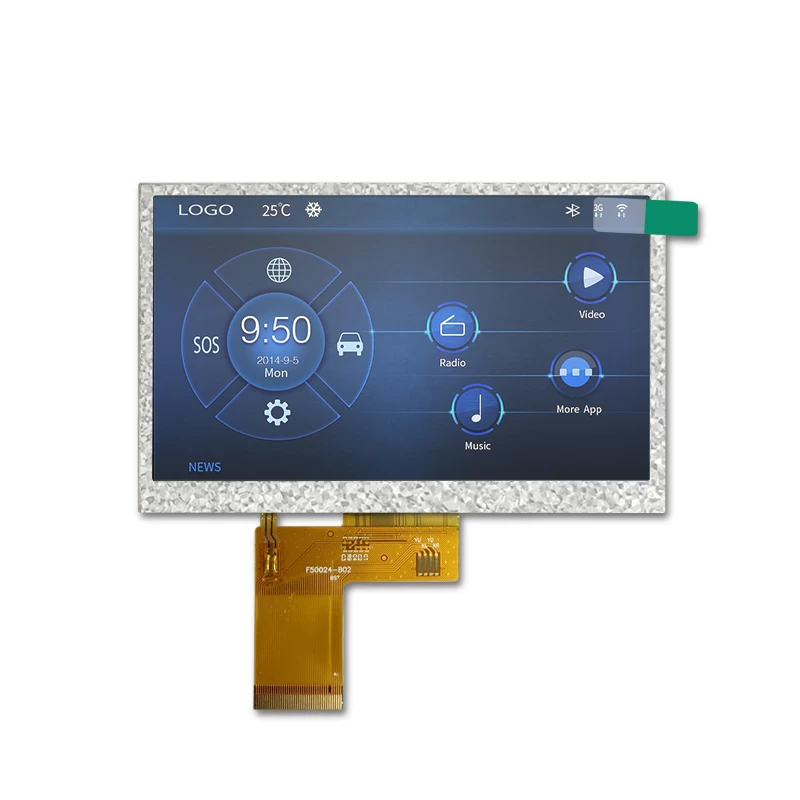

5 inch LCD display 480x272 resolution with 6 o'clock viewing angle
|
Specification
|
|
LCD size
|
5.0 inch TFT LCD
|
|
Resolution
|
480 x (RGB) × 272
|
|
LCM (W × H × D )
|
120.7 x 75.8 x3.15(Typ) mm
|
|
Active Area (W × H)
|
110.88(H) x 62.832(V) mm
|
|
Viewing Direction
|
6 o’clock
|
|
Color Depth
|
16.7M
|
|
Backlight Type
|
12 LEDs
|
|
Surface Luminance
|
300
|
|
Surface Treatment
|
Anti-Glare
|
|
Interface
|
RGB24-bit
|
Input voltage
|
3.3V
|
|
Operating temperature
|
-20 C°~70 C°.
|
|
Storage temperature
|
-30 C°~80 C°.
|
|
Storage Humidity:
|
10RH ~ 40RH
|
