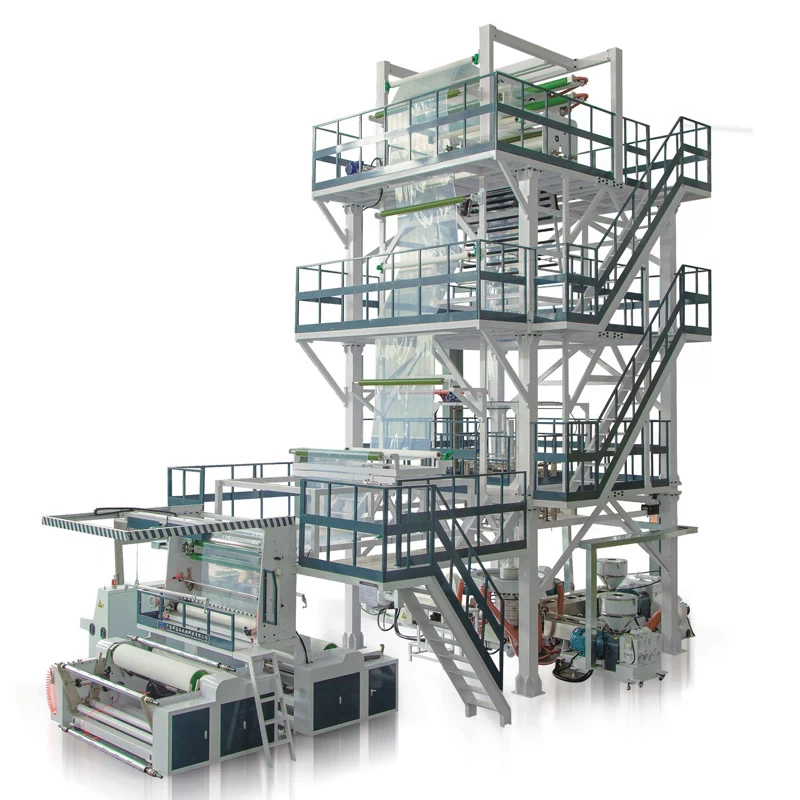

5 Layer Co-extrusion FUNCTIONALITY STICKNESS FILM BLOWING MACHINE

5 layers machine compare to 3 layers machine, this is higher proeduction, more flexible formulation adjustment, and cut down the raw material cost and save more energy.

Film Width:800-1600mm

Material: LDPE, LLDPE, PP, HDPE, Adhesive Resin

Output: 200-300kg/hr

Characteristics:

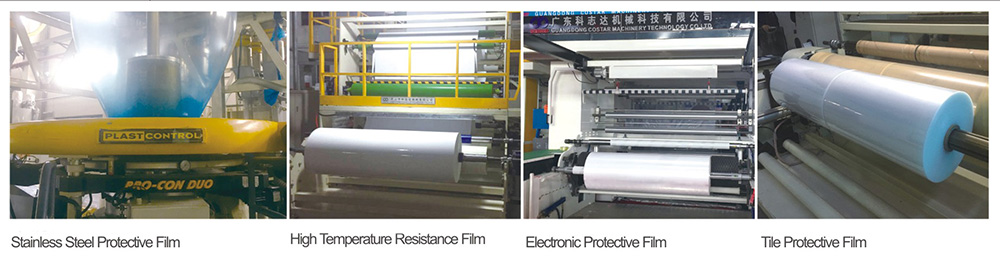

1. for electronics industry film, protective film, stainless steel protective film, tile film, aluminium plastic panel film, high temperature resistance film.

2. B+R PLC system

3. Central Gap Winder system or Automatic back to back surface friction winder

4. LDPE with IBC cooling system

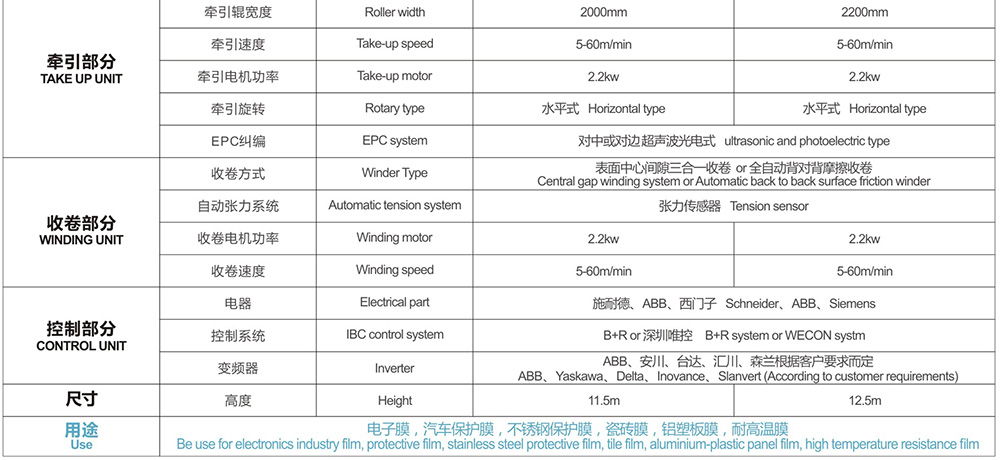

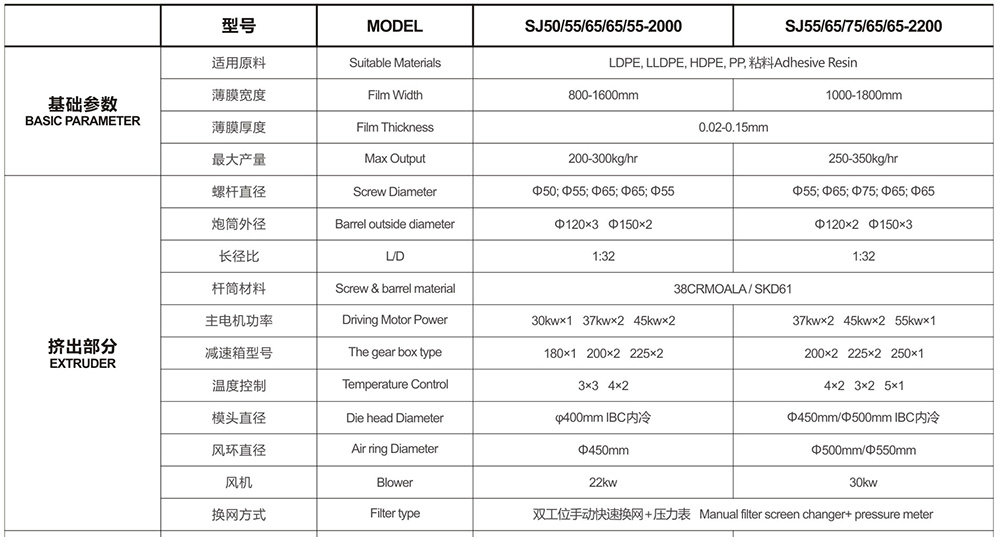

Spec:
