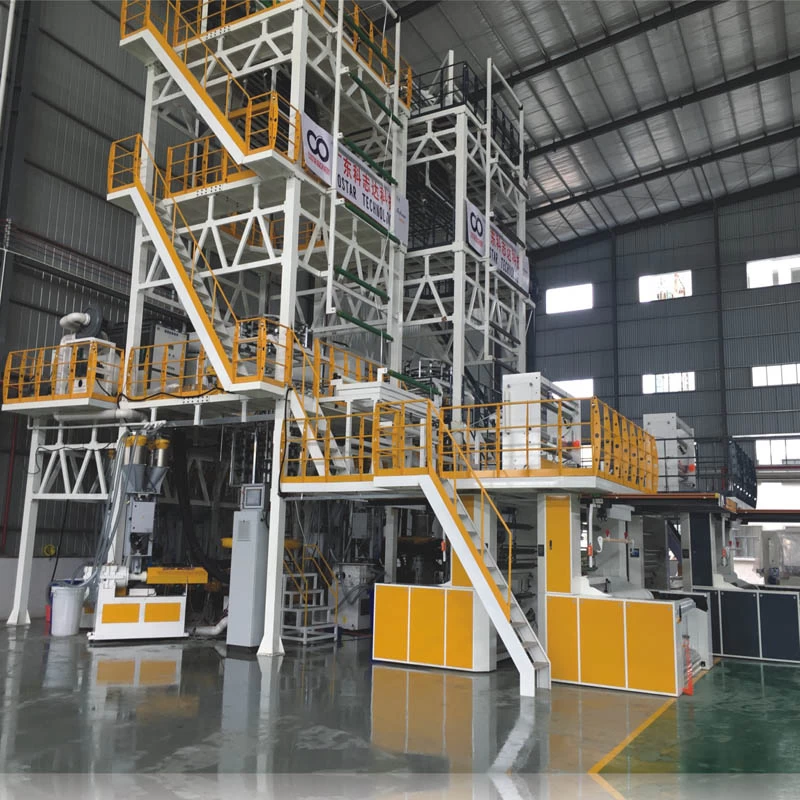

7 LAYERS CO-EXTRUSION HIGH BARRIER FILM BLOWING MACHINE

.

7Layers film usually with PA, EVOH inside, in food applications, is used for aseptic package, retort pouch, milk products, meat, juices and condiments; in non-food applications, is used for packaging solvents, chemicals, air conditioning structural parts, petrol linings , electronic components, etc.

Machine equip auto thickness measurement air ring, new type of stackable die head, weighing type matching device, the full company control, IBC cooling system, manual filter screen changer + pressure meter, horizontal type rotary type, EPC, central gap winding system.

Factory already make 2sets machine in 2019 for Chinese market, and show to oversea customers during the ChinaPLAS2019. 7Layers film's requirment is more serious, so you have to choose good quality machine for produce it. Now in China, a few supplier can make this machine.

Film Width:700-1200mm

Material: PA, EVOH, LDPE, LLDPE, mLLDPE

Output: 120-250kg/hr

Characteristics:

1. 3Types production:

①Symmetrical blowing method: for food package, and column air bag.

②Asymmetric blowing method: for food package, vacuum bag and velum.

③High barrier: for meat package, milk powder package, and cooked food package.

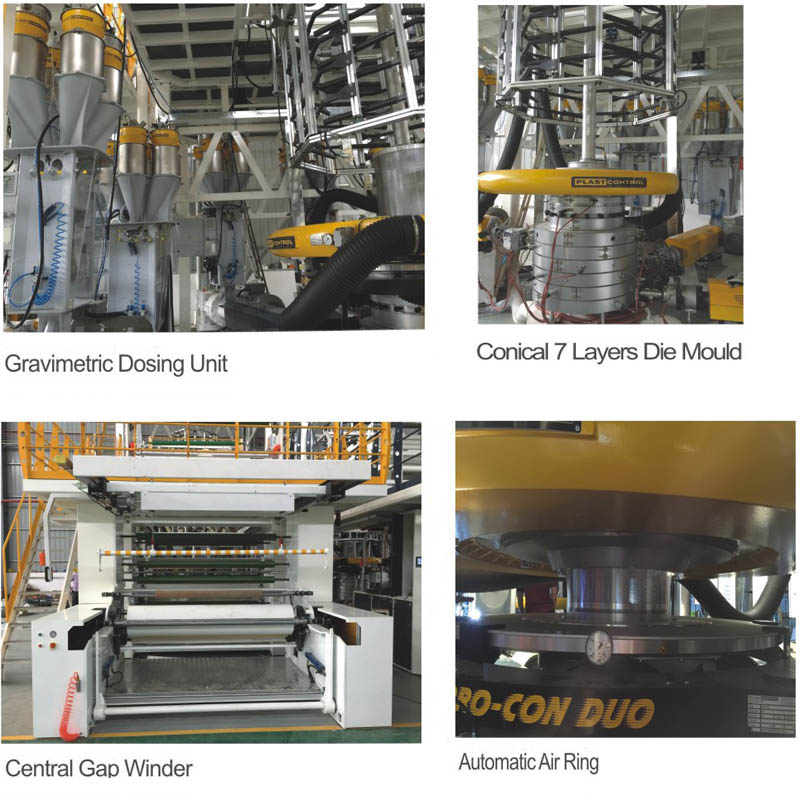

2. Auto Thickness Measurement Air Ring

3. New Type of stack able die head

4. Weight type matching device

5. The full computer control

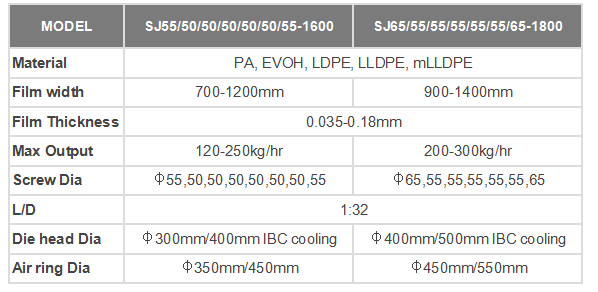

Spec:
