5-Position Programmable Dip Coater With Speed 1-200 Mm/Min & Heating Chamber 100°C Max.


PTL-OV5P is a CE Certified Programmable Dip Coater (1-200 mm/min) designed to preparing multilayer coating up to 5 solutions inside a temperature controlled oven with touch-screen digital control. Dipping rate, pulling rate, dwell time, and amount of cycles can be setup by touch screen controller. It is designed for R&D Lab to prepare various optical or epitaxial films from liquid solution.


Specifications:

Controller

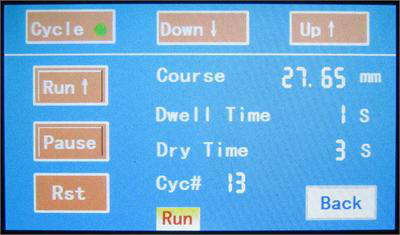

· 6" LCD color touch screen controller

· Working Voltage: 208-240V AC

· Max. Power Consumption: 50W

Liquid Holder Disk

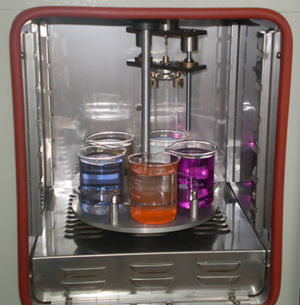

· 5 liquid-holder positions. Carry up to 5 kinds of liquid solutions

· Rotate automatically as programmed for Max. 5 positions and each position can dip max. 20 times.

· Coating up to 5 layers by automatically rotating liquid-holder disk to dip sample from one solution to another

· Customized program is available upon request at extra cost

Beaker

· Five 150 mL beakers are included for immediate use

· Dimensions: 60mm(Dia) x 60mm(H)

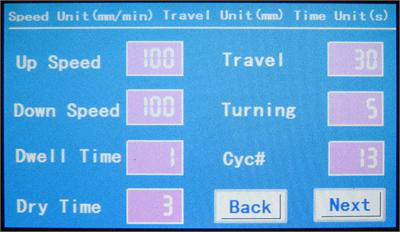

Programming

· Travelling Distance:                 0-75 mm Adjustable

· Dipping/Pulling Speed:   1-200 mm/min Programmable with accuracy within +/- 0.02%

· Temperature Range:               50-100°C (+/-1°C accuracy)

· Dwell Time:                       0-999 seconds (in liquid time)

· Dry Time:                                 0-999 seconds

· Dipping Position (turning):       1 - 5 positions (Max. 5 positions)

· Dipping (cycle):         Max. 20 times (dipping in each position)

Sample Holder

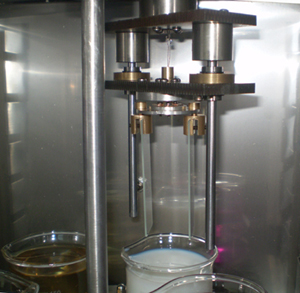

Up to 2 samples can be carried sliding up and down through two guide rods



     Oven

· Working Voltage: 208-240V AC (110V version is available via transformer)

· Max. Power Consumption: 600W

· Chamber Dimensions: 254mm(L) x 254mm(W) x 280mm(H)

· Inner Material: Stainless Steel

· Outside Dimensions: 406mm(L) x 406mm(W) x 610mm(H)

Product Dimensions


     440mm(L) x 460mm(W) x 1040mm(H)

Compliance

CE Certified

Warranty

One year limited with lifetime support

Application Notes

· In order to get better film coating, the substrate shall be treated by plasma cleaner

· Use ultrasonic processor to disperse nano powder or homogenize solution to get better coating

· Liquid solution is placed in the controlled temperature oven with +/-1°C tolerance from room temperature to 100°C. Please keep warm at least half hour after the temperature reach the set point on the digital temperature meter to ensure an equilibrium temperature distribution in the liquid solution



Net Weight

57 kg (125 lbs)

Shipping Weight

82 kg (180 lbs)

Shipping Dimensions

45"(L) x45"(W) x40"(H)
