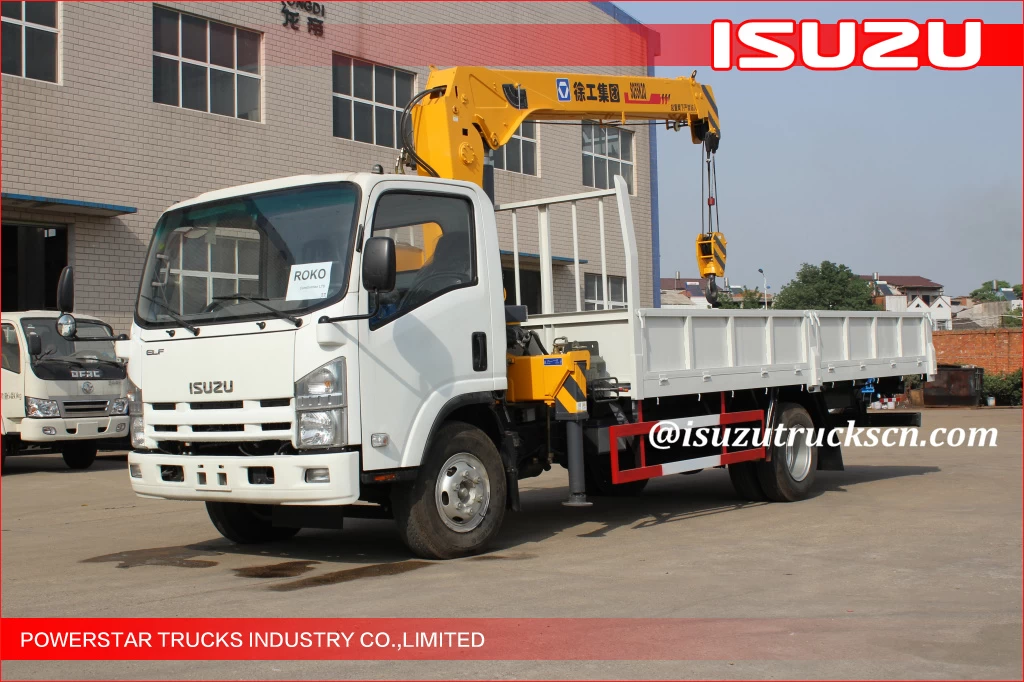

5 Ton ELF Light Truck Loader Crane , Knuckle Cargo Crane Truck
Durable 5 Ton Light Truck Loader Crane, Knuckle Cargo Crane Truck
- Name: Folding boom crane, Folding boom truck crane, Knuckle boom crane, Knuckle boom truck mounted crane
- Max Lifting Capacity: 5 ton
- Max Lifting Moment: 10.5 t.m
- Max Oil Flow of Hydraulic System: 25 L/min
- Max. Lifting height:11meters
- Brand: XCMG
- Crane Weight: 2035 kg
- Oil Tank Capacity: 90 L
- Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope.
- Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.
Description:
Knuckle boom crane, help you loading goods on your truck. The crane will fold to compact size after working and will not affect the space of the carriage. The arms are driven by hydraulic, move fast, more effective. The arms can easy to reach narrow spaces like inside the workshop. More accessories like fork, grab bucket, can be attached for different goods loading.
Knuckle boom crane SQ5ZK2 is used for lifting 5tons, moment is 10.5T.M.
Applications:
It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.
Specifications:
Model
|
SQ5ZK2
|
Unit
|
Max Lifting Moment
|
10.5
|
t.m
|
Max Lifting Capacity
|
5000
|
kg
|
Recommend Power Needed At Recommend Oil Flow
|
18
|
kw
|
Max Oil Flow of Hydraulic System
|
25
|
L/min
|
Rated Pressure Of Hydraulic System
|
28
|
MPa
|
Oil Tank Capacity
|
90
|
L
|
Rotation Angle
|
370
|
.°
|
Crane Weight
|
2035
|
kg
|
Installation Space
|
1100
|
mm
|
Choice of Chassis
|
isuzu
|
