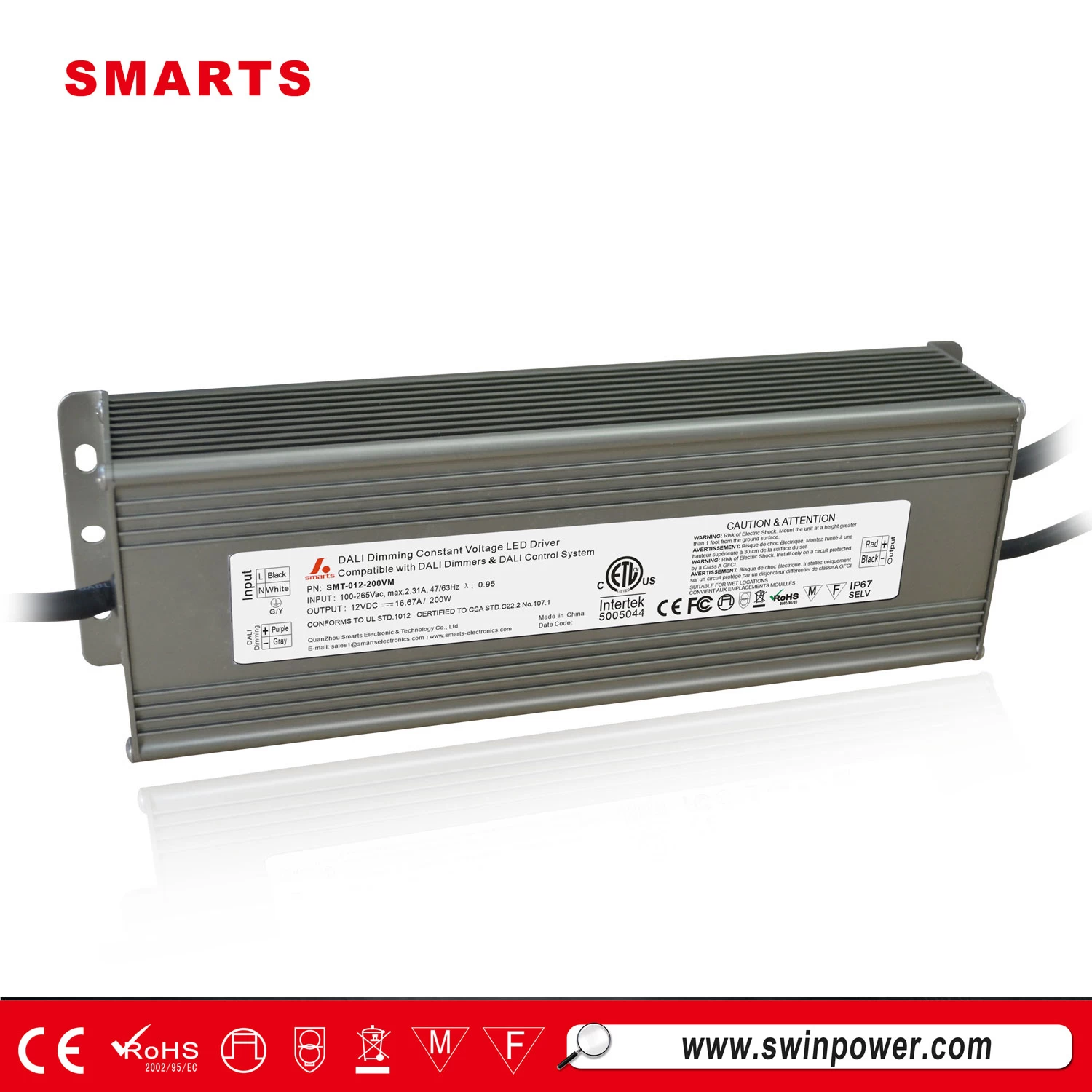

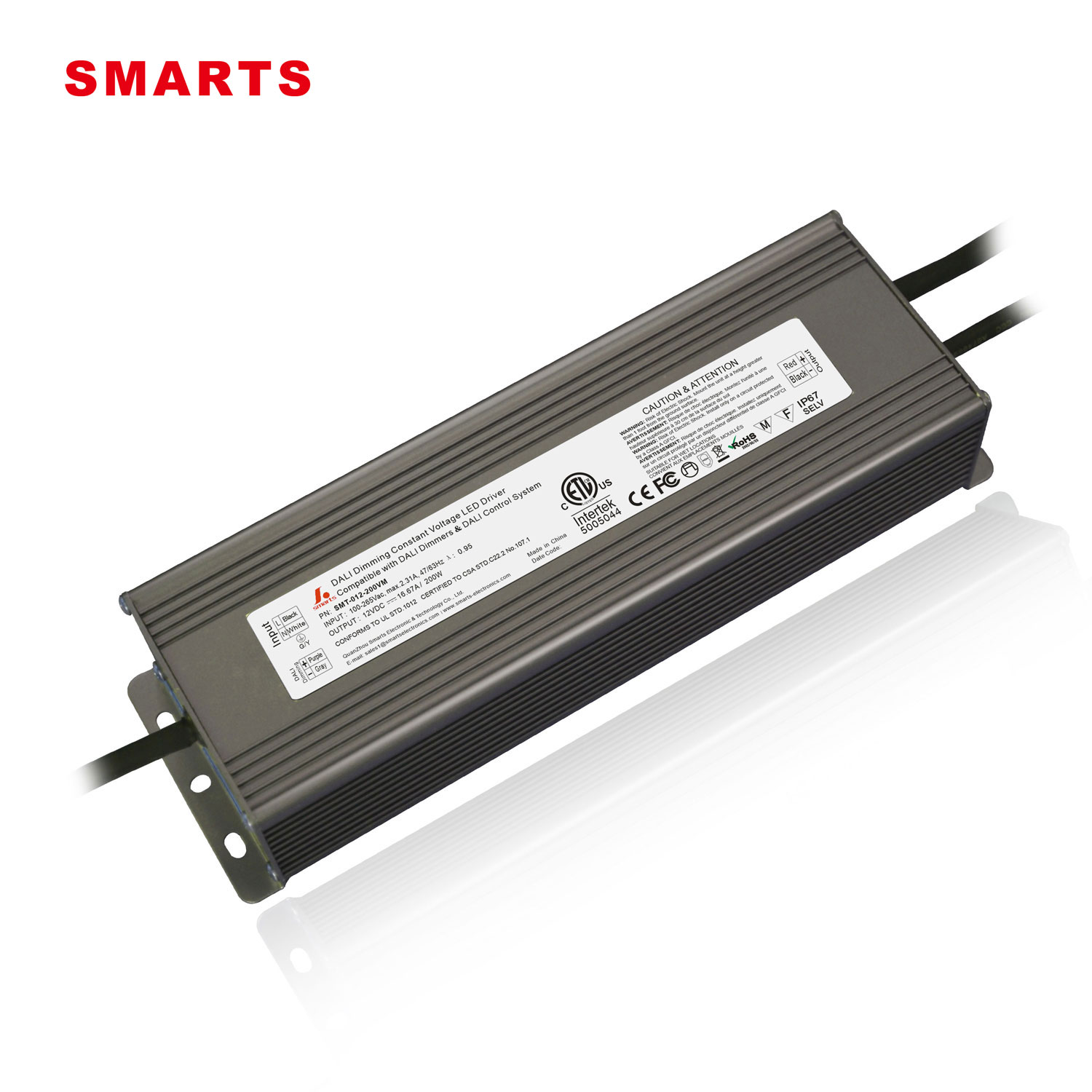

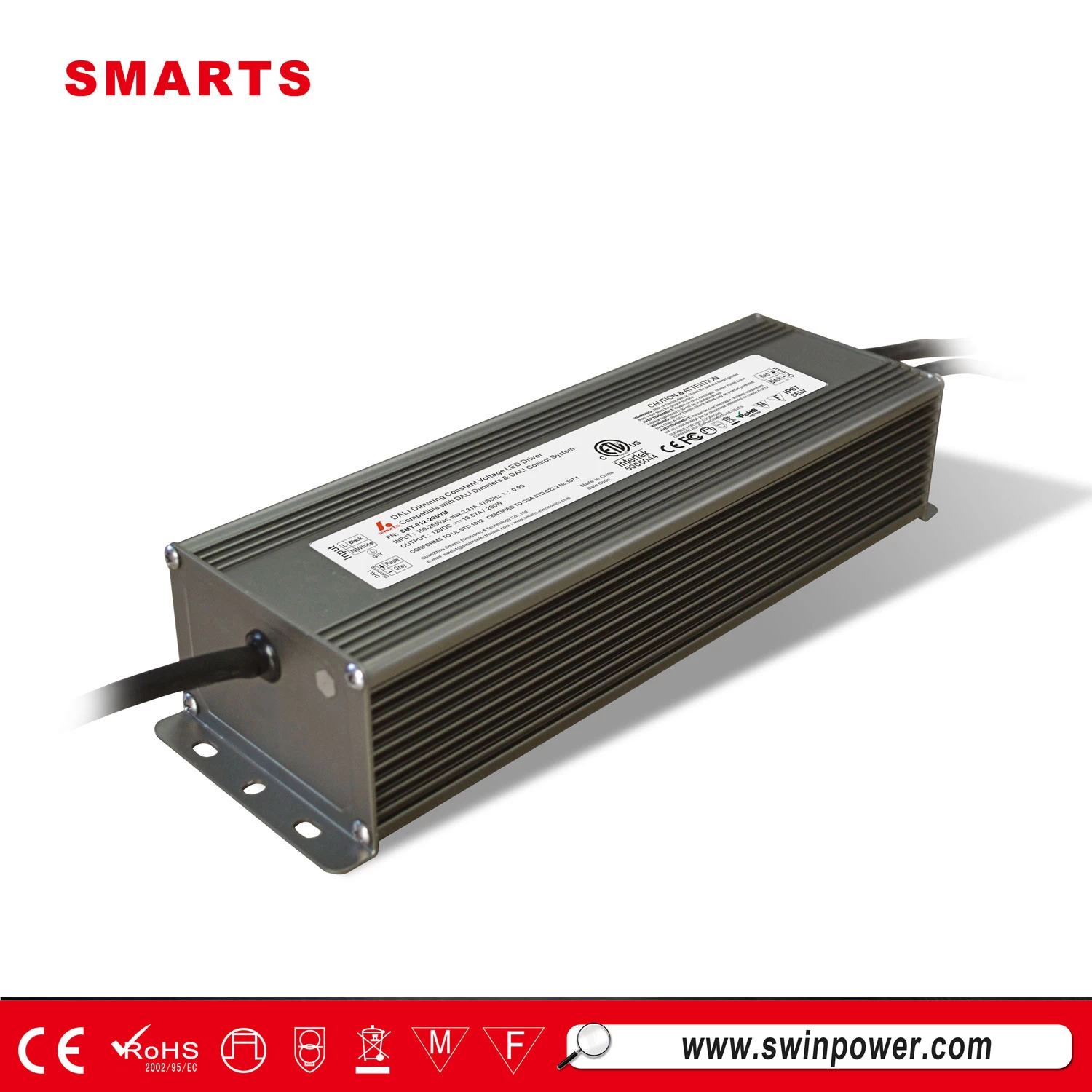

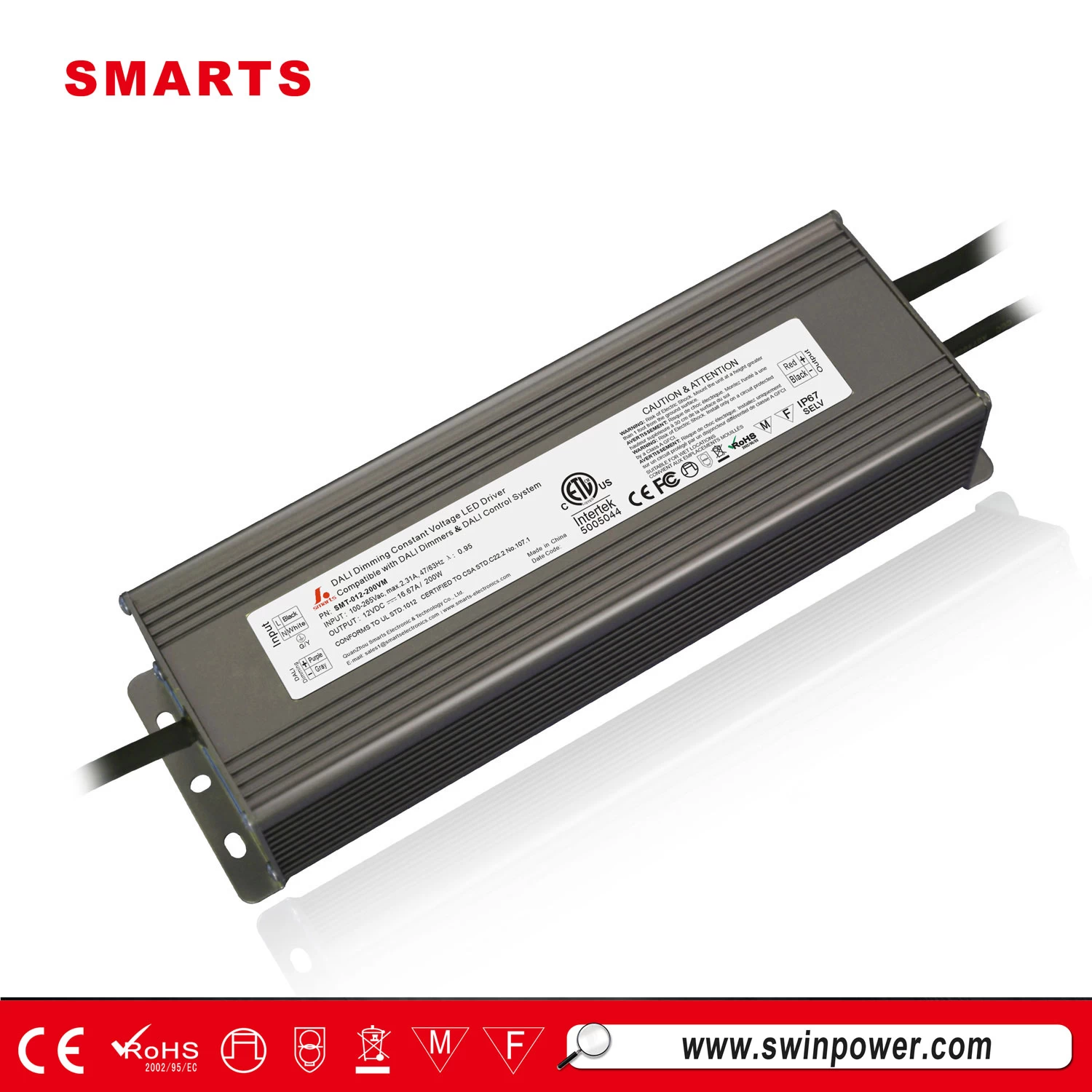

5 years warranty 12v 24v 200w dimmable constant voltage led driver
12v 24v power supply. is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must
be-qualify EMC Directive on the complete installation again.
Feature:
-
Output constant Voltage
-
Range: 100-265VAC
-
Built-in active PFC function, PF>0.90
-
Working Efficiency >88%
-
Protections: short circuit/over load/ over current/ over temperature
-
Cooling by free air convection
-
IP67 design for indoor and outdoor installation .
-
Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
-
Dimming range from 0.1% to 100%
-
5 years warranty
-
Suitable for intelligent LED lighting
-
Compliance to worldwide safety regulations for lighting
-
Suitable for dry locations
Specification
|
Model
|
SMT-012-200VM
|
SMT-024-200VM
|
SMT-036-200VM
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
36VDC
|
|
|
Voltage Accuracy
|
±0.5V
|
|
|
Rated current
|
0～16.67A
|
0～8.33A
|
0～5.55A
|
|
|
Rated power
|
200W
|
200W
|
200W
|
|
Input
|
Voltage Range
|
100-265VAC
|
|
|
Frequency Range
|
47～63HZ
|
|
|
Power Factor ( Typ.）
|
PF≧0.90/100V, PF≧0.90/220V
|
|
|
Full Load Efficiency（Typ.）
|
>88%/110, 220V
|
>88%/110, 220V
|
|
|
AC
Current（Typ.）
|
2.30A/110VAC
|
1.15A@220VAC
|
|
|
Leakage current
|
﹤0.72mA/110VAC, ﹤0.74mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition
is removed
|
|
|
Over Current
|
≦1.4*I out
|
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+50℃
|
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 IP67
|
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry
level （surge4KV）
|
|
Others
|
Weight
|
1.8Kg
|
|
|
Size
|
250*79*52mm（L*W*H）
|
|
|
packing
|
355*215*215mm/10pcs/CTN / 240*70*50 mm for inner box
|
|
Not
es
|
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and
25℃of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Problem Analysis
Question:
what is the HS code for this Power supply?
Answer:
HS code is 8504401400
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
-
MOQ: 1 pcs
-
Delivery: 7 working days for sample order,12 working days for 500pcs.
-
Shipping freight are quoted under your requests.
-
Loading port: Xiamen
